HCC Intelligence Coarse Coal Centrifuge
- Product: HCC Intelligence Coarse Coal Centrifuge;
Condition: New;
Certification: ISO9001:2008;
Warranty: 1 Year
After-sales Service Provided: Engineers available to service overseas;
Installation: Engineer guide
Product Type: coal/salt Centrifuge.
Product introduction

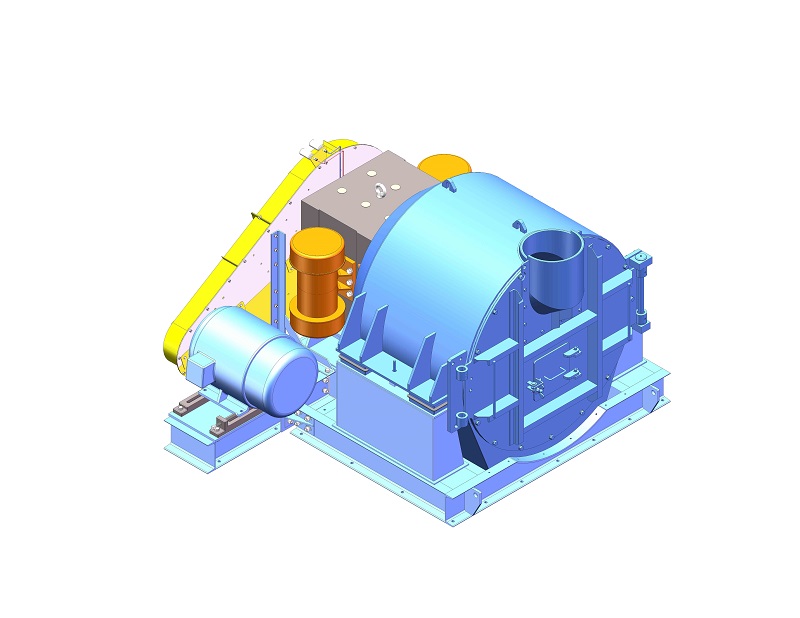

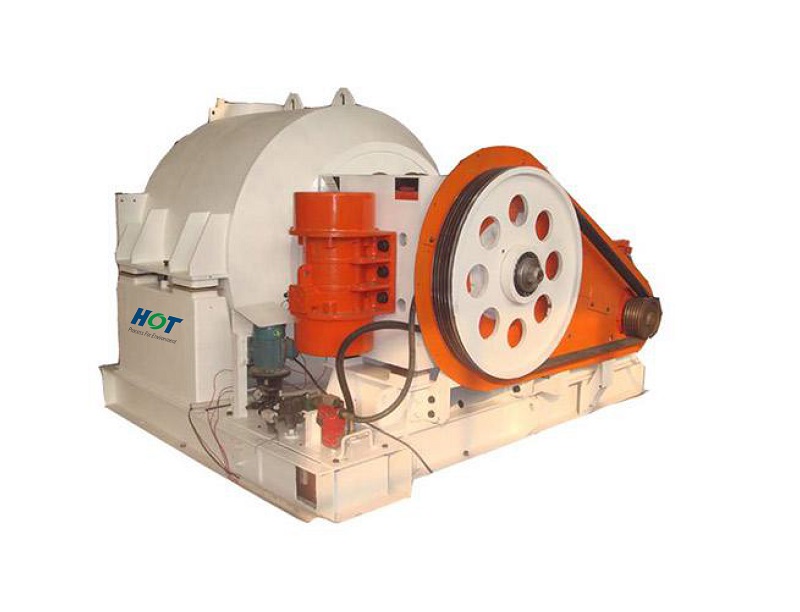

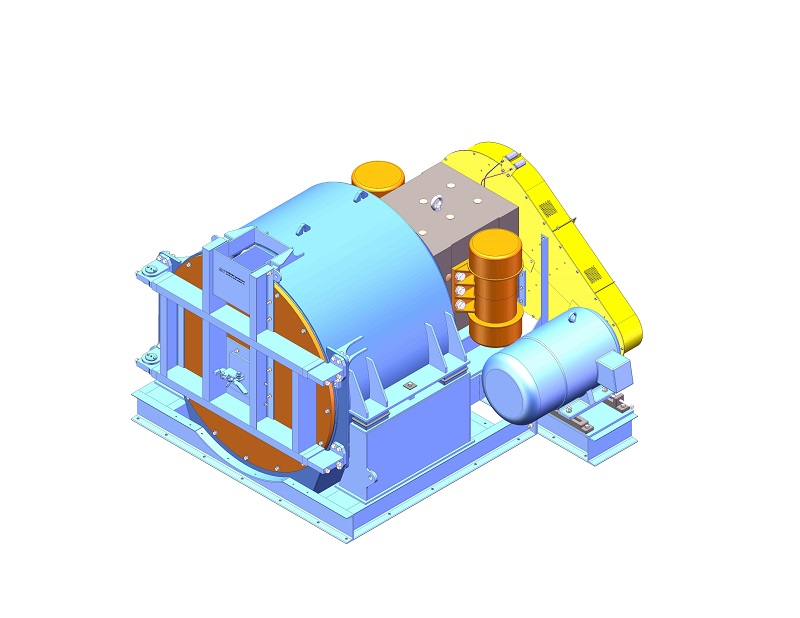

The HCC Intelligence Coarse Coal Centrifuge is Horizontal vibration centrifuge. It is mainly used to separate suspended solid particles and liquids, and widely used in coal processing, mineral processing, water treatment and other industries. The working principle is that the vibration of screen basket is realized by two vibrating motor which are installed on the master. The vibration force is transmitted to the main spindle by the vibrating organism, which drives the vibration of the screen basket, and meanwhile, the spindle is driven by a driving motor to rotate the screen basket through a belt, and finally the feed is centrifugally dehydrated in the screen basket and discharged by vibration.
Product features：
1. High working efficiency, low product moistures, low coal loss rate.
2. Wide particle size range and strong processing capacity
3. Low energy consumption; reduce the production costs of coal preparation plant.
4. Less easy wear parts, lower raw coal crushing rate.
5. The structure is simple, flexible, durable and easy to maintain.
6. Reduce plant height and the investment cost
7. Vibration balance and low noise.
8. Optimum design for the actual demand of coal industry
Technical advantage：
Ø All the key components of the equipment are selected from international well-known brands with excellent equipment performance and long service life.
Ø The exciting source of the equipment adopts two independent vibration motors, which has great excitation force and good vibration effect.
Ø The amplitude of vibration motor is 2 to 6mm, which can adjust the amplitude conveniently.
Ø The impact force of the spindle and bearing is small, and the vibration of the screen basket is uniform.
Ø The use of polyurethane bumper block and damping rubber mounts reduces noise and foundation vibration
Ø The integrated design of feed chute and centrifuge door plate made the material also vibrates when through the chute, ensuring the uniformity and looseness of feeding material.
Ø The rotary machine adopted the pressurised lubrication system with thin oil. The system has three functions: lubrication, cooling and lubricating oil purification.
Ø All the consumable parts are protected by polyurethane or high alumina ceramic lining, which prolongs the service life of the equipment.
Ø The hinge door plate and the screen basket disassembly tool for special use facilitate the replacement of the screen basket.
Ø Realize Intelligent control of mechanical & electrical integration of equipment, on-line monitoring of bearing temperature, early warning, improving the reliability of equipment operation.
Ø Motor position and opening direction can be flexibly selected with users.
Technical data：
No. Tpye Feeding
Size
(mm)
Capacity
(t/h)
Product
Mositure
(%)
Coal Loss
rate(%)
Service Life
of Basket
(month)
Power of
Drive Moter
(KW)
Power of
Virating Moter
(KW)
Power of Oil Pump Motor
(KW)
Total Power
(KW)
Size
(mm)
Weight
(KG)
1 HCC1100 0.5-50 140-180 5-9 2.5-3.5 3-6 37 2*3.0 0.75 43.75 2586*2743*1877 7275 2 HCC1300 0.5-50
180-210 5-9 2.5-3.5 3-6 45 2*4.0 0.75 51.75 2586*2743*1877 7324 3 HCC1400 0.5-50 210-250 5-9 2.5-3.5 3-6 45 2*4.0 0.75 53.75 2959*2759*1917 8229 4 HCC1500 0.5-50 300-350 5-9 2.5-3.5 3-6 75 2*8.4 0.75 92.55 3257*3125*2192 11430 5 HCC1650 0.5-50 370-410 5-9 2.5-3.5 3-6 75 2*8.4 0.75 92.55 3314*3136*2211 12500

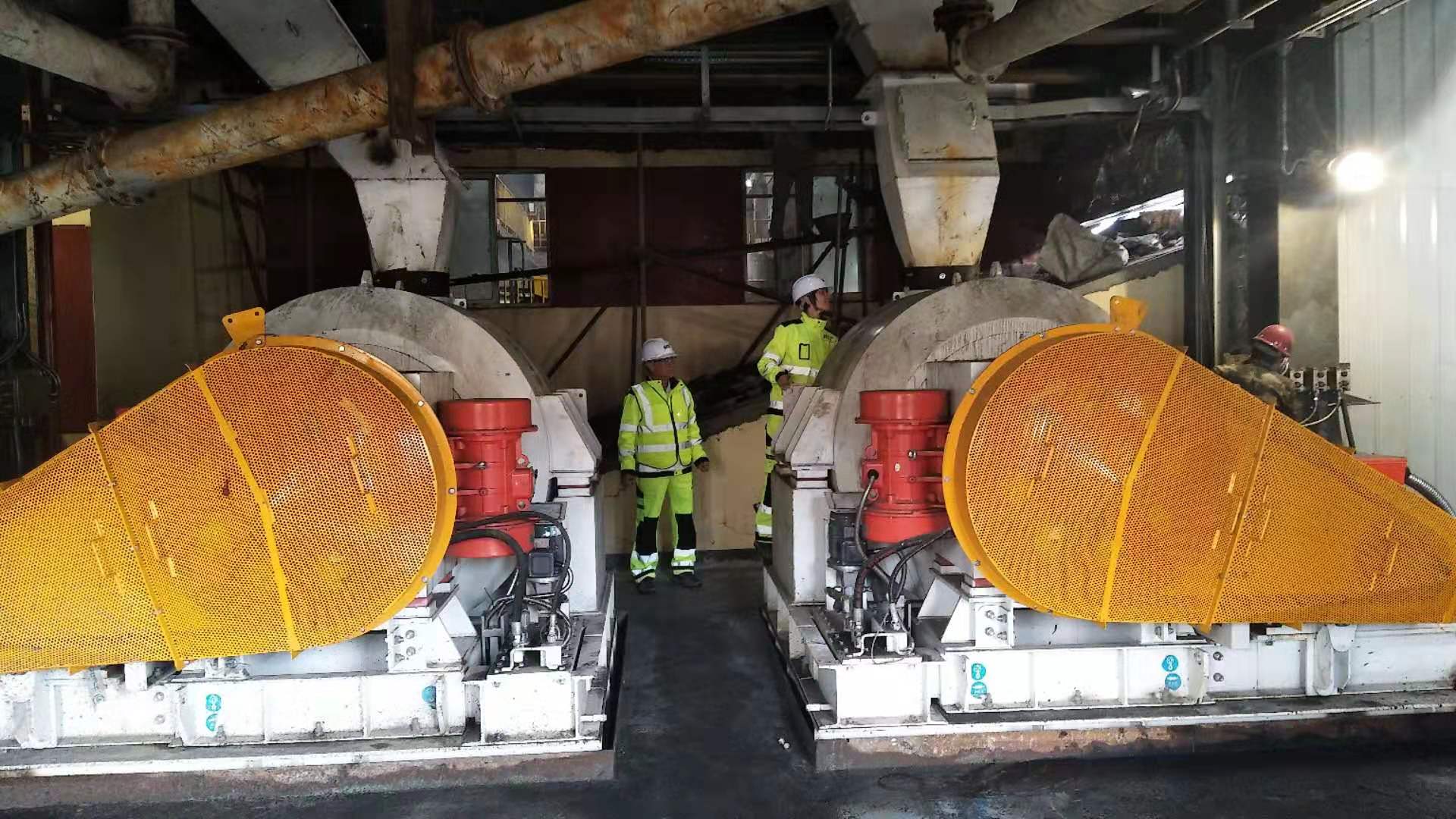

Application
