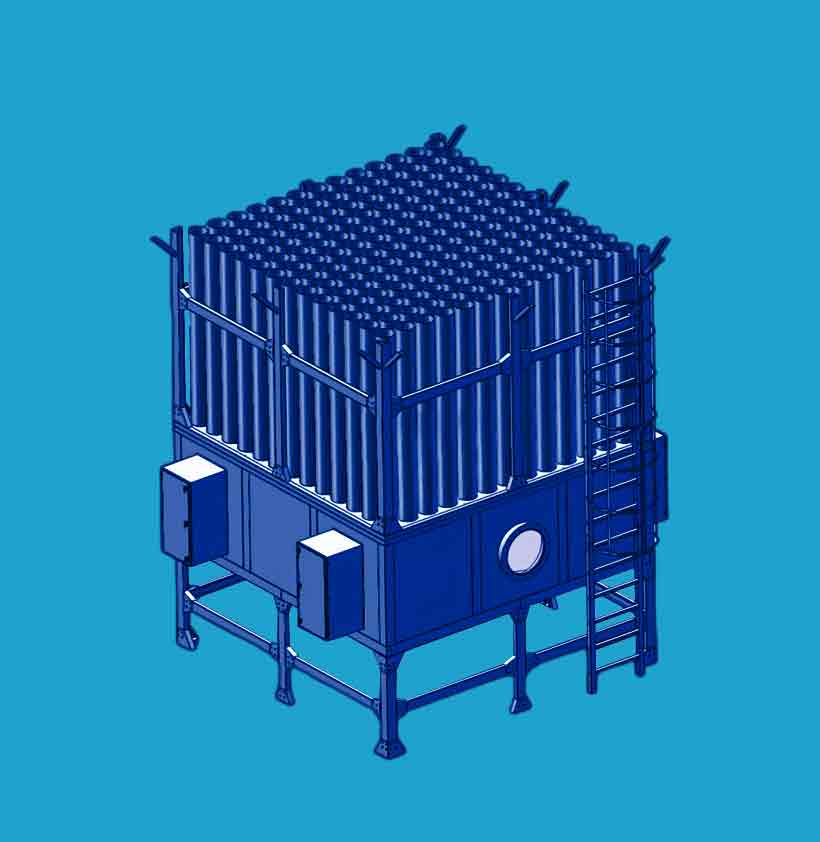

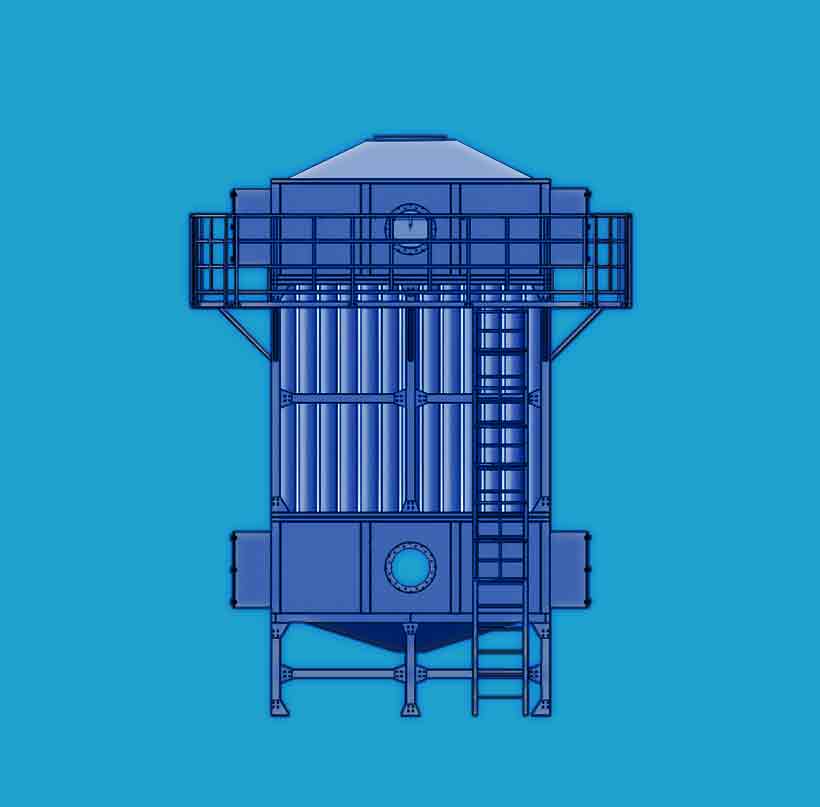

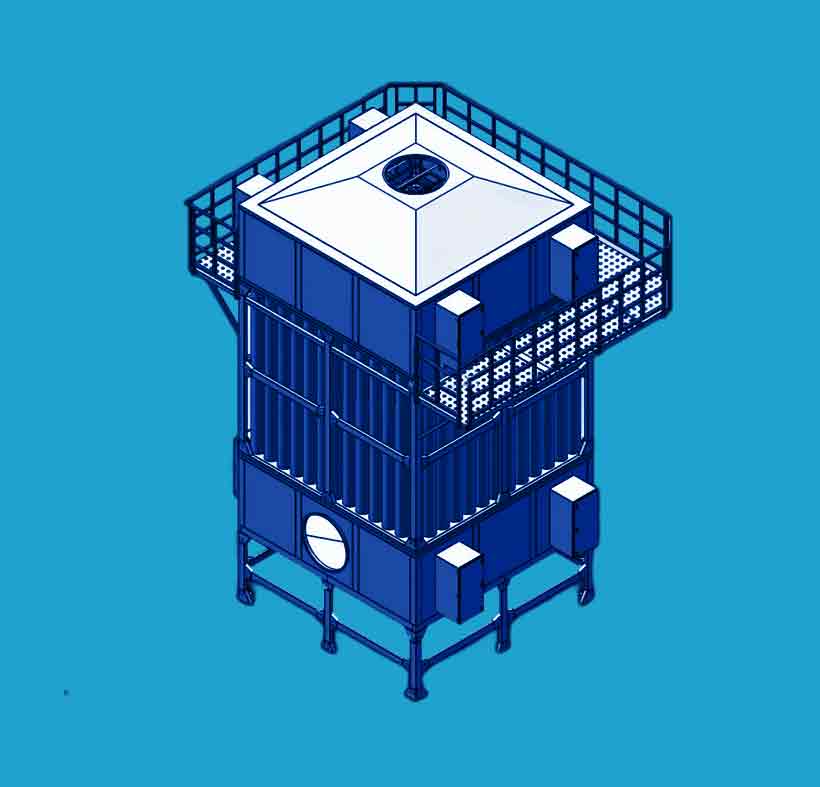

Wet Electrostatic Precipitator for Efficient Air Purification
- The Wet Electrostatic Precipitator is a highly efficient and economical dust removal device designed for continuous and effective removal of fine particulate matter from flue gases. It serves as a terminal device in dust removal systems, often used in industries where stringent emission standards must be met.
Wet Electrostatic Precipitator for Efficient Air Purification
1. Introduction
The Wet Electrostatic Precipitator (WESP) is an efficient dust removal device.
2. Working Principle

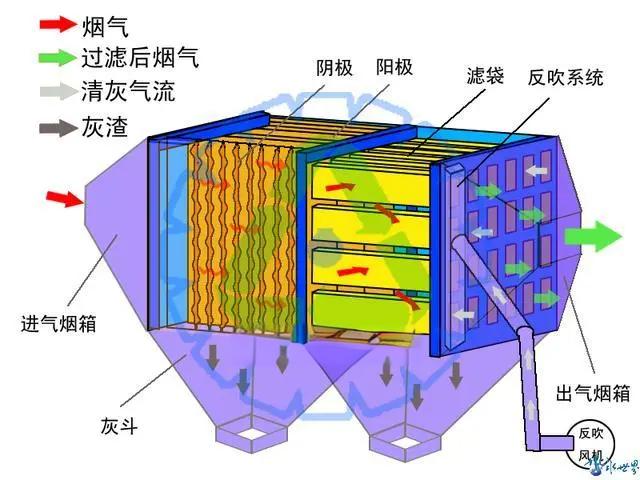

Its working principle involves the following process: When dust-laden gas enters the WESP, it is ionized under the influence of a high-voltage electric field. As a result, dust particles become charged and migrate towards the collecting electrodes, ultimately being carried away by rinsing water, thereby achieving dust removal.
3. Key Features
3.1 High Dust Removal Efficiency: Effectively captures fine particles, particularly exhibiting a high removal rate for PM2.5 and other minute particles.
3.2 Wide Range of Applications: Capable of handling dust-laden gas with high humidity and adaptable to various operating conditions.
3.3 Low Resistance: Operates with relatively low airflow resistance, resulting in lower energy consumption.
3.4 No Secondary Dust Emission: As dust particles are collected by water rinsing, the generation of secondary dust is minimized.
3.5 Simultaneous Removal of Multiple Pollutants: Apart from dust, it also demonstrates a certain level of synergistic removal for gaseous pollutants such as sulfur dioxide and nitrogen oxides.
4. Fields of Application:
Widely used in the waste gas treatment of industries including power, steel, chemical, metallurgy, and building materials, especially exhibiting unique advantages in complex environments with high humidity and dust levels.
In summary, the Wet Electrostatic Precipitator is a sophisticated and efficient dust removal technology that not only meets but often exceeds modern environmental standards. Its versatility, high performance, and cost-effectiveness make it an invaluable tool for industries seeking to reduce their environmental footprint.
