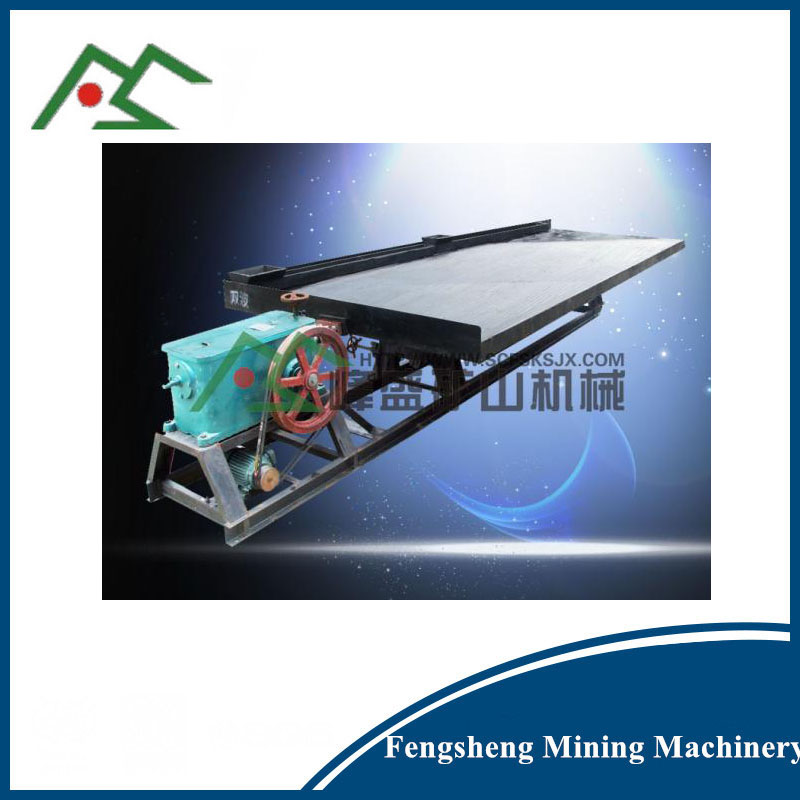

6-S Concentrating Table
- The 6-S concentrating table is one of the main equipment of gravity concentration. It is widely used in the beneficiation of tungsten, tin, tantalum, niobium, gold and other rare metals and precious metals.
Model: 6-S Concentrating Table
Type: Gravity Separation Equipment

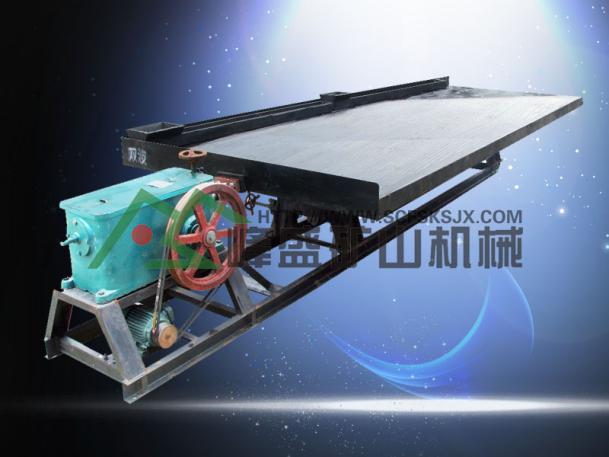

6-S Concentrating Table
1.Introduction
The 6-S concentrating table is one of the main equipment of gravity separation. It is widely used in the beneficiation of tungsten, tin, tantalum, niobium, gold and other rare metals and precious metals. It can be used for different operations: rough concentration, concentration and scavenging, different particle size fraction: coarse sand (2-0.5mm), fine sand (2-0.5mm), and slime (-0.074). The effective recycling granularity scope of concentrating table is 2-0.22 mm when handle the tungsten and tin ore.
The 6-S table has the merit: the high-grade ore scaled, the classification efficiency high, safeguards easily, and advantageous for the adjustment stroke. Changing the transverse slope and stroke still can keep the balance of bed surface.
2.Specifications
Unit
Coarse ore bed surface
Fine ore bed surface
Slime bed surface
Bed Size
Length
mm
4450
4450
4450
Transmission end width
mm
1855
1855
1855
Concentrate end width
mm
1546
1546
1546
Maximum feeding size
mm
2
0.5
0.15
Feeding quantity
t/d
30-60
10-20
15-25
Feeding concentration
%
25-30
20-25
15-25
Stroke
mm
16-22
11-16
8-16
Frequency
f
45-48
18-53
50-57
Water consumption of bed surface washing
t/d
80-150
30-60
10-17
Transverse slope of bed surface
Degree
2°30-4°30
1°30-3°30
1°-2°
Longitudinal gradient of bed surface
Degree
1.4
0.92
-----
Bed surface tip angle
Degree
32°-42°
40°
42°
Beneficiation area
Cubic meter
7.6
7.6
7.6
Bed length ratio
2.6
2.6
2.6
Bed section shape
Rectangle
Sawtooth
Triangle
Motor power
KW
1.1
1.1
1.1
Driving mechanism
Eccentric connecting rod mechanism
3.Main Accessories
No.
Name
Specification
Quantity
Remark
1
Crankshaft oil seal
￠74×￠48×12
1
Outsourcing
2
Reciprocating rod oil seal
￠60×￠36×12
2
Outsourcing
3
Taper-roller bearing
7310#
2
Outsourcing
4
Triangle belt
A Type 2025
2
Outsourcing
