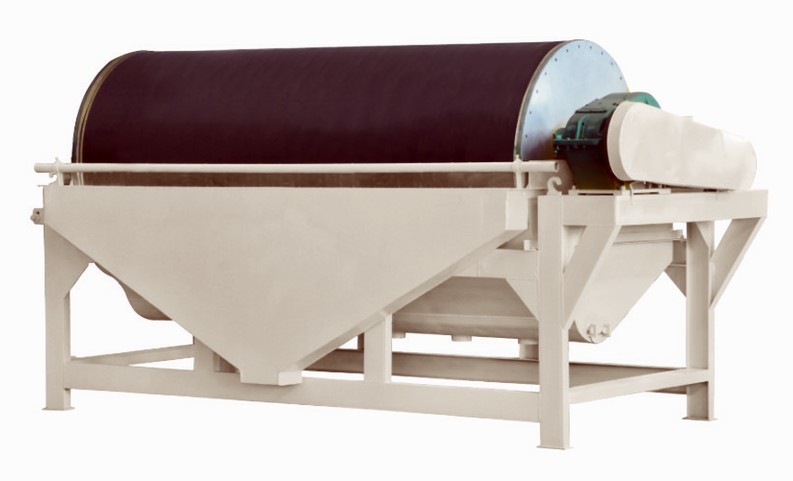

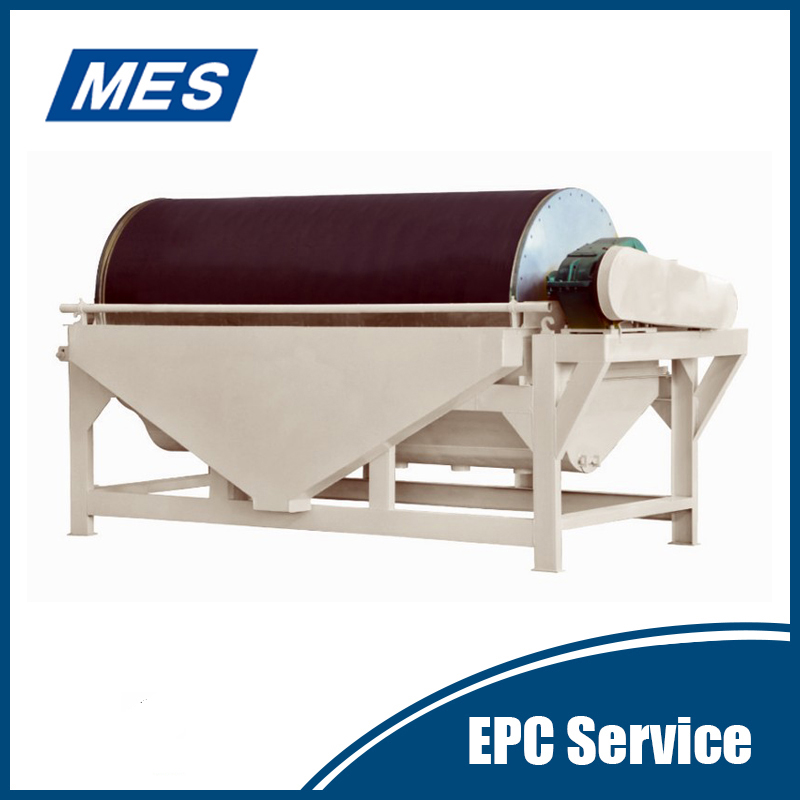

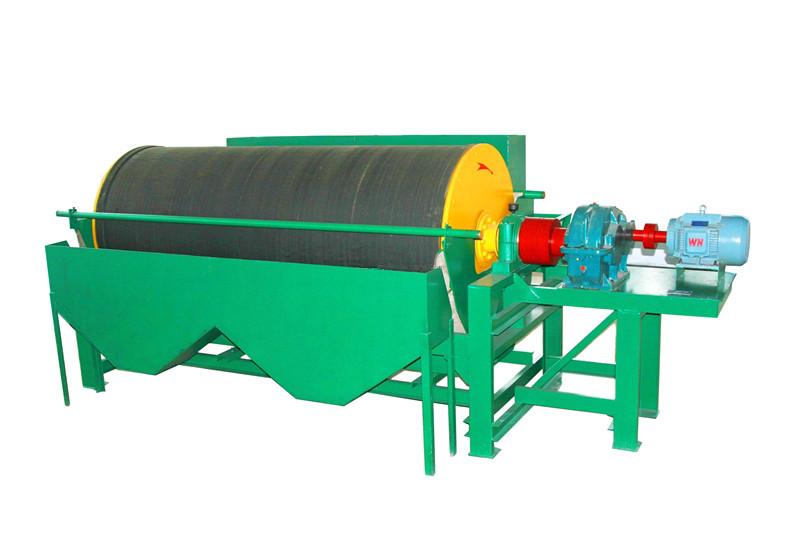

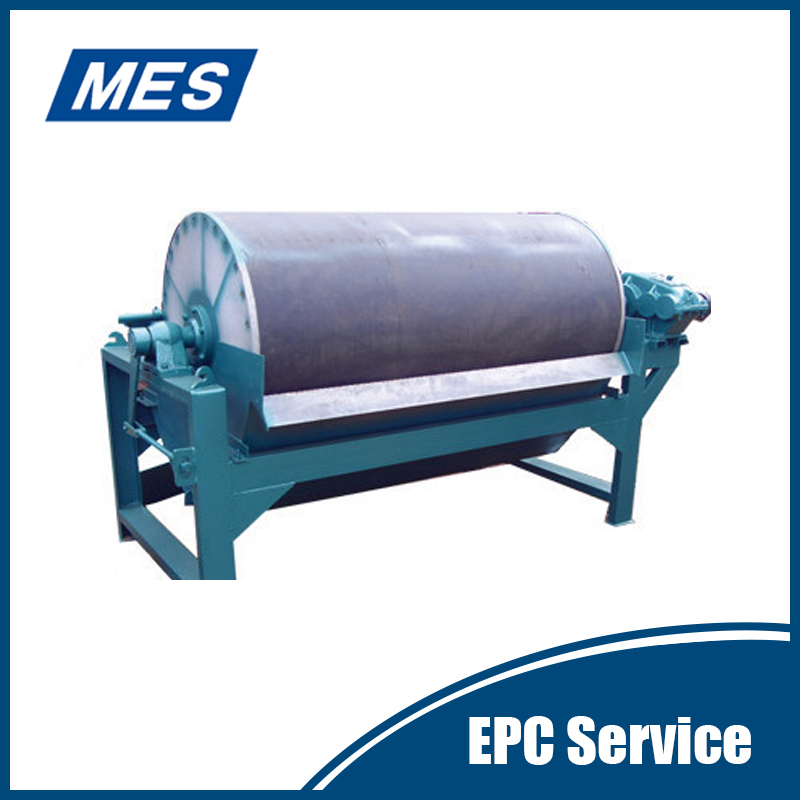

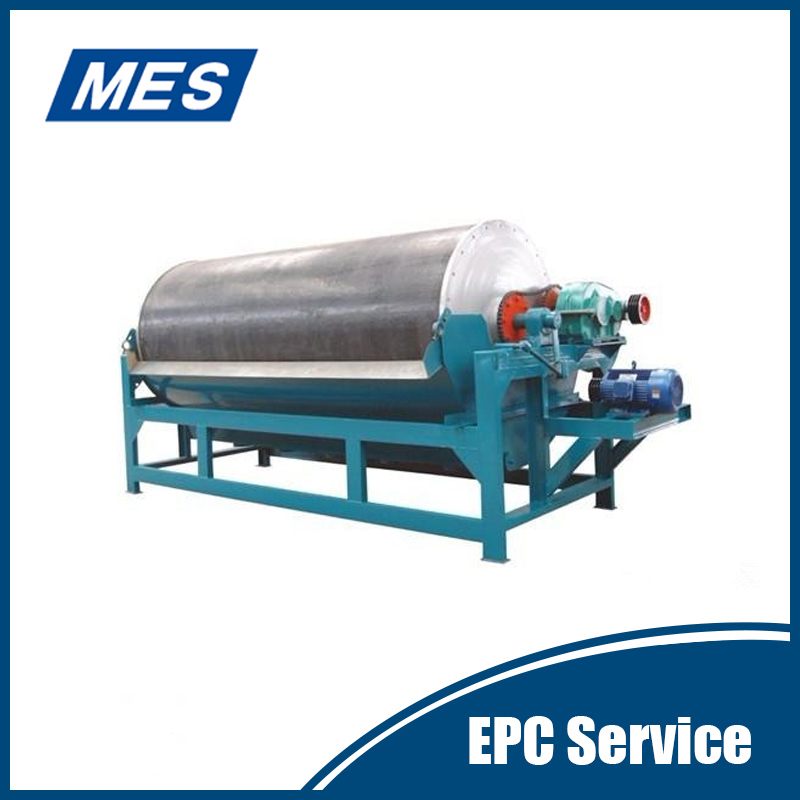

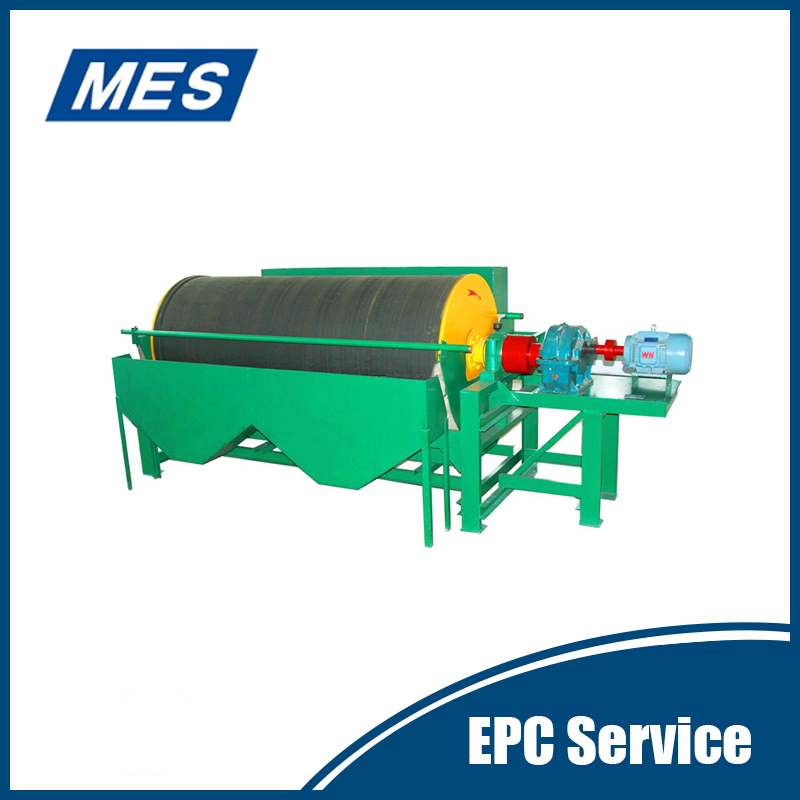

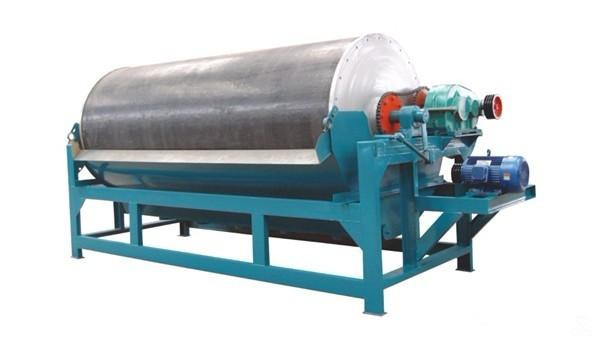

Magnetic Separator
- Magnetic separator is widely used in coal preparation and mineral processing with particle size is between 0-20mm, to recovery heavy particle in coal preparation plant, and remove iron ore in non-metallic processing.
Heavy media content: 87-130kg/m³.
Recycling Rate: >99.7%.
Rotation Speed: 14mrp.
Magnetic Intensity: 180/300mt.
Handling Capacity: 165m³/h.
Motor Power: 4kw.
Volume: 3029*1635*1833mm.
Weight: 2300kg.
Magnetic Separator
1. Product Introduction about Magnetic Separator
Standard intensity Wet magnetic drum separator is widely used in coal mine processing. With the development and expansion of heavy media processing technique, drum separator for heavy media processing is widely used in coal-washing plant. The structure of coal mine used drum separator has never had big change, while with the application of new magnetic material, magnet developed from simplex ferrite, mixed magnet to rare earth super strength magnet. Magnetic intensity was raised greatly, improving the recovery percent and lowering media consuming effectively.
2. Working Principle of Magnetic Separator
The materials are uniformly fed to the belt. When materials go through the permanent magnetic drum, the non-magnetic and low-magnetic particles will leave the belt surface because of the centrifugal force and gravitation. Meanwhile, strong-magnetic particles are absorbed to the belt by magnetic force and then fall into the magnetic trough when the belt leaving the magnetic pulley.
3. Features of Magnetic Separator
3.1 Important role in coal mine recycling.
3.2 High Mineral Permanent Magnet.
3.3 Keep magnetism for long time.
3.4 Double stainless steel structure of the pullyer.
3.5 High recycling rate.
4. Main Application of Magnetic Separator
4.1 It is applied in lean iron roughing after the roughing crushing or middling crushingto remove deads, improve grade, and reduce the load of the next procedure.
4.2 For not fully reductive raw ore of hematite reduction.
4.3 For the ceramic industry to remove iron and improve the quality of ceramic products.
4.4 For other industries needing to remove iron, such as Burning coal, sand casting, refractory material, etc.
5. Technical Parameters of Magnetic Separator
|
Types |
Specification of Pullyer |
Rotation Speed |
Magnetic Intensity |
Handling Capacity |
Motor Power |
Volume |
Weight |
||
|
Diameter(mm) |
Length(mm) |
mrp |
(mt) |
t/h |
m³ |
kw |
mm |
kg |
|
|
HMDS918 |
36(914) |
72(1829) |
14 |
180/300 |
25 |
165 |
4 |
3029*1635*1833 |
2300 |
|
HMDS921 |
36(914) |
84(2134) |
14 |
30 |
190 |
4 |
3334*1635*1833 |
2550 |
|
|
HMDS924 |
36(914) |
96(2438) |
14 |
35 |
220 |
4 |
3639*1635*1833 |
2740 |
|
|
HMDS927 |
48(1219) |
117(2971) |
14 |
45 |
195 |
5.5 |
4218*1635*1833 |
3060 |
|
|
HMDS1218 |
48(1219) |
72(1829) |
12 |
45 |
195 |
5.5 |
3029*2180*2444 |
2800 |
|
|
HMDS1221 |
48(1219) |
84*2134 |
12 |
55 |
230 |
5.5 |
3334*2180*2444 |
3060 |
|
|
HMDS1224 |
48(1219) |
96(2438) |
12 |
65 |
260 |
5.5 |
3639*2180*2444 |
3300 |
|
|
HMDS1227 |
48(1219) |
108(2743) |
12 |
70 |
295 |
7.5 |
3992*2180*2444 |
3680 |
|
|
HMDS1230 |
48(1219) |
117(2972) |
12 |
330 |
330 |
7.5 |
4218*2180*2444 |
3900 |
|
