G-Star FD System
- G-StarFD Satellite communication system is based on IP protocol and FDMA/dSCPC. Using Star-link, the system can set up topology network which build a two-way communication path between earth stations and moving stations. Speedy, stabilization, and bandwidth are outstanding features of the system.
G-Star FD System
>>Introduction

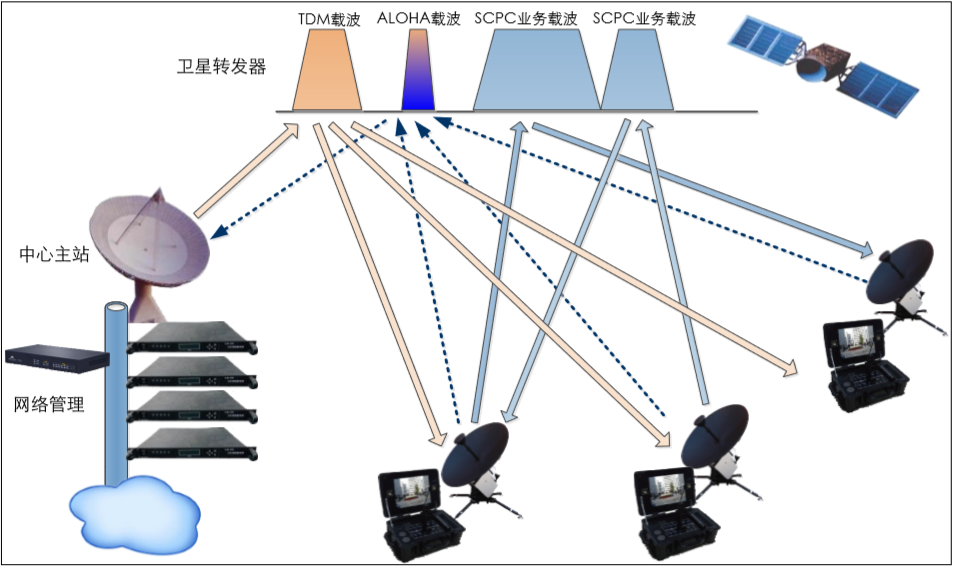

G-StarFD Satellite communication system is based on IP protocol and FDMA/dSCPC. Using Star-link, the system can set up topology network which build a two-way communication path between earth stations and moving stations. Speedy, stabilization, and bandwidth are outstanding features of the system.
>>Features
Star shaped, Tree shaped, and Hybrid Network Topology
Support thousands of end-nodes
Support Network mode and off-line mode
Using FDMA communication system to support dSCPC
High transmission performance and the transmission rate is from 64kbps to 6Mbps
Powerful Network management system(NMS)
Adjust for HDR scene mode
Auto ULPC
Customize Software

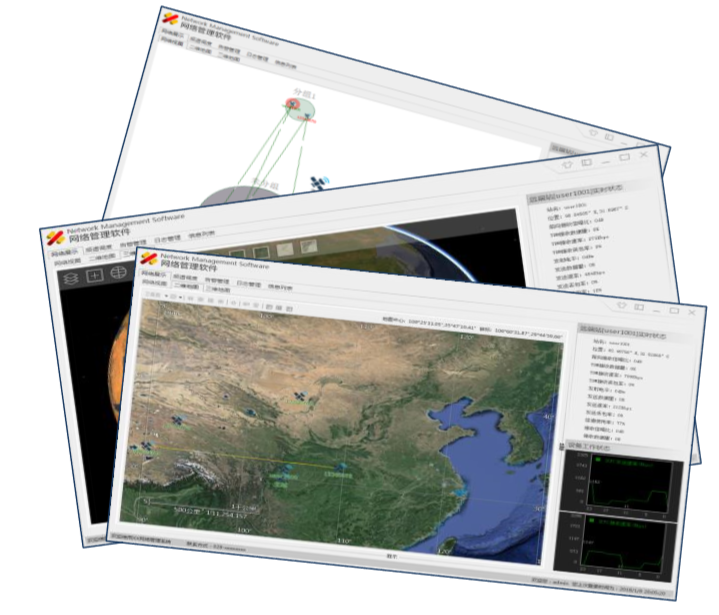

>>NMS
C/S Structure provides high efficiency network status display of topology view, 2D
Map, and 3D Map
Simple operating interface
Real- time visual frequency planning
Secondary group management
Group management providing a flexible management
Differential customer service
Monitor real-time visual station and link status
Analyze Graphical display
View historical job log
System state alert
G-Star FD Modem

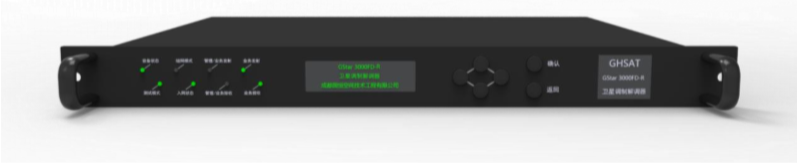

G-Star 3000FD>>Introduction
G-Star 3000FD Satellite Modem is based on FDMA integrating satellite modem, IP
router, QoS, and TCP. Suiting with antenna, G-Star 3000FD can be managed by
satellite NMS and contribute to build star shaped, tree shaped, and mesh shaped
communication network. The modem also can connect with encoder and other IP
extension devices.
>>Features
✓ It’s the IDU device for main control station of G-Star FD
✓ Stacked structure realizes the function of multi-channel
✓ Use FDMA and support both mesh shaped and star shaped topology
✓ High integration of Satellite modem, network management system, IP router,
QoS, TCP, and so on.
✓ Data rate from 4kbps to 6Mbps
✓ Support ACM
✓ Support dSCPC
✓ Provide multicast, broadcast, and constant rate support services
✓ automatically connect to the Internet after booting, power-off recovery, and
signal-loss recovery
✓ Multi-control type, such as front panel control, Telnet, Web, and serial
interface
