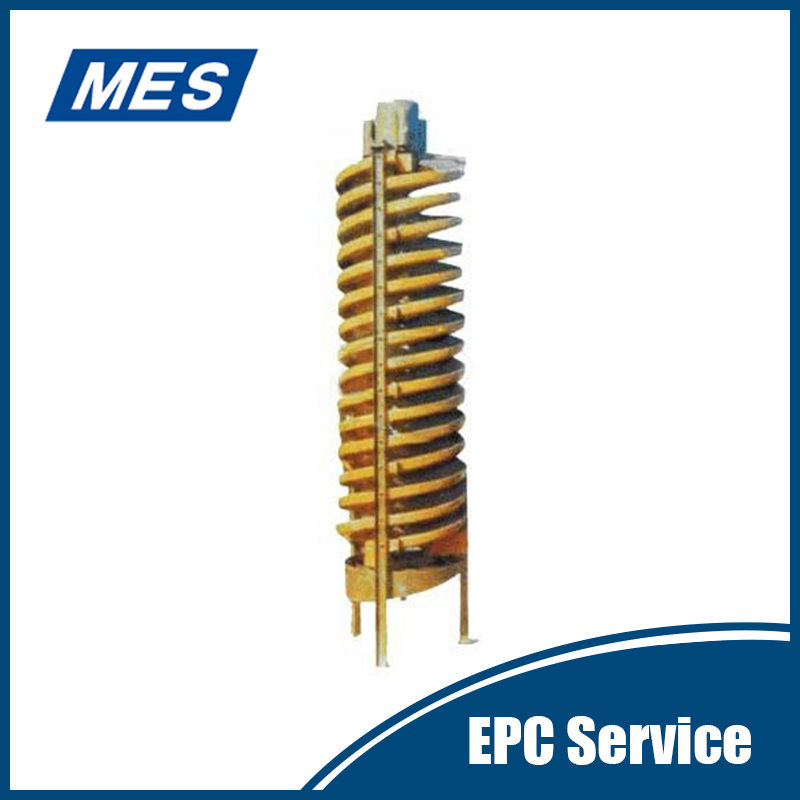

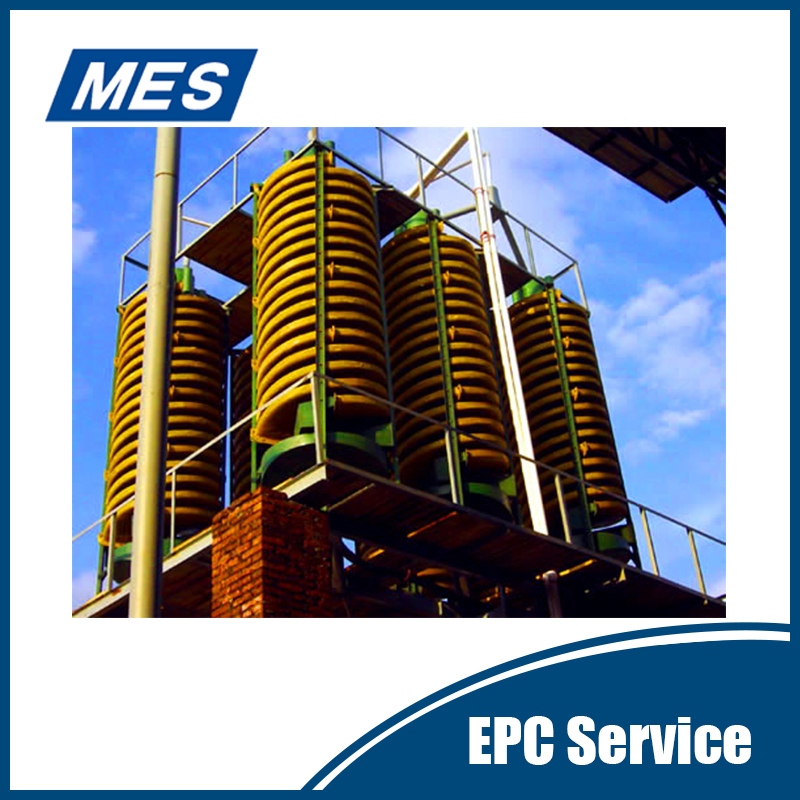

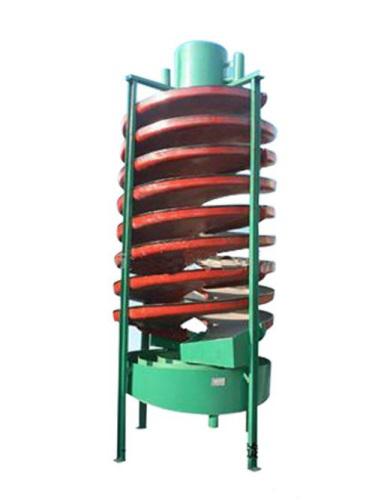

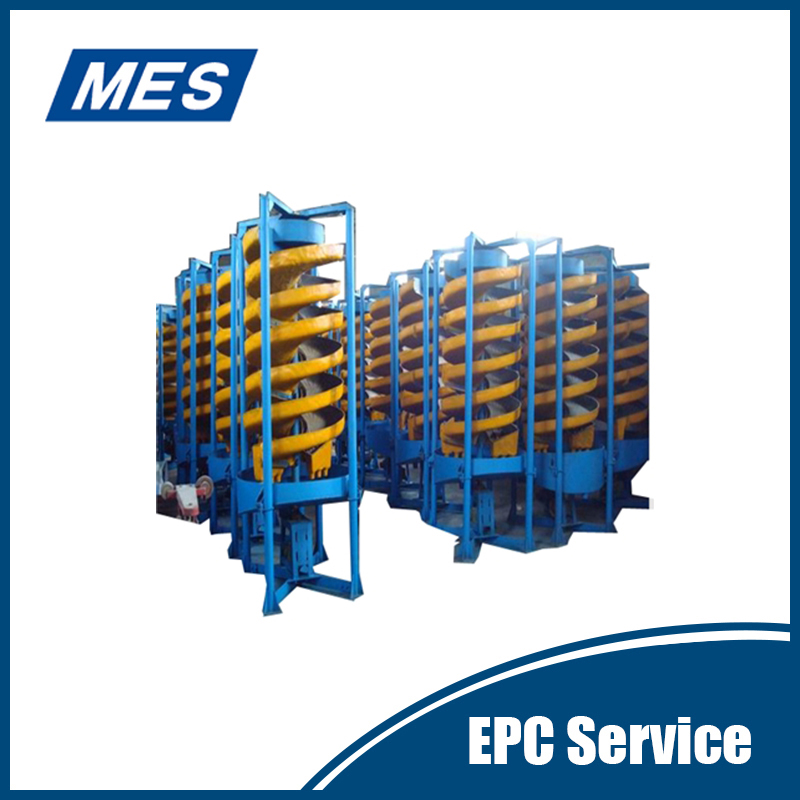

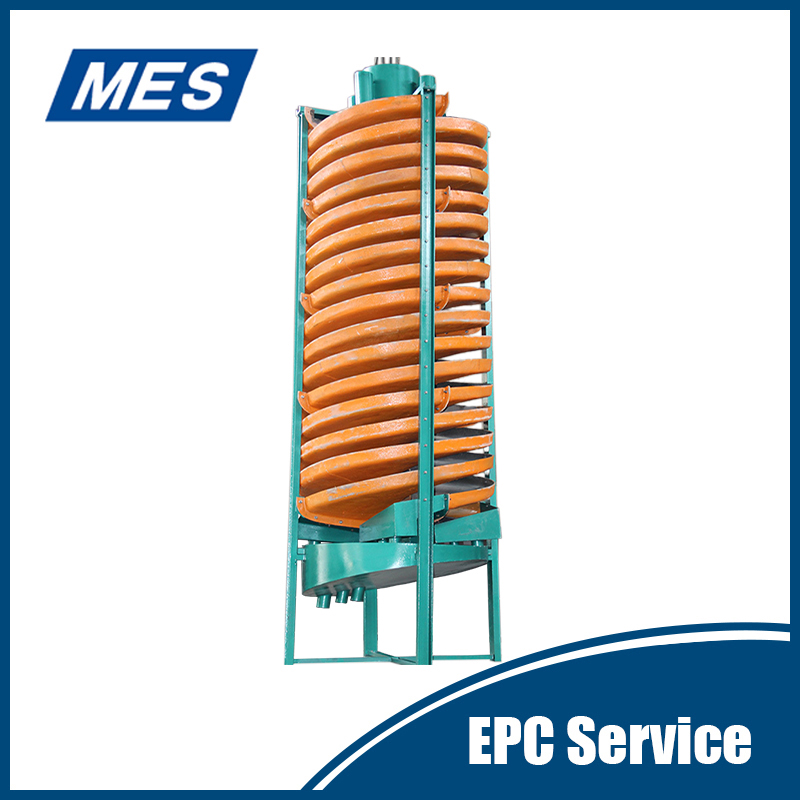

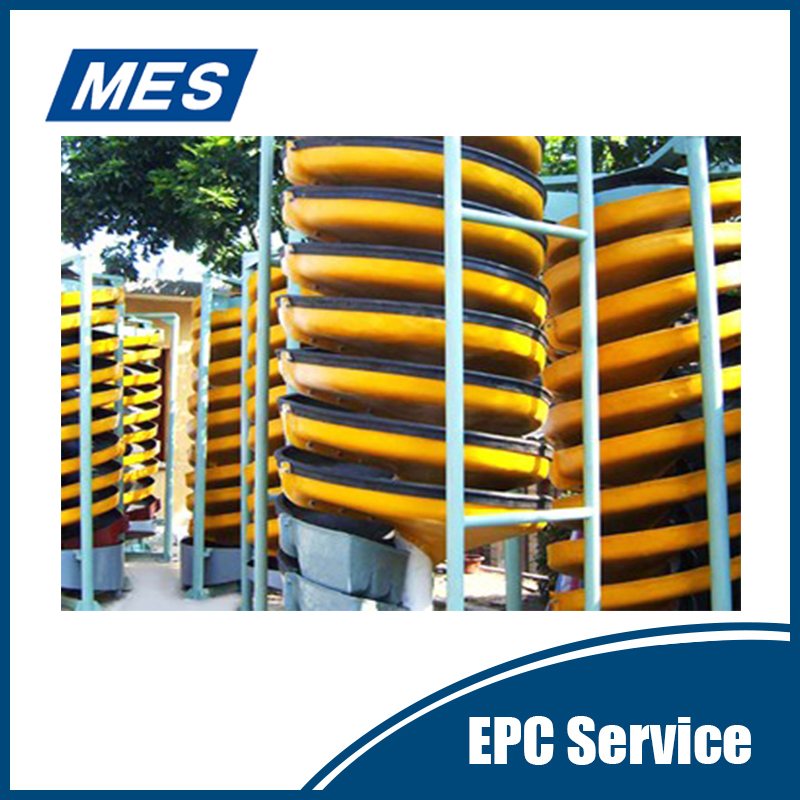

Spiral Chute Separator
- Model: glass-steel spiral chute
Feed size：0.3-0.02mm
Production Capacity: 0.15~8t/h
Application range： Applicable to sort iron ore, ilmenite, chromite, zirconite, rutile, tungsten ore, tin ore, tantalum-niobium ore of the size between 0.3 and 0.02mm.
Spiral Chute Separator
to the international advanced level.
Technical parameters
|
model |
5LL-1500 |
5LL-1200 |
5LL-900 |
5LL-600 |
5LL-400 |
|
|
External diameter(mm) |
1500 |
1200 |
900 |
600 |
400 |
|
|
Screw pitch(mm) |
540,720 |
900,720,540 |
675,540,405 |
450,360,270 |
240,180 |
|
|
screw pitch diameter |
0.75,0.6,0.45 |
0.75,0.6,0.45 |
0.75,0.6,0.45 |
0.75,0.6,0.45 |
0.6,0.45 |
|
|
Horizontal Angle(°) |
9° |
9° |
9° |
9° |
9° |
|
|
Spiral head number |
4-2 |
4 |
4 |
4 |
4 |
|
|
Feed Size (mm)
|
0.3-0.02 |
0.3-0.03 |
0.3-0.03 |
0.2-0.02 |
0.2-0.02 |
|
|
Feeding concentration (%) |
25-55 |
25-55 |
25-55 |
25-55 |
25-55 |
|
|
Dimensions |
Length(mm) |
1560 |
1360 |
1060 |
700 |
460 |
|
Width(mm) |
1560 |
1360 |
1060 |
700 |
460 |
|
|
Height(mm) |
5230 |
5230 |
4000 |
2600 |
1500 |
|
|
Weight(kg) |
800 |
600 |
400 |
150 |
50 |
|
