Portable Full Hydraulic Core Drilling Rigs
Portable Full Hydraulic Core Drilling Rigs
Core drilling rig is a kind of core drilling equipment, which is mainly used for the survey and exploration of metal and non-metallic solid minerals, in addition, can also be used for engineering geological survey, hydrogeological survey, oil and gas field survey and exploration and drilling wells.
The development of drilling technology and the manufacturing level of drilling equipment play an important role in geological exploration, mining, mining development, engineering survey, hydropower survey, geological disaster prevention and control. Portable full hydraulic core drill, as a key equipment for core drilling and construction, can drill holes at specific depths in the formation, and help the development, utilization and other engineering survey projects of mineral resources through the analysis and study of cores taken from the depth of the formation.
Three characteristics of portable full hydraulic core drilling rig :
1) Modular, mast-type drill frame structure;
2) Full hydraulic drive
3)Thin - walled diamond coring drilling technology

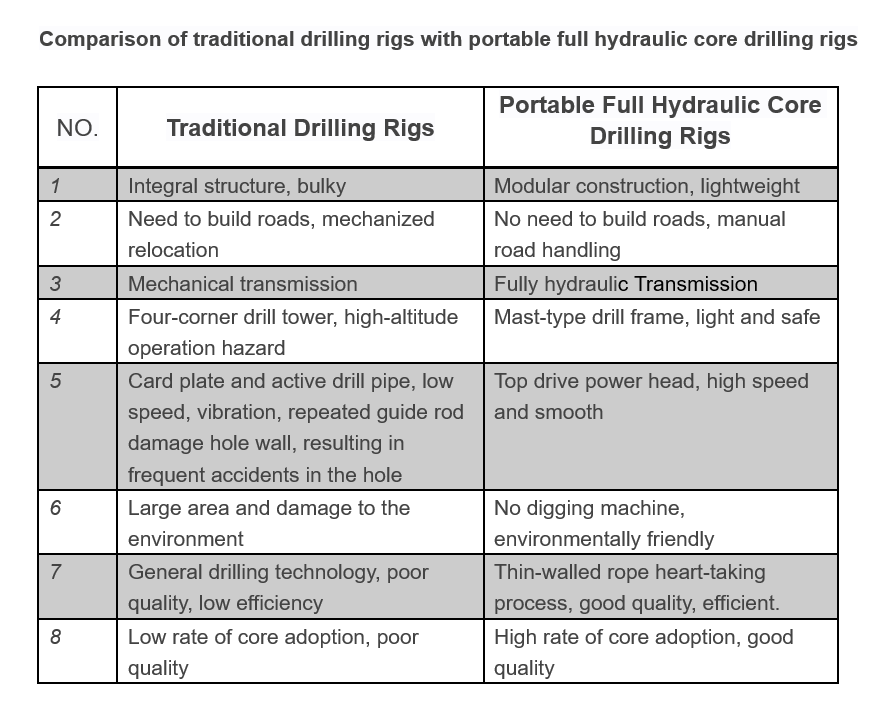

Comparison of traditional drilling rigs with portable full hydraulic core drilling rigs
Equipment models

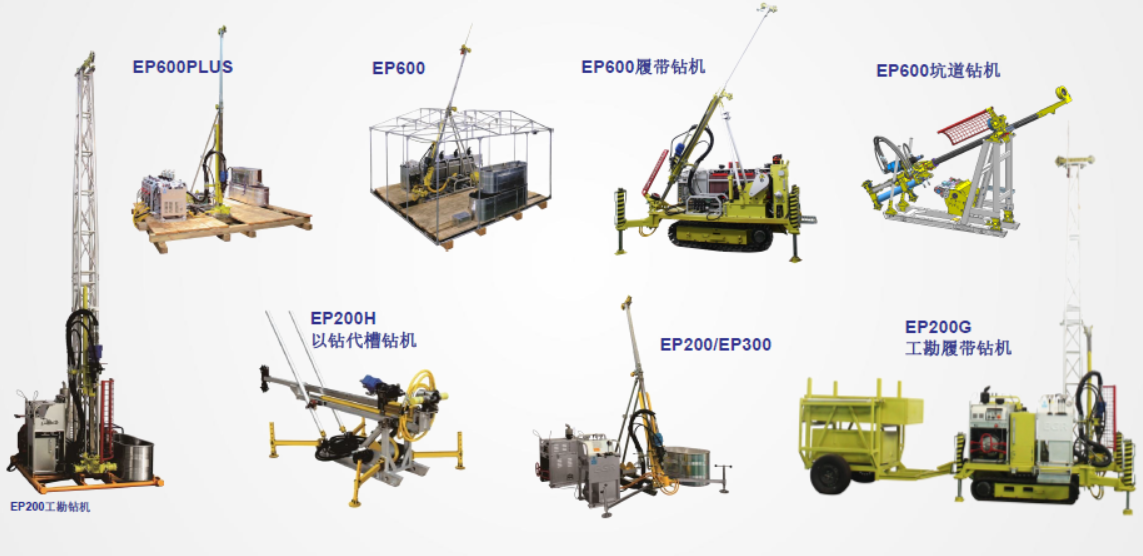

Our EP series portable full hydraulic core drilling rig includes: EP600PLUS, EP600, EP200, EP200G, EP200H and other models.

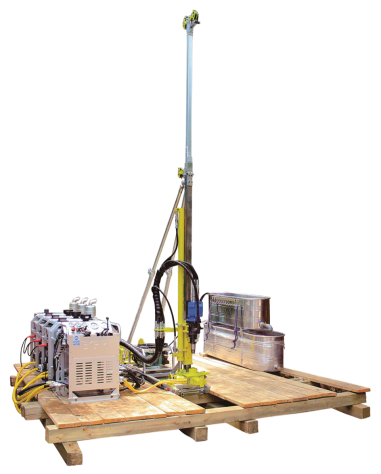

EP600plus is the most capable portable full hydraulic core drilling rig in the EP series, featuring 500-800 meters of deep holes, designed for difficult-to-enter areas and complex formations
Main applications: geological prospecting exploration and tunnel engineering survey

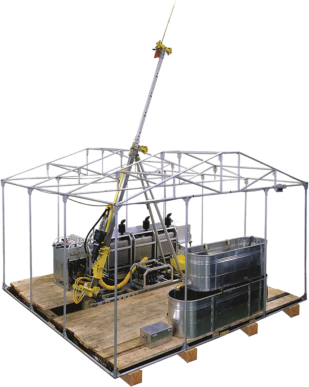

EP600
EP600 is the first portable full hydraulic core drilling machine to be launched in the market. It is the preferred drilling rig in the depth of 600 meters, difficult to enter, steep cutting area; it is a scattered project, the preliminary project must select the drilling rig; it is the preferred drilling rig to grab time and high efficiency.
Main applications: geological prospecting exploration and tunnel engineering survey

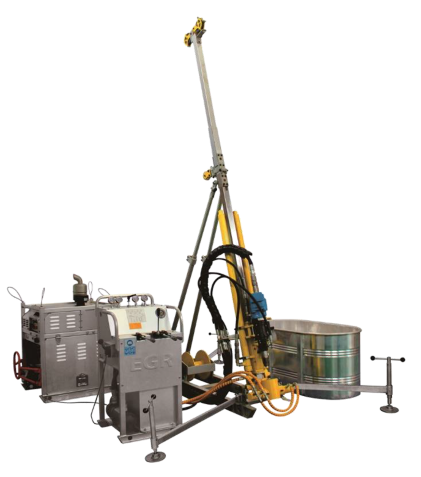

EP200
The EP200 fills the gap in portable full hydraulic drills with a drill depth of less than 200 meters. Lightweight drills from other manufacturers are light but inefficient; traditional small vertical shaft drills are not too bulky and efficient, and the EP200 is not only lightweight but also efficient.
Main applications: geological prospecting and exploration and drilling and sinking projects

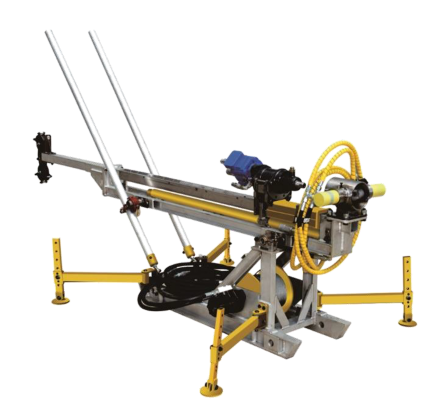

EP200H
The world's lightest aluminum alloy fully hydraulic portable drilling rig, capable of drilling at any angle from 0 to 90 degrees, specially designed for drilling and groove generation
Main applications: geological prospecting and exploration and drilling and sinking projects

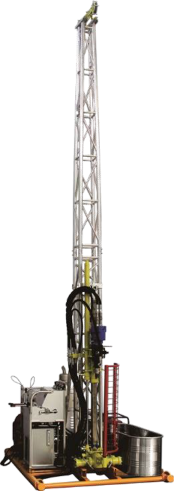

EP200G multi-purpose portable full hydraulic drilling rig
EP200G is a new multi-purpose portable full hydraulic drilling rig introduced in 2016. It has various configurations according to different working conditions, high equipment utilization rate; light weight, easy to disassemble and move; innovative truss structure rig with construction method can be fast Perform an in situ test.

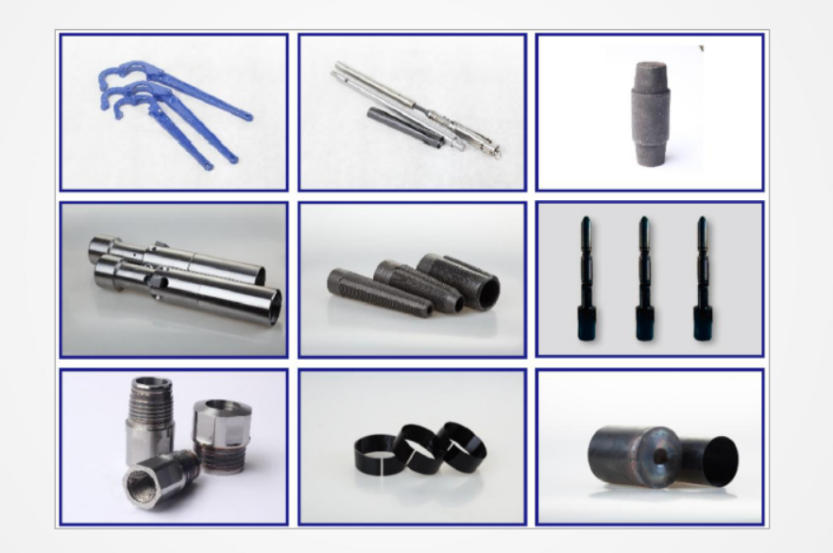

Accessories

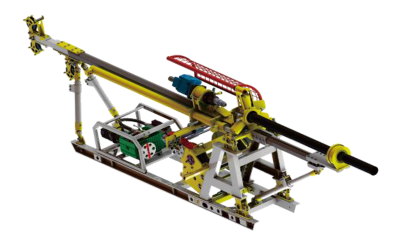

Horizontal drill frame
In the original hexagonal rail system drilling rig, the new horizontal drilling bracket module and rail extension mechanism, through the addition of module combination to meet the needs of horizontal drilling, greatly improve the adaptability of the drilling rig, customers do not need to buy a Special horizontal drilling rig, saving a lot of equipment acquisition input.

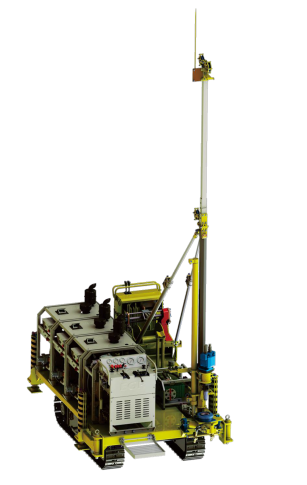

600 series track walking module
EP600 and EP600plus, can be quickly installed on this track walking module, portable full hydraulic drilling rig immediately turned into a full-body full hydraulic drilling rig.
Tip: This series of equipment is suitable for all types of diesel engines and motor engines
3.others
Technical advantages
1. Unique technology - multi-function split flow manifold block
2. Unique technology - hexagonal rail system
3. Unique configuration - American Parker original multi-way reversing valve
4. Key components international first-line brand
5. New materials - high strength aviation aluminum
6. New technology - superb aluminum welding technology
7. Constantly strengthening the spirit of craftsmanship, let products strive for excellence

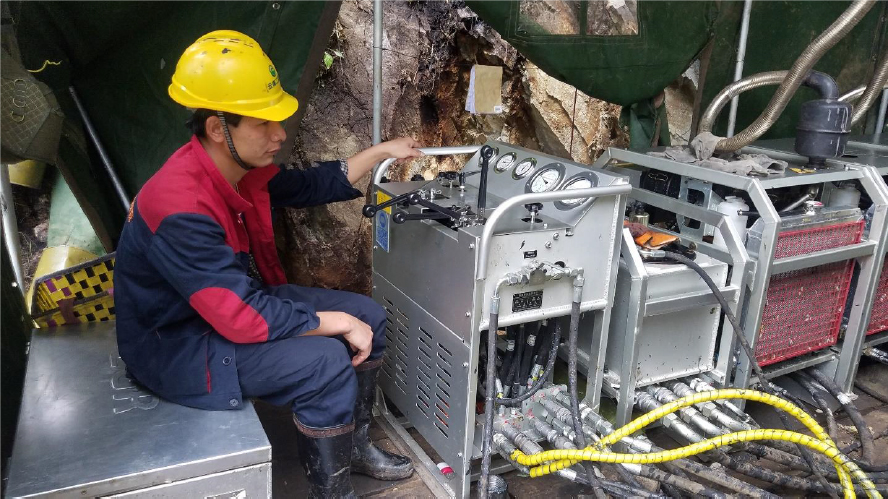

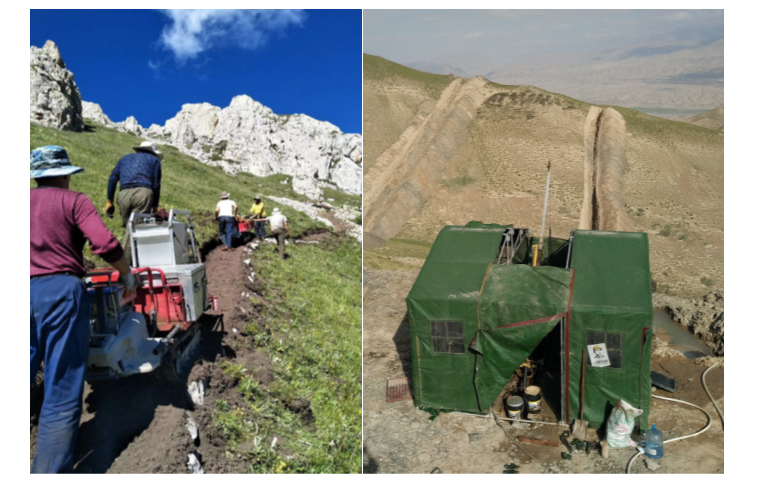

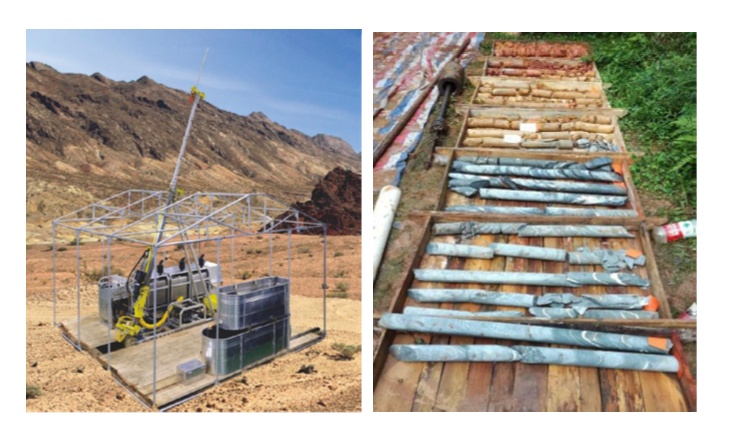

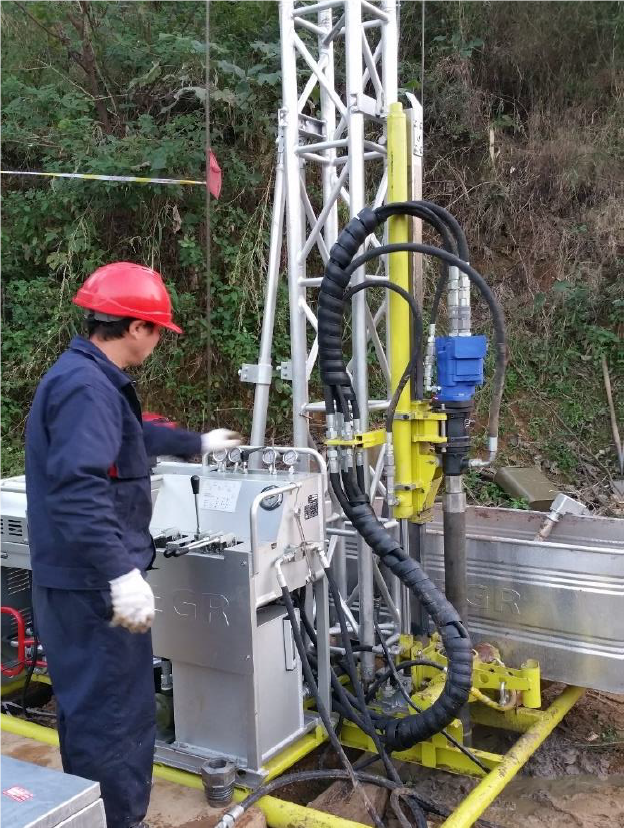

On-site Application
