HKSL1600 Single Layer Crawler Color Sorter for Small Particle Ore

Color Sorter for Small Particle Ore, China's leading CCD Camera Ore Color Sorter product market, With strict quality control Ore Color Sorter factories, Producing high quality Ore Color Sorter products.

Product details

MES Process® HKSL1600 Single Layer Crawler Color Sorter for Small Particle Ore

1. Introduction to Ore Color Sorter

The ore raw materials containing some valuable minerals mined from the mine can be used in engineering fields such as construction industry, cement industry and gravel industry after step-by-step processing such as crushing, grading, color separation and grinding. Among them, the preparation of ore is particularly important. After color sorting, the ore has high purity and uniform color, which greatly improves the utilization rate of ore and doubles its value.

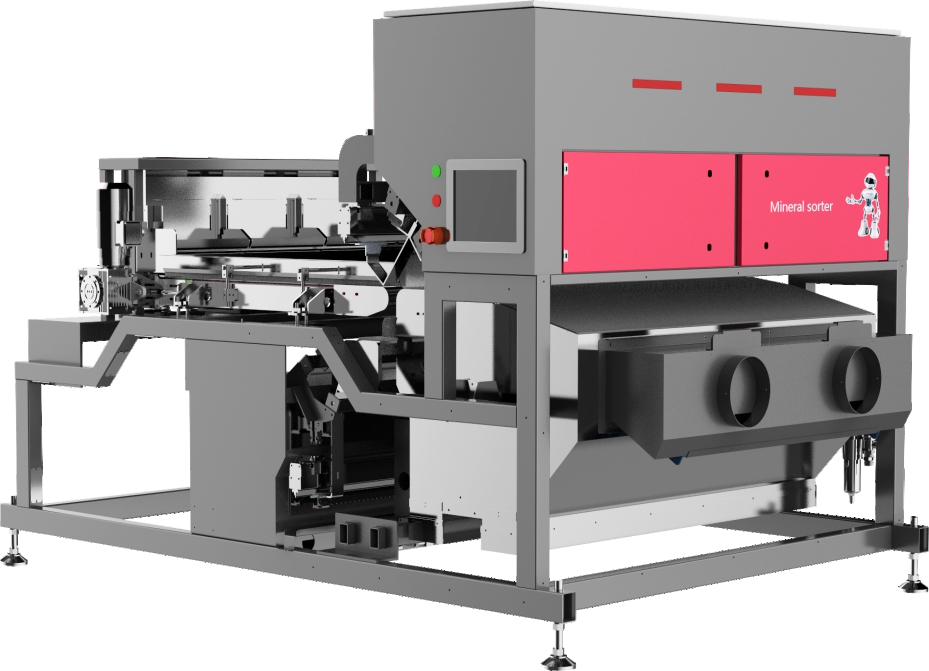

5-HKSL1600 Single Layer Crawler Color Sorter for Small Particle Ore

2. Working Principle of Ore Color Sorter

MES Process® HKSL1600 Single Layer Crawler Color Sorter for Small Particle Ore developed by HOT Mining separates selected materials according to different colors through high-resolution sensors based on the difference of optical characteristics of materials and the principle of photoelectric detection, so as to realize automatic sorting. There are light source, high-speed camera and air jet nozzle above the material. The air jet nozzle sprays high-pressure air to change the running track of the material, so as to realize the entry of good and bad materials into different receiving areas. At present, it has been successfully applied to the beneficiation and purification of non-metallic minerals such as quartz, feldspar and fluorite.

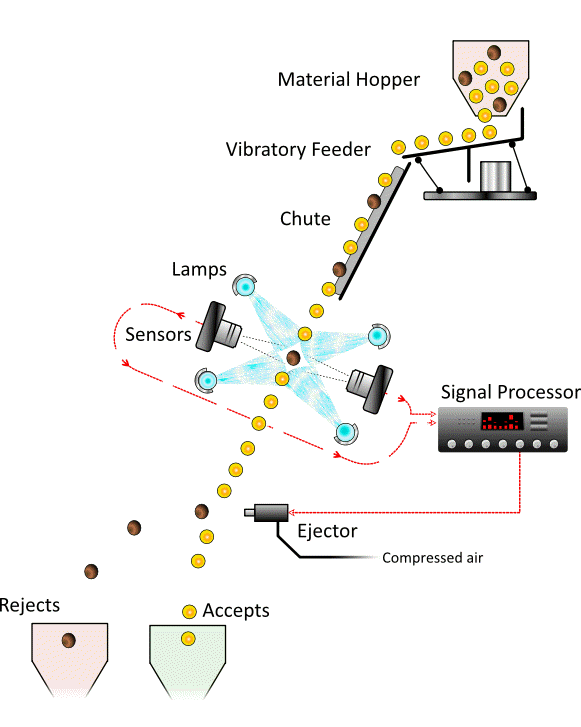

2-flash-to-explain-about-color-sorter-works-Working principle diagram of color sorter-ccd color sorter

Working Principle of Ore Color Sorter

3.Product Superiority

·Double-layer check, solving second sorting at one time, low carry-over ratio, high sorting accuracy.
·Solve the problem of sorting under the harsh environment of dry ores such as high dust, high pollution,high corrosion, etc.
·Wide selection range of ore particles from 1 cm to 3cm .
·Fast belt speed, greatly improve the processing capacity and increase the output by more than 50% .
·Internet + mobile app, making the operation and maintenance more convenient and easy .

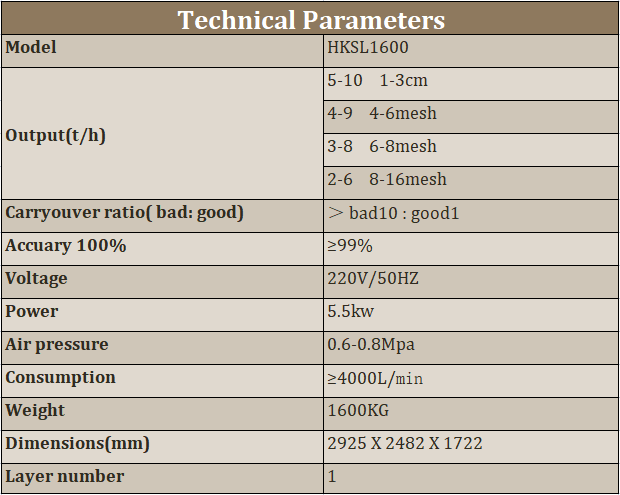

4.Technical Parameters of MES Process® HKSL1600 Single Layer Crawler Color Sorter for Small Particle Ore

parameters of single layer ore color sorter for small particle ore

5. Sorting Cases

sorting case

6.Core Technologies

·The fifth-generation FPGA chip has greatly improved the calculation speed and the amount of calculation data, and can easily realize the ultra-high-speed real-time calculation of massive data.After the raw minerals are crushed in the wet condition, the color difference between the accepted and the rejected is more obvious, the identification is clearer, and the sorting is more accurate; saving the cost of drying equipment, each machine can save more than 30000 USD in dryer cost.

·The continuous work of wet sorting avoids the dust problem encountered by dry sorting, and fully meets the national environmental protection requirements.

·Rejected materials in all directions can be effectively identified in both top and bottom view , ensuring that the accuracy of one- time selection reaches more than 99%.
