Spring Cone Crusher-HOT Mining
- SC series high-efficiency spring cone crusher concentrates on the speciality of high-frequency, optimization of cavity-type, reasonable stroke and bases on the advanced technology introduced abroad, follows the conception of laminated crushing principle, more crushing and less grinding.
Type:cone crusher
Power:160-400kw
Weight:13-33t
Feed size:76-320mm
Capacity:Depends on the model

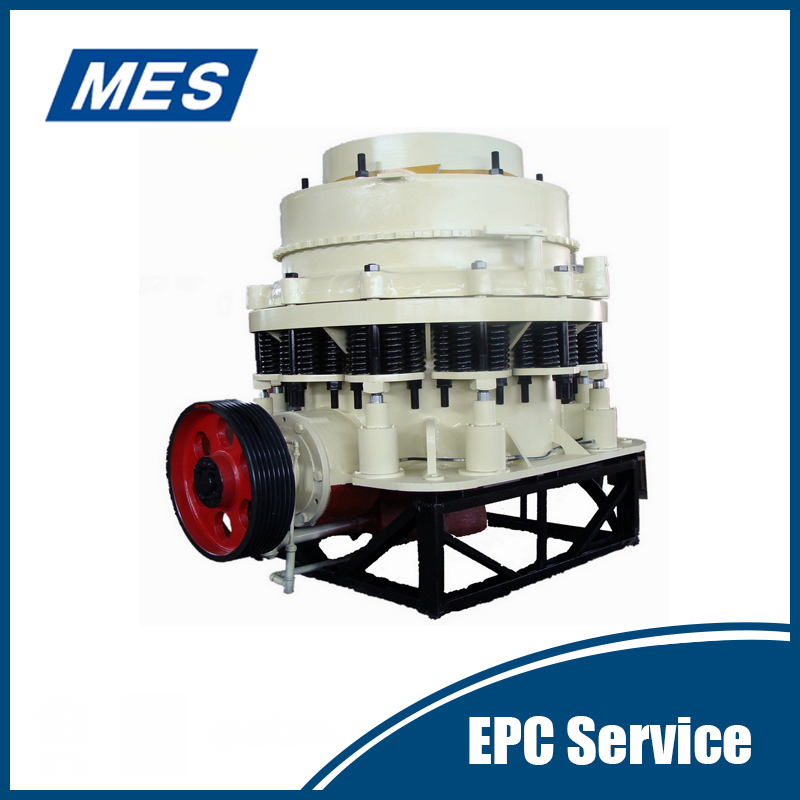

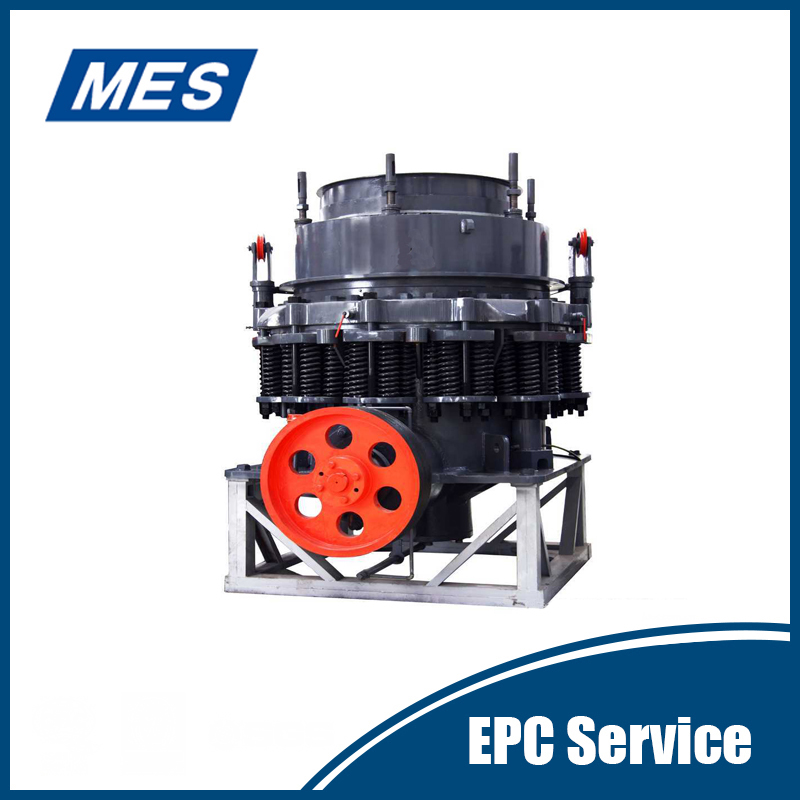

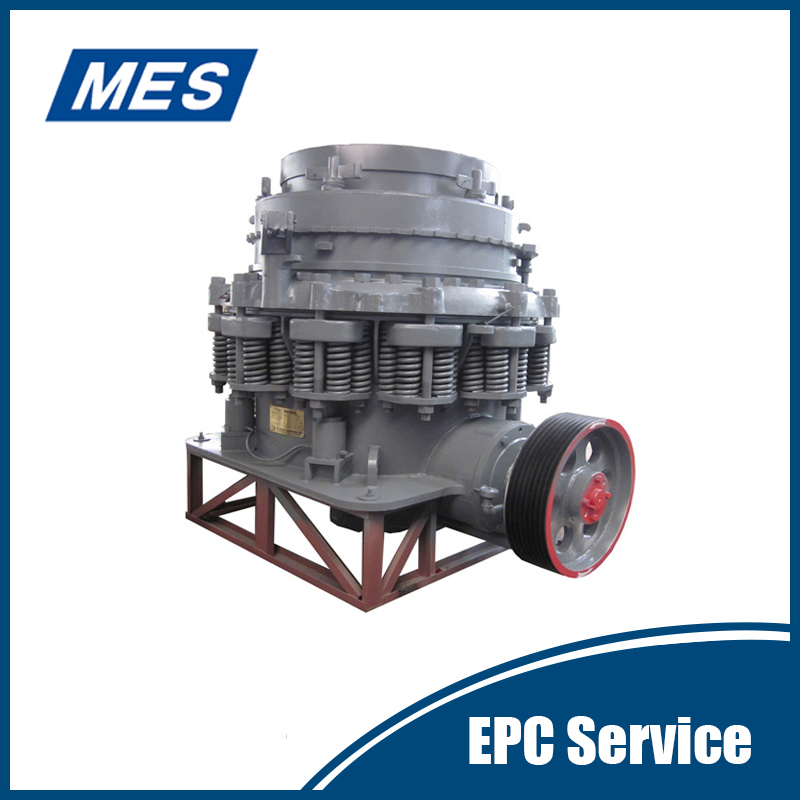

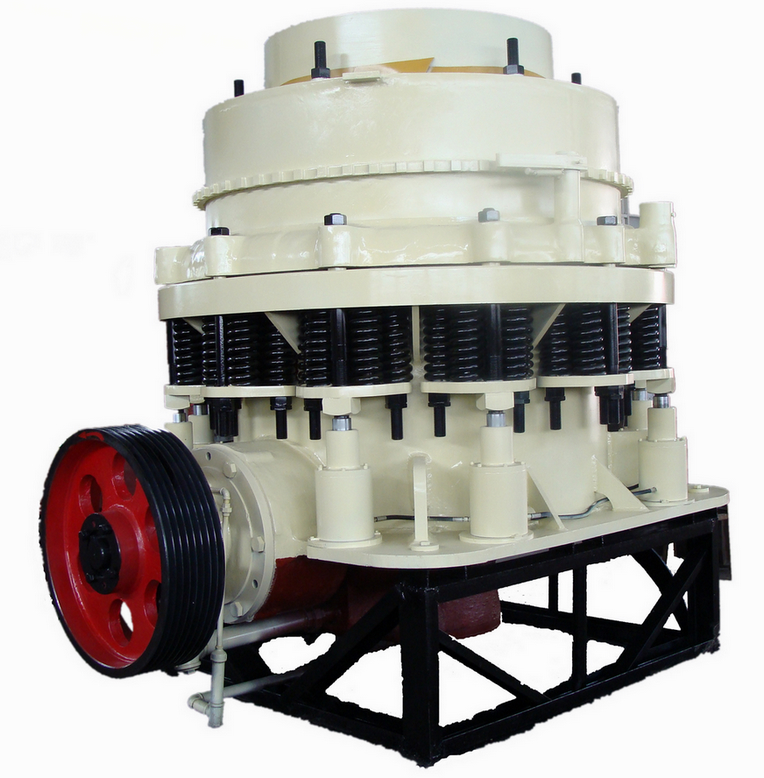

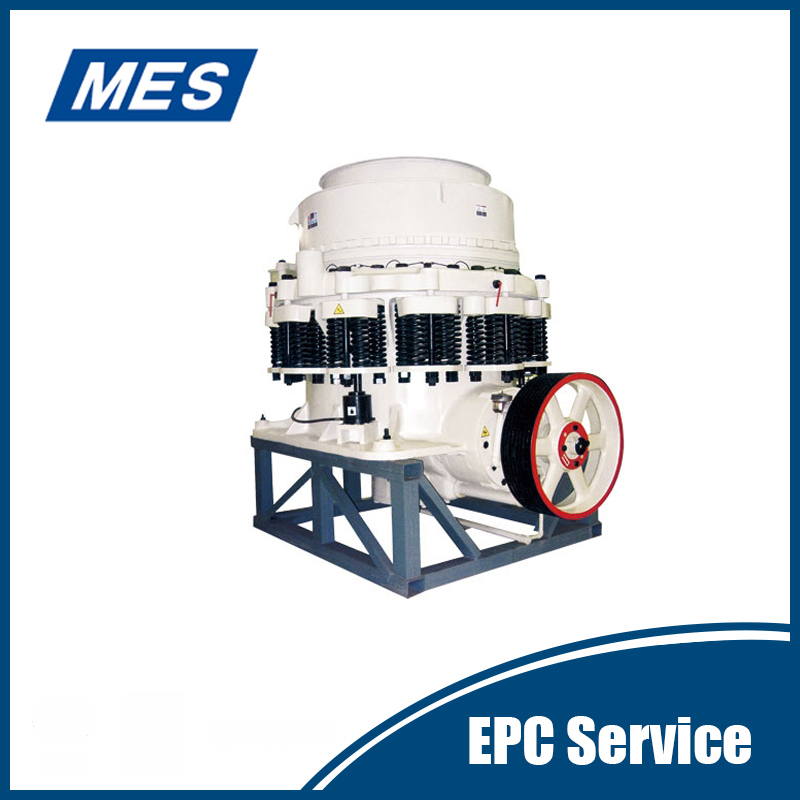

Spring Cone Crusher
1.Introduction of spring cone crusher
According to customer's requirement, our company designs high-performance crusher, SC Series High-efficiency Spring Cone Crusher.
The spring cone crusher concentrates on the speciality of high-frequency, optimization of cavity-type, reasonable stroke and bases on the advanced technology introduced abroad, follows the conception of laminated crushing principle, more crushing and less grinding.
2.Features of spring cone crusher
(1) High-performance
Combining optimal designing of chamber type with applying reasonable speed and stroke, to make this kind of machine does more work with the same dynamic cone diameter. Therefor, this machine is of high-performance and manufactring capacity compared with other cone crusher of the same type.
(2) Good products size composition
The crusher applys for laminated crushing principle to make cubic shapes of
final products stand for larger proportion. Acicular and flake shape products
decrease and size fraction much more well-proportioned.
(3) Good stability
If there is metal or other non-broken material come to the chamber, metal going
through protection device will release it and then reset automaticly. The
protection device has fixed discharge opening returning point and the original
discharge opening can returing back immediately after the metal goes through
the crushing chamber.
(4) Convenient Cleaning-up
If the crusher stops under loading condition, hydralic cleaning system can
clean up the crushing chamber quickly so that decrease the downtime.
(5) High reliability.
Adopting main shaft with big diameter，heavy main frame and separate automatic Control
System of thin oil lubrication system, so that it guarantees robustness and
reliable operation of the crusher.
(6) Easy maintenance and operation
All parts can be disassembled from top and the upper side, so that fixed cone
and dynamic cone can be disassembled easily.
(7) Low production costs
Due for big capacity, high reliability and easy maintenance, the production
costs has been recuded greatly.
(8) Widespread use
The speciality of SC Series High-efficiency Spring Cone Crusher is maximizing
the performance to apply to all kinds of crushing process: from special coarse
crushing to fine crushing; from fixed crushing plant to mobile crushing
plant.
Type
Cavity (coarse/fine)
Outlet adjustment range (mm)
Feed size (mm)
Capacity (t/h)
Power (kW)
Weight (t)
Movable cone diameter (mm)
SC-160
C
12-20
135
100-200
160
13
950
F
5-20
76
55-150
SC-220
C
15-38
185
150-300
220
18.5
1160
F
6-25
110
70-180
SC-315
C
19-45
265
190-400
315
26
1400
F
9-30
150
100-200
CC-400
C
25-50
320
250-500
400
33
1500

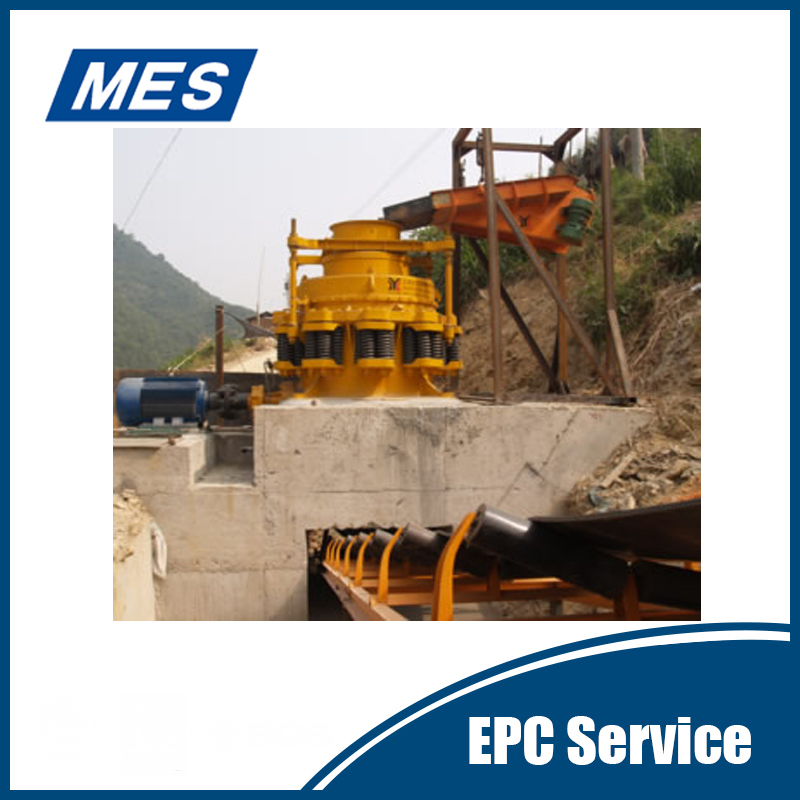

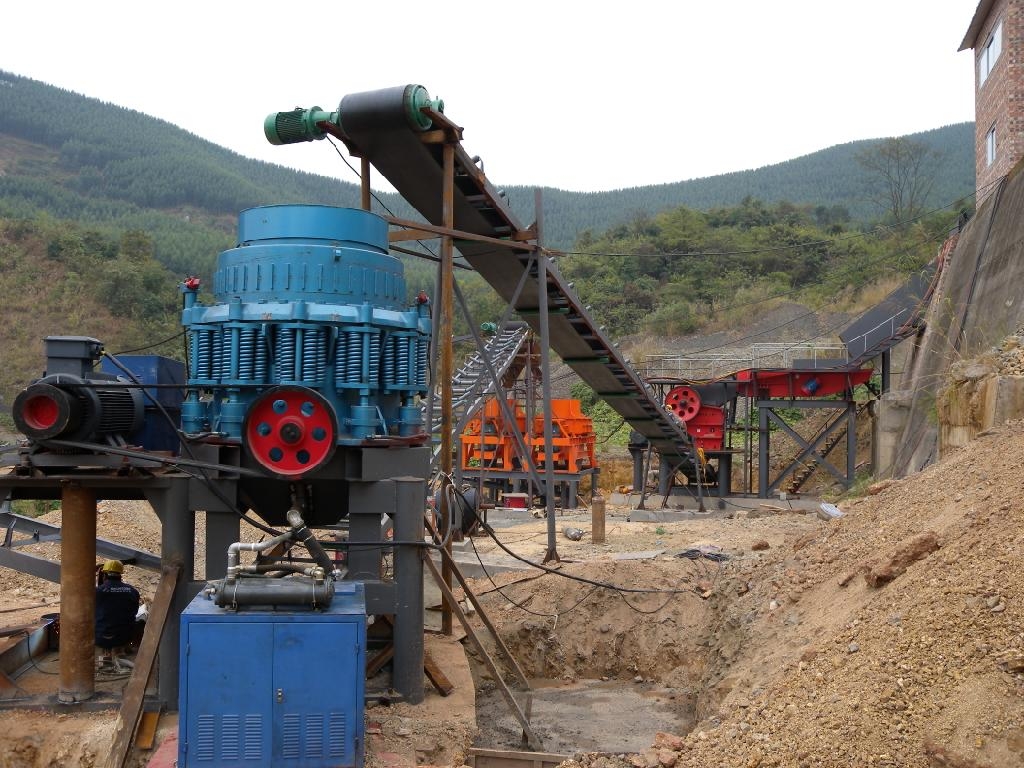

4.Application of spring cone crusher
