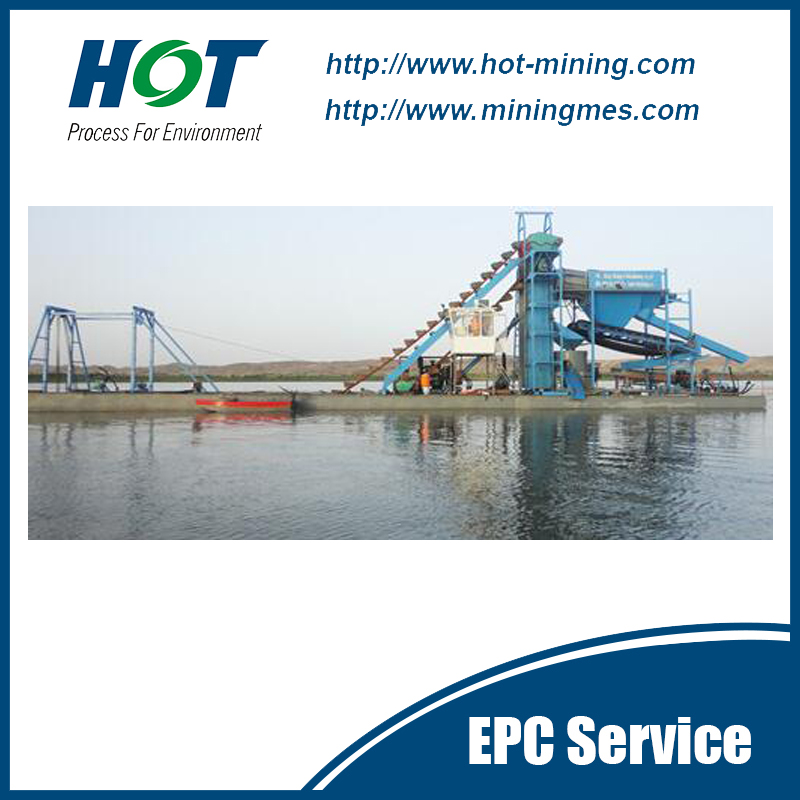

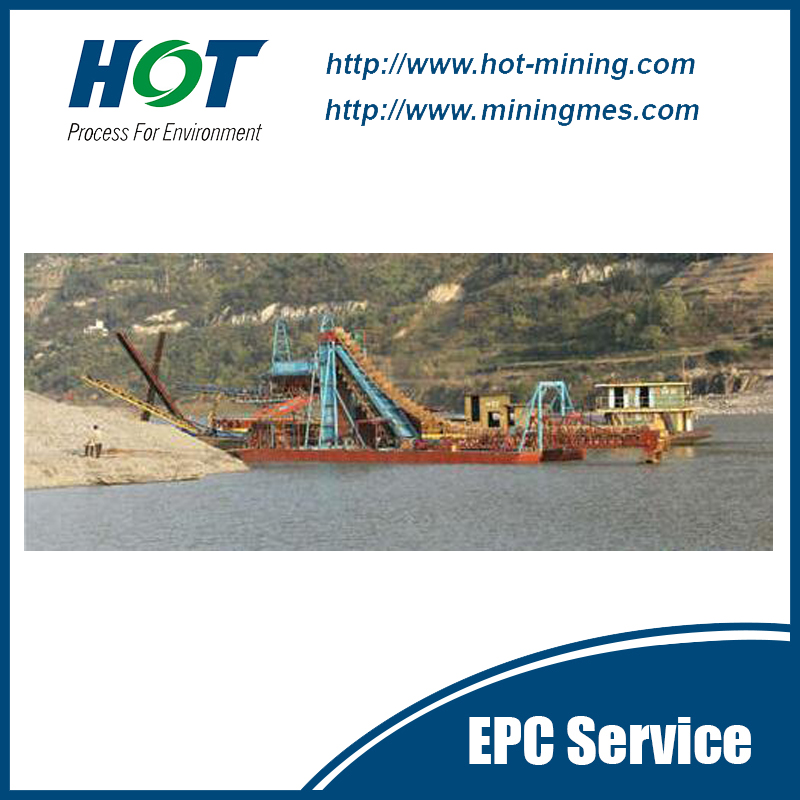

Gold Dredge Boat
- Gold dredge boats are a great variety of products including 800-20000m3/h large scale dredging and sand mining equipment.
Gold Dredge Boat
1. Product Description of Gold Dredge Boat

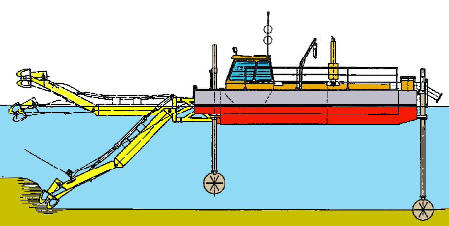

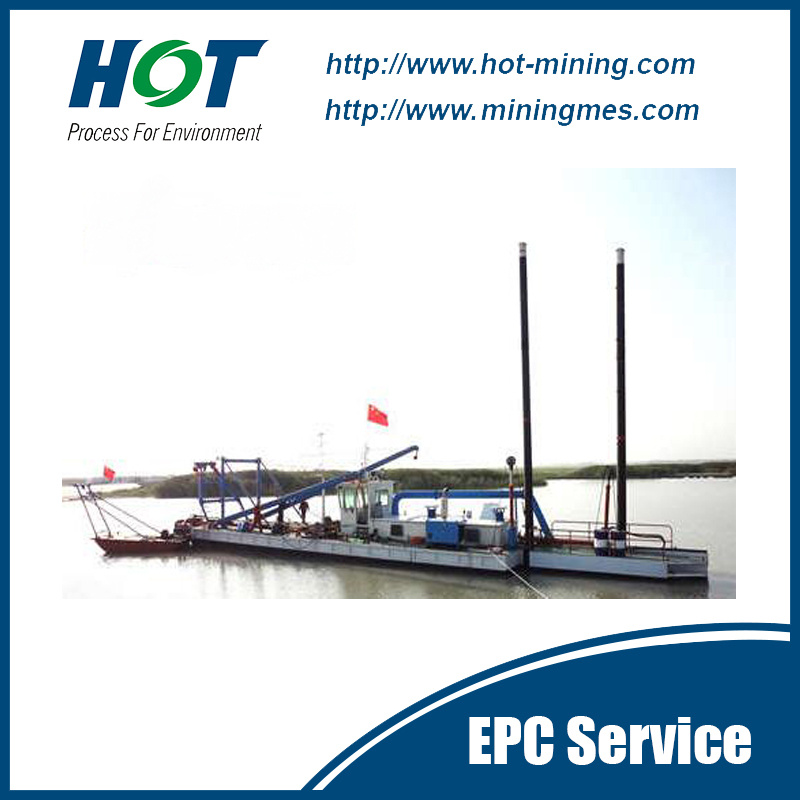

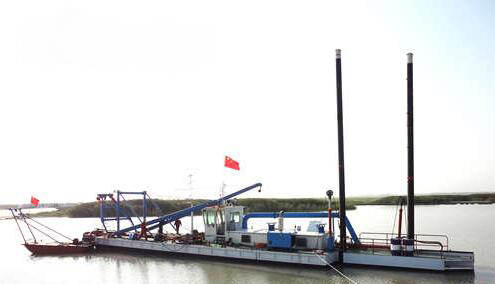

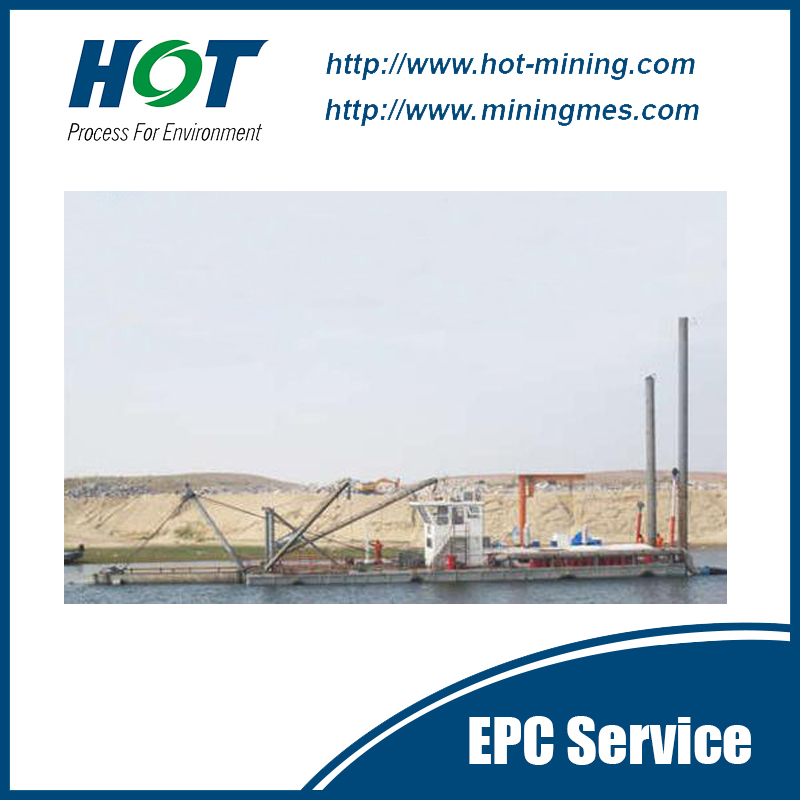

The dredger we produce is both self-propelled or non-self-propelled, portable cutter suction dredger. The hull uses dismantle and box-like structure, which equipped with horizontal shifting devices, cutter ladder lifting devices, spud devices, deck crane and so on. It can also be equipped with anchoring poles and trolley devices. Generally, it has functions on dredging, conveying and discharging of mud or sand. It can produce certain amount of vacuum by the centrifugal pump.
2. Scope of Works
The work include design, testing like at working site before ex-factory, dismantle, supply, installation, testing at working site, and commissioning of complete silt dredging equipment along with all necessary accessories suitable for the working site. Some of the scope of works include but not limited to :
2.1 Planning and design of dredging system specifically suited for the working site
2.2 Designing and supplying of all necessary accessories/parts such as suction head, suction pipe(flexible sections ), outlet pipe(PE sections or steel pipeline with flexible joints), floaters and anchor system of pipes, outlet valves, pumps and variety of spares.
2.3 All associated civil works such as anchoring of equipment when on floatation, docking place in case of non-operation.
2.4 Conceptual drawings with product images.
2.5 Installation, testing and commissioning of the equipment including all the required manpower.
2.6 Arrangement of mobile cranes for handling equipment at site for erection at buyer's side, testing and commissioning at the seller's side.
2.7 In the process of testing and commissioning, engineers of seller do also provide training of workers how to operation.
2.8 Supply of fast running spares.
3. Technical Parameters of Gold Dredge Boat
|
Item/model |
HCL200 |
HLC250 |
HLC250A |
HLC300 |
HLC300A |
HCL350 |
HLC400 |
HLC450 |
HLC500 |
HLC600 |
|
Pump size |
8inch |
10inch |
10inch |
12ich |
12inch |
14inch |
16inch |
18inch |
20inch |
24inches |
|
Pump flow |
800m3/h |
1100m3/h |
1500m3/h |
2000m3/h |
2500m3/h |
3000m3/h |
3500m3/h |
4000m3/h |
6000m3/h |
8000m3/h |
|
Capacity |
160CBM/H |
220CBM/H |
300CBM/H |
400CBM/H |
500CBM/H |
600CBM/H |
700CBM/H |
800CBM/H |
1200CBM/H |
1600CBM/H |
|
L*W*H |
15.5*7.2*2m |
15.5*7.2*2m |
15.5*7.2*2m |
21*7.5*2m |
21*7.5*2m |
23.5*7.5*2.4m |
23.5*7.5*2.4m |
23.5*8*2.4m |
26*8.5*2.6m |
29*10*3.0m |
|
Dredging depth |
8m |
10m |
10m |
10m |
10m |
15m |
15m |
15m |
15m |
15m |
|
Average draught |
1.3m |
1.3m |
1.3m |
1.4m |
1.4m |
1.6m |
1.6m |
1.6m |
1.7m |
2m |
|
Discharge distance |
600m |
1000m |
800m |
1200m |
1200m |
1500 m |
1500m |
1500 m |
2000m |
2500m |
|
Diameter suction/discharge pipe |
325/300mm |
350/350 |
377/377mm |
426/410 |
460/420mm |
550/500mm |
610/550mm |
630/570mm |
680/650mm |
810/780mm |
|
Diameter of cutter head |
Φ1100mm |
Φ1100mm |
Φ1100mm |
Φ1300mm |
Φ1300mm |
Φ1550mm |
Φ1550mm |
Φ1700mm |
Φ2200mm |
Φ2450mm |
|
Main engine power |
258kw |
300kw |
450kw |
600kw |
650kw |
1000kw |
1050kw |
1200kw |
1580kw |
2400kw |
|
Diameter oil cylinder |
100mm |
100mm |
100mm |
160mm |
160mm |
160mm |
160mm |
160mm |
200mm |
250mm |
|
Emergency genset |
15kw |
15kw |
15kw |
15kw |
15kw |
24kw |
24kw |
24kw |
30kw |
30kw |
