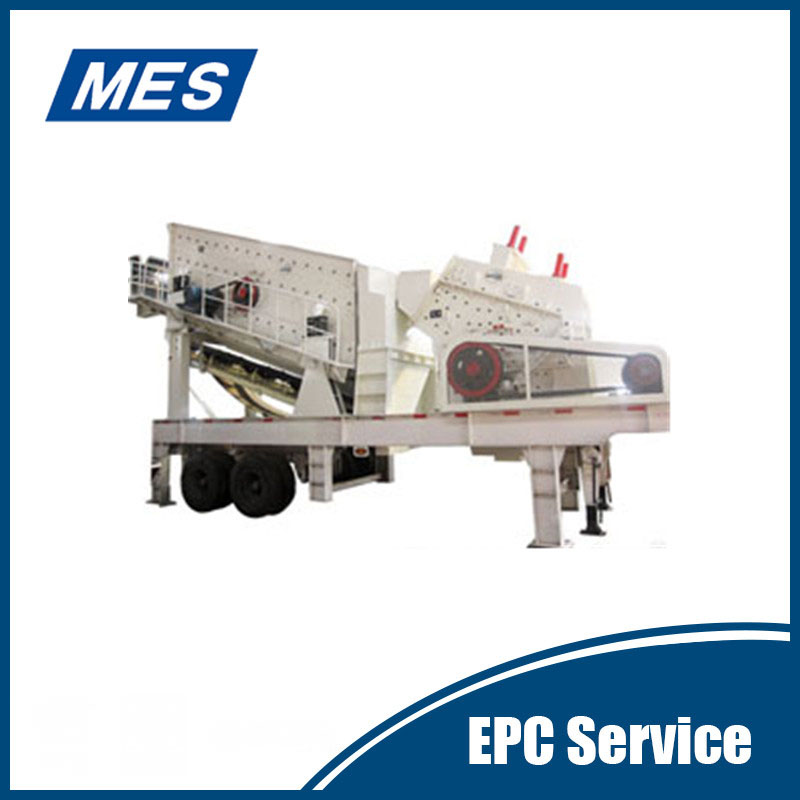

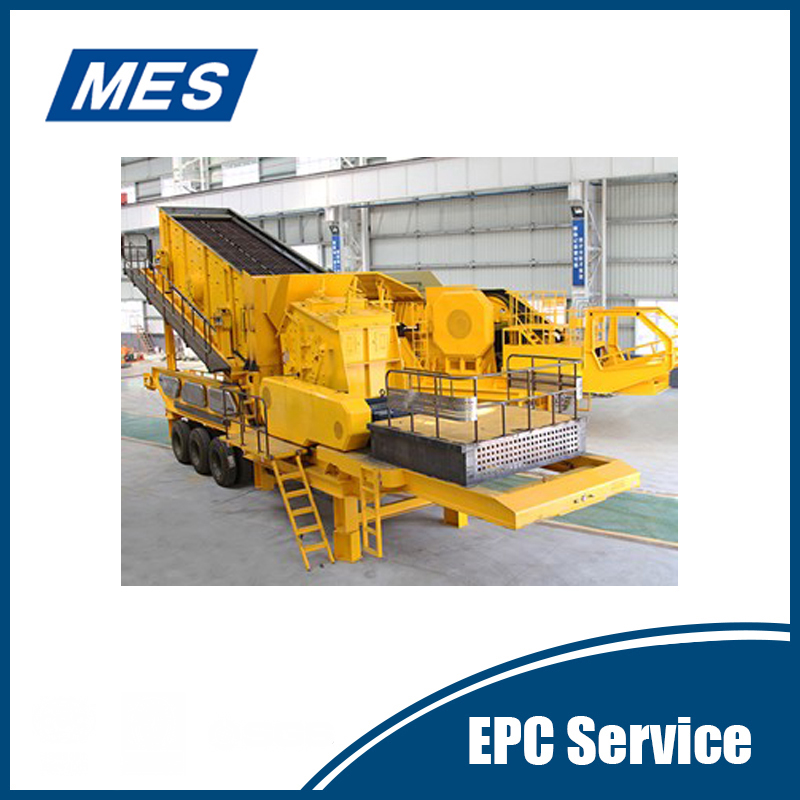

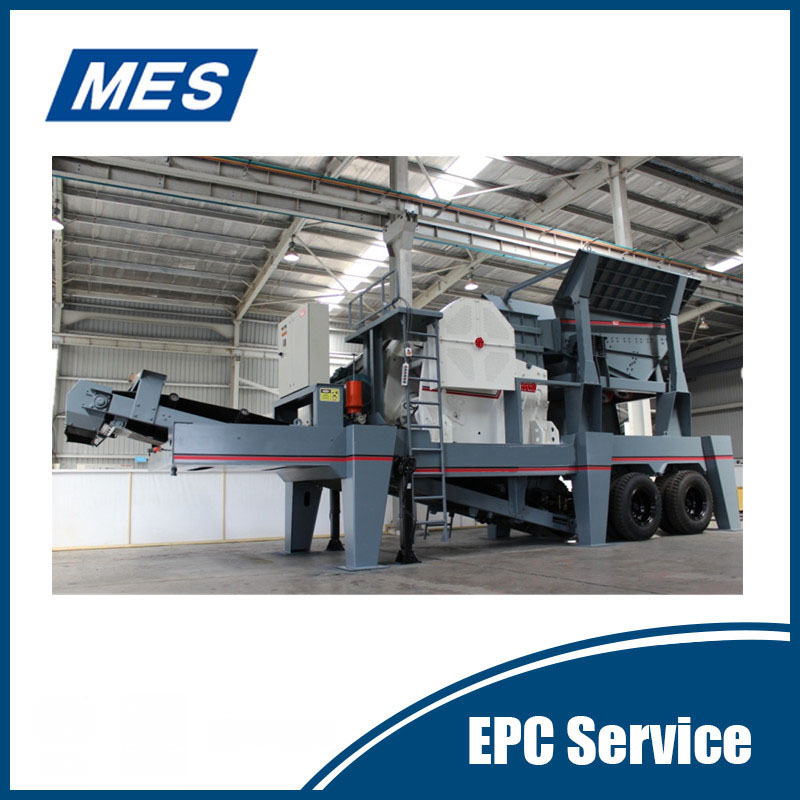

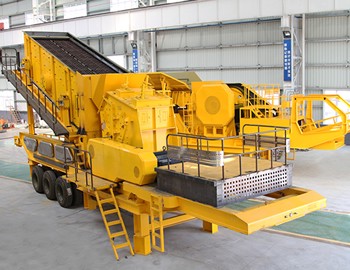

Wheel Impactor Plant
- The new HMP wheel impactor plant concept is fully adaptable to all mobile crushing needs, opening up a whole new range of business opportunities for contractors, quarry operators, recycling and mining applications.
Model:HMP series
Composition:Feeder,Feeder Hopper,Crusher,Under Crusher Conveyor,Side Conveyor
Wheel Impactor Plant
1.Introduction of Wheel Impactor Plant
MES is launching a new, comprehensive portable plant series for efficient fully mobile crushing, and screening applications.
The new HMP portable plant concept is fully adaptable to all mobile crushing needs, opening up a whole new range of business opportunities for contractors, quarry operators, recycling and mining applications.
Flexible operation - from coarse to fine crushing and screening.
The HMP Series portable plant can be operated as independent units or as a two- or three-stage crushing application: from primary to secondary, tertiary and fine crushing. As required, a portable screen can be attached to the process.
Built around proven quality crushers.
HNW series portable plants are built in lightweight and superior in engineering design, they are ideally suited to the most demanding portable crushing and screening applications, and it offers new possibilities in mobile crushing - always at the lowest cost per ton.
HMP portable plant highlights:
• Built around proven MES latest crushing & screening technology
• Everything on board: feeders, screens and power installations
• Suitable for two- and three-stage crushing applications
• Quick road transportation thanks to king pin arrangement
2.Parameters of Wheel Impactor Plant
Technical
Parameters
HMP1110HS
HMP1213HS
HMP1315HS
Feeder
Model
HPF1040
HPF1245
HPF1345
Size(mm*mm))
1000*4000
1200*4500
1300*4500
Grizzly
Length(mm)
2*900
2*1200
2*1200
Power(kw)
15
22
22
Feeder
Hopper
Capacity(m3)
7
10
12
Crusher
Model
HS1110
HS1213
HS1315
Size(mm*mm)
1170*810
1360*815
1550*815
Power(kw)
160
200
250
Under
Crusher Conveyor
Belt
Width(mm)
1000
1200
1400
Length(mm)
9650
10058
12100
Power(kw)
15
1805
22
Side
Conveyor
Belt
Width(mm)
650
650
650
Length(mm)
4000
4500
4500
Power(kw)
3
5.5
5.5
Diesel
Drive/Generator
Options
Options
Options
