XFLB Miniature Closed-circuit Continuous Flotation Machine
- Name: Miniature Closed-circuit Continuous Flotation Machine
Brand: OrganeX
Model: XFLB
Tank material: Plexiglass, stainless steel
Application: Mineral processing, mining industry to do experiments and processes
XFLB Miniature Closed-circuit Continuous Flotation Machine
1. Introduction
XFLB closed-circuit continuous flotation machine is a self-priming mechanical agitation continuous flotation machine, which does not need or needs a small amount of auxiliary equipment, and the equipment configuration is convenient and adjustable to complete the dressing experiments of non-ferrous metals, ferrous metals and non-metals.

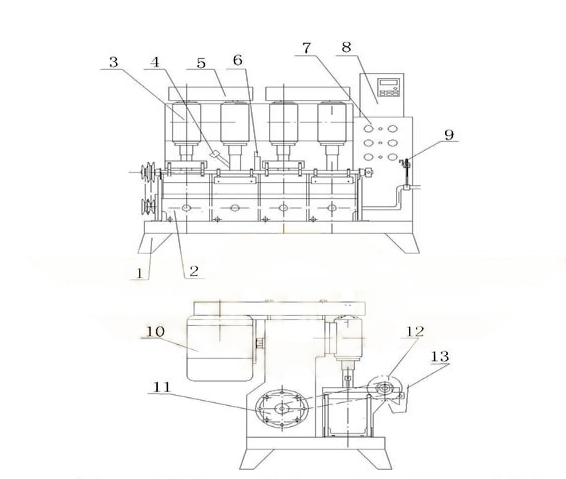

2. Structure of XFLB closed-circuit continuous flotation machine
(1) Base;
(2) Flotation cell;
(3) Bearing seat;
(4) Suction regulating valve;
(5) Safety cover;
(6) Medium ore groove;
(7) Electrical switch box;
(8) Frequency converter;
(9) Liquid level regulating device;
(10) Main motor;
(11) Scraper motor;
(12) Scraper;
(13) Foam groove；
3. Details of vulnerable parts
|
Number |
Name of vulnerable parts |
Model |
|
1 |
Glass tube |
XFLBT20-23A |
|
2 |
Liquid level regulating pipe |
XFLB0.5-70-0.4A |
|
3 |
oil seal |
PG10x22x8.15x30x10 |
|
4 |
V-belt (main motor) |
O-Type 500、450、710 |
|
5 |
Impeller (rotor) |
|
|
6 |
Stator |
|
4. Applications
XFLB closed-circuit continuous flotation machine is used in the laboratory to conduct continuous flotation machine separation test with a small number of representative ore samples. The test results can represent the results of single machine closed-circuit test and semi industrial test in the laboratory, and can provide laboratory or semi industrial dressing indexes in a short time.
5. Technical parameters
|
Specification |
Complements |
Matching slurry storage barrel |
Matching mixing barrel |
|||
|
|
8 grooves |
4 grooves |
2 grooves |
|
|
|
|
Tank volume |
1L |
0.75L |
0.5L |
20L |
5.0L |
|
|
Impeller diameter |
|
|
|
|
|
|
|
Impeller speed |
1 |
7.9 |
7.5 |
7.5 |
7.5 |
7.4 |
|
|
2 |
7 |
6.9 |
6.9 |
6.1 |
6.5 |
|
|
3 |
6 |
6 |
6 |
|
5.8 |
|
Speed of scraper |
1 |
20 |
|
|
||
|
|
2 |
30 |
|
|
||
|
Feeding granularity |
≤0.3 |
|||||
|
Power |
180/2grooves |
180 |
90 |
|||
|
Processing capacity |
3-5 |
|
|
|||
|
Weight |
400 |
|
|
|||
