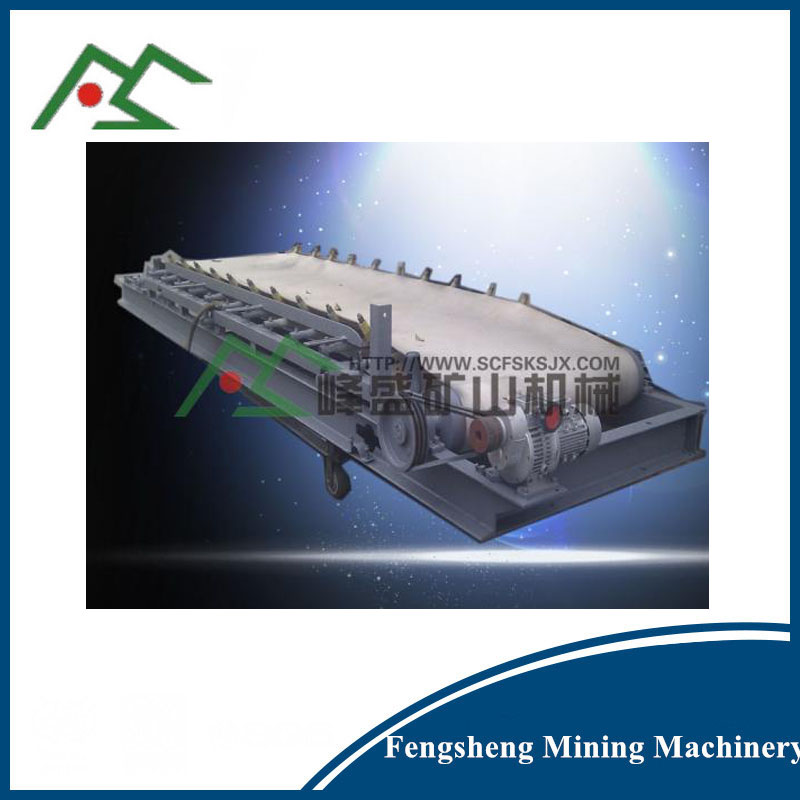

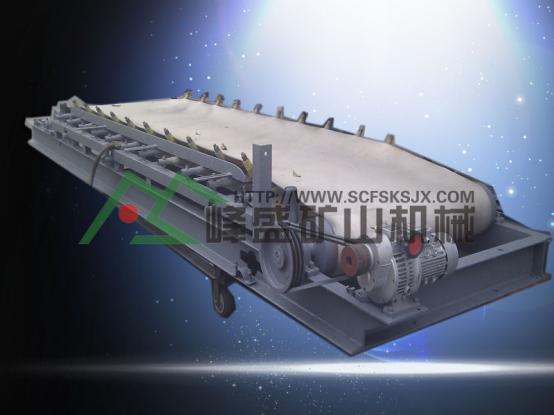

Tailing Recycling Machine
- The tailing recycling machine is suitable for the purification of all kinds of rare metal ore (tungsten, tin, gold, copper, lead, zinc, chromium, titanium, zirconium, rare earth, monazite, tantalum and niobium, garnet, quartz, kaolin) . It is new equipment of gravity concentration.
Tailing Recycling Machine
1.Introduction
The tailing recycling machine is suitable for the purification of all kinds of rare metal ore (tungsten, tin, gold, copper, lead, zinc, chromium, titanium, zirconium, rare earth, monazite, tantalum and niobium, garnet, quartz, kaolin) . It is new equipment of gravity concentration. Compared to traditional gravity concentration equipment, tailing recycling machine has the advantages of high efficiency concentration, easy to adjust and manage, can get the final concentrate and final tailing by one time.
Tailing recovery machine occupies small area, but it has big work area with high capacity and high recovery rate which will greatly reduce costs, improve profits and save resources.
2.Specifications
Dimension：1600*5000*1000mm
Water Volume：0.7~1t/h
Output Speed：8~40r/s
Rated Voltage：380V
Rotation Gear：cycloidal pin gear speed reducer
Feeding Size：〈0.5mm
Reduction Ratio：25
Beneficiation area：4.8²
Feeding Capacity：30~70t/tian
Adjustable Gradient：3~8cm/m
Work Face: purpose made wear-resistant blanket
Feed Hopper：controllable material box
Feeding Concentration：5~25%
Output Power：0.37kw
