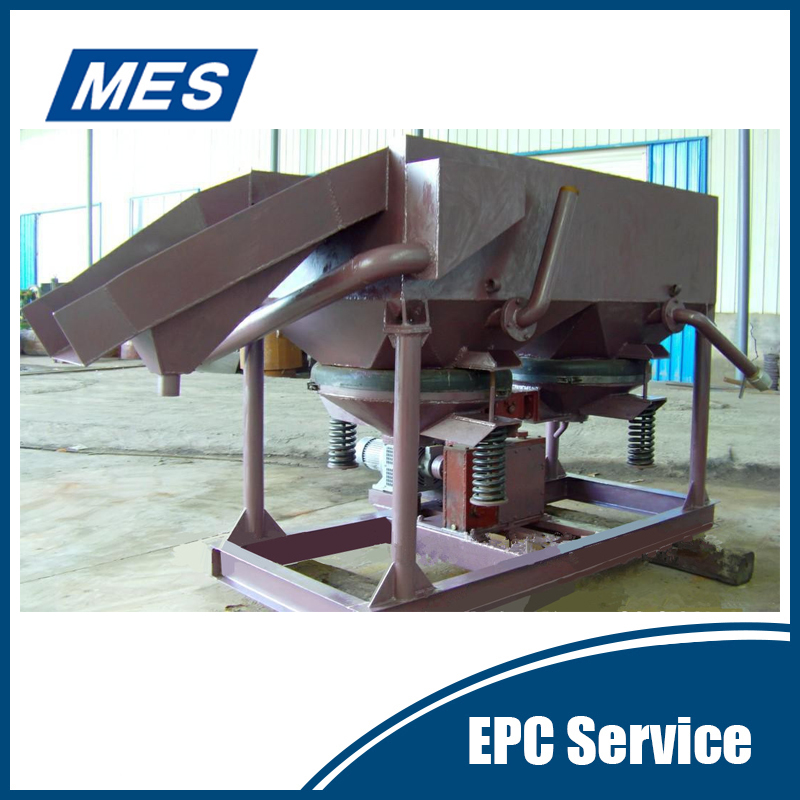

Centrifugal Jig
- Centrifugal Jig has the advantage of wide selected size, strong adaptability,small sorting proportion difference,low production cost,no environmental pollution,small footprint,large processing capacity.
1.Introduction
Centrifugal Jig has the advantage of wide selected size, strong adaptability,small sorting proportion difference,low production cost,no environmental pollution,small footprint,large processing capacity.it is also the excellent equipment of dealing with mud mining,lean ore and old tailings.
1)Using split structure,turn light weight.
2)The concentrated pulsation mechanism generates a pulsating flow through the outer diaphragm,for stress-balanced diaphragm pressure.
3)Protect screen and the bed with the steady flow loop of sieve basket
4)No compartment jig
5)Adopt special sealing structure to solve sieve water leakage
|
Model |
LT-1 |
LT750 |
|
Internal diameter of screen/mm |
436 |
750 |
|
Screen size/mm |
0.1、0.3、0.6 |
0.1、0.3、0.6 |
|
Screen speed/（r/min） |
0~815 |
0~580 |
|
Centrifugal strength/times |
0~150 |
0~133 |
|
Stroke/mm |
0~10 |
0~5.6 |
|
Number of stroke/min-1 |
0~1800 |
0~1850 |
|
Rotary motor power/kw |
7.5 |
55 |
|
Pulse motor power/kw |
5.5 |
7.5 |
|
Handling capacity/（t/h） |
3~5 |
8~10 |
The centrifugal jig applicable to sort fine-grained and coarse-grained minerals,it is the ideal equipment of secondary development of old tailings.
