Sawtooth-Wave Jig

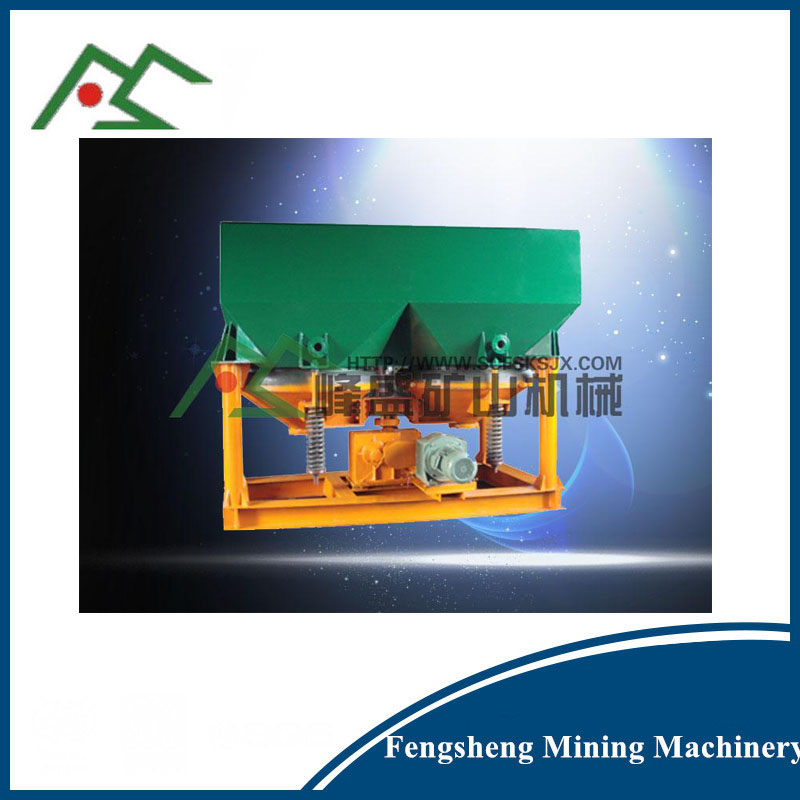

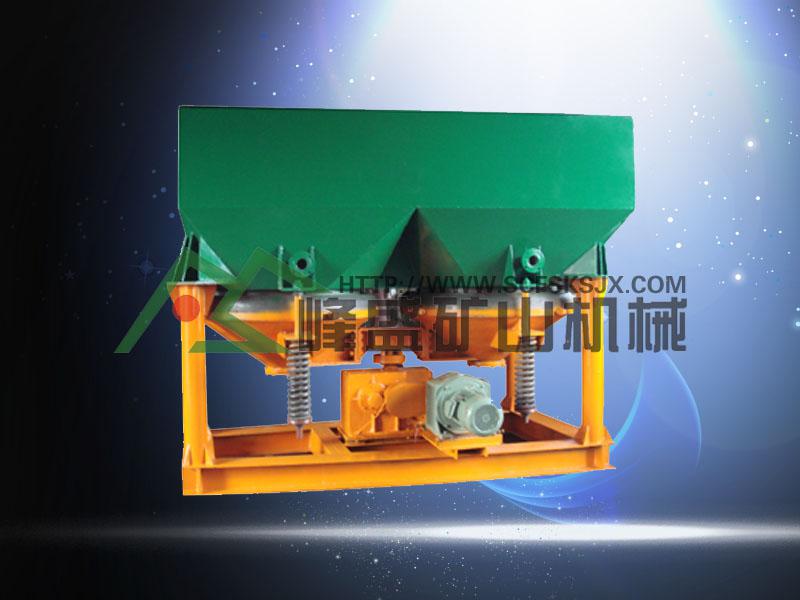

- Sawtooth-wave jig is a kind of energy-saving gravity separation equipment. Due to its sawtooth waveform of the jigging cycle curve, the jig concentrator owns the advantages of even/stable raising water flow and rapid falling water flow, thus it improves the inhalation effect during the beneficiation process.
Sawtooth-Wave Jig
1.Introduction
Sawtooth-wave jig is a kind of energy-saving gravity separation equipment. Due to its sawtooth waveform of the jigging cycle curve, the jig concentrator owns the advantages of even/stable raising water flow and rapid falling water flow, thus it improves the inhalation effect during the beneficiation process. Compared to sine-wave jig, the sawtooth-wave jig has higher recovery rate: Sn：3.01%，W：5.5%, water consumption decreases 30~40%.
Sawtooth-wave jig is widely used for grade improving of low grade manganese ore, limonite and recovery of useful minerals in the river, such as gold, tungsten, tin, manganese, iron, lead, zinc, and other metals.
2.Specifications
Model
Jigging
Chambers
Membrane
Stroke
Frequency
Feeding Size
(mm)
Water Supply
(m³ /t)
Water Pressure
(Mpa)
Capacity
(t/h)
Power
(kw)
Dimension Size
(mm)
Weight
(kg)
Shape
Area
Stroke
times/min
JT5-2
Trapezoid
4.86
10-25(adjustable)
80-110
<20
3-6
≥0.1
10-15
7.5
1800×3600×2580
4500
JT4-2
Trapezoid
4
10-25(adjustable)
80-110
<20
3-6
≥0.1
8-12
7.5
1400×2800×2500
4200
JT3-1
Trapezoid
3.3
10-25(adjustable)
80-110
<20
3-6
7-12
5.5
1200×2400×2200
3260
JT2-2
Trapezoid
2.28
<10
2-4
4-8
3
1070×2140×2000
1640
JT1-1
Trapezoid
1.04
8.5-12(M12cam)
60.160
<10
2-3
≥0.1
2-4
2.2
750×1500×1600
900
JT0.57-1
Trapezoid
0.57
10-17(M17 cam)
<6
1-2
1-2.5
1.5
450×850×1200
610
