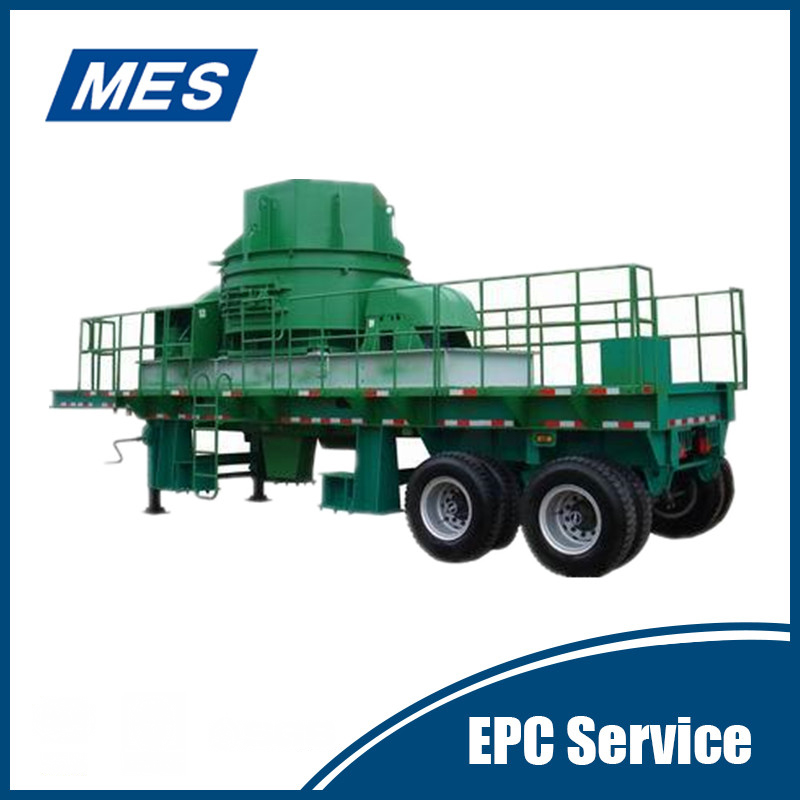

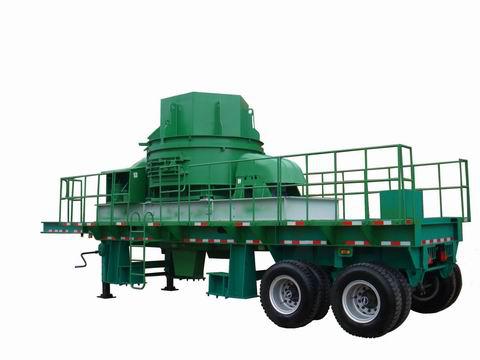

Wheel VSI Plant
- The HMP Series wheel VSI plant can be operated as independent units or as a two- or three-stage crushing application: from primary to secondary, tertiary and fine crushing. As required, a portable screen can be attached to the process.
Model:HMP series
Composition:Crusher,Feeder Conveyor,Under Crusher Conveyor
Wheel VSI Plant
1.Introduction of Wheel VSI Plant
MES is launching a new, comprehensive portable plant series for efficient fully mobile crushing, and screening applications.
The new HMP portable plant concept is fully adaptable to all mobile crushing needs, opening up a whole new range of business opportunities for contractors, quarry operators, recycling and mining applications.
Flexible operation - from coarse to fine crushing and screening.
The HMP Series portable plant can be operated as independent units or as a two- or three-stage crushing application: from primary to secondary, tertiary and fine crushing. As required, a portable screen can be attached to the process.
Built around proven quality crushers.
HNW series portable plants are built in lightweight and superior in engineering design, they are ideally suited to the most demanding portable crushing and screening applications, and it offers new possibilities in mobile crushing - always at the lowest cost per ton.
HMP portable plant highlights:
• Built around proven MES latest crushing & screening technology
• Everything on board: feeders, screens and power installations
• Suitable for two- and three-stage crushing applications
• Quick road transportation thanks to king pin arrangement
2.Parameters of Wheel VSI Plant
Technical
Parameters
HMP1400VS
HMP1500VS
Crusher
Model
VS1400
VS1500
Power(kw)
200
400
Feeder
Conveyor
Belt
Width(mm)
800
1000
Length(mm)
7000
10000
Power(kw)
7.5
11
Under
Crusher Conveyor
Belt
Width(mm)
1000
1200
Length(mm)
9650
10058
Power(kw)
11
15
Diesel
Drive/Generator
Options
Options
