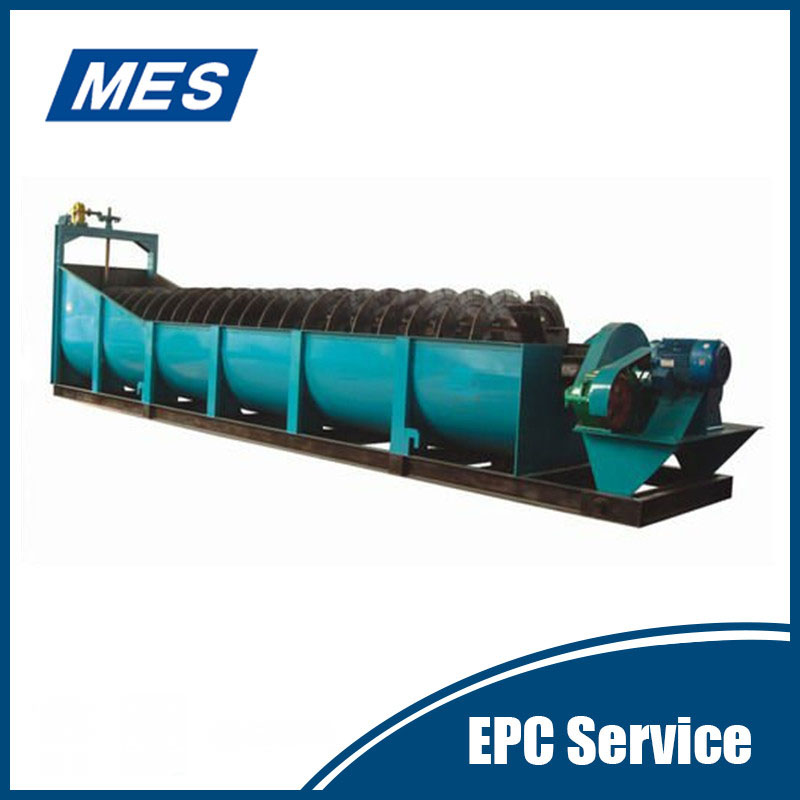

High Weir Spiral Classifier
- The single spiral classifier is an up-dated one which is formed by gearing, spiral, cell body and lifting device etc. It increases an automatic sand-return device at the sand-return part. Lift ore sand that discharged at tank bottom to a proper position at tank wall, to adapt the configuration of ball mill cancelled big spoon head.
Model:H-FG series
Spiral Diameter:500-2400mm
Capacity of Overflow:32-580t/d

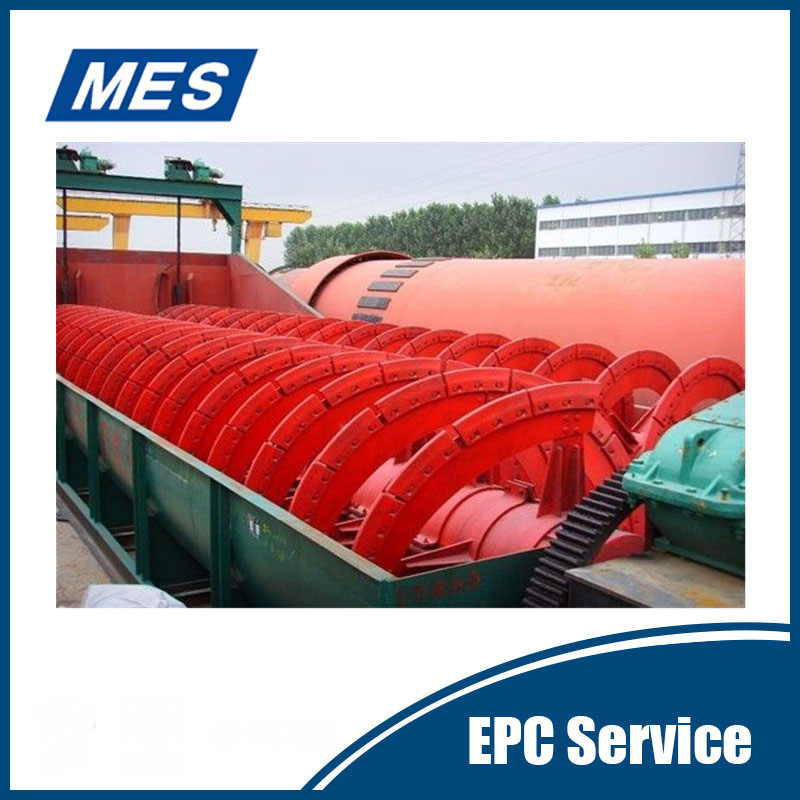

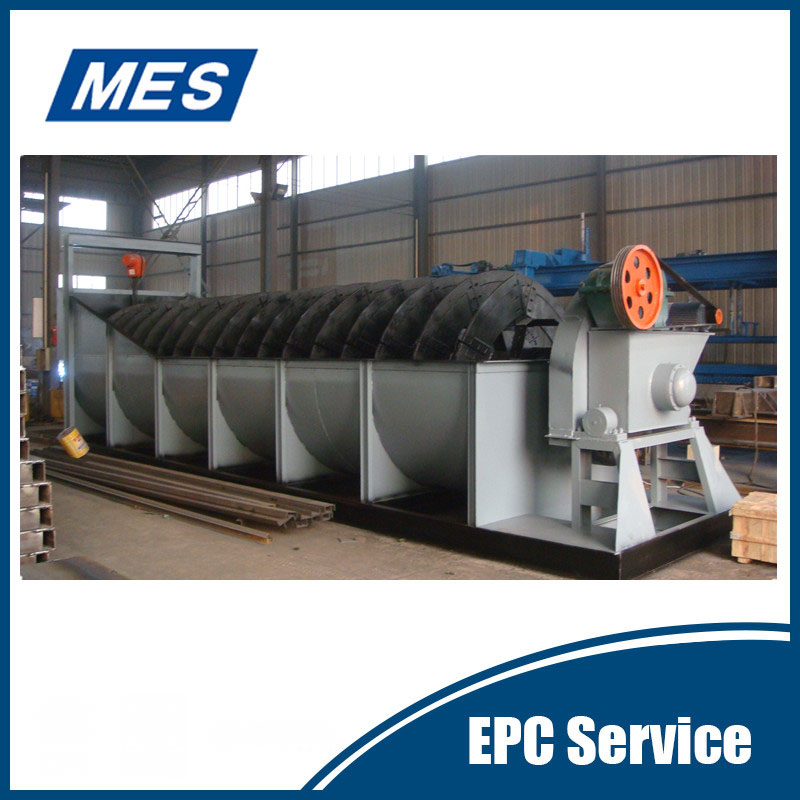

High Weir Spiral Classifier
1.Structure of High Weir Spiral Classifier

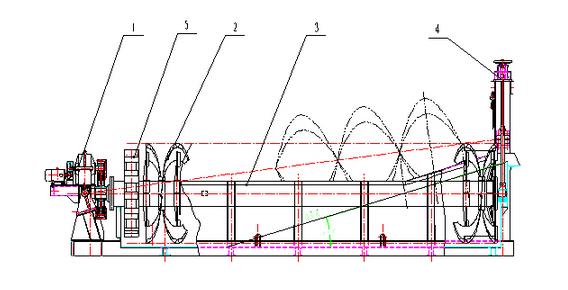

1. Gearing 2. Spiral 3. Cell 4. Lifting Device 5. Auto sand returning device
Single spiral classifier is formed by gearing, spiral, cell body and lifting device etc.
1.1. Gearing: The transmission of spiral is achieved by motor through V-belt.
1.2. Spiral: It is the main components of this machine, it formed by the main shaft, frame, spiral blades, lining iron frame. The frame, spiral blades, linked iron are formed to connected spiral surface, because the shaft is constantly rotating, so the role of helical face is mixing the slurry , make fine particles flow from the overflow weir, coarse mineral particles conveyor from the screw first to discharge port.
1.3. Cell: Welded by steel plate and shaped steel, it is the body of screw classier.
1.4. Lifting mechanism: The movement of machine screw parts is achieved through the cycloid reducer, gear, screw. When classifier stop working, the materials in the water chute will precipitated, in order to avoid damage by precipitation and the transmission will occurs over load when it move again, so must lift the screw spindle from water chute and make it leave the precipitation level, for this design lifting mechanism.
2. Features of High Weir Spiral Classifier
The single spiral classifier is an up-dated one and it has the following characteristics:
(1)Up-dated classifier increases a automatic sand-return device at the sand-return part, lift ore sand that discharged at tank bottom to a proper position at tank wall, to adapt the configuration of ball mill cancelled big spoon head.
(2)When ball mill has cancelled big spoon head, it can usually save electricity 1-1.5 degrees per ton ore, meanwhile, avoid frequent maintenance about big spoon head, and slow down the wear speed of small gear, improve ball mill run speed, save electricity obviously.
(3) When ball mill has cancelled big spoon head, it has no effect on specification and grinding ability of classifier.
3.Parameters of High Weir Spiral Classifier
Specification
FG-500
FG-750
FG-1000
FG-1500
FG-2000
FG-2400
Spiral diameter(mm)
500
750
1000
1500
2000
2400
Rotation speed(r/min)
8.5-15.5
4.5-9.9
3.5-7.6
3.5-6
3.6-5.5
3.64
Cell body(L*W)
4500*555
5500*830
6500*1120
8265*1664
8400*2200
9130*2600
Capacity OF return sand(t/24h)
142-261
265-564
473-1026
1170-2740
3890-5940
6800
Capacity OF overflow(t/24h)
32
65
85
235
400
580
