Overland Conveyor Belt

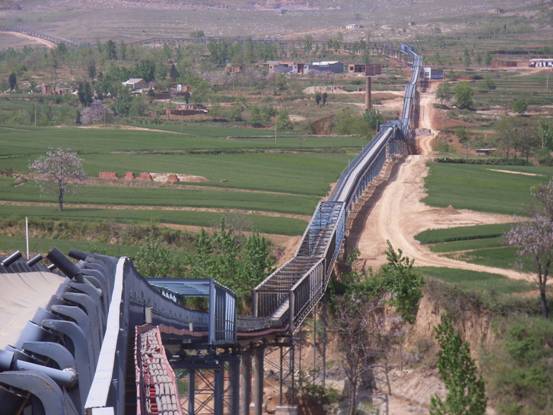

- The general lay-out of long-distance curved belt conveyor contains both horizontal and vertical turnings, it is flexible and adaptable to variety of complicated and rugged terrain over the mountain,river,etc.We have successfully designed more than 200 sets of curved belt conveyor.
The min.radii is 120m, the max. turning angle is 47.7°and there are 10 turnings in one conveyor.
HOT Mining's belt conveyor have been widely applied in industry of cement plant, power station and coal mining etc.
HOT Mining can design one as your requirement.

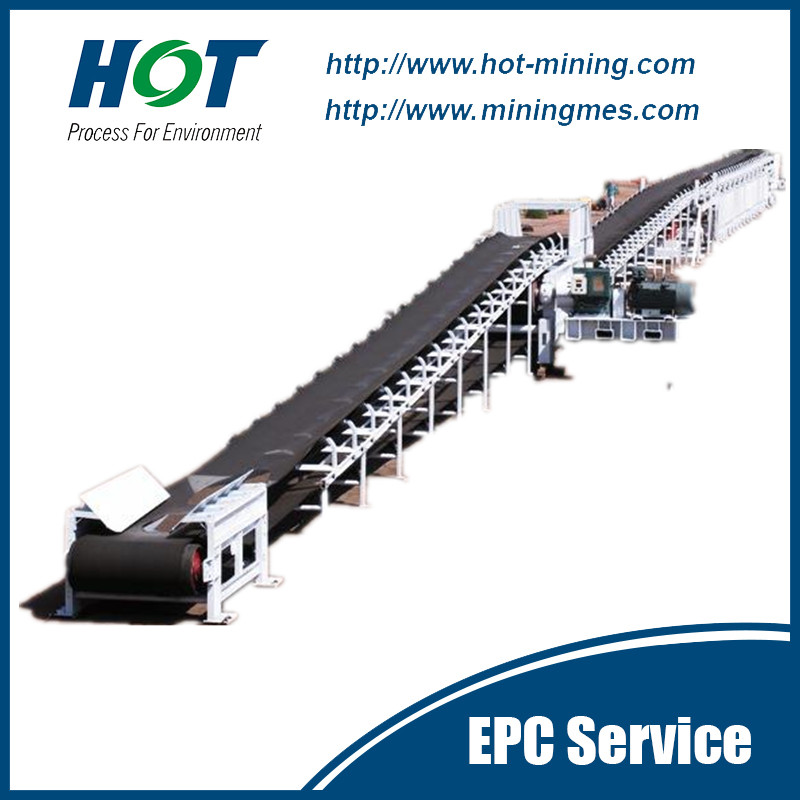

HOC Series Overland Conveyor Belt
1,Brief
introduction：
The general lay-out of long-distance curved belt conveyor contains both horizontal and vertical turnings, it is flexible and adaptable to variety of complicated and rugged terrain over the mountain,river,etc.We have successfully designed more than 200 sets of curved belt conveyor.The min.radii is 120m, the max. turning angle is 47.7°and there are 10 turnings in one conveyor. Our belt conveyor have been widely applied in industry of cement plant, power station and coal mining etc. We can design one as your requirement.
2,Technical
parameters:
|
Roller form |
Transmission
speed(m/s) |
Belt width(mm) |
|||||
|
500 |
650 |
800 |
1000 |
1200 |
1400 |
||
|
Capacity(m3/h) |
|||||||
|
Trough idler |
0.8 |
78 |
130 |
-- |
-- |
-- |
-- |
|
1.0 |
97 |
164 |
278 |
435 |
655 |
891 |
|
|
1.25 |
122 |
206 |
348 |
544 |
821 |
1115 |
|
|
1.6 |
156 |
264 |
445 |
696 |
1048 |
1427 |
|
|
2.0 |
191 |
323 |
546 |
853 |
1284 |
1748 |
|
|
2.5 |
232 |
391 |
664 |
1033 |
1556 |
2118 |
|
|
3.15 |
-- |
-- |
824 |
1233 |
1858 |
2528 |
|
|
4.0 |
-- |
-- |
-- |
-- |
2202 |
2996 |
|
|
Flat idler |
0.8 |
41 |
67 |
118 |
-- |
-- |
-- |
|
1.0 |
52 |
88 |
147 |
230 |
345 |
469 |
|
|
1.25 |
66 |
110 |
184 |
288 |
432 |
588 |
|
|
1.6 |
84 |
142 |
236 |
368 |
558 |
753 |
|
|
2.0 |
103 |
174 |
289 |
451 |
677 |
922 |
|
|
2.5 |
125 |
211 |
350 |
546 |
821 |
1117 |
|
|
