Lvjing Industrial Bag-house Dust Collectors
- Industrial bag-house dust collectors, utilizing fabric bags as filters, effectively capture and remove particulate matter from process gases, based on filtration and gravity separation, incorporating cleaning mechanisms to maintain efficiency.

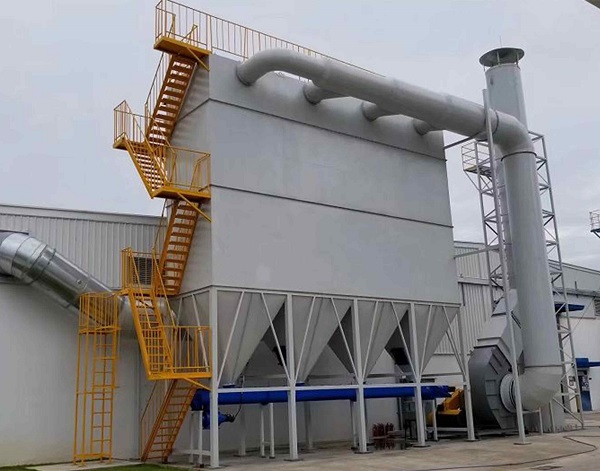

Lvjing Industrial Bag-house Dust Collector
1. Introduction to Industrial Bag-house Dust Collectors
Industrial bag-house dust collectors are a crucial component in air pollution control systems, widely employed across various industries to effectively capture and remove particulate matter from process gases. These systems utilize a network of fabric bags as the primary filtering medium, offering high dust removal efficiency and versatility.
2. Working Principle of Industrial Bag-house Dust Collectors
The working principle of a bag-house dust collector is based on the combination of physical filtration and gravity separation.The process can be broadly divided into three stages:
2.1 Ingress and Filtration:
1) Dust-laden gas enters the bag-house through the inlet duct, where it is directed to the filter chambers.
2) Each chamber houses a series of vertically suspended filter bags, made from synthetic, or natural glass, fibers, woven into a fabric or felt
3) As the gas passes through the filter bags, the particulate matter is trapped on the surface of the bag material, while clean gas permeates through and
exits via the outlet duct.
2.2 Accumulation and Cleaning:
1) Over time, the accumulated dust on the bags forms a dust cake, which further enhances filtration efficiency by acting as an additional filter layer.
2) However, as the dust cake thickens, it increases the resistance to airflow, necessitating cleaning.
3) Cleaning is typically achieved through various mechanisms, such as pulse jet cleaning, reverse air, or mechanical shaking, which dislodges the dust cake and allows it to fall into a collection hopper for disposal.
2.3 Cycle Continuation:
1) After cleaning, the compartment is returned to service, and the filtration process resumes.
2) Depending on the design, bag-house dust collectors can operate in either online (continuous) or offline (batch) cleaning modes, minimizing disruption to the overall process.
3. Advantages of Industrial Bag-house Dust Collectors
1) High Efficiency: Bag-house dust collectors can achieve particulate removal efficiencies exceeding 99% for particles larger than 0.1 microns.
2) Versatility: They can handle a wide range of process gases and dust properties, including high temperatures, humidity, and corrosive environments.
3) Low Maintenance: Modern bag-house designs incorporate advanced cleaning systems and durable filter materials, reducing maintenance requirements and downtime
4) Environmentally Friendly: By effectively removing particulate emissions, bag-house dust collectors contribute significantly to air quality improvement and regulatory compliance.
4. Applications of Industrial Bag-house Dust Collectors
Industrial bag-house dust collectors find widespread applications in sectors such as:
1) Manufacturing: Including metalworking, automotive, and electronics, where they capture dust generated during processes like welding, cutting, and grinding.
2) Power Generation: Used in coal-fired power plants to control fly ash emissions.
3) Minerals and Mining: In the processing of ores and minerals, where large quantities of dust are generated.
4) Cement and Building Materials: For dust control in cement production, limestone crushing, and concrete mixing.
5) Chemical and Pharmaceutical: Capturing hazardous dusts and particulates generated during production processes.

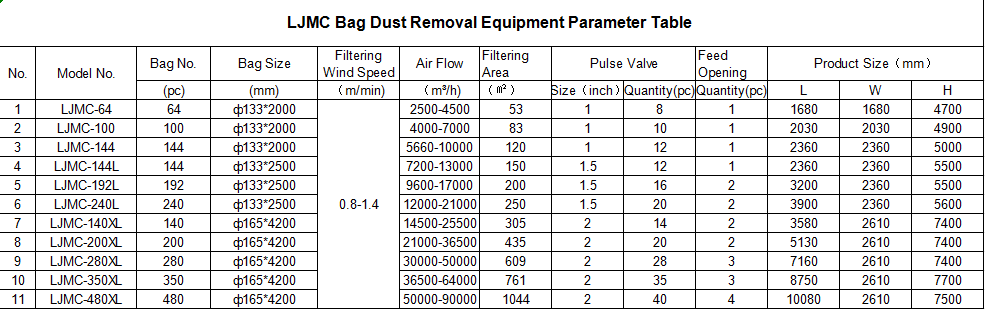

5. Parameters of Industrial Bag-house Dust Collectors
6. Conclusion
In conclusion, industrial bag-house dust collectors represent a highly effective and versatile solution for particulate emission control in various industrial settings. Their ability to achieve high removal efficiencies, combined with their durability and low maintenance requirements, make them a crucial component in modern air pollution control systems.
