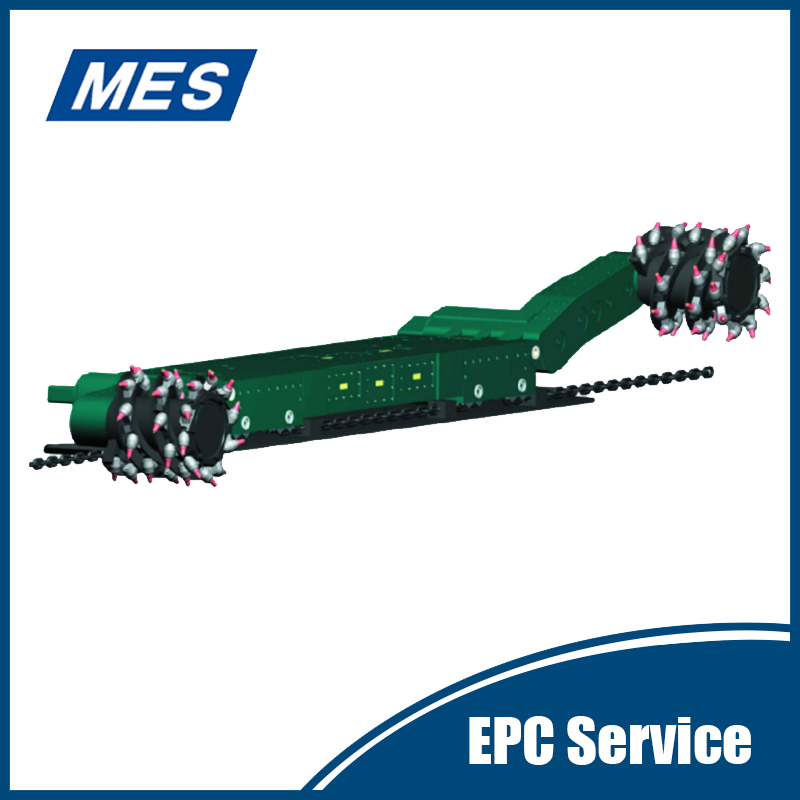

HMG100 Coal Shearer
- HMG100/250-PBD super low coal shearer is a new type machiner for mechanized coal mining working face and high-grade mechanized coal mining working face.
Cutting Height Range:0.80-1.60m
Slope Angle:≤45°
Coal Hardness :f≤3.5
Total Installed Power:2*100+2*25kW
Coal Gap:198
Designed Capacity:200t/h
Voltage Class:1140V
Machine Surface Height:510mm
HMG100/250-PBD Coal Shearer
Introduction
HMG100/250-PBD super low coal shearer is a new type machiner for mechanized coal mining working face and high-grade mechanized coal mining working face. It’s a super low AC chain haulage off-pan shearer driven with mult-motor and with large power. This coal shearer is driven by four motors of which the power of sides cutting motors are 100kw and the sides traction motors are 25kw. The total installation power is 250kw and the traction is large with double traction motor drive structure. It is applicable to the 0.80-1.60m thickness of coal seam and non-metal deposits that is dip angle is ≤45°,coal property is medium-hard ( f ≤3.5) . The longwall shearer can work with metal friction props or single hydraulic props and metal hinge top beam to be the mechanized working face and high-grade mechanized coal mining working face. Also it can work with low coal hydraulic props supporting to the fully mechanized working face.
Technical Parameters
No.
Item
Unit
Data
1
Product Model
HMG100/250-PBD
2
Cutting Height Range
m
0.80-1.60
3
Slope Angle
°
≤45
4
Coal Hardness
f
≤3.5
5
Total Installed Power
kW
2*100+2*25
6
Coal Gap
198
7
Designed Capacity
t/h
200
8
Voltage Class
V
1140
9
Machine Surface Height
mm
510
10
Maximum Cutting Height
mm
1600
11
Depth of Cut
mm
220
12
Roller Diameter
mm
800,850,900,
13
Drum Rotating Speed
r/min
80
14
Web Depth
mm
0.63；0.7;
15
Ranging Arm Length
mm
1579
16
Center Distance of Swing Arm
mm
4100
17
Speed Regulation Method
AC ELECTRIC HAULAGE
18
Traction
kN
150
19
Traction Speed
m/min
0-5
20
Weight
t
12
