Revolutionizing Industrial Air Pollution Control: The Advanced Acid and Alkali Waste Gas Scrubber
- Acid and Alkali Waste Gas Scrubber, a crucial industrial waste gas treatment device designed to purify exhaust gases containing hazardous acids and alkalies. The scrubber employs counter-current spraying technology, which maximizes gas-liquid contact for efficient absorption and neutralization of pollutants. The product's efficiency in removing acidic and alkaline pollutants, combined with its environmental compliance and worker safety benefits, make it a top choice for businesses seeking to revolutionize industrial air pollution control.
Revolutionizing Industrial Air Pollution Control: The Advanced Acid and Alkali Waste Gas Scrubber
1. Introduction:
Our state-of-the-art Acid and Alkali Waste Gas Scrubber, is a pivotal solution in industrial waste gas treatment. This equipment is designed to tackle the challenging task of purifying exhaust gases containing hazardous acids and alkalies, ensuring compliance with stringent environmental regulations and safeguarding the health of workers and the surrounding community.
2.Product Overview:
The Acid and Alkali Waste Gas Scrubber is a specialized industrial waste gas treatment device that excels in removing acidic and alkaline pollutants from industrial exhaust streams. It is widely employed across various industries, including painting, printing, pharmaceutical, and those generating harmful acid or alkaline emissions. The scrubber's versatility allows it to effectively process a broad spectrum of contaminants, such as HCL, HF, NH3, H2SO4, NaOH, H2S, and HCHO, among others.
3.Working Principle:
At the heart of our scrubber lies the counter-current spraying technology. This innovative approach involves introducing the acid or alkaline-laden exhaust gas into a purification tower via an air duct. The gas then travels upwards through a packing layer, where it comes into intimate contact with a pressurized absorption liquid sprayed downward from the top of the tower. This counter-current flow maximizes the contact area between the gas and liquid phases, enabling efficient absorption, neutralization, and adsorption of the acidic or basic pollutants.
The purified gas subsequently passes through a demister plate for dehydration and defogging before entering an activated carbon air filter for secondary treatment. This step further removes impurities, colors, and odors, ensuring that only clean, odorless air is discharged into the atmosphere through the fan. Meanwhile, insoluble particles and dust are collected in a designated tank for safe disposal.

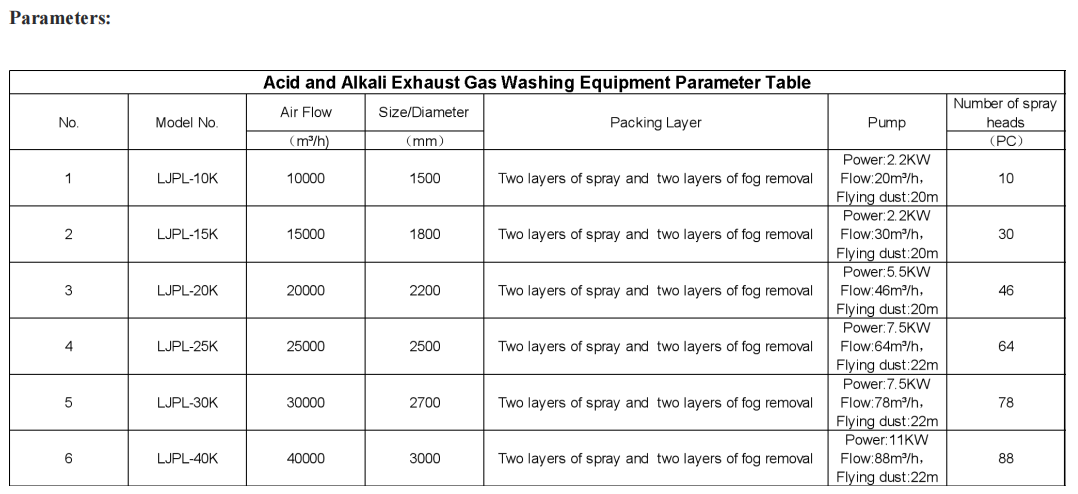

4. Parameters:
5.Product Features:
Corrosion-resistant, wear-resistant, and long service life.
Low pressure drop, high operational flexibility, and excellent demisting performance.
Simple process, convenient and straightforward management, operation, and maintenance, without any impact on workshop production.
Capable of treating various acid and alkali waste gases, suitable for continuous and intermittent emission processing, as well as handling acid and alkali waste gases with varying concentrations ranging from low to high.
6. Material & Durability:
Crafted from high-quality polypropylene, our Acid and Alkali Waste Gas Scrubber boasts exceptional durability and chemical resistance, ensuring long-term reliability even in harsh industrial environments. The material's resilience against corrosion and wear makes it the ideal choice for handling aggressive acid and alkaline gases.
7. Customizable Solutions:
Recognizing the unique requirements of each industrial application, we offer customizable solutions tailored to specific air volume, size, and technical specifications. Our team of experts can assist in designing and manufacturing scrubbers that perfectly match your facility's needs, ensuring optimal performance and cost-effectiveness.
In conclusion, our Industrial-Grade Acid and Alkali Waste Gas Scrubber represents the pinnacle of industrial air pollution control technology. Its efficient counter-current spraying system, combined with durable polypropylene construction, makes it the go-to solution for businesses committed to environmental sustainability and worker safety.
