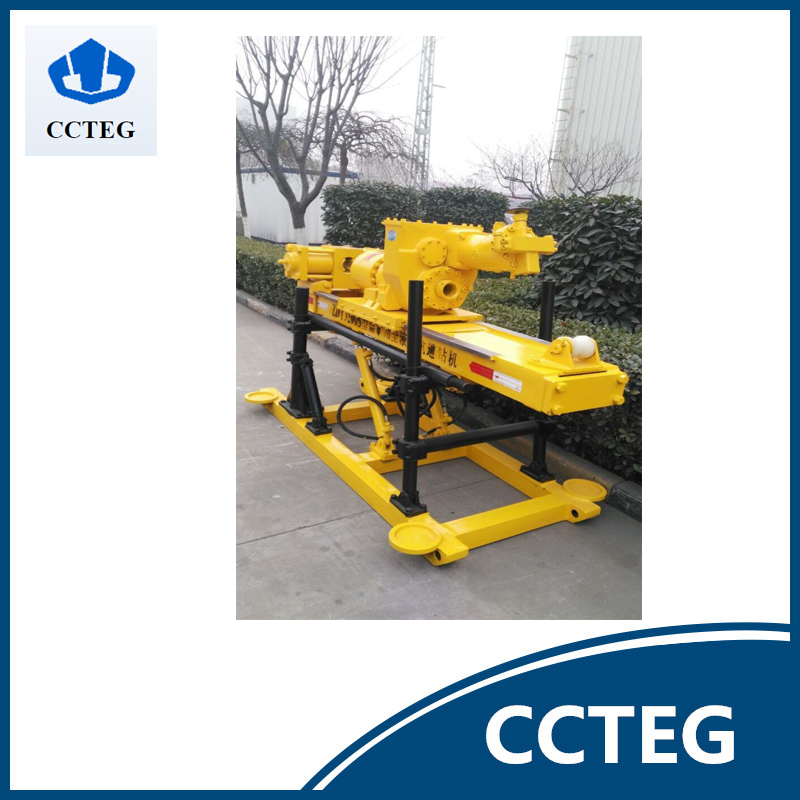

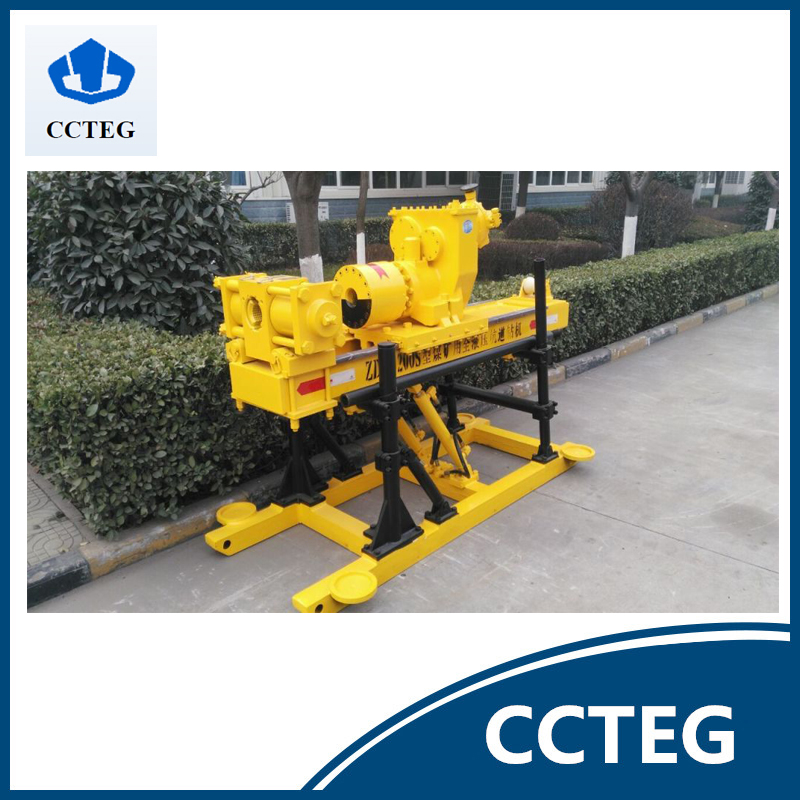

ZDY1900S Full Hydraulic Underground Drill Rig

ZDY1900S underground drill rig is specifically designed to drill middle depth boreholes in explosive underground environments

Product details

1. Introduction

The rig has a compact footprint and is designed with easy disassembly structure which makes the rig suitable to used in extremely narrow roadway

The rigs is designed to drill borehole in excess of 350m with drill rods and PDC drill bits.

2. Technical Features

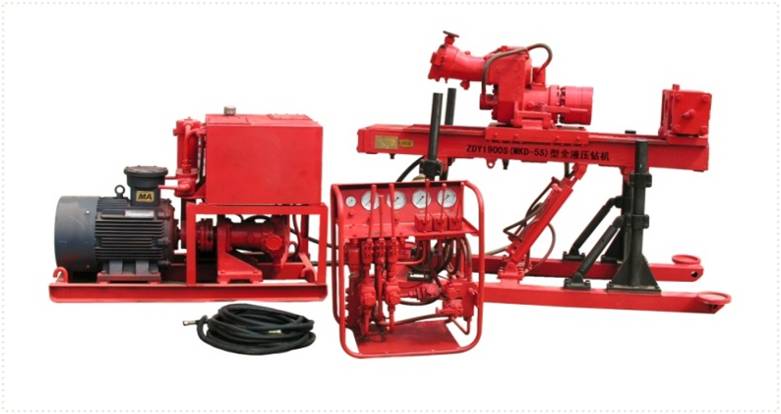

ZDY1900S drill rig is composed by three part, control panel, drill unit and power pack.

Each part can be moved conveniently.

Connection of the blocks can be done by make-and-break couplings

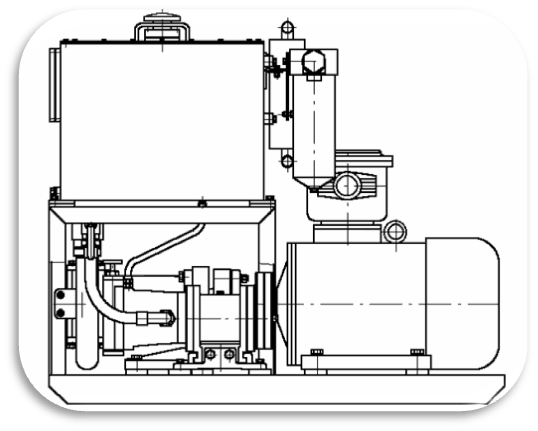

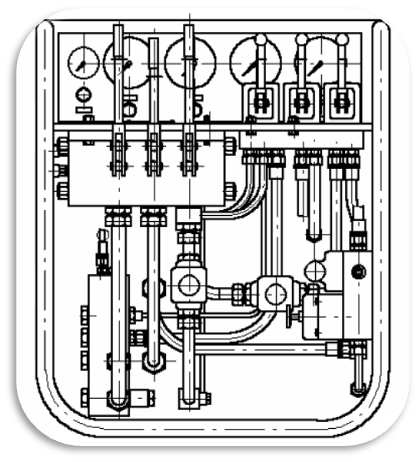

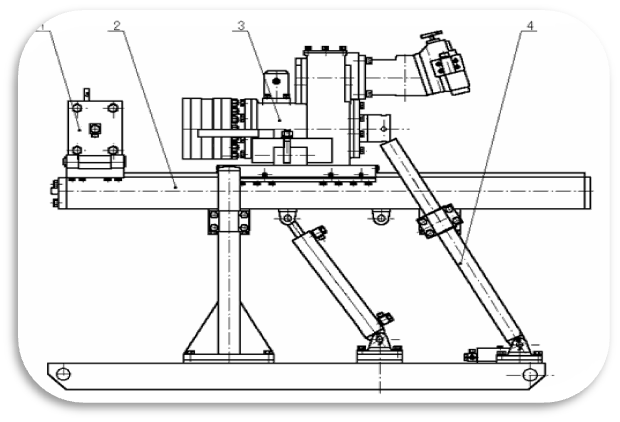

Control panel Drill unit Power pack

1）Steeples speed regulation ensure the rig can meet drilling requirement in all sorts of condition

2）Drill rods can be added behind the gear box, no limitation of the rod length

3）Linkage control of rotatory chuck and rod clamp provides extremely convenient operation

4）Double-pump system, parameter of rotation and feeding can be controlled independently

5）Independent control panel allows operation to stand far from borehole which increase the safety

6）Equipped with a positioner and a turntable, the drill is capable of drilling holes in all angles from vertically up to vertically down.

3.Technical specification

4.Equipment Compose

Typical equipment compose of ZDY1900S drill rig package includes water swivel, high strength drill rods, drilling bit and mud pump

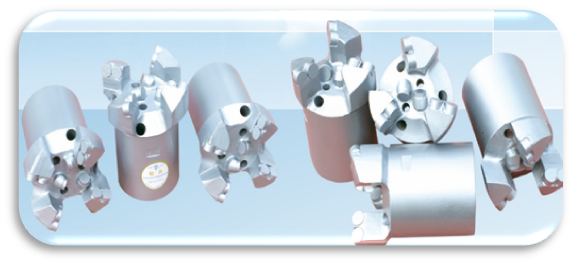

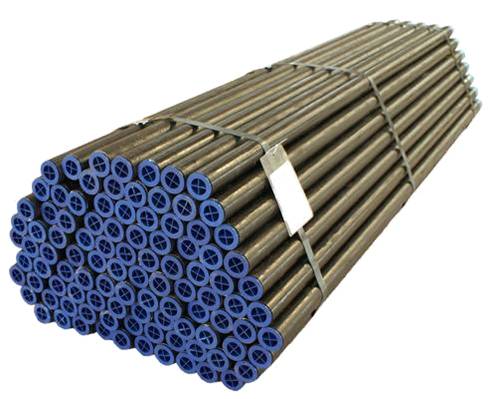

Friction welded drill rod PDC drill bit

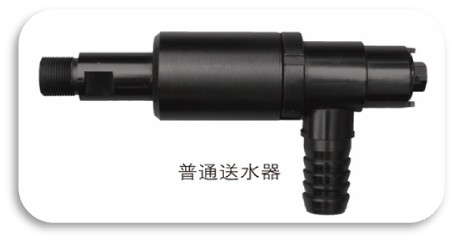

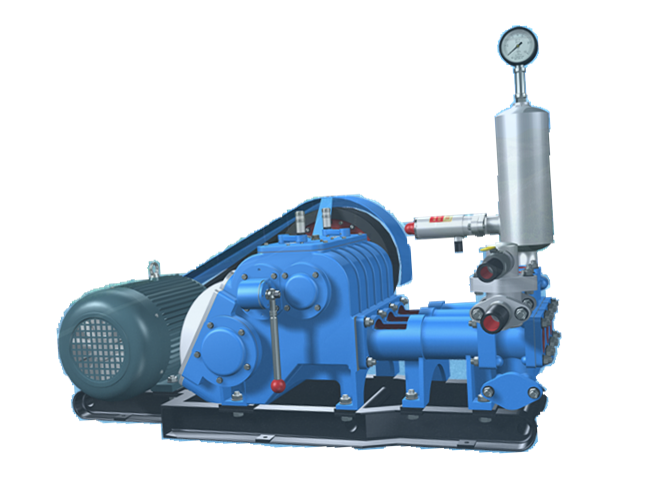

Water swivel Mud pump
