Gold Dredge
- Gold dredge is compose of shaking sluice box , classifier and jig . It is of high efficency , easy operation. The calssifier is on the top and can seperate gravels by 4mm mesh inside . In the middle there is a shaking sluice box which can get coarse gold .
Gold Dredge

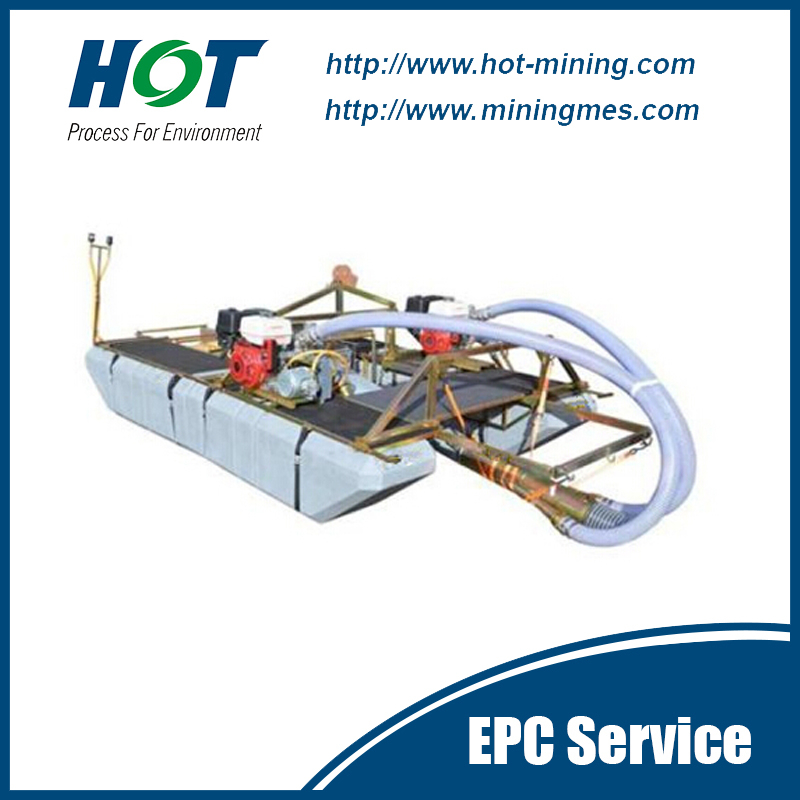

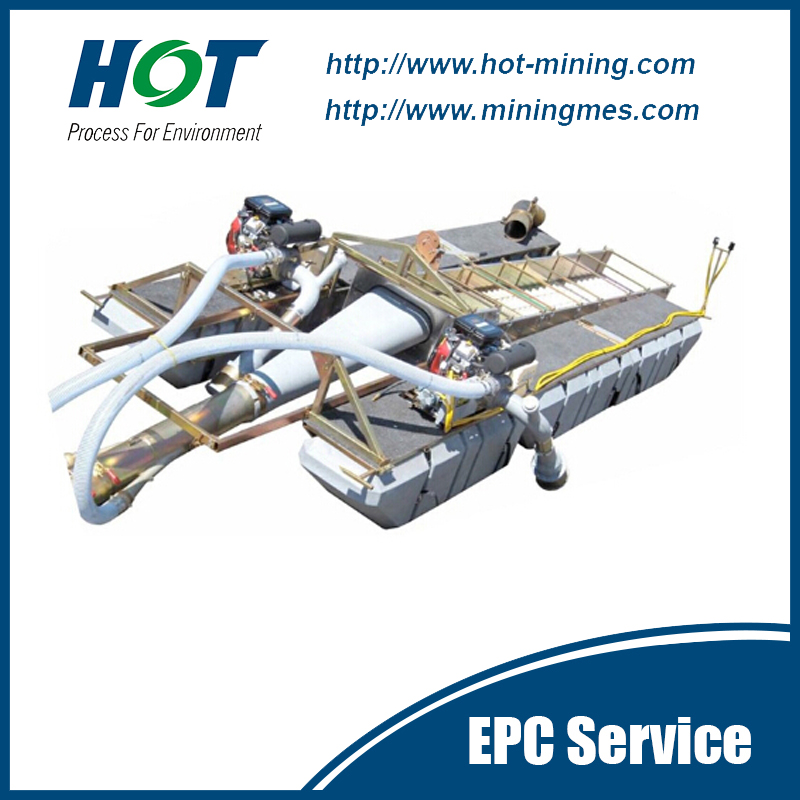

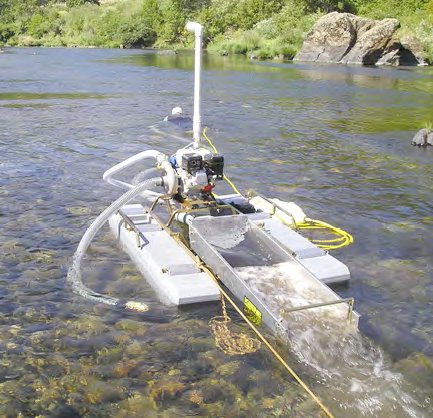

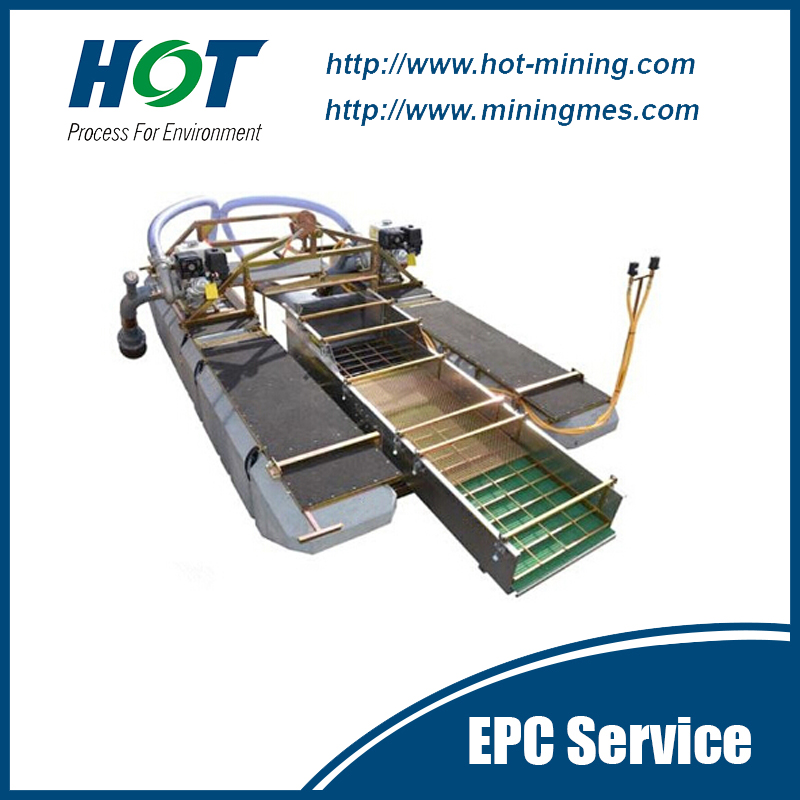

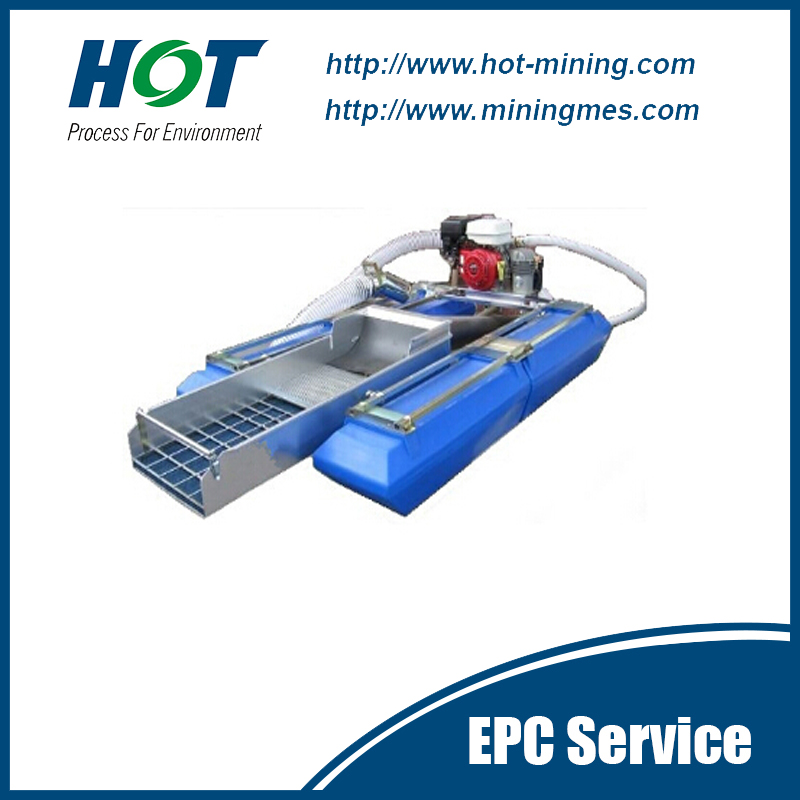

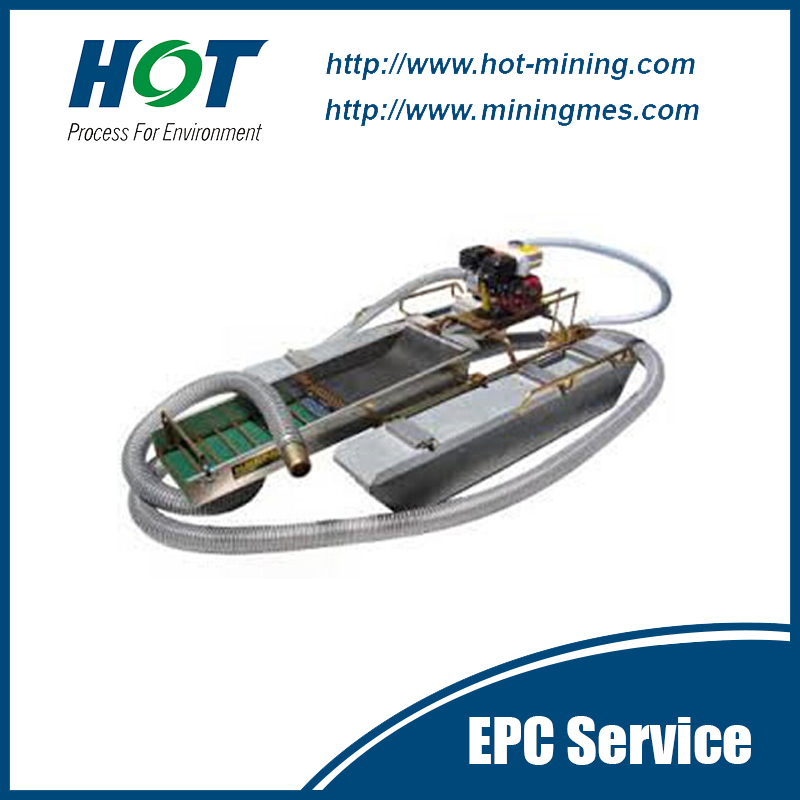

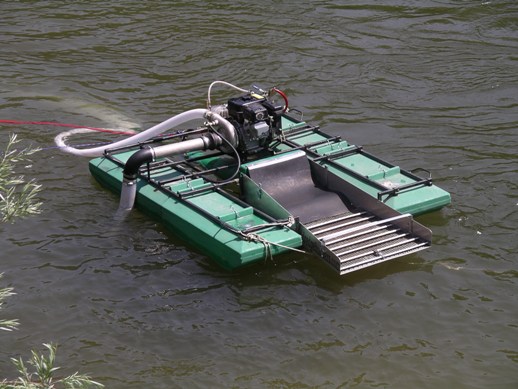

1. Brief Description of Gold Dredge
Gold
dredge is a professional portable gold mining machine which is specially
designed according to the complex riverbed conditions. Portable gold mining
dredge is equipped with a gold sluice with gold carpet or grass for high
recovery rate, powered by a famous gasoline engine with pump, float framework
is made up of stainless steel structure, the floating body is made of high
strength and light weight plastic. There are advantages that small in size,
easy to operate, maintain, transport and assemble, it is most ideal equipment
for personal gold mining in mini river channel.
2. Features of Gold Dredge
2.1 High Recovery Rate
Through test, the recovery rate for placer gold can be over 90%, and for the rock gold time, when the feeding size is under 0.4mmm, the recovery rate can reach 95%.
2.2 High Efficiency
MES
gold dredge can reach a processing capacity more than 200 tons/hr. High
efficiency means fast payback of investment.
2.3 Easy to Operate
Only
two persons can operate the whole MES gold dredge. All the operating buttons
and lights can be controlled through controlling desk
in
the operation room.
2.4 Easy to Maintain
The
whole machine is designed with simple structure. All the mechanical parts are
connected strongly and easy to change by the operators. During
the
whole working life of the machine, the supplier will supply spare parts for the
buyers.
2.5 No Pollution
All
the gold mining machinery only consumes water and electricity power with low
noise, and no chemical involved.
2.6 Reliable Performance
MES gold dredge has a simple & tough structure. All the parts are from reputed brand and the main frame is made by strong steel materials. All the equipment will be tested well before delivery.
3. Technical Parameters of Gold Dredge
|
Model |
HCQFT3-2 |
HCQFT4-3 |
HCQFT3 |
HCQFT4 |
|
Dimension(L*W*H) |
2300*1500*1000mm |
2300*1500*1000mm |
2300*1500*1000mm |
2300*1500*1000mm |
|
Diesel engine |
|
|||
|
Engine |
Single cylinder petrol engine |
Single cylinder petrol engine |
Single cylinder petrol engine |
Single cylinder petrol engine |
|
Power(hp) |
5 |
7 |
11/13 |
13/15 |
|
Pump |
|
|||
|
Inlet/Outlet Diameter |
50mm(2inch) |
80mm(3inch) |
80mm(3inch) |
100mm(4inch) |
|
Max Dredging Depth |
0.5m-1.2M |
2M |
3-5M |
3-5M |
|
Remark |
With carpet |
With carpet |
With carpet |
With carpet |
|
Floating |
|
|||
|
Dimension(L*W*H) |
1600*395*370 |
1600*395*370 |
1600*395*370 |
1600*395*370 |
|
Power Jet |
YZ3-2 |
YZ4-3 |
YZ3 |
YZ4 |
|
Handed Suction Hose |
3inch |
4inch |
3inch |
4inch |
|
Remark |
With carpet |
With carpet |
With carpet |
With carpet |
