XFD Single Trough Flotation Cells (Lab Flotation Machine)
- Name: XFD Single Trough Flotation Cells (Lab Flotation Machine)
Brand: OrganeX
Model:XFD0.5，XFD0.75，XFD1，XFD1.5，XFD3，XFD8
Tank material: Plexiglass, stainless steel
Application: Mineral processing, mining industry to do experiments and processes
XFD Single Trough Flotation Cells (Lab Flotation Machine)
1. Introduction
XFD Experimental Flotation Machine has reasonable design, which is simple to operate and convenient to maintain. It has the characteristics of good intuitive effect, accurate measurement, corrosion resistance and beautiful shape. It ‘s an ideal equipment for flotation of a small amount of ore samples in various geological, metallurgical, building materials and chemical industry laboratories.
2. Structure of XFD Experimental Flotation Machine
(1) Base;
(2) Pallet;
(3) Trough;
(4) Mixing section;
(5) Scraper section;
(6) Spindle part;
(7) Guard;
(8) Motor;
(9) Flow meter;
(10) Control switch;
(11) Scraper switch and other parts.
3. Working Principle
It is driven by the triangle belt of the motor, which drives the impeller to rotate and produces centrifugal action to form negative pressure. On the one hand, it inhales the sufficient air to mix with the pulp. On the one hand, it mixes the slurry with the medicine, and refines the foam, so that the mineral adheres to the foam and floats to the slurry surface to form a mineralized foam. Adjust the height of the gate and control the liquid level, so that the useful foam is scraped out by the scraper.

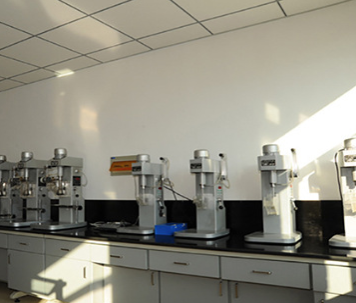

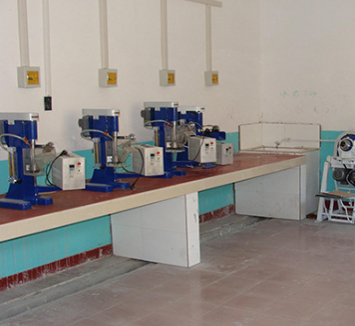

4. Applications
(1). Research on dressing and hydrometallurgy technology of complex associated polymetallic ore;
(2). Study on the dressing and smelting technology of refractory gold ore;
(3). Study on the new technology of mechanical dressing, tailing and pollution-free purification of low-grade ore;
(4). Test of refractory hemalimonite and impurity removal technology of iron and gold ore;
(5). Purification and deep processing of nonmetallic ore;
(6). Comprehensive utilization technology of tailing resources in metal mines;
(7). Tackling difficulties in dressing, production commissioning and technical support of dressing plant;
5. Technical Parameters
|
NO |
Technical parameters |
Unit |
Specification |
|||||
|
XFD0.5 |
XFD0.75 |
XFD1 |
XFD1.5 |
XFD3 |
XFD8 |
|||
|
1 |
Groove volume |
L |
0.5 |
0.75 |
1 |
1.5 |
3 |
8 |
|
2 |
Impeller diameter |
mm |
45 |
55 |
60 |
70 |
100 |
|
|
3 |
Impeller speed |
R/min |
2590. 2340. 2130 |
2100 |
1910 |
1890 |
1400 |
|
|
4 |
Speed of scraper |
R/min |
15、30 |
7.9.19.1 |
8.6.12.9.17.2 |
|||
|
5 |
Feeding granularity |
mm |
-0.2 |
|||||
|
6 |
Motor |
w |
2800(r/min)180W |
6324 1410r/min 250W |
||||
|
7 |
Specification |
mm |
502×263×268 |
570×263×668 |
560×310 ×590 |
380×505×970 |
||
|
8 |
Weight |
kg |
30 |
33 |
50 |
72 |
||
