Efficient High-Temperature Dust Control: The Premier High-Temperature Metal Filter Bag Dust Collector
- The high-temperature metal filter bag dust collector is a powerful industrial solution designed to efficiently process up to 730,000 m³/h of air flow, capturing and removing dust particles from high-temperature environments, utilizing robust metal filter bags that can withstand extreme heat conditions.

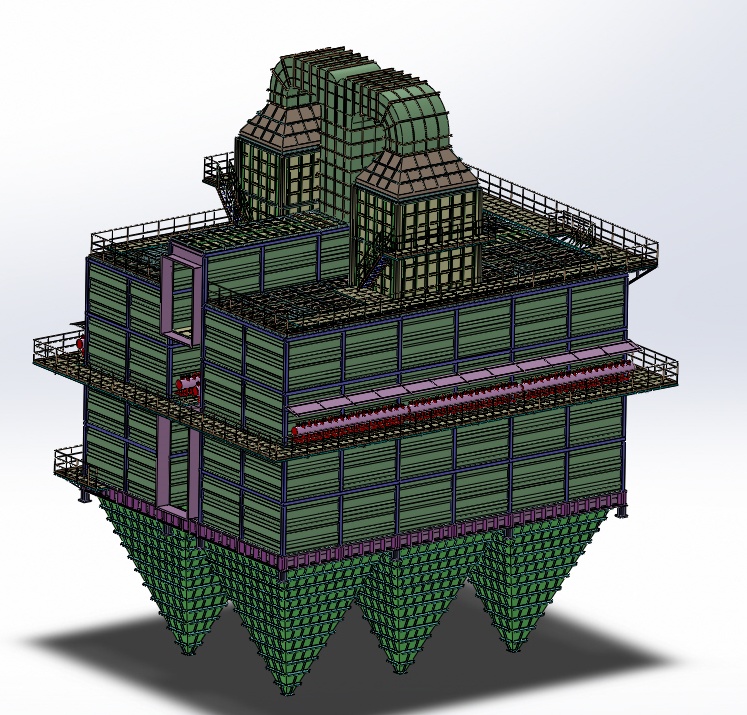

High-temperature metal filter bag dust collector
1. Introduction to high-temperature metal filter bag dust collector :
The high-temperature metal filter bag dust collector is a specialized piece of equipment designed to efficiently remove dust and particulates from high-temperature flue gases, typically encountered in industries such as metallurgy, coal-fired boilers, alumina production, cement manufacturing, automobile exhaust purification, refinery catalyst recovery, precious metal recovery, and waste incineration. It utilizes metal filter bags, made from sintered metal fibers, which are highly resistant to high temperatures, wear, and tear, making them ideal for demanding industrial applications. The dust collector ensures effective dust removal, meeting stringent emission standards, while also facilitating heat recovery due to the high temperature of the exhaust gases. Its key features include high filtration efficiency, low pressure drop, easy maintenance, and long service life.
2.Parameters of the high-temperature metal filter bag dust collector:
1). Processing air volume: 730,000m³/h.
2). Flue gas temperature: ≤380℃.
3). Outlet dust concentration: ≤10mg/m³.
3. Working principle of high-temperature metal filter bag: basically same as the cloth bag.

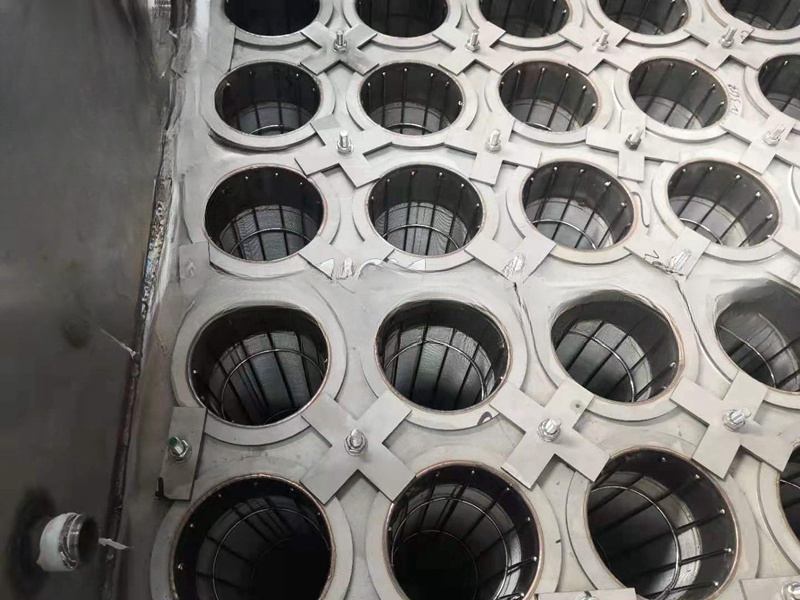

4. Product Specifications of high-temperature metal filter bag:
1). shape: cylindrical, pleated, plate frame shape.
2). material: 316 L & 310 S
3). size:φ(14-200 mm) × (500-8000 mm), or customized.
4). connection mode:flange,thread or bag cage structure.
5. Advantages and disadvantages of high-temperature metal filter bag:
1). High temperature resistance,
2). Long service life
3). high filtration efficiency, emission gas concentration less than 5mg/Nm
4). high strength, wear resistance, no perforation, no fracture
5). low filter material resistance, 1-meter wind speed less than 200Pa.
6)Disadvantages: low temperature intolerance but high price.
