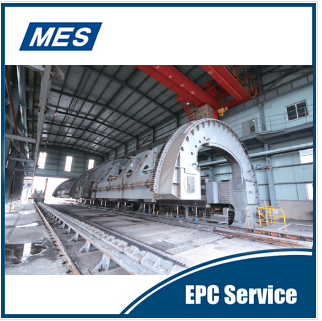

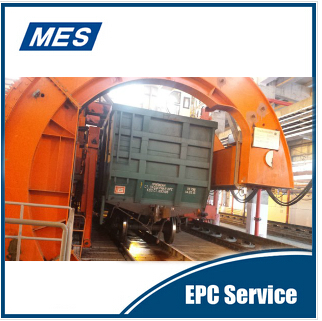

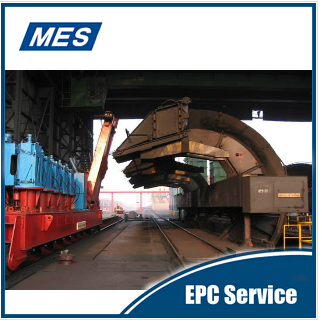

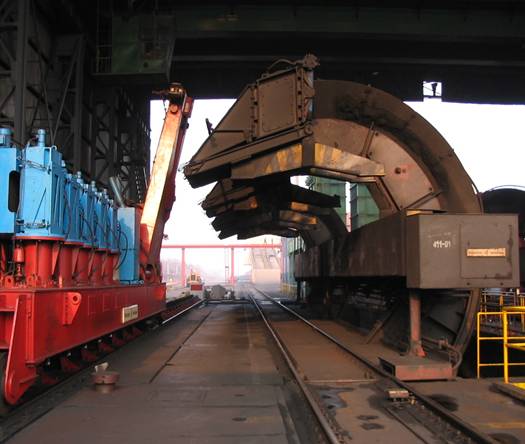

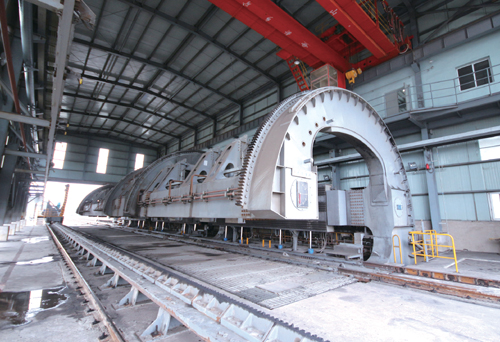

C-shape Hydraulic Car Dumper
- Load capacity: 100t ~110t(max)
Roll angle:165~175°(max)
Clamping model:Mobile

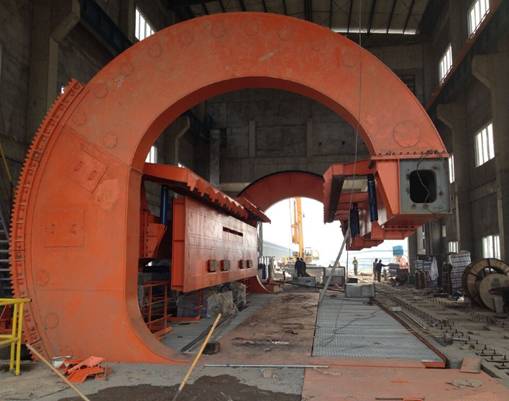

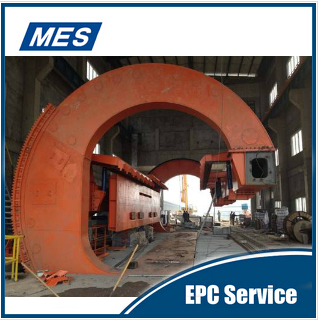

It uses C-shape roller plate.The structure is light and easy, the platform is fixed. Hydraulic drive eliminates the impact on the vehicle and the equipment, reduces the force of the car. According to the special control mode of the hydraulic system, the energy of the vehicle spring can be released effectively. Drive power is small.
C-shape Hydraulic Car Dumper
1. Description:
It uses C-shape roller plate.The structure is light and easy, the platform is fixed. Hydraulic drive eliminates the impact on the vehicle and the equipment, reduces the force of the car. According to the special control mode of the hydraulic system, the energy of the vehicle spring can be released effectively. Drive power is small.
2. Application:
Applicable to large ports and industrial sectors such as metallurgy, coal, thermal electricity and so on.
Applicable to a large range of vehicles: single carriage and whole unite of carriage with rotate coupler.
Applicable to the heavy truck shunting system.
3. Parameters:
|
Load capacity |
100t ~110t(max) |
|
Roll angle |
165~175°(max) |
|
Clamping beam |
2 pair |
|
Clamping force |
No more than 784kN/400mm |
|
Roller amount |
2 |
|
Distance between two rollers |
15m |
|
Roller diameter |
7.56m |
|
Platform mode |
stationary |
|
Platform length |
15.94m |
|
Clamping model |
Mobile |
|
Trail distance |
1.505m |
|
Drive power |
2x45Kw |
|
