Factory Welding Fume Exhaust Treatment Facility System Engineering
- A comprehensive welding fume and VOCs treatment facility utilizing a wet dust collector, dual-stage activated carbon adsorption, and high-efficiency ventilation system was successfully implemented for a Sichuan-based machinery R&D and manufacturing company, achieving 60,000m³/h processing capacity.
Welding Fume Exhaust Treatment Case Share
Project Name: Workshop Welding Fume Exhaust Treatment Facility System Engineering.
Industry Background: The case company is a Sichuan-based enterprise engaged in mechanical equipment research and development, communication equipment manufacturing, and sales.
Exhaust Source: Welding fume emissions generated from reflow soldering and manual brazing processes in the production workshops.
Main Equipment Name: Dust + VOCs Atmospheric Treatment Project.
Treatment Airflow Requirement: 600,000 m³/h.

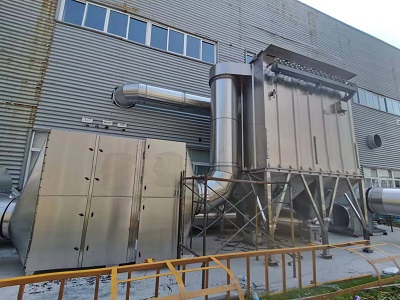

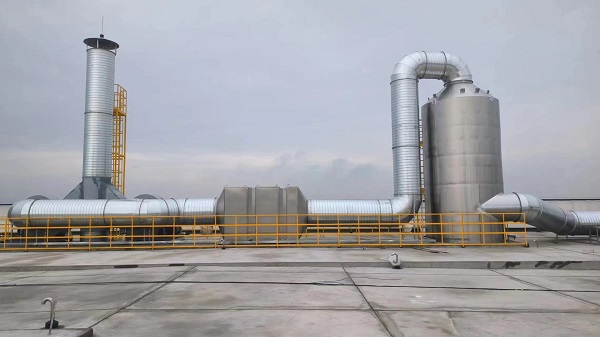

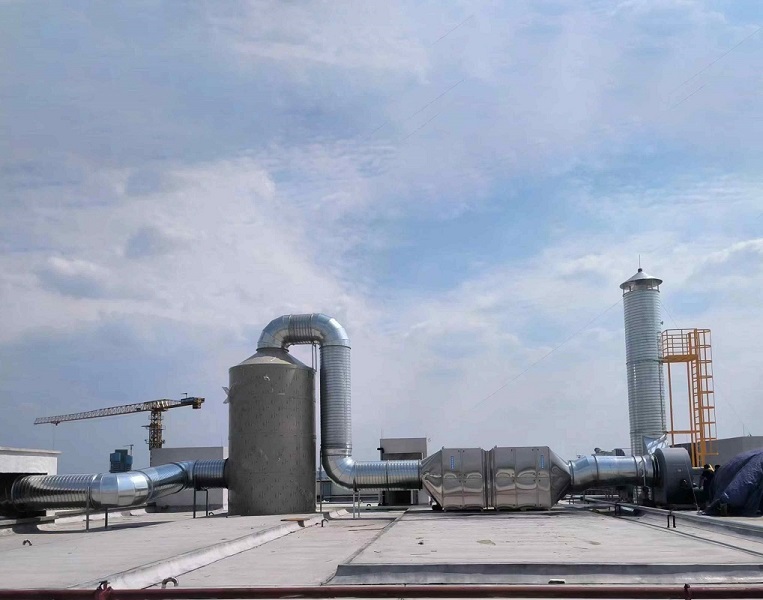

Treatment Process: Collection Pipelines + Wet Dust Collector + Two-stage Activated Carbon Filter + Fan + Exhaust Duct.
1. Equipment Configuration Parameters:
1) Core Equipment:
Wet Dust Collector + Two-stage Activated Carbon Chamber + Centrifugal Fan (One for Use, One for Backup).
2) Materials:
Pipelines: Galvanized Spiral Ducts; Equipment Body: 304 Stainless Steel
3) Electrical Control Method:
Variable Frequency Start-up Mode.
2. Equipment Features & Advantages:

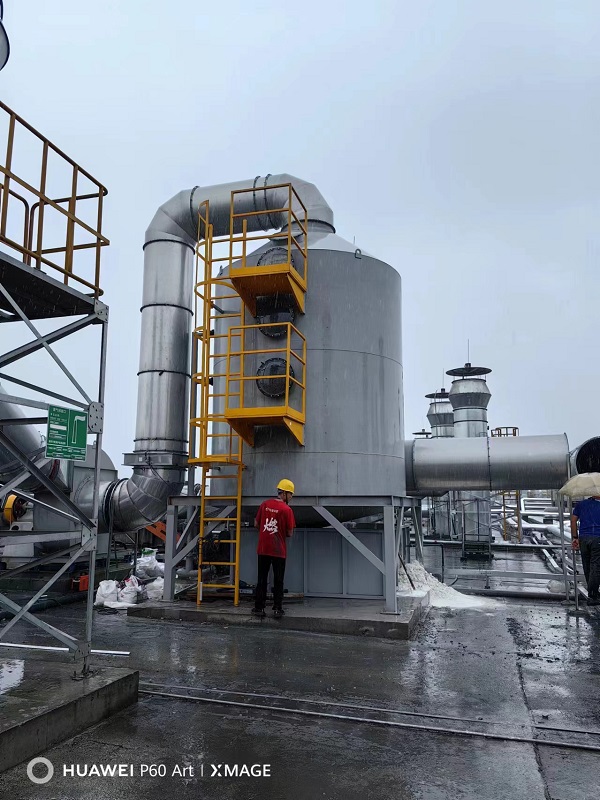

1) Wet Dust Collector:
Introduction: A novel dust filtration device that collects dust-laden gas under the negative pressure of the fan and utilizes water or other liquids to interact with the gas, removing dust particles. When dust particles encounter sprayed water droplets, water films, or wet surfaces, they undergo wetting, agglomeration, diffusion, and settling processes. The dust-laden gas enters the device through the inlet and is obstructed and neutralized by multiple cyclone layers, separating dust from the gas.
Application: The wet dust collector can simultaneously purify harmful gases, making it suitable for high-humidity smoke and sticky dust. It is widely used in industries such as electronics, mining, casting, metallurgy, machinery, light industry, and building materials.
Advantages: Handles moist and sticky dust effectively; compact structure with minimal footprint; stable operation, easy to operate and maintain; low consumption and operating costs.
2) Activated Carbon Chamber:
Introduction: Primarily used for treating organic waste gases, featuring perforated plates and activated carbon adsorption layers. Organic waste gases are collected and then drawn into the activated carbon adsorption unit under the negative pressure of the fan. Activated carbon adsorption utilizes the porosity and attractive force of activated carbon. As the solid surface has unbalanced, unsaturated molecular or chemical bond forces, it attracts gas molecules, causing them to concentrate and remain on the surface, a process known as adsorption. In this process, the waste gas first passes through a pre-filter before entering the activated carbon filter layer within the unit. The pollutants in the waste gas are adsorbed onto the solid surface of the activated carbon, separating them from the gas mixture and achieving purification.
Application: It is widely used in coating, chemicals, electronics, hardware, and building materials industries.
Advantages: High adsorption and purification efficiency for various mixed waste gases; large adsorption capacity with broad applicability; easy maintenance, low technical barrier, and straightforward operation.
3. Project Cooperation Process: Site Survey → Scheme Design → Equipment Manufacturing → Delivery & Installation →On-site Debugging → After-sales Service.
Overall, this welding fume exhaust treatment system offers a comprehensive solution for managing and purifying welding fume exhaust, improving workplace safety and environmental compliance for the company.
