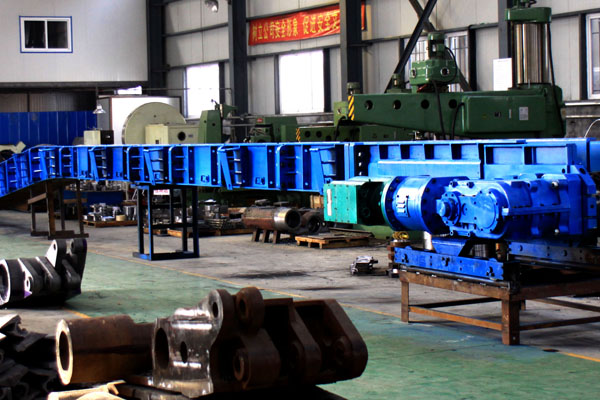

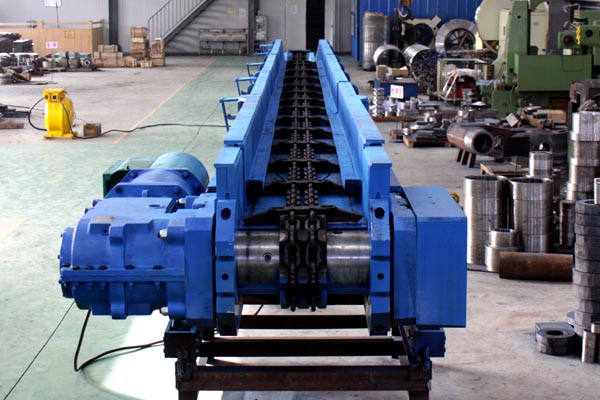

Scraper Conveyor
- SZZ630 scraper conveyor is the transportion equipment which can be used with telescopic belt conveyor.
Laying Length：28.47m
Conveying Capacity：450t/h
Permissible Gradient：8°
Motor Power：90Kw
Scraper Chain Form：Two Inboard Chain
Specification of Round-link Chian：22*86-C

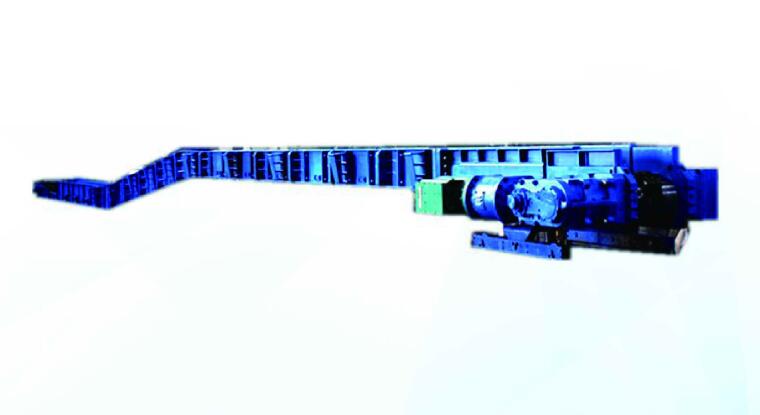

SZZ630 Scraper Conveyor
SZZ630 scraper conveyor is the transportion equipment which can be used with telescopic belt conveyor. The head of scraper conveyor is lapped in the side tracks of belt conveyor’s tail. And it can move along the belt conveyor(max movable distance 12m). Materials are transported from scraper conveyor to belt conveyor. When stoping, it can be used as a trough conveyor. When digging, it can be used as a heading face conveyor. If when digging road transportation tunnel, it also can be used as road transportation equipment to stoping working face after drifting.
SZZ630/90 Scraper Conveyor Technical Parameters
No.
Item
Unit
Capacity
1
Laying Length
m
28.47
2
Conveying Capacity
t/h
450
3
Permissible Gradient
°
8
4
Motor Power
Kw
90
5
Scraper Chain Form
Two Inboard Chain
6
Specification of Round-link Chian
22*86-C
7
Speed of Scraper Chain
m/s
1.04
8
Specification of Middle Trough
mm
1500*590
9
Dimension
mm
1520*1730
SZZ630/75 Scraper Conveyor Technical Parameters
No.
Item
Unit
Capacity
1
Laying Length
m
28.47
2
Conveying Capacity
t/h
450
3
Permissible Gradient
°
8
4
Motor Power
Kw
75
5
Scraper Chain Form
Two Inboard Chain
6
Specification of Round-link Chian
22*86-C
7
Speed of Scraper Chain
m/s
1.04
8
Specification of Middle Trough
mm
1500*590
9
Dimension
mm
1520*1730
