Vibrating Grizzly Feeder
- Condition: New;
Usage: Coal;
After-sales Service Provided: Engineers available to service overseas;
warranty: 1 year;
Max. Input Size (mm): 400;
capacity(t/h): 80-120
Motor Power (KW): 6;
Overall Dimension ( mm): 3110×1800×1600;
Weight (Kg): 2100;
Size of Funnel (mm): 900×3000

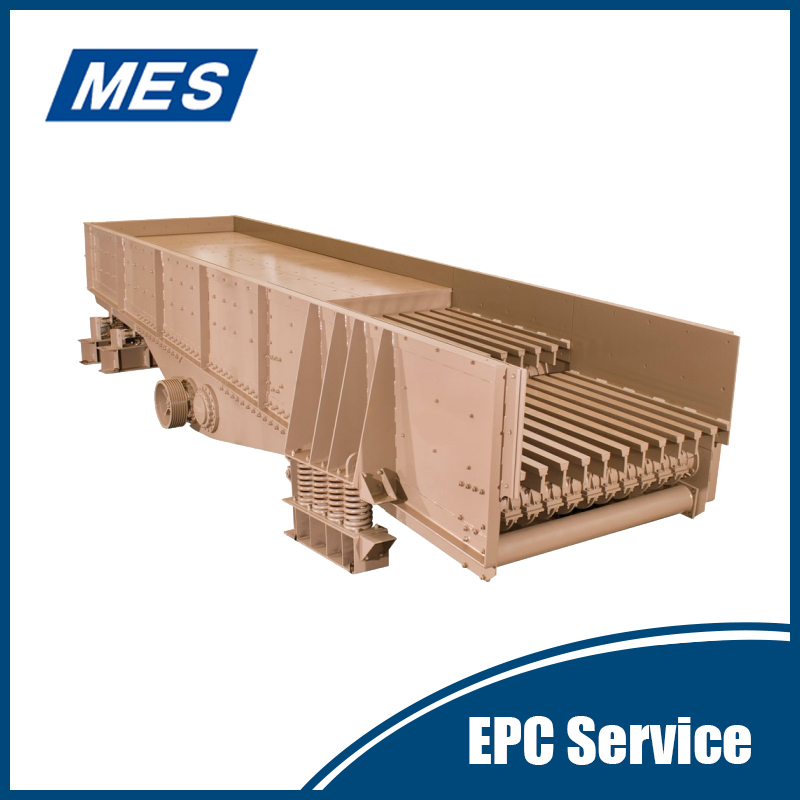

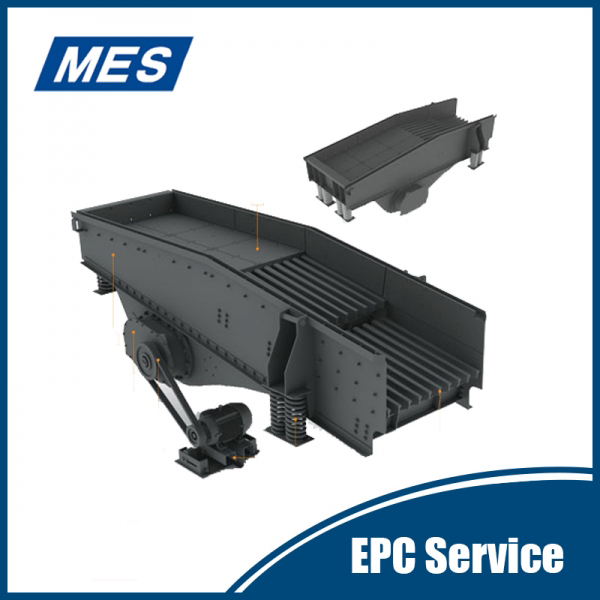

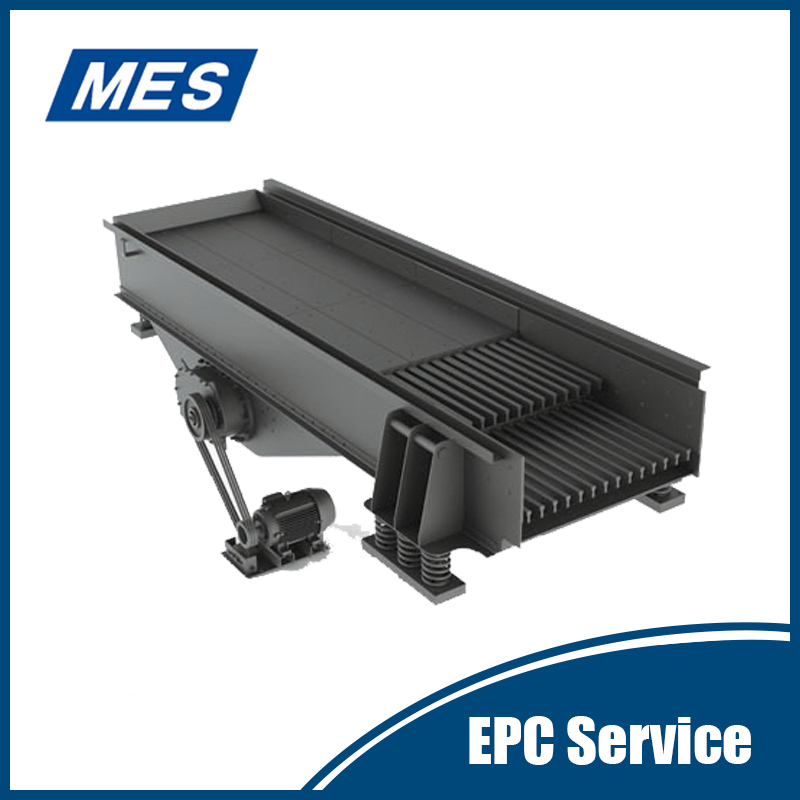

Vibrating Grizzly Feeder
Introduction of vibrating grizzly feeder:
Vibrating feeder can feed lump or granulated materials to the other devices evenly and continuously. In sand and gravel production line, the continuous feeding of the vibrating feeding machine helps avoid the blockage at receiving hopper. With easy flow adjustment, low noise and energy consumption, vibrating feeder is applied to crushing and screening production lines on crushing site, in mining, metallurgy, building material, chemistry, mineral processing, and coal industries.
Features of vibrating grizzly feeder:
1). Vibrating feeder enjoys simple structure,
stable vibrating, even feeding, good continuous performance, adjustable
excitation force, etc. Its flow rate can be conveniently changed and
controlled.
2). It adopts eccentric block as the excitation source and features low noise,
low energy consumption, good adjusting performance, and no material splashing.
3). Closed type vibrating feeder can prevent the pollution of dust.
4). The pressure caused by the material to the groove should be reduced to the
greatest extend. The effective discharge opening should be smaller than the one
quarter of the groove width. The flow rate should be controlled within
6-18m/min.
5). For feeding materials with a large quantity, a fender with enough height
should be installed at the outlet. This fender should not be fixed to the
feeder since it will affect the performance of the machine.

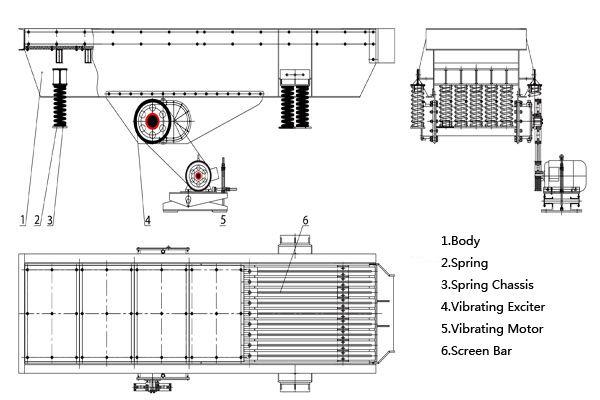

Working Principle for vibrating grizzly feeder:
This vibrating feeder adopts an eccentric block to produce
centrifugal force which makes the movable parts like screen box and vibrator
move continuously in a circle or an approximate circle. The material then
vibrates and jumps with the screen box on the tilted screen and is then
continuously and equably discharged.
Main Technical Parameters:
|
We can design one as your requirement.
