Roadheader
- Type: Core Drilling Rig;
Power Type: Electric;
After-sales Service Provided: Engineers available to service overseas;
Total power: 112kW;
Dig Roadway Section: 3~11(12)m;
Max. dig height: 3.2(3.5)m;
Maximum width of excavation(Location): 3.4(3.5)m.
Roadheader
Brief introduction：

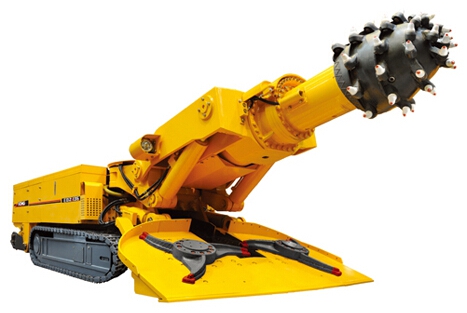

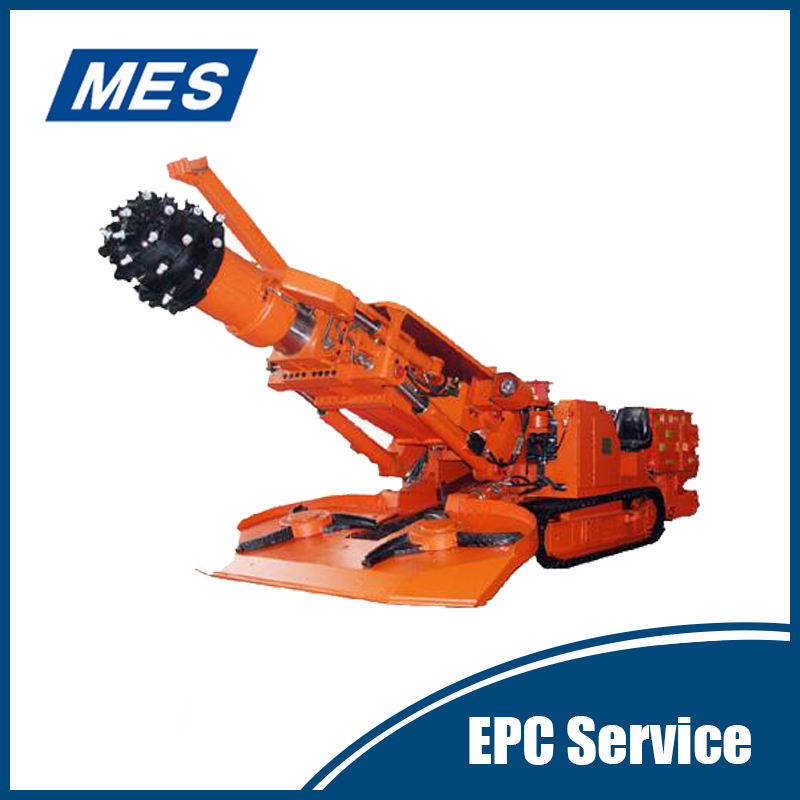

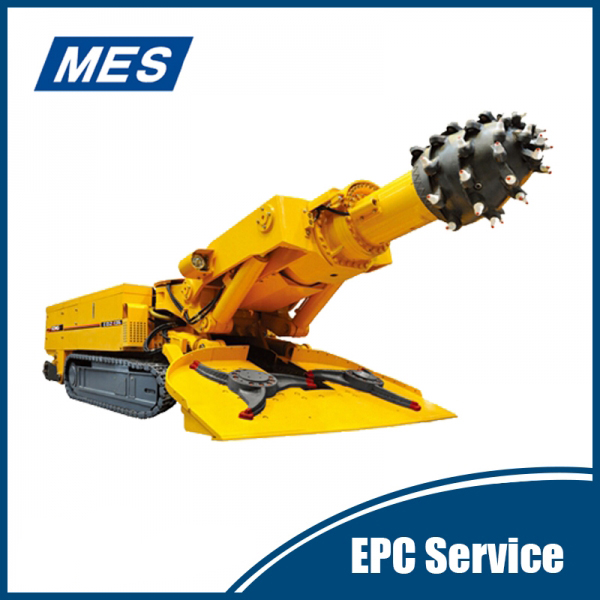

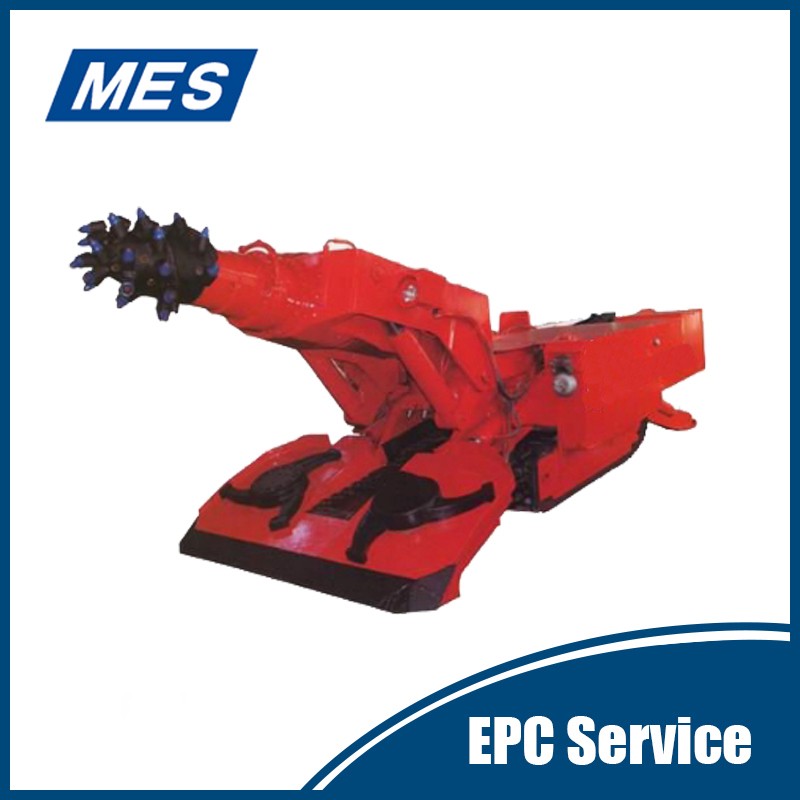

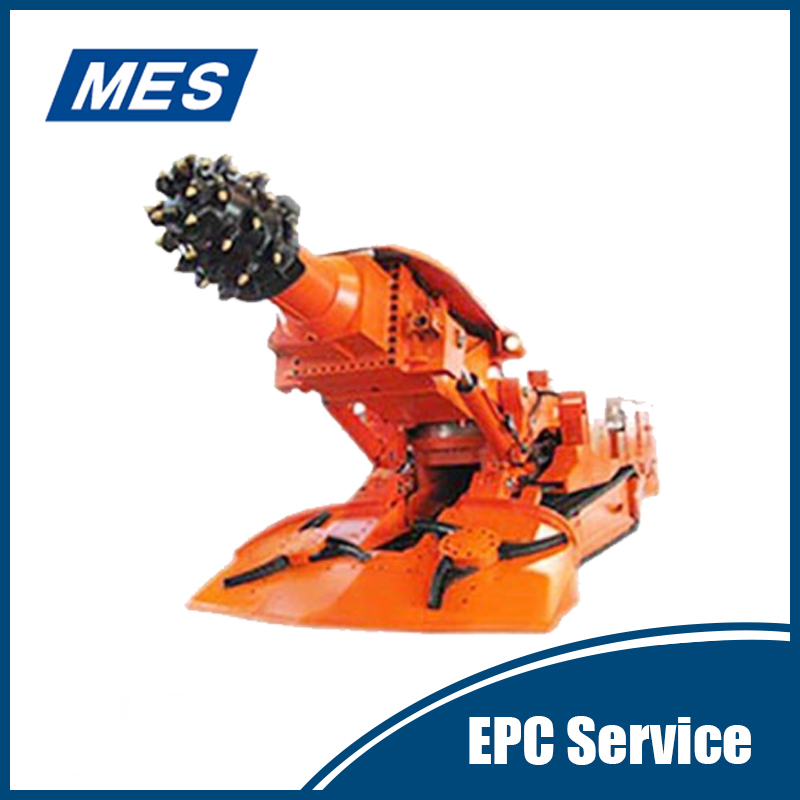

A roadheader, also
called a boom-type roadheader, road header machine or road header. It is a
piece of excavating equipment consisting of a boom-mounted cutting head, a
loading device which usually involving a conveyor and a crawler travelling
track which move the entire machine forward into the rock face.
Features：
Electronic
Control System---Our roadheader adopts explosive-proof, safe switch box and safe operation box which
have small volume, light weight and flexible operation. It’s safe and reliable;
main controllers are mounted in a sealed shell to shield electromagnetic
interference effectively; working conditions are displayed on LCD screen, it
adopts menu type operation interface and it is flexible and safe to set
parameters.
Hydraulic
System---Hydraulic system
of our roadheader adopts constant power, pressure cut off and load sensitivity
control. Main hydraulic components adopt products of world famous brands.
Cutting Head---Cutting head is optimized with emulation
technique; cutting tooth adopts products from big corporation; its layout is
reasonable and rock breaking capacity is strong.
Spraying System---Spraying system of our roadheader
consists of internal spraying system and external spraying system. Design of
external spraying system is reasonable; internal spraying possesses has the
function of water leakage detecting.
First Conveyor---First conveyor adopts straight structure
and is connected with insertion board smoothly. The conveying operation is
unobstructed.
Traveling Mechanism---its output torque is large and it is suitable for operating in large dip angle
P.S. If there is any limit on weight or overall height during transportation, the road header can be disassembled.
Product parameters:
HEBZ75
|
length |
7.2(7.6)m |
|
width (outside track width) |
1.725(1.87)m |
|
height |
1.2(1.4)m |
|
Ground clearance |
250 mm |
|
Cutting depth undercover |
150mm |
|
Ground pressure |
0.12MPa |
|
Machine weight |
17(21)t |
|
Total power |
112kW |
|
Can be one-way economy compressive strength of coal cutting |
≤50MPa |
|
Dig Roadway Section |
3~11(12)m |
|
Max. dig height |
3.2(3.5)m |
|
Maximum width of excavation(Location) |
3.4(3.5)m |
|
Adapt to roadway slope |
±16º |
|
Traction |
7.8t |
|
Gantry high |
340mm |
|
Production capacity |
30t/h |
