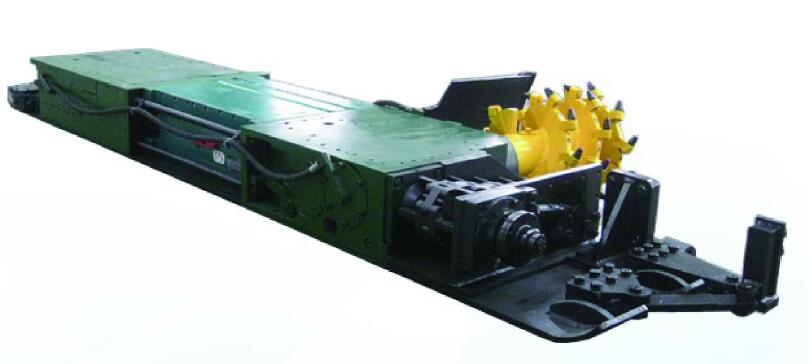

HMG100-TP Coal Shearer
- HMG100-TP Hydraulic Haulage Shearer is the thinnest coal shearer in China. This hydraulic shearer is applicable to the 0.4-0.9m coal thickness.
Cutting height: 440~900mm
Dip angle of coal seam: <35°
Coal hardness: f≤ 3
Capacity: 75~100t/h
Length: 4525mm
Height:350(YR)/310(Part330)(YRA)mm
Width: 910mm

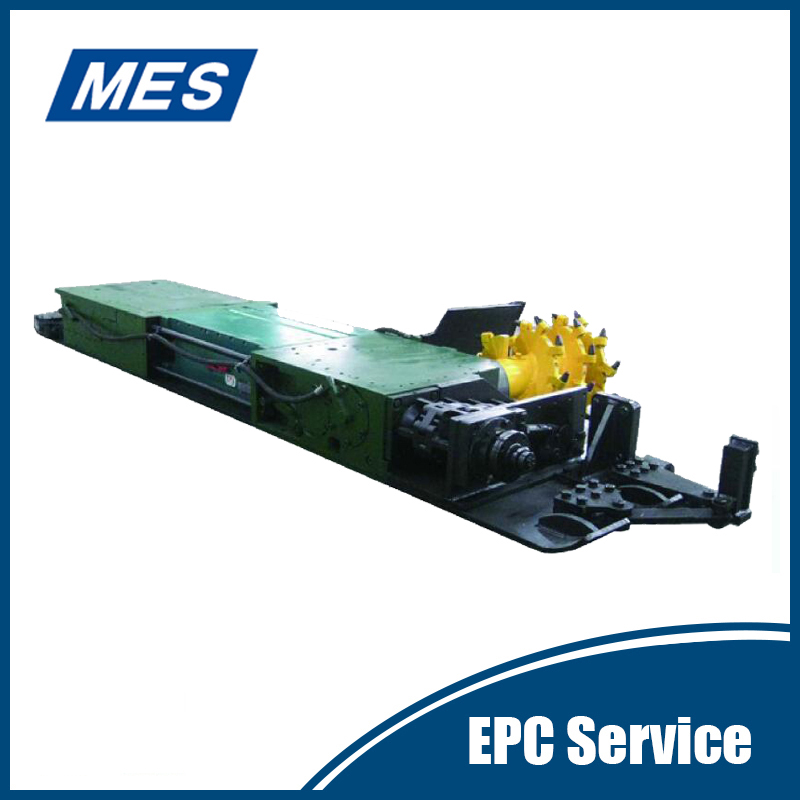

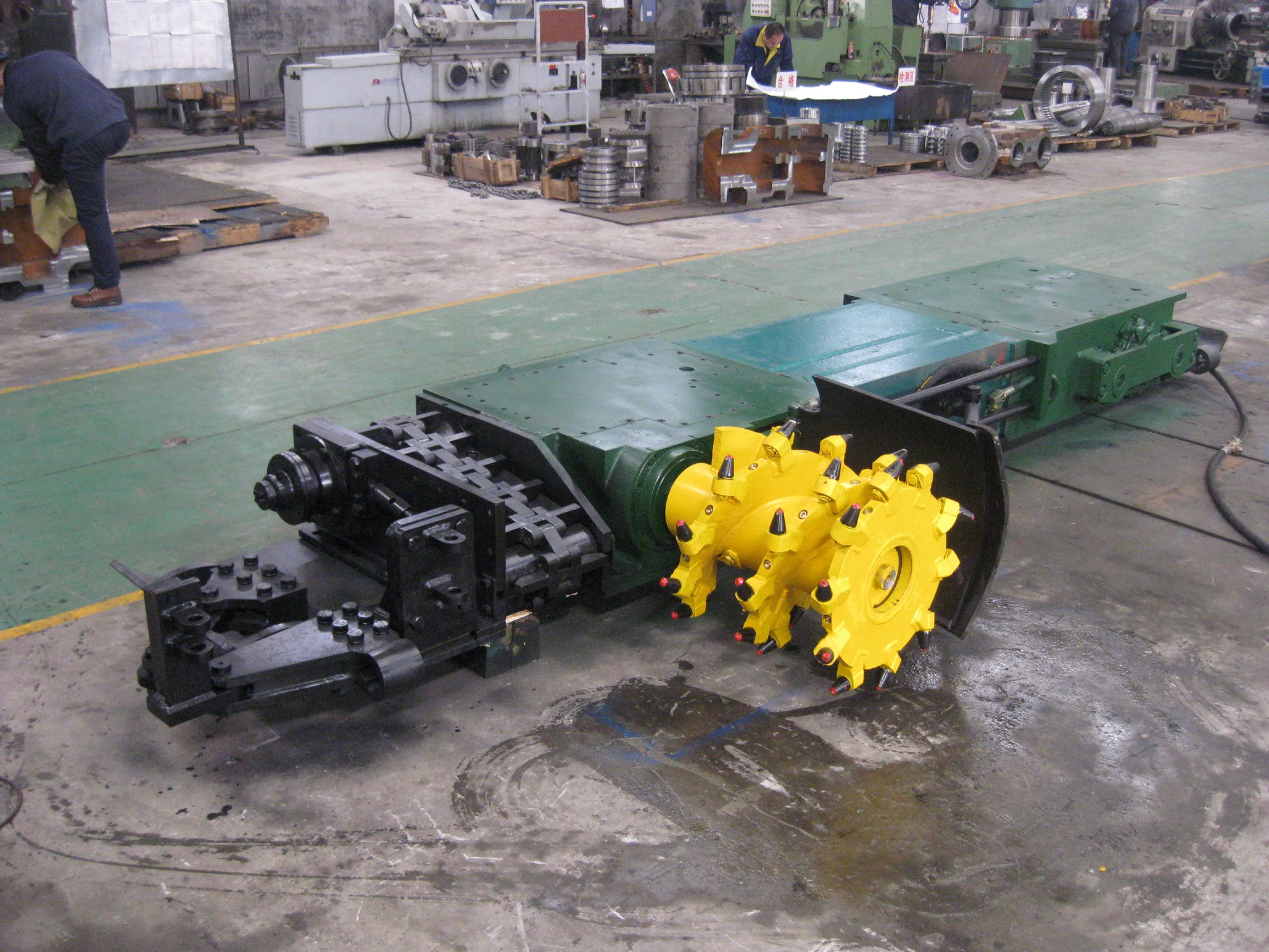

HMG100-TP Hydraulic Haulage Shearer
1. Brief Introduction
HMG100-TP Hydraulic Haulage Shearer is the thinnest shearer in China. The body of it is short and narrow. It’s used in the coal seam that is 0.4~0.9m ,coal property is medium-hard ( f ≤3) and the slope angle<35°, the maximum slope angle can be 45°as your requirement. When the slope angle>18°,the machine needs to add the Non-slip winch. It can be used with scraper conveyors and hydraulic prop in the conventional mining working face.
2.Main Features
2.1 This hydraulic haulage shearer uses “three tracks” coal mining working. Because it can climb on the floor of whole body, the requirements for corollary equipment such as transport and support are not high.The cost of general machinery and equipment would be lower.
2.2 The machine itself has a loading mechanism. The coal cutted by spiral drum is transfered to conveyor by loading machine. And the result of coal loading is good.
2.3 The powerful motor power and good mechanical strength can cut hardish coal seam and with low gangue coal seam.
2.4 The body machine is short, and the thickness of machine is the thinnest in China compared with the same power shearers,the cutting height is lowest.
2.5 It is easy to operate for concentrated operators and buttons.
2.6 The tractive force is large. Hydraulic traction systems are reliable. Hydraulic components of good performance is easy to replace.
2.7 With spray device,the dust removal result is good.
2.8 The good performance shearer machine and the sample and reliable structure make coal shearer easy to maintain. It is suitable for small mines.
3. HMG100-TP Technical Parameters
No.
Item
Unit
Capacity
1
Mining height
mm
440-900
2
Dip angle
。
< 30°
3
Coal hardness
f
≤3
4
Production capacity
t/h
75-100
5
The length of the machine
mm
4525
6
The height of the machine
mm
350 (YR)/310
(part330)(YRA)
7
The width of the machine
mm
driving chain sprocket and drum shaft are not included in
8
Conveyor type
HSGD420/22 OR HSGB420/30
9
Machine height（including joist 20）
mm
370 ( YR) /330
( part 350)(YRA)
10
Output power
kw
100
11
Voltage
V
660
12
Total installed power
100
13
Rotate speed of drum shaft
r/min
111
14
Depth of cut
mm
10-20
15
Drum diameter
440-900
16
Mode of traction
Hydraulic anchor chain traction
17
The specification of chain
mm
∮18 x 64 、 ∮ 22 x 86
18
The breaking force chain
kN
410 、730 (C class)
19
Traction speed
m/min
0-4
20
Traction
kN
160
21
Supporting form
Single hydraulic prop
22
Weight
7.3

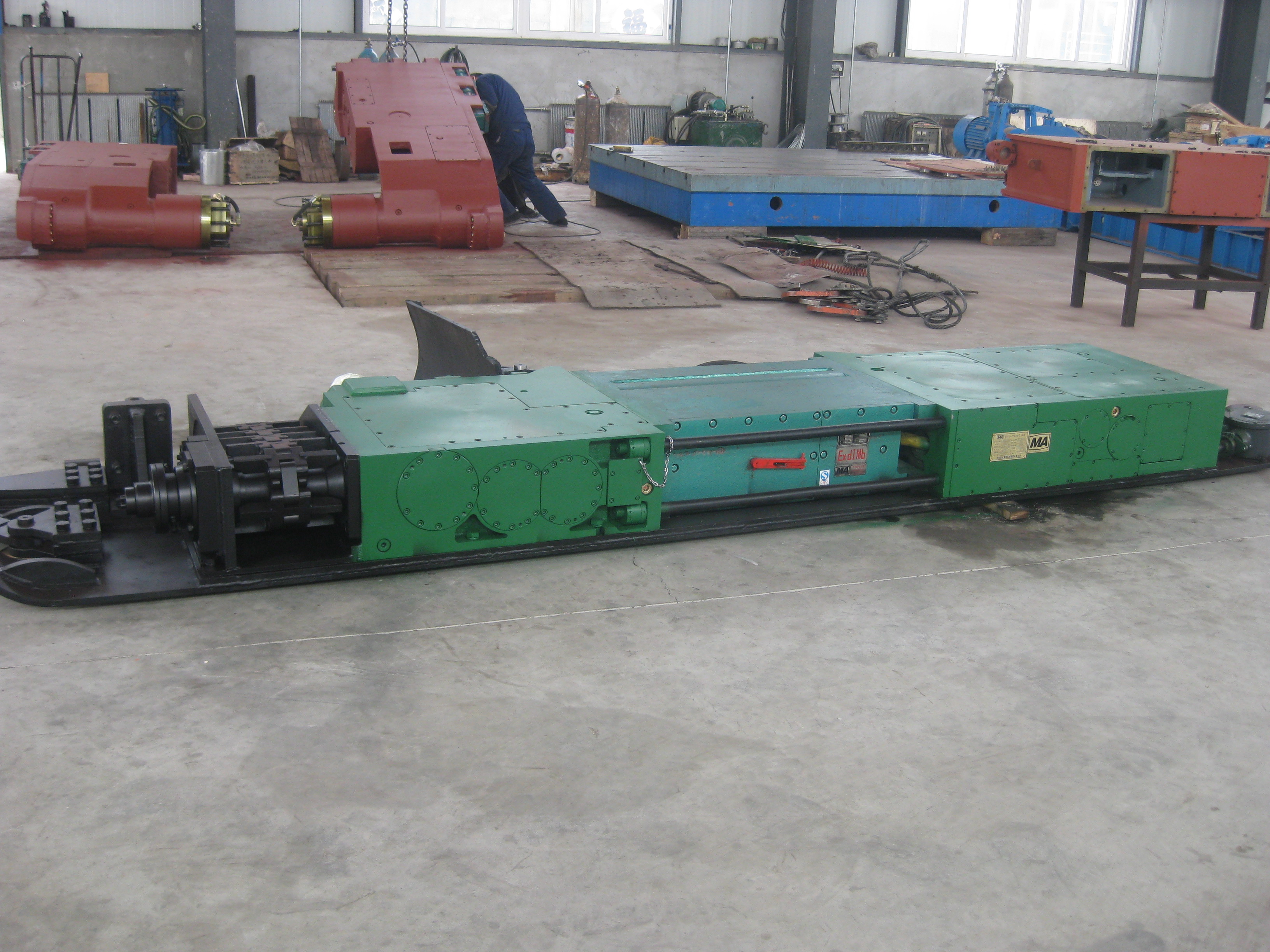

4. Workshop
