Mining Process Equipment
Three-head Mill Machine
- three-head mill machine is a dry grinding fine grinding mill equipment to analysis samples,Primarily for metallurgy building materials chemicals coal geology and so on Department laboratory analysis samples,can be used to mill a small amount of material.

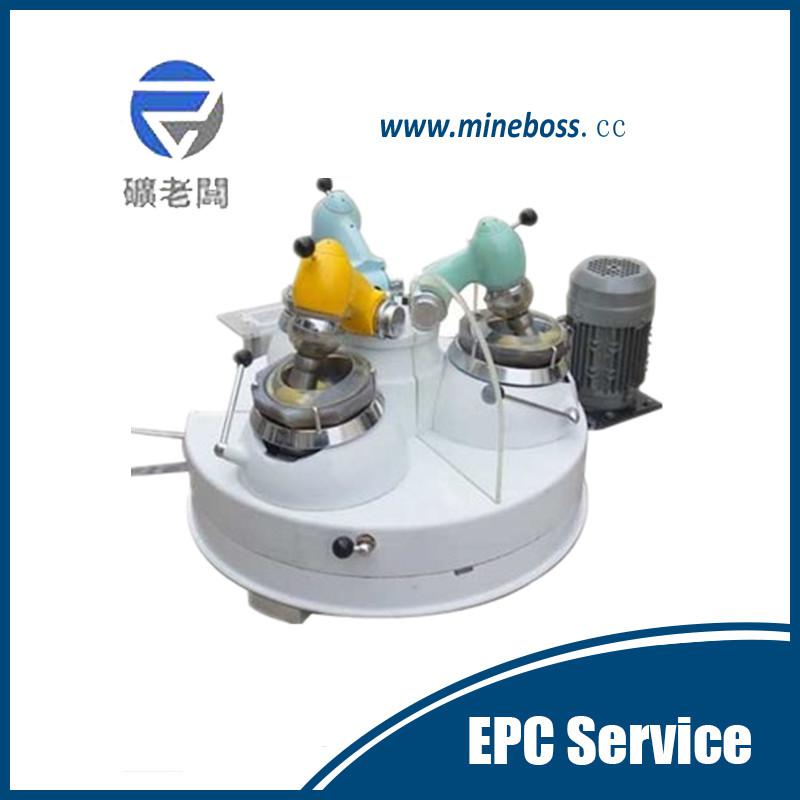

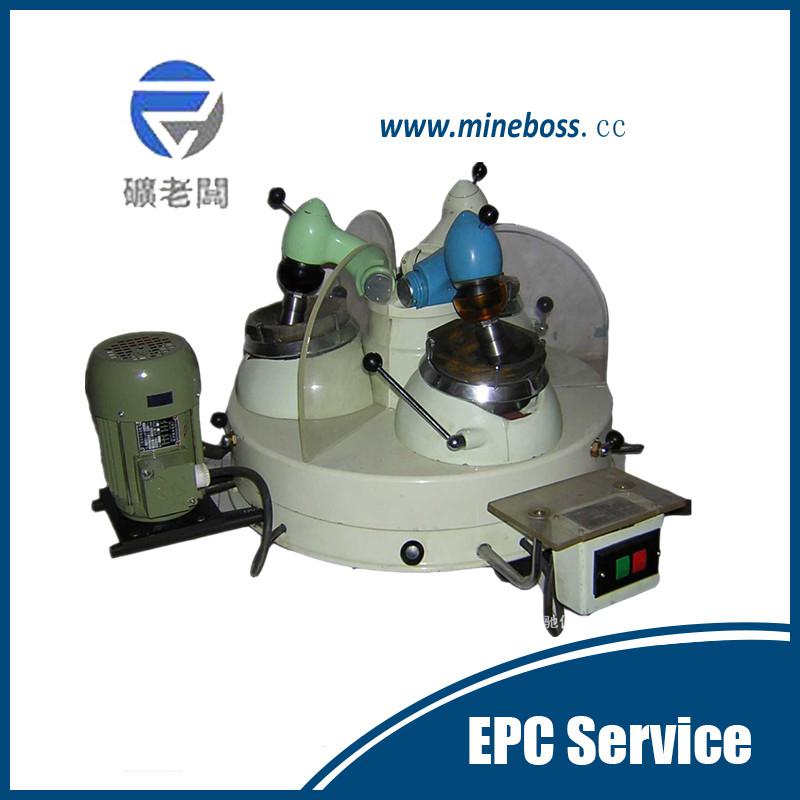

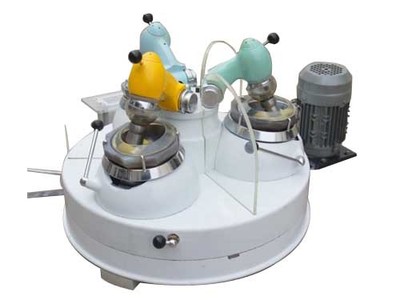

Three-head mill machine for mineral processing lab
| Brand | Mineboss | Model | MB120*3 |
| Applications | Mineral Processing | Processing Bath | 1(L) |
| The grinding basket volume | 1(L) | Medium Size | 1.5(mm) |
| Dimensions | 0.75*0.7*0.48(m) | Weight | 85(kg) |
Three-head mill machine use and principles
MB-φ120X3 three-head mill machine is a dry grinding fine grinding mill equipment to analysis samples,.Primarily for metallurgy, building materials, chemicals, coal, hydropower, geology and so on Department laboratory analysis samples , also can be used to mill a small amount of material.
Main Technology Parameters
| NO. | Item | Number | Unit | |
| 1 | Diameter of Mortar | φ120 | mm | |
| 2 | Number Wheels | 3 | No | |
| 3 | Pestle Speed | 220 | r/min | |
| 4 | Mortar Speed | 9 | r/min | |
| 5 | Feeding Maximum Size | -1.5 | mm | |
| 6 | Particle Size | -0.074 | mm | |
| 7 | Maximum Capacity of Each Bowl | 30 | g | |
| 8 |
|
Model | AO27124 |
|
|
Motor |
Power | 380 | W | |
| Rotation Speed | 1400 | r/min | ||
| 9 | Overall Dimensions | 780*750*500 | mm | |
| 10 | Weight | 105 | kg | |
|
