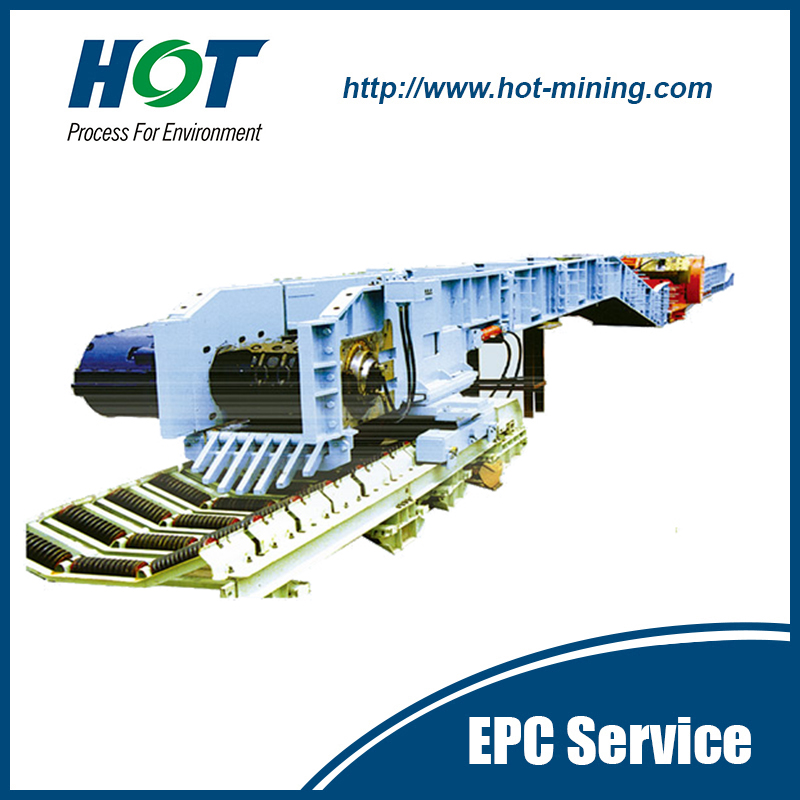

Bridge Stage Loader
- Bridge Stage Loader is mainly used for conveying coal at the gate road ,can be connected with crusher, end frame, scraper or belt conveyor to form a complete set.If necessary,it can be matched with self-moving device of the stage loaders and self-moving tail end of the belt conveyors, meeting the requirements of high capacity and high efficiency working face for high advancing speed and fast pushing.
Bridge Stage Loader
Feature
The stage loader made by our company ranges from 400-4500 tons per hour for outputcapacity, 40-700KW for installation power,730mm-1350mm for line-pan width and 25-60meters design longth. Both the integrated performance and reliability of stage loadermeet transportation requirement of conventional and complex mechanized mining faces.The service life(output capacity) of the stage loader with integrated structure is upto 2-10 million tons. Without help of the tail end of Belt Conveyor and the integratedadvancing unit of stage loader independently developed by our company.it is possibleto realize continuous integrated advancement of the stage loader and tail end of beltconveyor and lay necessary foundation for face production.
Catalogue and technical data of BSL
Power40—525kw Conveying capacity400—4000t/h Pan width630—1200mm
Type
Nominal length
Chain speed
Chain size
Capacity
SZB730/40
25
0.86
18×64
400
SZB730/75
25
1.33
18×64
630
SZB630/110
25
1.07
22×86
600
SZB764/132
29.7
1.34
22×86
700
SZZ764/132
41.2
1.3
26×92
1000
SZZ764/160
41.2
1.3
26×92
1100
SZZ764/200
41.2
1.38
26×92
1200
SZZ830/200（220、315）
45
1.48
30×108
1300(1400、1600)
SZZ800/250（315）
51
1.48
34×126
1800（2000）
SZZ900/315
45
1.8
34×126
2200
SZZ1000/375（400、525）
60
1.56-1.8
34×126
2500（2800、3500）

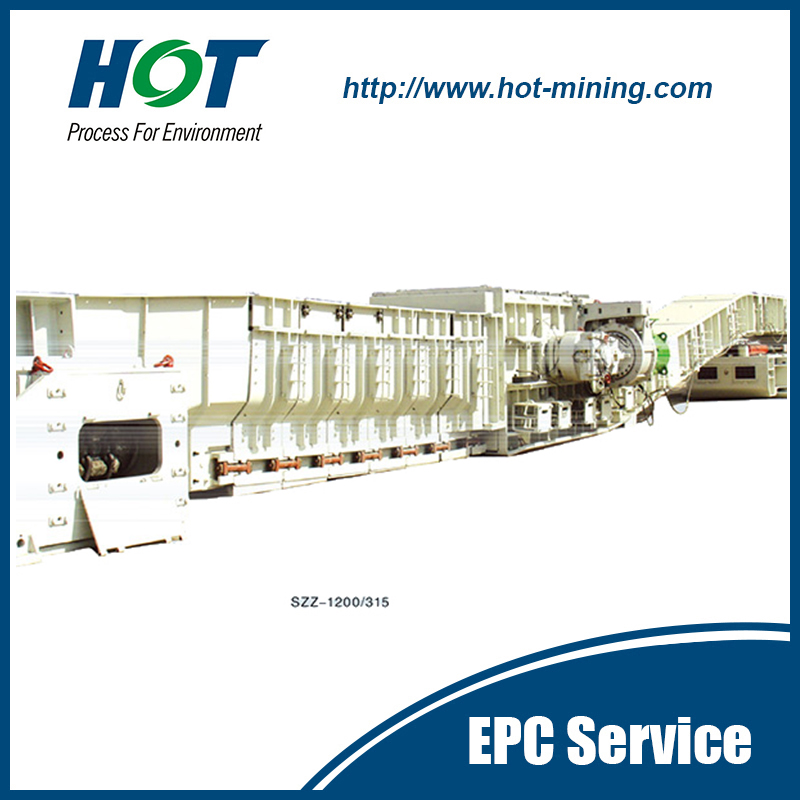

SZZ1200/315（375、400、525）
40-60
1.56-1.8
34×126
2750（3000、3500、4000）
|
