HMG100-BW Shearer
- HMG100/240-BW thinnest shearer is a new type machine for mechanized coal mining working face and high-grade mechanized coal mining working face.
Cutting height range：0.85-1.5m
Slope Angle：≤30°
Coal Hardness：≤3.5
Total Installed Power：2*100+40kW
Coal Gap：192
Designed capacity：437t/h
Voltage class：1140V
Machine Surface Height：674mm
Maximum cutting height：1500mm

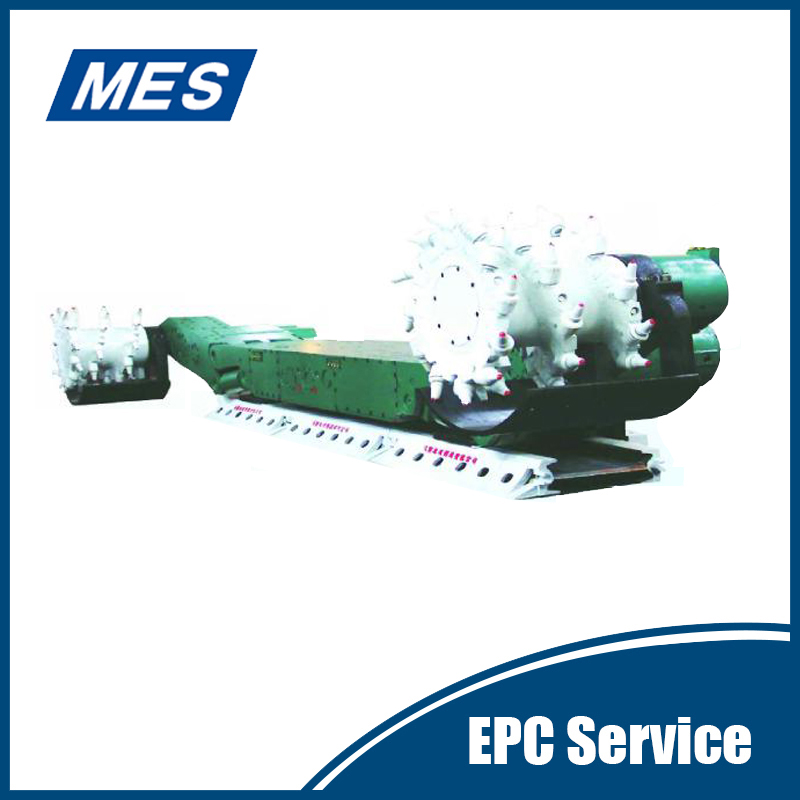

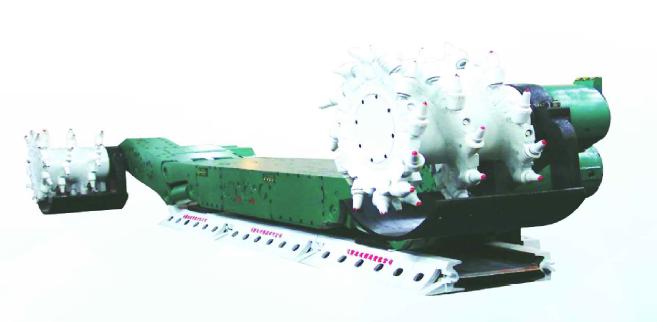

HMG100/240-BW Double Drum Shearer
Brief Introduction
HMG100/240-BW thinnest shearer is a new type machine for mechanized coal mining working face and high-grade mechanized coal mining working face. It’s a super low hydraulic chainless haulage shearer driven with mult-motor and large power. This coal shearer is driven by three motors of which the power of sides cutting motors are 100kw and the traction motor is 40kw. The total installation power is 240kw. It is applicable to the 0.85-1.5m thickness of coal seam and non-metal deposits that is dip angle is ≤30°,coal property is medium-hard ( f ≤3.5) . The longwall shearer can work with metal friction props or single hydraulic props and metal hinge top beam to be the mechanized working face and high-grade mechanized coal mining working face. Also it can work with low coal hydraulic props supporting to the fully mechanized working face.
HMG100/240-BW Double Drum Shearer Technical Parameters
No.
Item
Unit
Capacity
1
Product model
HMG100/240-BW
2
Cutting height range
m
0.85-1.5
3
Slope Angle
°
≤30
4
Coal Hardness
f
≤3.5
5
Total Installed Power
kW
2*100+40
6
Coal Gap
192
7
Designed capacity
t/h
437
8
Voltage class
V
1140
9
Machine Surface Height
mm
674
10
Maximum cutting height
mm
1500
11
Depth of cut
mm
70
12
Roller Diameter
mm
850,900,1000
13
Drum rotating speed
r/min
80
14
Web depth
mm
0.63；0.7；0.75；0.8
15
Ranging arm length
mm
1422
16
Center distance of Swing arm
mm
3800
17
Speed regulation method
AC ELECTRIC HAULAGE
18
Traction
kN
150
19
Traction Speed
m/min
0-5
20
Weight
t
12

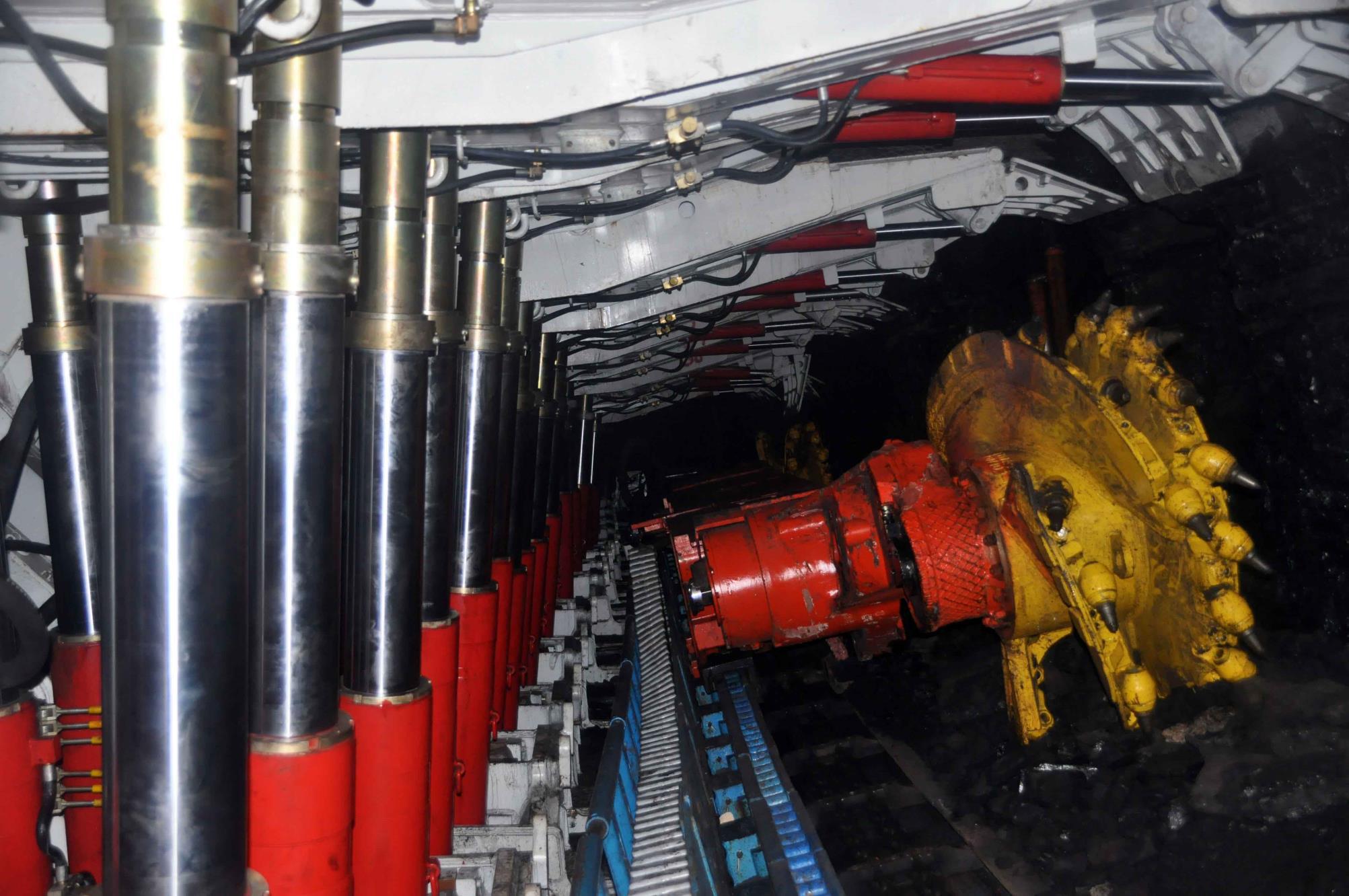

Application
