Mineral Jig Separator Machine
- Model: AM-30
Particle size: 0~30mm
Capacity: 10~15t/h
Application range: widely used in separation of hematite, limonite, specularite, Manganese Ore, Antimony ore, barite, mercury ore, fluorite, celestite, chromium slag, nickel slag, silicon manganese slag, vanadium-titanium bearing slag, etc.
Mineral Jig Separator Machine

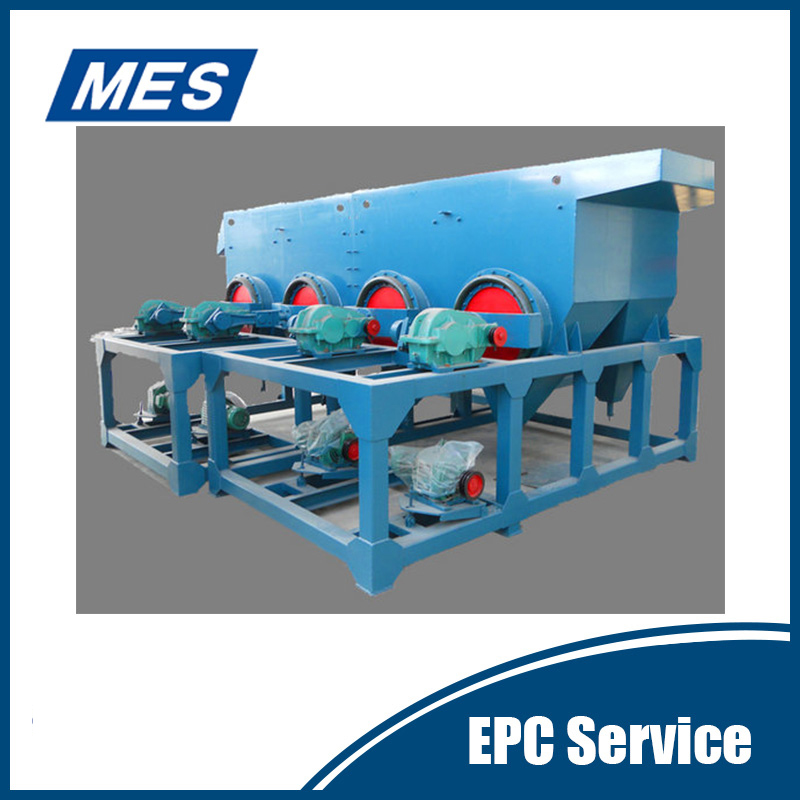

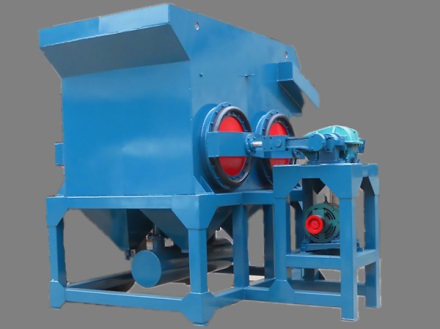

AM-30 large particles jigging machine adopts layout of screen surface top and bottom discharge materials which
improves the particle size greatly,upper limit of selected size can be more than 30 mm. Raw materials can get into jigging directly
after a coarse crushing, and recovery rate is high. This machine is selected and used by Taiyuan Iron and Steel Co., Ltd, Panzhihua
Iron and Steel Co. , Ltd and other well-known enterprises, obtained good appraise and recognized by clients.M-30 large particles jigging machine is widely used in sorting ofhematite,limonite, specularite, Manganese Ore,Antimony ore,
barite, mercury ore, fluorite,celestite,chromium slag, nickel slag, silicon manganese slag, vanadium-titanium bearing slag, etc.
It also deals with recycle of chromium slag, silicon-manganese slag and many other ferroalloy slags.
It has the mineral processing advantages of large handling capacity and good separation effect.
The largest selected granularity of AM-30 large particles jigging machine can be up to 30mm,
it has the mineral processing advantages of top and bottom discharge at the same time and work continuously.
This machine is developed and designed by Chinese designing institutions, it is mainly used for handling hematite before,
and now it can use to mineral processing of limonite, specularite, manganese ore, barite, fluorite, celestite, mercury ore,
antimony ore, etc. Good mineral processing effect obtained good appraise and recognized by clients.
Advantages of AM-30 large particles jigging machine:
a. Energy saving, high efficiency, environmental protection
b. Wide range of particle size, materials of 0-30mm can do separation of un-graded raw coal
c. Top and bottom discharge materials at same time, the ore concentrate can be discharged according to different classification.
d. Stable working performance, adopting wear-resisting technology, long service life.
Parameters of jigging machine series:
|
Model |
jigging chamber |
particle size |
stroke |
frequency of stroke |
power |
|
|
piece |
mm |
mm |
r∕min |
t∕h |
kw |
|
|
AM-30 |
4 |
0 - 30 |
0 - 50 |
0 - 160 |
10 ~ 15 |
3.0 |
|
LTA-1010 |
2 |
0 - 8 |
0 - 25 |
0 - 350 |
8 ~ 10 |
3.0 |
|
LTA-1515 |
2 |
0 - 10 |
0 - 50 |
0 - 300 |
20 ~ 25 |
5.5 |
|
JT -1070 |
2 |
0 - 5 |
0 - 12 |
0 - 170 |
6 ~ 8 |
3.0 |
|
JT -1515 |
2 |
0 - 8 |
0 - 25 |
0 - 150 |
16 ~ 25 |
4×2 |
|
JT -2020 |
2 |
0 - 10 |
0 - 30 |
0 - 150 |
30 ~ 40 |
7.5×2 |
|
2LTC-8T |
8 |
0 - 8 |
0 - 50 |
0 - 300 |
20 ~ 40 |
1.5×4 |
