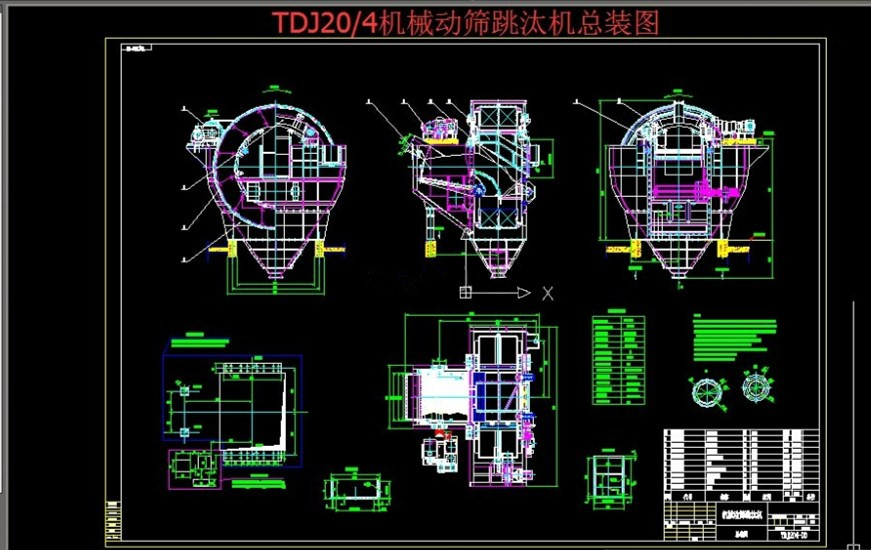

Movable Sieve Jig
- Movable Sieve Jig is one of the most advanced machine, electricity and liquid washing equipment for lump coal sorting.Technology is now in a leading international level.
1.Introduction
1)It is one of the most advanced machine, electricity and liquid washing equipment for lump coal sorting.Technology is now in a leading international level.
2)It is known for simple process system,saving water and electricity,selected upper limit,sorting granularity level width,sorting efficiency,simple operation and maintenance,low failure rate,high degree of automation and reliable.
3)It is the ideal equipment for high production and high efficiency discharging gangue,by the universal attention of coal preparation industry.
2.Technacal Features
1)Small footprint,unit area processing capacity,concentrate and tailings were discharged through their own material handling agencies.
2)Less water consumption,Movable Sieve jig forced through a sieve of vibration layered material, Water consumption is only one-tenth of the ordinary diaphragm jig.
3)Stroke and the number of stroke are easy to adjust.
4)Each moving parts using automatic hydraulic oil lubrication,promising the moving parts of the service life and reliability.
3.Specification
Screen area
（㎡）
Grain size of ore
(mm)
Processing capacity
（T/h）
Stroke
（mm）
Number of stroke
（times/min）
Bucket lift power
（KW）
Moving sieve power
(KW)
Dimensions
(MM)
Weight
（T）
2.9
30-50
20-25
10-80
0-180
4
7.5
5125*3795*3554
10.3
