LvJing Industrial cyclone dust collectors
- The industrial cyclone dust collector remains a vital component in many industrial dust control strategies due to its simplicity, cost-effectiveness, and high-efficiency for coarse particle removal. Its integration into larger air pollution control systems often forms the first line of defense against particulate emissions, safeguarding both the environment and downstream equipment.
LvJing Industrial cyclone dust collectors
1. Definition and Overview of Industrial cyclone dust collectors
Industrial cyclone dust collectors, also known as cyclonic separators or vortex dust collectors, are widely used in various industries for effective dust removal from process gases. They operate based on the principle of centrifugal force generated by rotating air-flows, separating dust particles from the gas stream.

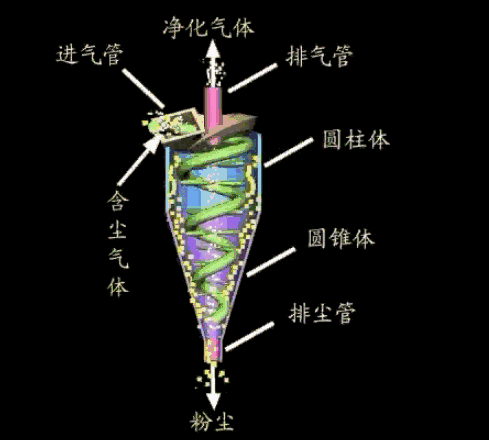

2. Working Principle of Industrial cyclone dust collectors
The working principle of a cyclone dust collector revolves around the following key steps:
2.1 Ingress and Rotation:
Dust-laden gas enters the cyclone dust collector tangentially, creating a high-speed rotating vortex.
This vortex creates a centrifugal force that pushes the heavier dust particles towards the outer wall of the collector.
2.2 Separation:
As the air rotates, the dust particles are forced against the wall and continue to move downwards due to gravity, forming a dust cone at the bottom.
The cleaned air, now relatively dust-free, moves towards the center of the vortex and exits through the top outlet.
2.3 Dust Removal:
The collected dust accumulates at the bottom of the collector and can be periodically removed through a dust discharge system, such as a star-shaped unloader or manual cleaning.
3. Advantages of Industrial cyclone dust collectors
Cyclone dust collectors offer several advantages over other dust collection methods:
3.1 Simple Structure: They have a straightforward design with few moving parts, making them easy to maintain and operate.
3.2 Low Cost: Their simple design translates into lower initial investment and operating costs.
3.3 High Volume Handling: They can handle large volumes of air and dust particles efficiently.
3.4 Temperature Resistance: Depending on the material used, cyclone dust collectors can withstand high temperatures, making them suitable for hot gas streams.
3.5 Versatility: They can be used in a wide range of industries and applications, including coal mining, power generation, steel making, and chemical processing.
4. Disadvantages of Industrial cyclone dust collectors
However, cyclone dust collectors also have some limitations:
4.1 Limited Efficiency: While effective for larger particles, their efficiency for capturing fine particles (less than 5-10 microns) is relatively low.
4.2 Pressure Drop: The rotating airflow can cause a significant pressure drop, which may require additional energy to overcome.
4.3 Sensitivity to Flow Variations: Their performance can be affected by variations in gas flow rates and particle sizes.
5. Design Considerations
The design of a cyclone dust collector involves several critical factors that can impact its performance:
5.1 Inlet Velocity: The tangential inlet velocity determines the strength of the vortex and thus the separation efficiency.
5.2 Cyclone Diameter: The diameter of the cyclone affects the residence time of particles within the vortex, influencing separation efficiency.
5.3 Outlet Diameter: The size of the outlet affects the pressure drop and the velocity of the cleaned air exiting the collector.
5.4 Material Selection: The choice of materials for the cyclone body and internals depends on the temperature, corrosivity, and abrasiveness of the process gas and dust.

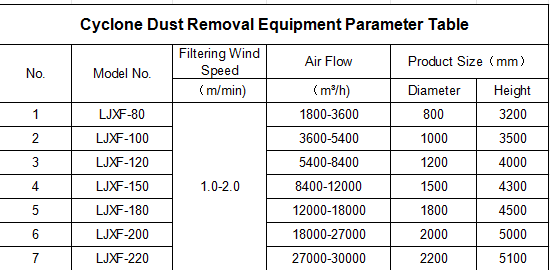

6. Parameters table of Industrial cyclone dust collectors
7. Conclusion
In conclusion, the industrial cyclone dust collector remains a vital component in many industrial dust control strategies due to its simplicity, cost-effectiveness, and high-efficiency for coarse particle removal. Its integration into larger air pollution control systems often forms the first line of defense against particulate emissions, safeguarding both the environment and downstream equipment.
