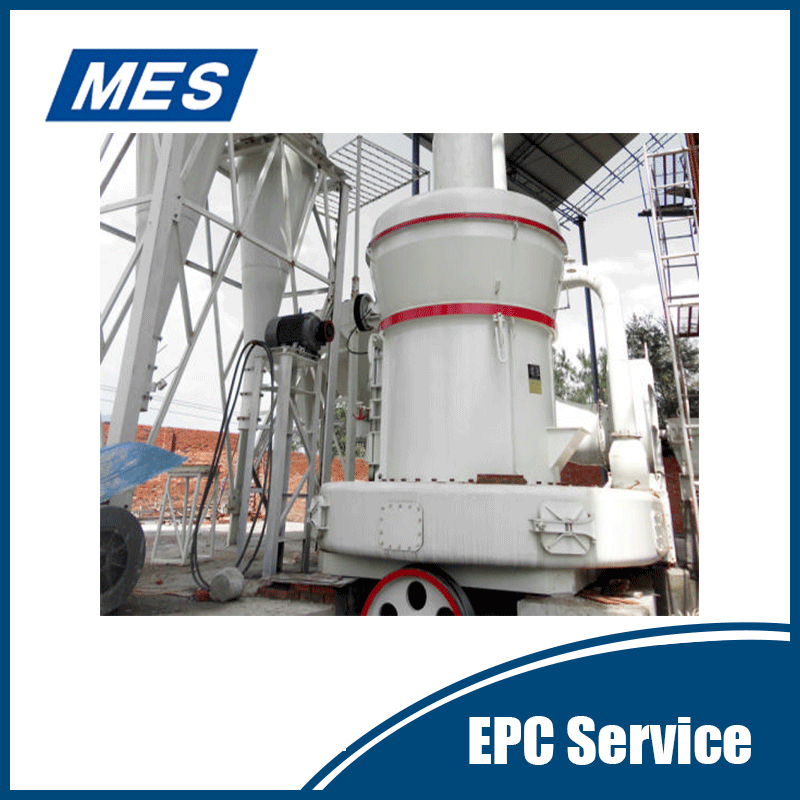

Superfine Vertical Mill
- Model：WRMJ1500 series
Effective volume：1500L
Max feeding particle size：200~400mm
Motor power：132kw
Application range：New Superfine Vertical Mill can be used for various materials, such as calcium carbonate, clay, mineral soil containing platinum, etc.
Features:
a. Dielectric ball classification method can ensure coarse-grained material stay at the bottom under centrifugal force.
b. Grinding of small particle material in the center of shearing chamber.
c. Overflow from the gap of high accumulation of medium along the mixing path.
d. High operation rate, stable flow, uniform particle size distribution and low viscosity.
e. Unique heat dissipation technology, superfine grinding will not reduce the purity and whiteness of the material.
f. It can save more than 70% energy compared to traditional energy-saving equipment.
g. There is no dust and waste discharge in the process of wet production.
h. It is stable and reliable. It can achieve 95% working efficiency, low noise and there is no vibration.
Grinding principle:

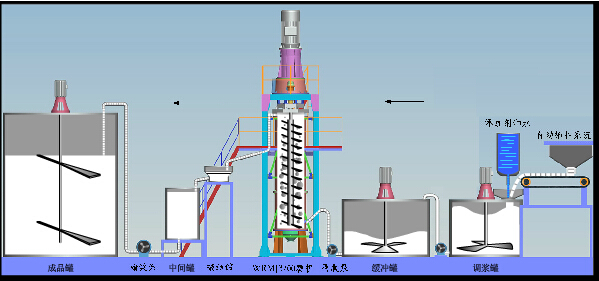

This is superfine grinding single-stage processing of 6000 products:

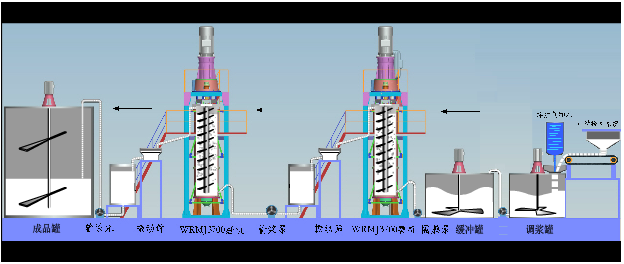

This is superfine multi-stage processing of 9000 products:
Parameters:
|
Model |
WRMJ1500 series（motor power 132kw） |
||
|
Specification |
2µm≤D60 |
2µm≤D90 |
2µm≤D95 |
|
Soil content |
60~70% |
60~70% |
60~70% |
|
Hourly output（T） |
2.6~1.2 |
1.5~0.6 |
1.6~0.7 |
|
Power consumption（C/T） |
≤45 |
≤85 |
≤175 |
|
Medium ball wear and tear（T/kg） |
0.02~.03 |
0.03~0.05 |
0.08~0.12 |
|
Dispersant consumption（T/kg） |
0.03-0.05 |
0.05~0.08 |
0.1~0.15 |
|
Production mode |
Single-stage processing |
Single-stage processing |
Multi-stage processing |
