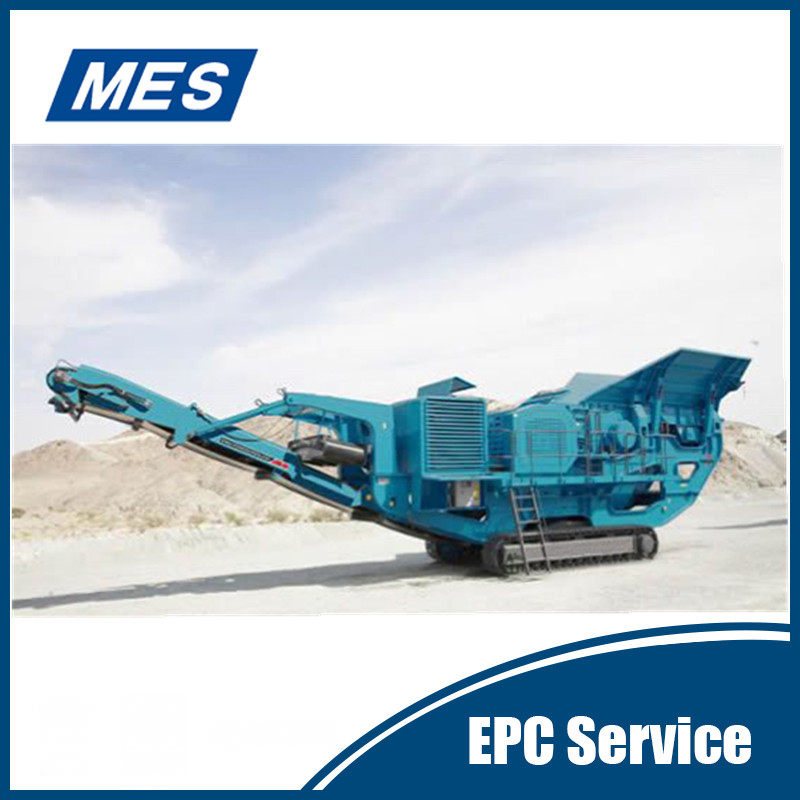

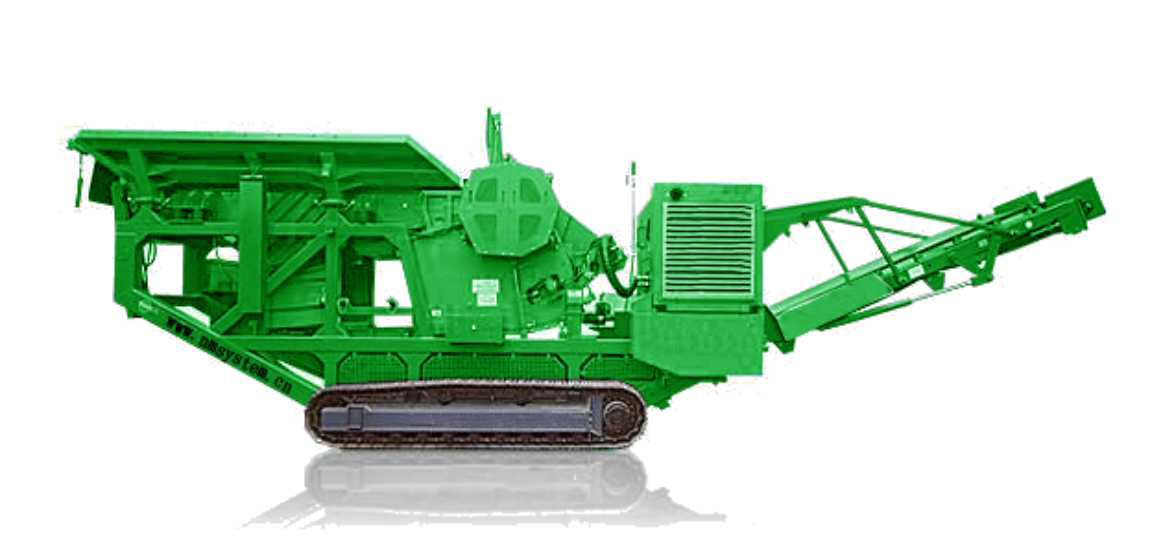

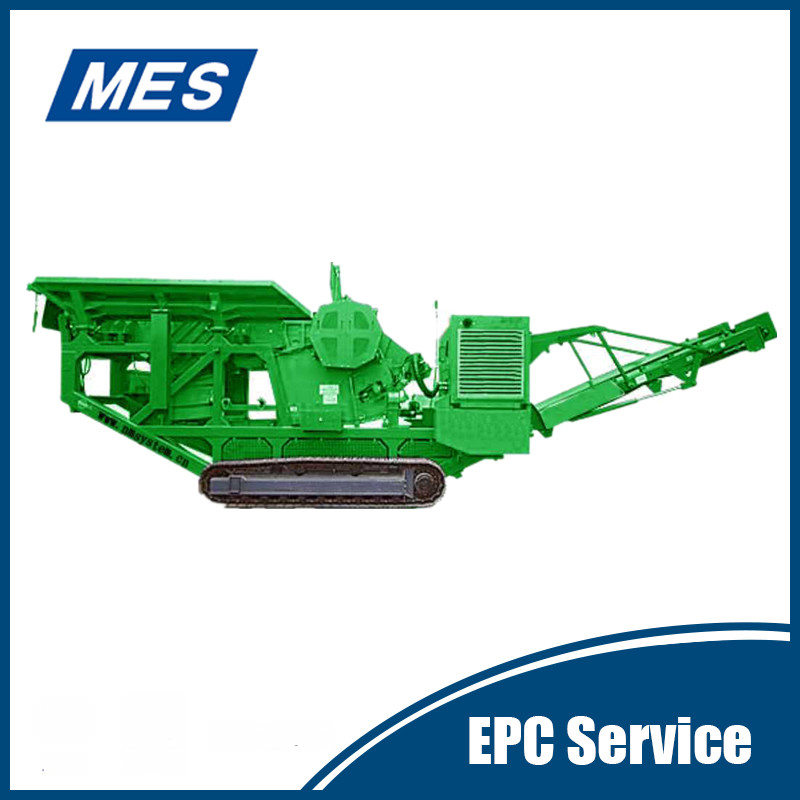

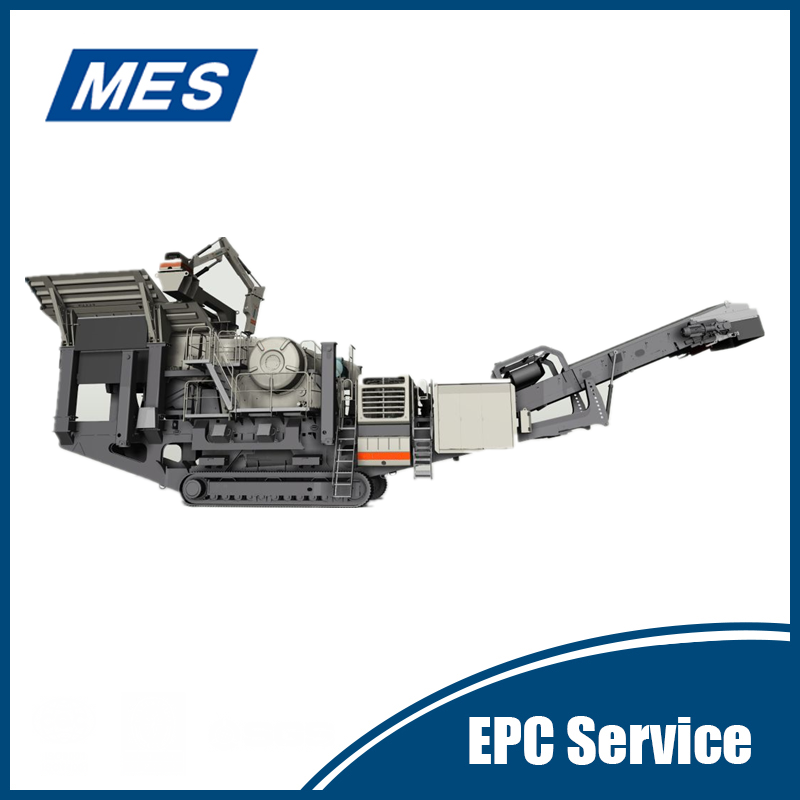

Track Jaw Plant
- MES track jaw plants are suitable for contracting, quarrying and in-pit crushing applications. With the HMT mobile plants, you can build a fully mobile and independent mobile process for your needs.
Model:HMT series track jaw plant
Composition:Feeder,Crusher,Main Conveyor,Tracks,Engine
Weight:43000-85000kg
Track Jaw Plant
1.Introduction of Track Jaw Plant
MES mobile crushing & screening plants are suitable for contracting, quarrying and in-pit crushing applications. With the HMT mobile plants, you can build a fully mobile and independent mobile process for your needs.
The proven HMT series features an extensive
range of track-mounted crushing plants designed for contracting, quarrying and
in-pit crushing applications. The plants are built around robust, high capacity
crushers, feeders and screens, enabling them to process practically any rock or
ore.
Replacing the conventional dump truck fleet
with a HMT series primary crushing plant followed by a belt conveying system,
or with a complete mobile in-pit crushing plant, brings significant savings in
production costs. It also significantly reduces the load on the environment.
The HMT Series plants can operate close to
the face, so the excavator or wheel loader operator can control the complete
crushing operation. This reduces both costs and the workload.
For aggregate production, the HMT Series
can comprise two or three stage crushing plants. For in-pit and mining
applications, the HMT range is complemented by conveyors and mobile apron
feeders.
2.Features of Track Jaw Plant
- A combined plant—A Combined arrangement design plant saves land area, shortens the time between set up and production, and has a good land adaptation.
- A better mobility—The plants could move on road or quarries to meet various application.
- A lower freight—A blasting site crushing for mobile plants could save cost in oversize handling compared stationary plants.
- Flexible combination—Fexible combination for various crushing and screening systems, mobile crushing and screening plant can work dependently to meet the production demand for various.
- High performance and reliability.
3.Techinical Parameters of Track Jaw Plant
Technical
Parameters
HMT1000JC
HMT1150JC
HMT1100JC
HMT1200JC
HMT1350JC
Weight(kg)
43000
50000
64000
85000
66000
Feeder
Model
HPF1040M
HPF1040M
HPF1245M
HPF1345M
HPF1245M
Grizzly
Bars
2*900
2*900
2*1200
2*1200
2*1200
Hopper
Volume(m3)
4
4
6
7
7
Crusher
Model
JC1000
JC1150
JC1100
JC1200
JC1350
Feed
Opening (mm*mm)
1000*560
1150*700
1100*850
1200*1100
1350*780
Drive
Motor
Motor
Motor
Motor
Motor
Main
Conveyor
Length(mm)
10000
12000
12000
14000
14000
Width(mm)
800
1000
1000
1200
1200
Discharge
Height(mm)
2620
3144
3300
3300
3300
Drive
Motor
Motor
Motor
Motor
Motor
Tracks
Shone
Width(mm)
500
500
500
600
600
Engine
Model
GEH220-2
GEH275-2
CAT3406C
CAT3406C
CAT3406C
Rating(kw)
160
200
256
292
256
Fuel
Capacity(L)
440
500
640
700
640
Hydraulic
Oil
Capacity(L)
400
460
500
600
600
Performance
Maximum
Feed Size(mm)
500
630
750
1000
700
Capacity(t/h)
150
200
300
550
400
Maximum
Operating Slope
Side-to-Side
5°
5°
5°
5°
5°
Front-to-Back
20°
20°
18°
14°
14°
Fuel
Consumption
54.3L/h
(100%)
63.3L/h
(100%)
79.6L/h
(100%)
86.1L/h
(100%)
79.6L/h
(100%)
