    Intelligent Mining Line of Sight LHD Radio Remote Control System

    • In order to improve production efficiency and safety, to meet the mining requirements of hazardous areas, to ensure personal safety, conservation of resources, to provide resource recovery and economic benefits, in a dangerous work area of large mining machinery and equipment, safe distance remote control operation is particularly important.
      Line of sight remote control system included FYF40 Mine intrinsically safe remote control transmitter, FYS40 mine intrinsically safe vehicular radio receiver, Hydraulic system unit, Electrical system unit.
    Product details

    Intelligent Mining Line of Sight LHD Radio Remote Control System

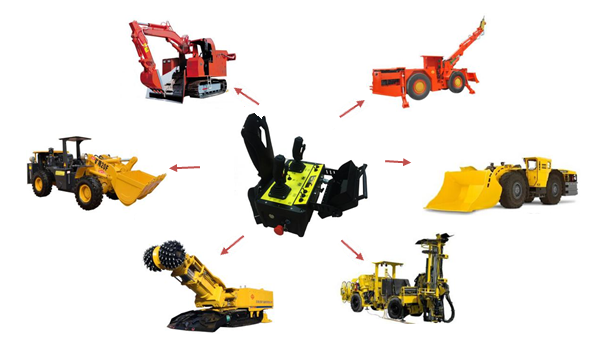

    Visual range wireless remote control system-Beijing Hot Minng Tech Co.,Ltd


    Overview：

    In order to improve production efficiency and safety, to meet the mining requirements of hazardous areas, to ensure personal safety, conservation of resources, to provide resource recovery and economic benefits, in a dangerous work area of large mining machinery and equipment, safe distance remote control operation is particularly important. We provide a professional remote control solution. The operator carries a wireless remote control with video display, from the mine within a certain range (100 meters), the device to achieve a variety of functional action. In the visual remote control mode, the handle operating unit and the locomotive running unit directly through the point to point to establish a proprietary communication link, mainly used in the field of visual control within the remote control mode of operation:

    Visual range remote control system included FYF40 Mine intrinsically safe remote control transmitter, FYS40 mine intrinsically safe vehicular receiver, Hydraulic system unit, Electrical system unit.

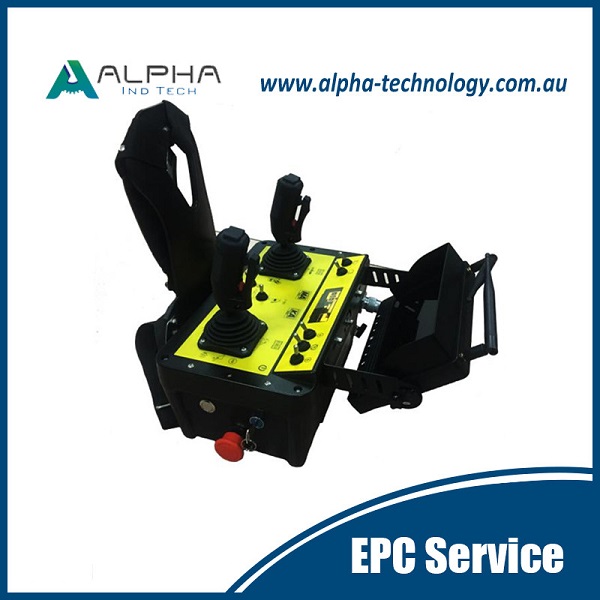

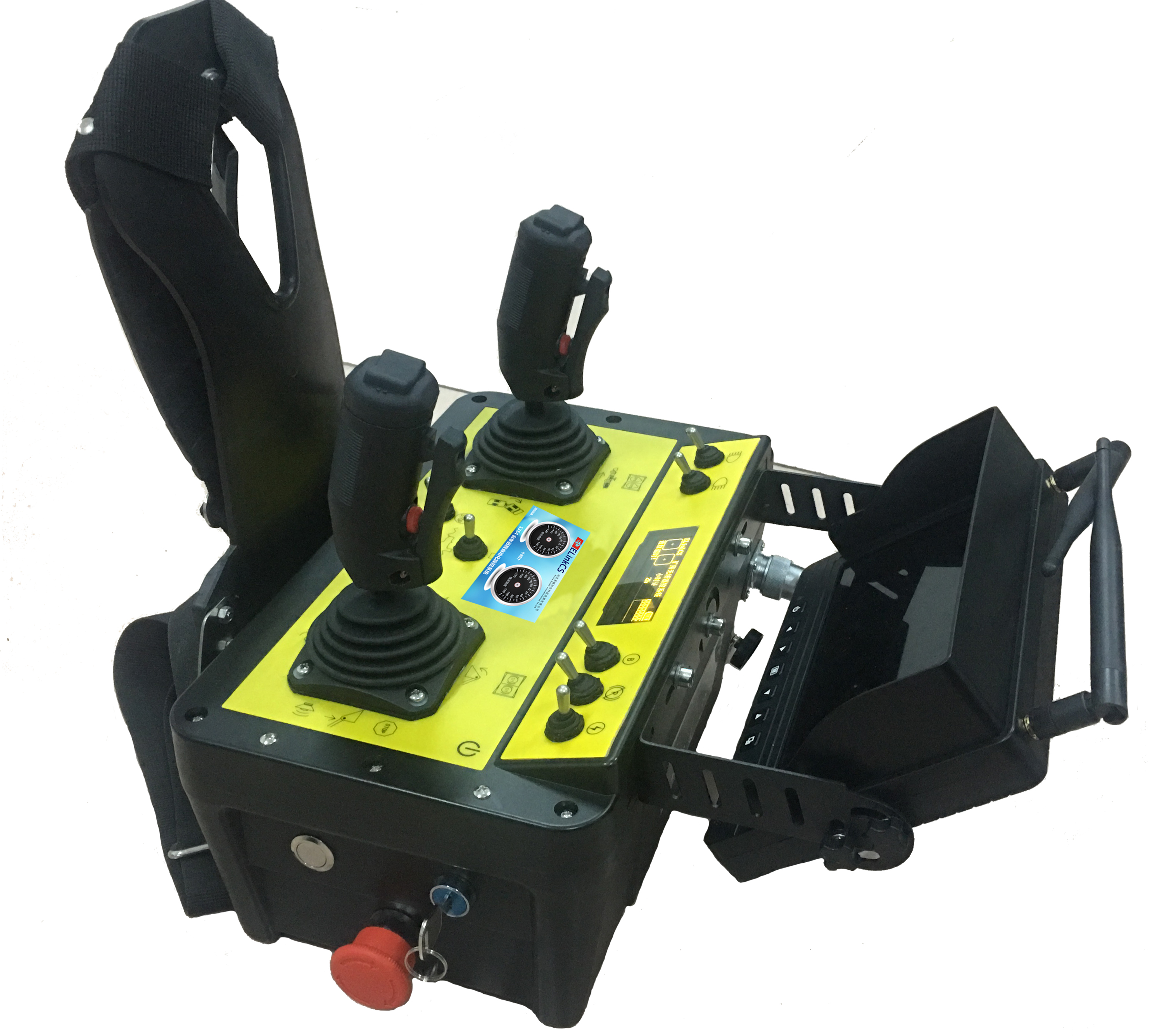

    1.FYF40 Mine Intrinsically Safe Remote Control Transmitter


    Industrial remote control-radio remote transmitter_control system__LHD _remote control_underground mining_loader_ HOT Mining

    FYF40 Mine intrinsically safe remote control transmitter


    Technical parameters of FYF40 Mine intrinsically safe remote control transmitter:

    (1)Mine safety certificate: KFA140027

    (2)Coal safety certificate: MFA130295

    (3)Operating Voltage: DC12.8V

    (4)Working current: ≤ 140mA

    (5) Wireless communication distance: ≥ 40m

    (6) Battery type: Rechargeable lithium battery

    (7) Battery capacity: 1400mA

    (8) Interface configuration: 8 Road AI, 24 Road DI

    (9) Wireless communication signal frequency: 433MHz/915MHz/2.4GHz

    (10) Transmission speed rate: 1Mbps

    (11) Display size: 7/9 inch

    (12) Camera: IP69K, Waterproof, Shockproof

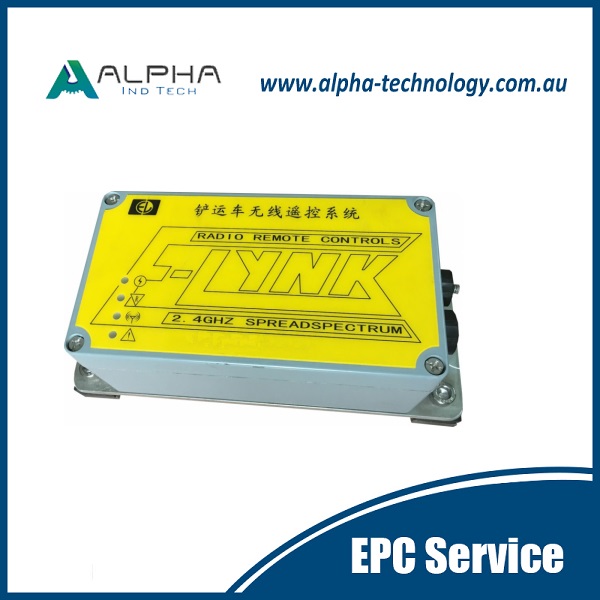

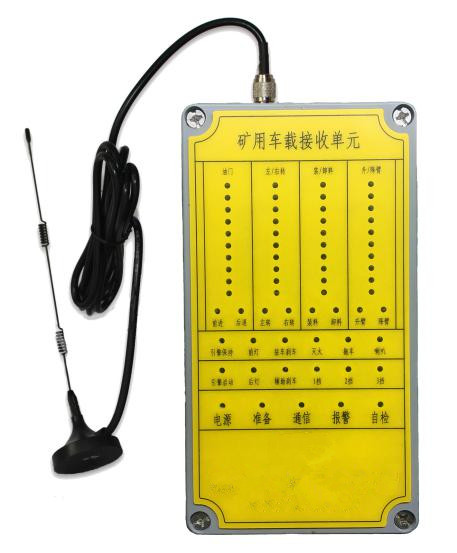

    2.FYS40 Mine Intrinsically Safe Vehicular Radio Receiver

    Industrial remote control-radio remote vehecular receiver_control system__LHD _remote control_underground mining_loader_HOT Mining

    FYS40 mine intrinsically safe car radio receiver


    Technical parameters of FYS40 mine intrinsically safe vehicular radio receiver:

    (1) Mine safety certificate: KFA140025

    (2) Coal safety certificate: MFA130296

    (3) Operating Voltage: DC24V

    (4) Working current: ≤ 100mA

    (5) Wireless communication distance: ≥ 40m

    (6) Wireless communication signal frequency: 2.4GHz

    (7) Transmission speed rate: 1Mbps

    (8) Interface configuration: 5 DI, 24 DO, 4 AI, 8 AO

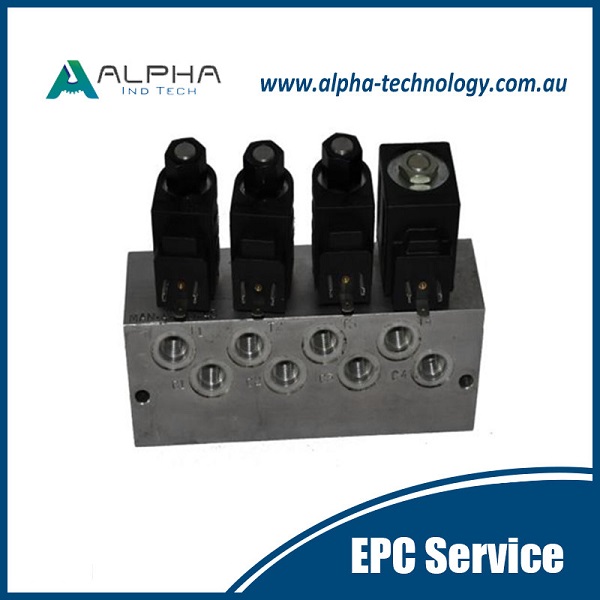

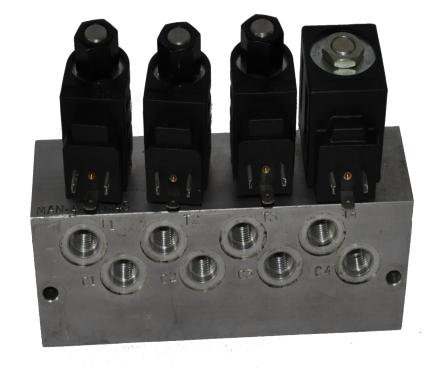

     3.Hydraulic System Unit


     Industrial remote control-radio remote control hydraulic system unit_control system__LHD _remote control_underground mining_loader_ HOT Mining1

              Industrial remote control-radio remote control hydraulic system unit_control system__LHD _remote control_underground mining_loader_ HOT Mining2

    Hydraulic system select to SUN, Rexroth, Norton and other international brands. The hydraulic system unit includes proportional and  switching solenoid valves, pipe fittings, piping and tee accessories. The pressure system unit cooperates with the output control of the vehicle receiving unit to drive various movements of the machine.

    For example: forward / backward, turn left /turn right, up / down arm, loading / unloading material, throttle control, brake and so on.

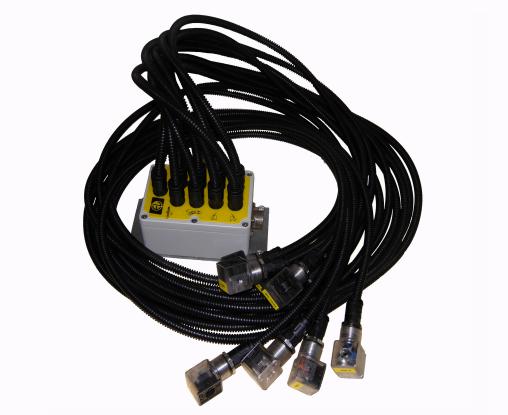

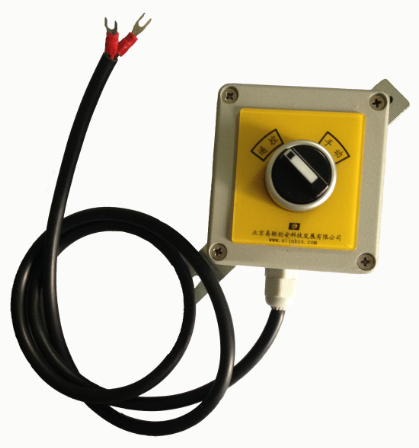

     4.Electrical System Unit

    Industrial remote control-radio remote control electrical system unit_control system__LHD _remote control_underground mining_loader_ HOT Mining1Industrial remote control-radio remote control electrical system unit_control system__LHD _remote control_underground mining_loader_ HOT Mining2

    Electrical interface unit and mechanical control box connected to control the remote control system power on or off, front and rear lights, engine start, engine maintenance and other functions. At the same time, the electrical interface unit includes a manual / remote switching knob to control the scraper to operate in manual or remote mode.


    Performance characteristics:

    1.Wireless remote control system model is complete, the interface is rich, professional equipment, remote control system customization and conversion of existing mining equipment to meet the needs of various types of mechanical remote control

    2.The products are allowed to use in the field of mining, with national certification coal safety certificate (MA), mine security certificate (KA), explosion proof certificate (Exd);

    3.Completely independent intellectual property rights, has been imitated, has never been beyond.

    4.Manual / remote free switching; it can be used for dangerous areas for unmanned ore, but also to meet the normal use of the normal stope.

    5.Based on the most advanced WLAN wireless communication network, you can achieve point-to-point visual range remote control (no need to lay out the network); can also achieve no communication distance limit remote control.


    Main application:

    Coal shearer, road header, underground LHD, mining slag machine, drilling machine, mine guniting bogie, mine loader, mining scaling jumbo, mining drill jumbo and working environment is poor, poses a personal safety hazardous area equipment. Extended application: Excavator, slag removal machine, crane, loader, concrete machinery, shield machine, etc. Application areas: mine, oil, railways, navigation, military, etc.


    Reliability and Security:

    The program in the selection of products to take full account of reliable, mature technology and products, remote control, the receiver has a national certification mine license. Remote control handle with imported handle in Germany, the use of OLED display can work in harsh environments. The design of the system has a long-term stable operation of the ability, high security and reliability, there is sufficient anti-interference ability. Fully consider redundant backup of critical equipment, critical data and logical links, as well as system automatic fault detection, discovery, alarm and recovery functions, improved system reliability.


    Openness and standardization

    The system uses open architecture, the use of standardized interfaces and protocols, with good scalability, system construction to comply with national and industry standards and norms, taking into account the system in the future time possible expansion, upgrades, major equipment and systems have a good Interconnection and interoperability.


    Advanced and Practical:

    The system adopts the international advanced technology and concept to design, adopt the domestic or international well-known manufacturer's hardware equipment, the system technical plan can maintain the long-term advanced position, and can adapt to the future science and technology development. Combined with the relevant business needs of practical job requirements, we are pay attention to the practicality of the system.


    Scalability and Flexibility:

    The system adopts structured design, simple structure, flexible configuration and full utilization of existing equipment resources. System control components using modular structure, wireless communication using Bluetooth, WIFI and other technical measures, the system to meet the existing functions based on the reserve of sufficient equipment to accommodate. The system is characterized by a new digital and network platform, highlighting its comprehensive, rich and extensible in application function, realizing modernization, intelligence, digitization and network management. And the system should be fully considered after built with other systems for seamless docking use of the feasibility. The system is characterized by a new digital and network platform, highlighting its comprehensive, rich and extensible in application function, realizing modernization, intelligence, digitization and network management. And the system should be fully considered after built with other systems for seamless docking use of the feasibility.


    We cooperate with the factory. We can either install a wireless remote control system on a new device or install and modify it on an old device.


     Case:

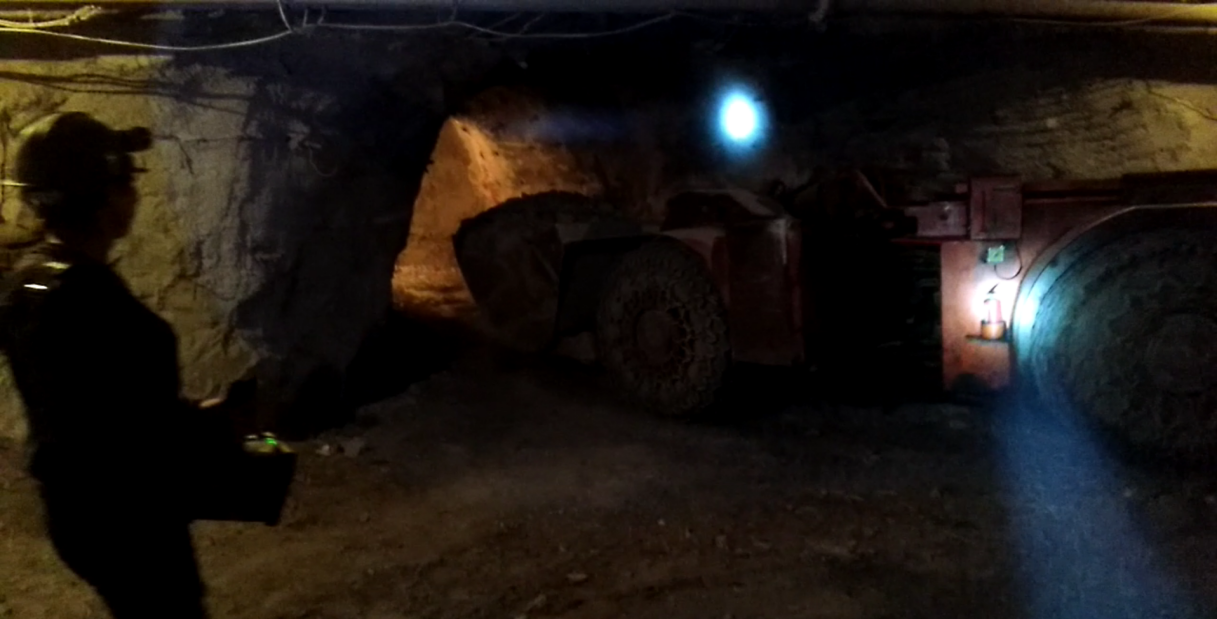

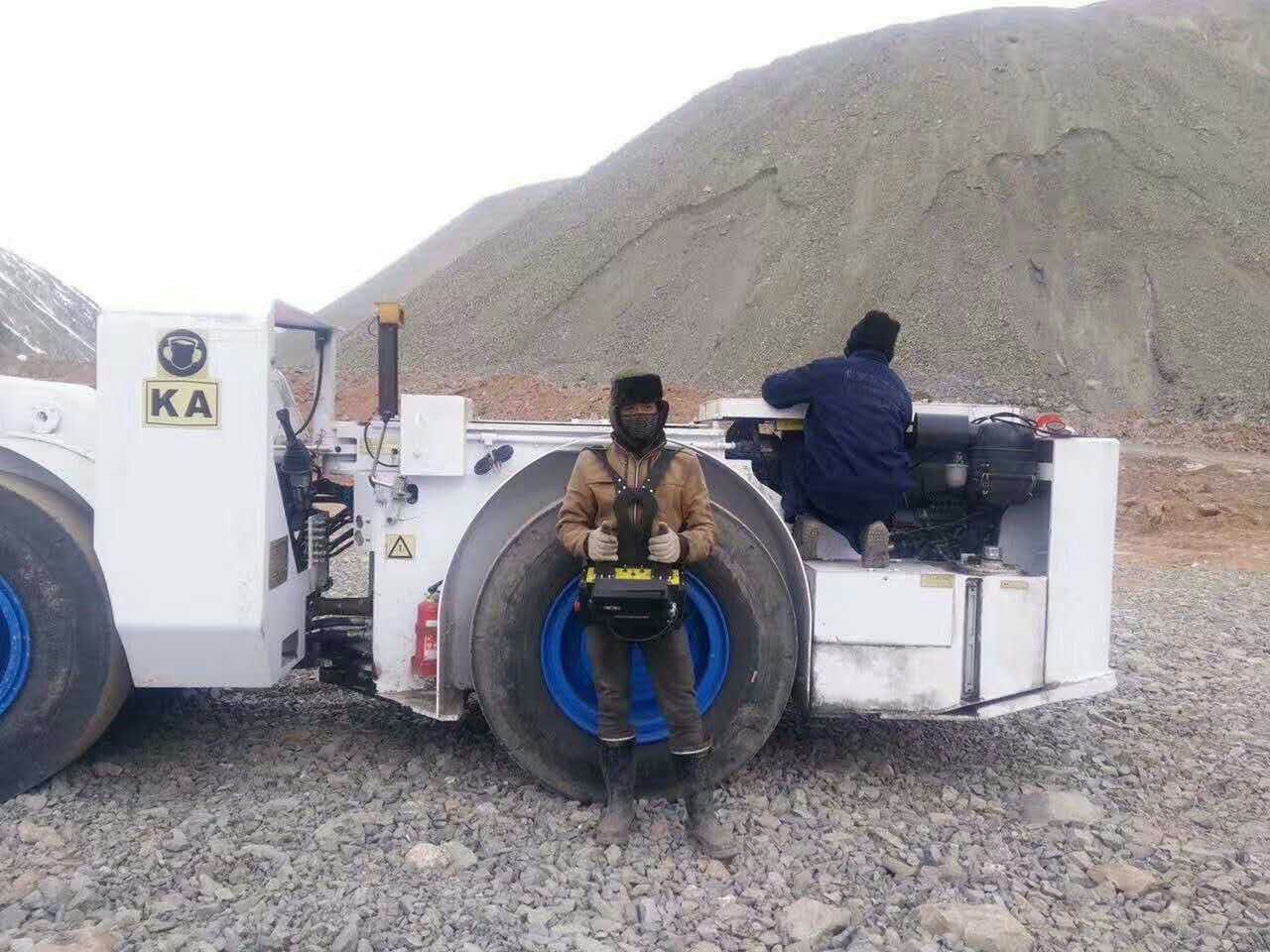

      1.      Application of Radio Remote Control System  LHD

    Remote control mining equioment_radio remote _control system__LHD loader_line of sight_underground mining_loader_HOT Mining_kyle1


    Remote control mining equioment_radio remote _control system__LHD loader_line of sight_underground mining_loader_HOT Mining_kyle3



    We have successfully applied Radio remote control system on many types of LHD, a cubic, two cubic, three cubic and electrical, diesel LHD. We are experienced and our prduct has been highly praised by clients.

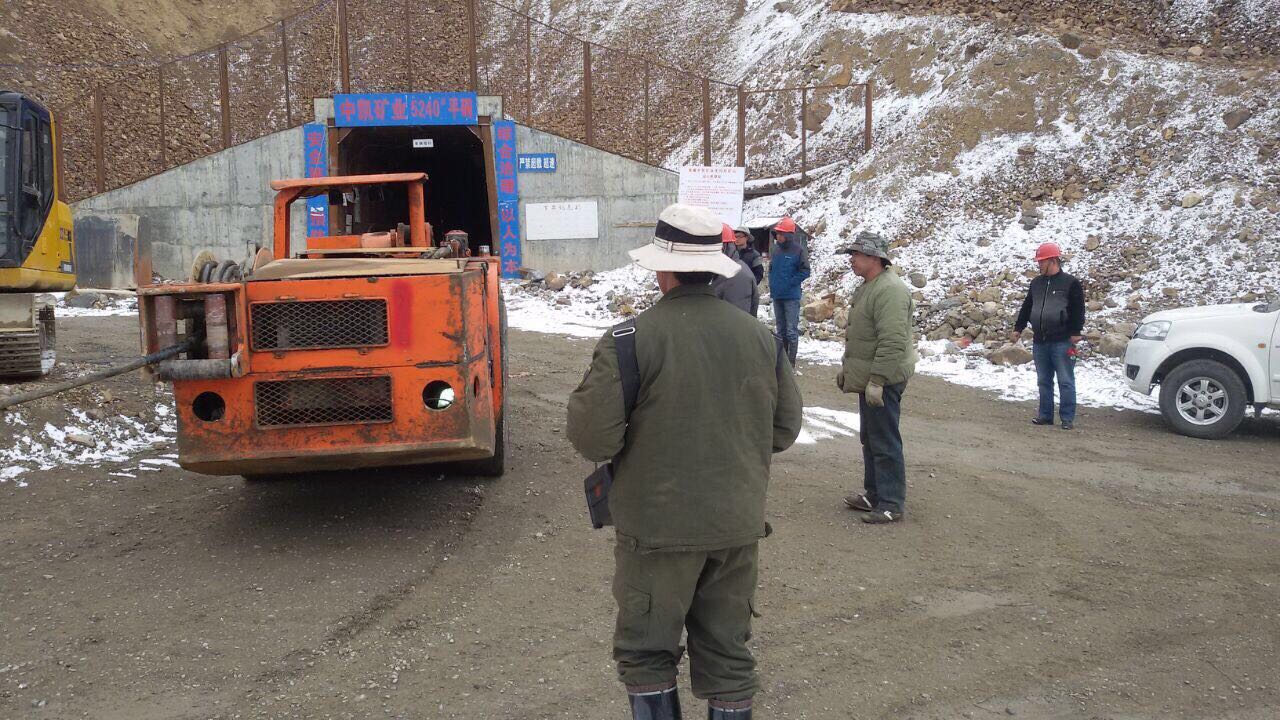

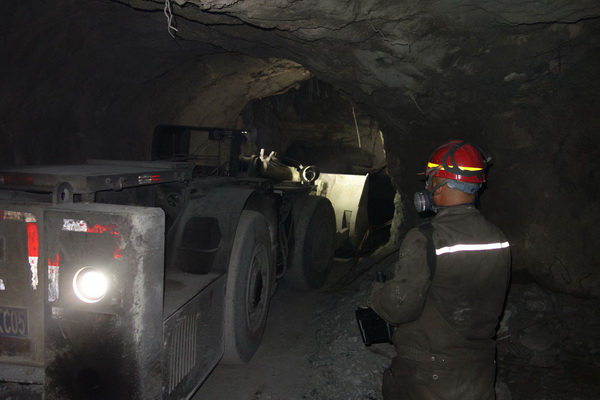

     2.      Application of Radio remote control system on Load-haul-dump


    Remote control mining equioment_radio remote _control system__LHD loader_line of sight_underground mining_loader_HOT Mining_kyle2

     In April 2013, the two cubic scraper systems in Hebei Fanshan Phosphorus Mine Co., Ltd. commissioned the operation, successful operation  in May, the same year in October additional two remote control system.


              3.Underground LHD Radio Remote Control System


    Remote control mining equioment_radio remote _control system__LHD loader_line of sight_underground mining_loader_HOT Mining_kyle4

    In November 2013, the LHD Radio remote control system was installed and commissioned at Chong Li Zijin Co., Ltd. and operated in December. November 2015, remote control scraper in Shandong Jinding Mining Co., Ltd. underground operations.

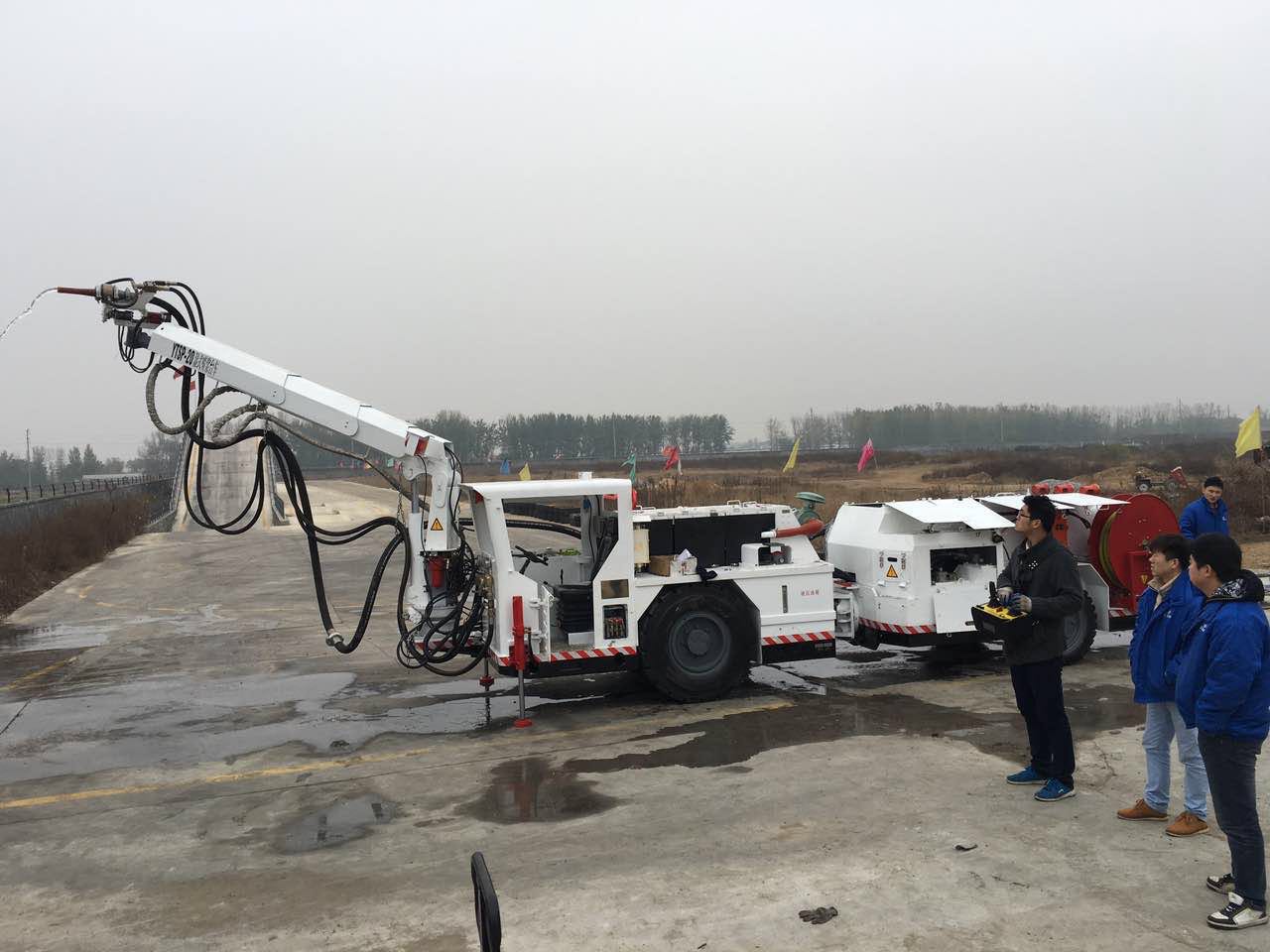

     4.Practical Application of Radio Remote Control System on Mining Concrete Sprayer


    Remote control mining equipment_remote control system_underground mining_concrete spray machine_HOT Mining_kyle

     In November 2015, we worked with Laizhou Yatong Heavy Equipment Co., Ltd. to develop wireless remote control spray truck, and  debugging success.

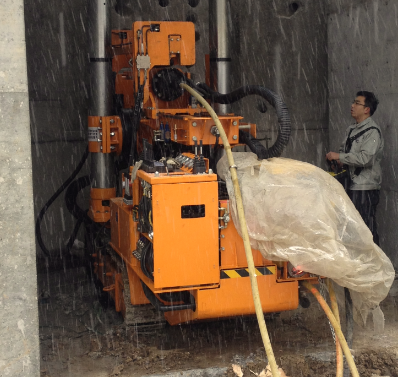

     5.Practical Application of Drilling Rig Radio Remote Control System


    Remote control mining equipment_radio remote control system drilling rig__drilling machine_line of sight_underground mining_HOT Mining_kyle

     In September 2015, we worked with Jikai Equipment Manufacturing Co., Ltd. to develop a drilling machine remote control system.

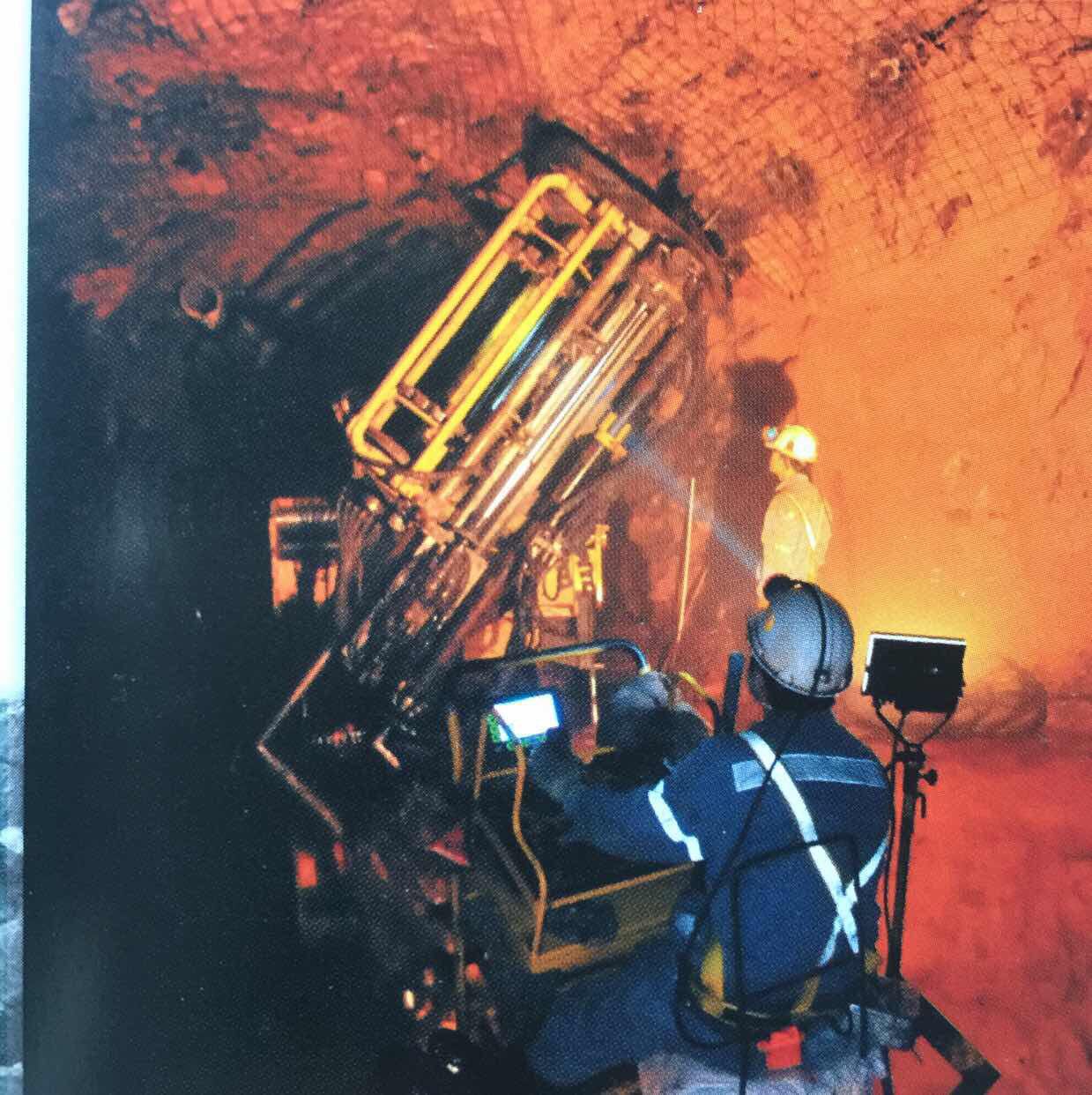

     6. Application of Radio Remote Control System Drill Jumbo


    Remote control mining equipment_radio remote control system drill jambo__drill jumbo_line of sight_underground mining_HOT Mining_kyle

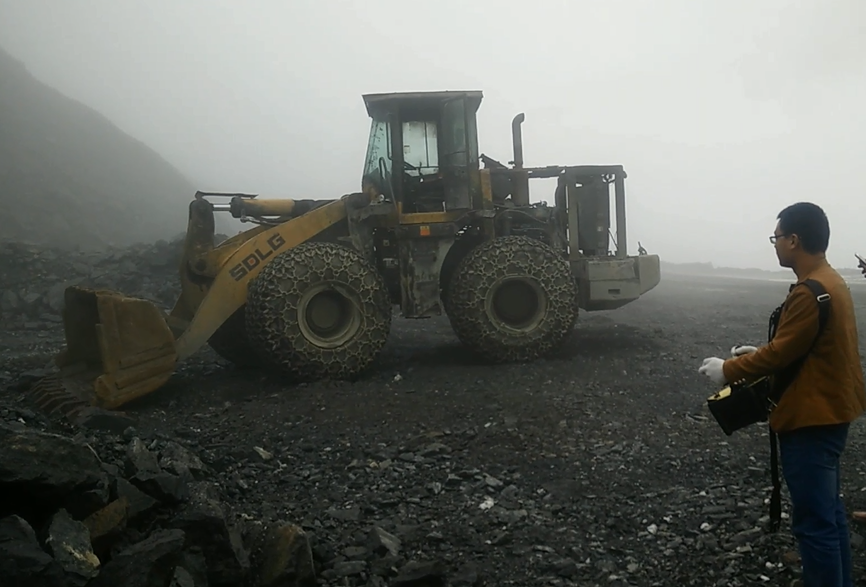

     7. Application of Radio Remote Control Underground Mining Loader


    Remote control mining equipment_radio remote control system underground loader__loader_line of sight_underground mining_HOT Mining_kyle

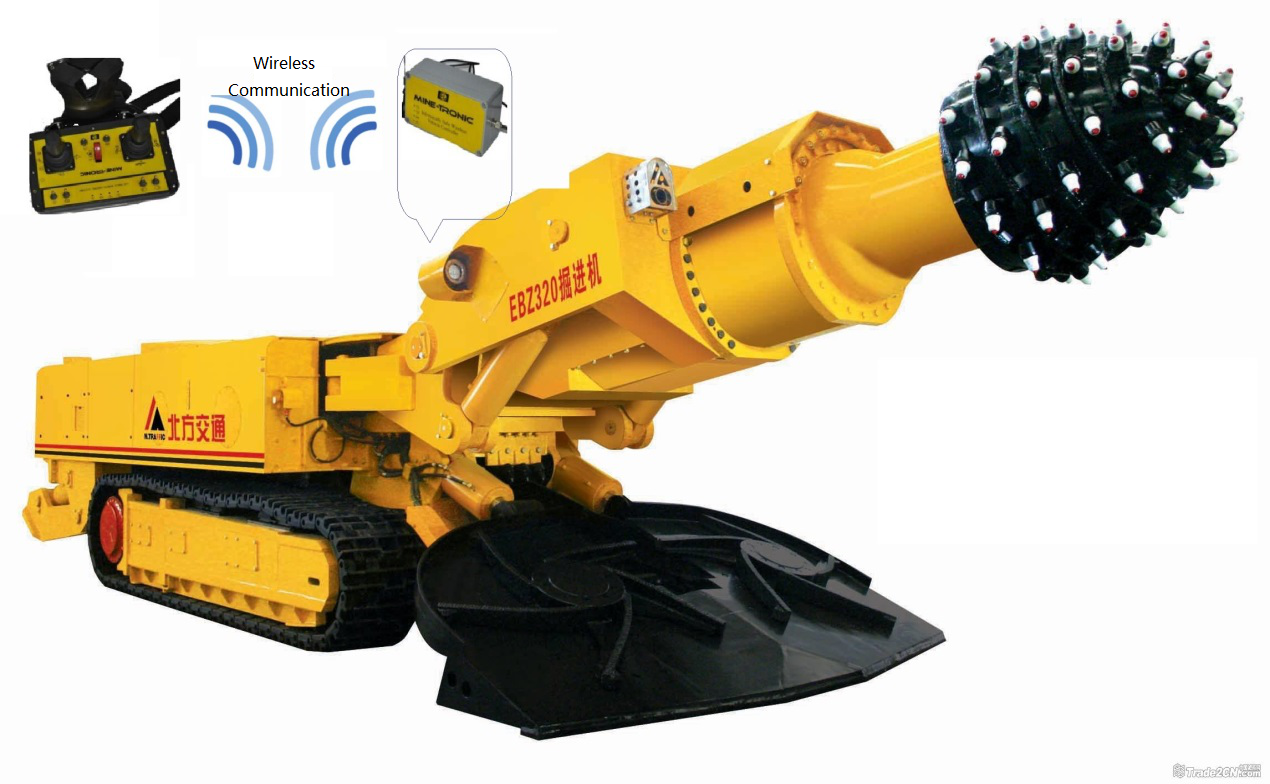

     8. Application of Roadheader Radio Remote Control System


    Remote control mining equipment_radio remote control system__roadheader_line of sight_underground mining_HOT Mining_kyle

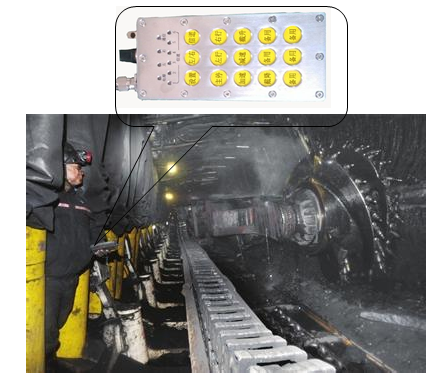

     9. Application of Handheld Remote Control System in Coal Shearer


    Construction of Remote Control Shearer for Shanxi Coal Group-Bejing Hot Mining Tech Co.,Ltd

    Construction of Remote Control Shearer for Shanxi Coal Group

    June 2013, coal mining hand-held remote control system in the Shanxi Coal Group ancient mine installed successfully, workers holding remote control system for coal cutting operations.

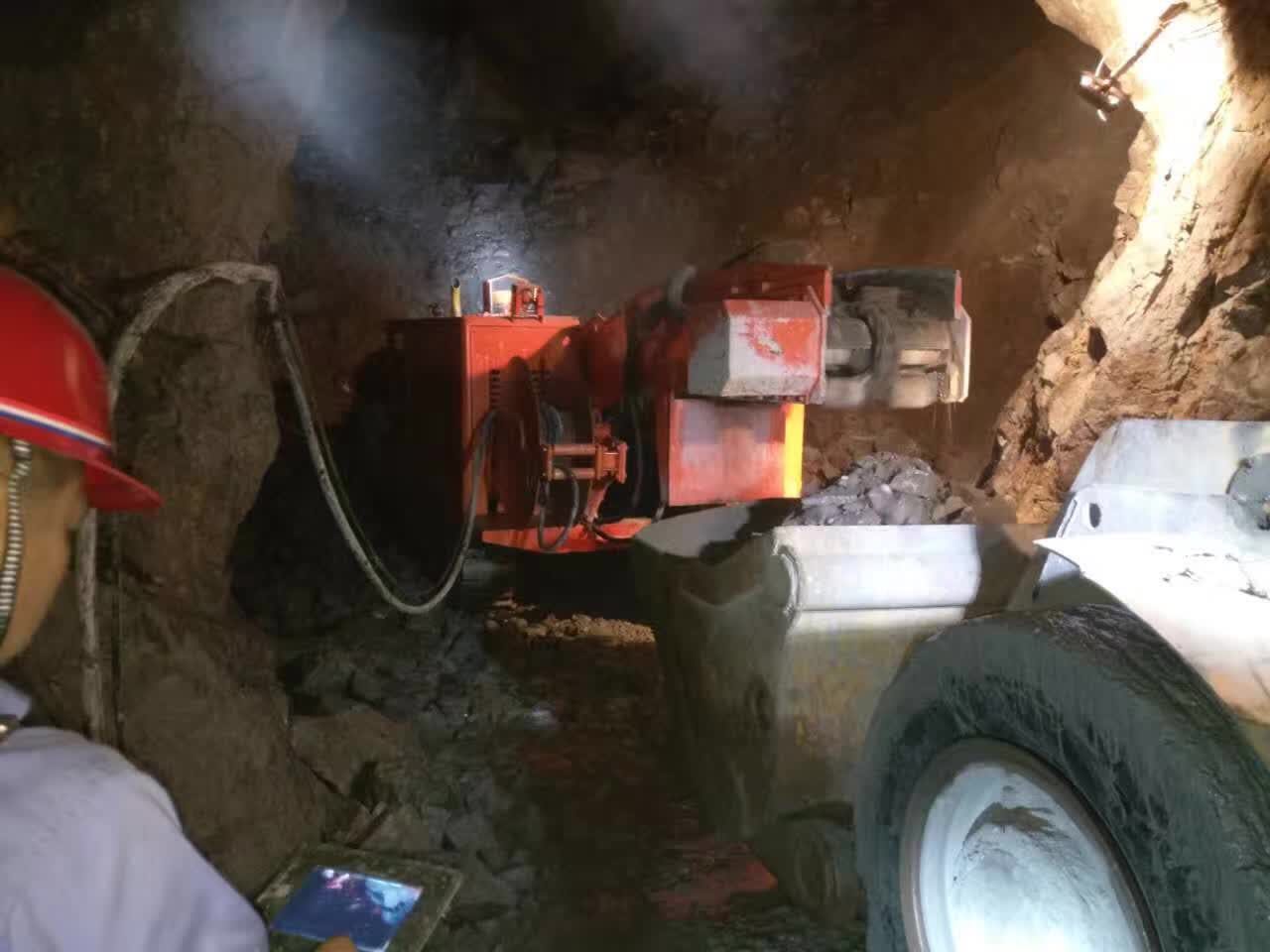

    10.Radio Remote Control System on Mining Crawler Loader, Mucking Loader

    Remote control mining equipment_radio remote control system_mining crawler loader_mucking loader_line of sight_underground mining_HOT Mining_kyle

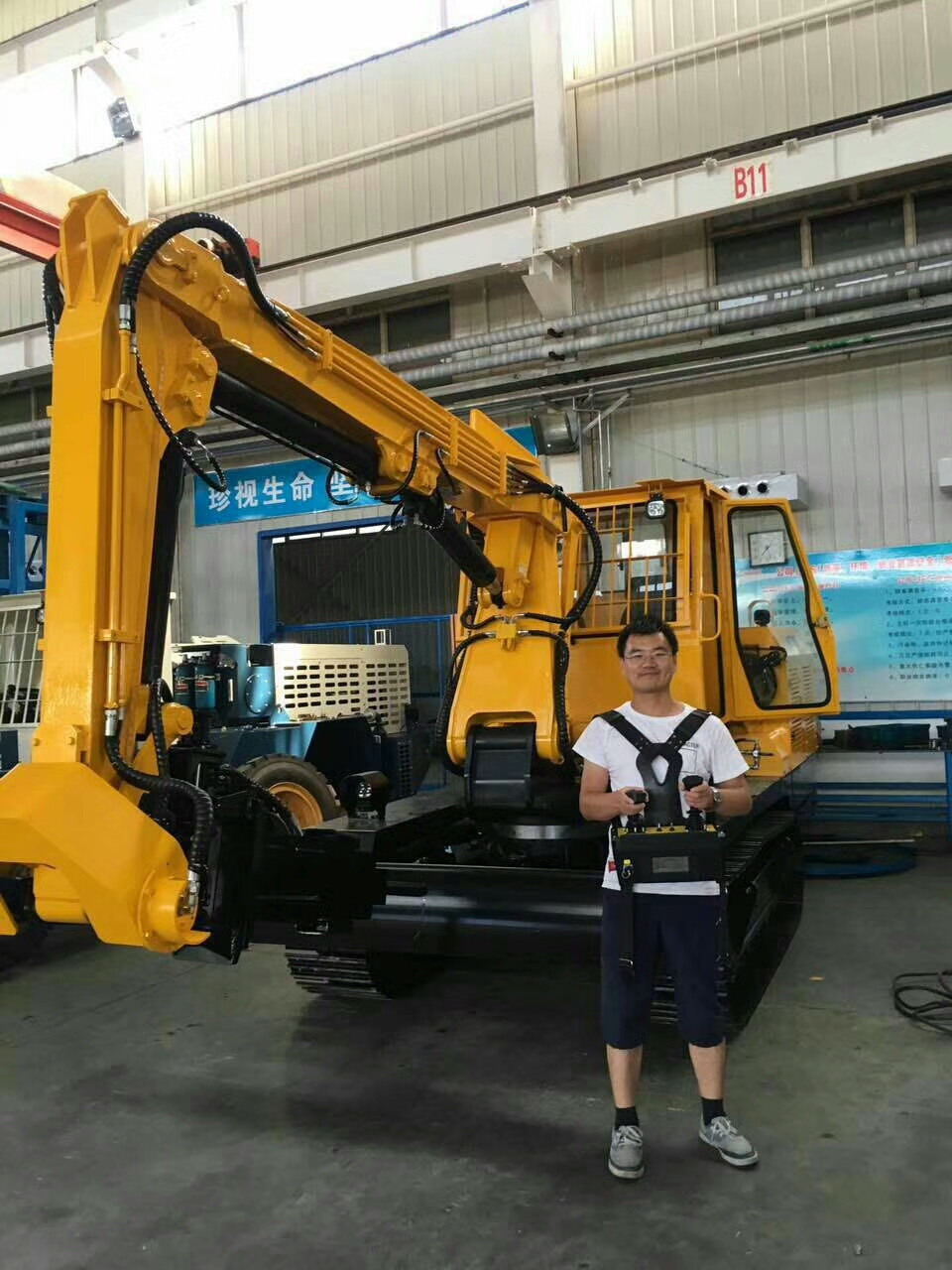

     11.Scaling Jumbo Radio Remote Control System


    Remote control mining equipment_radio remote control system scaling jambo__scaling jumbo_line of sight_underground mining_HOT Mining_kyle
