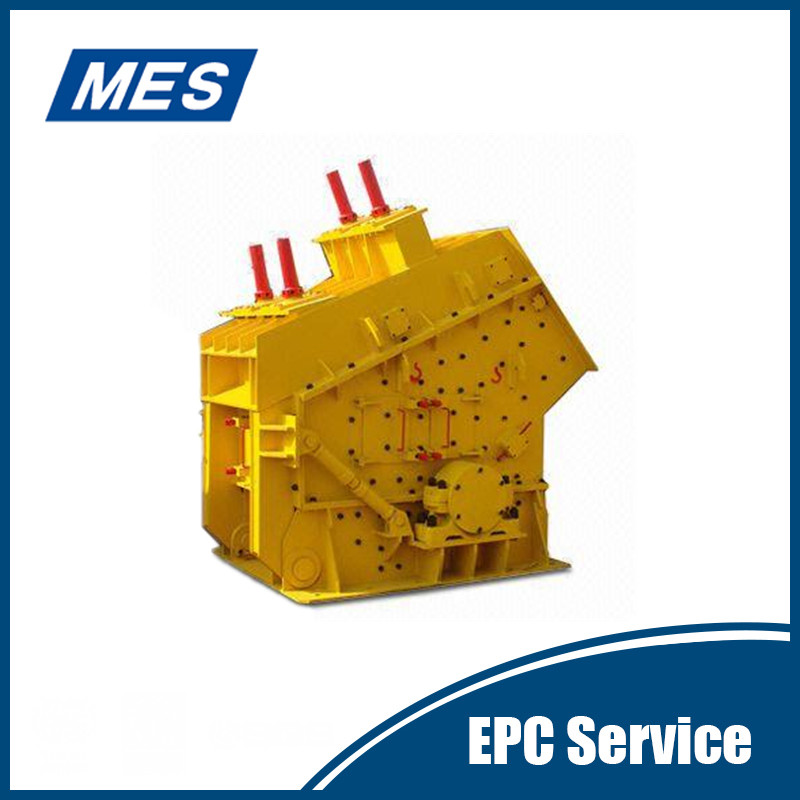

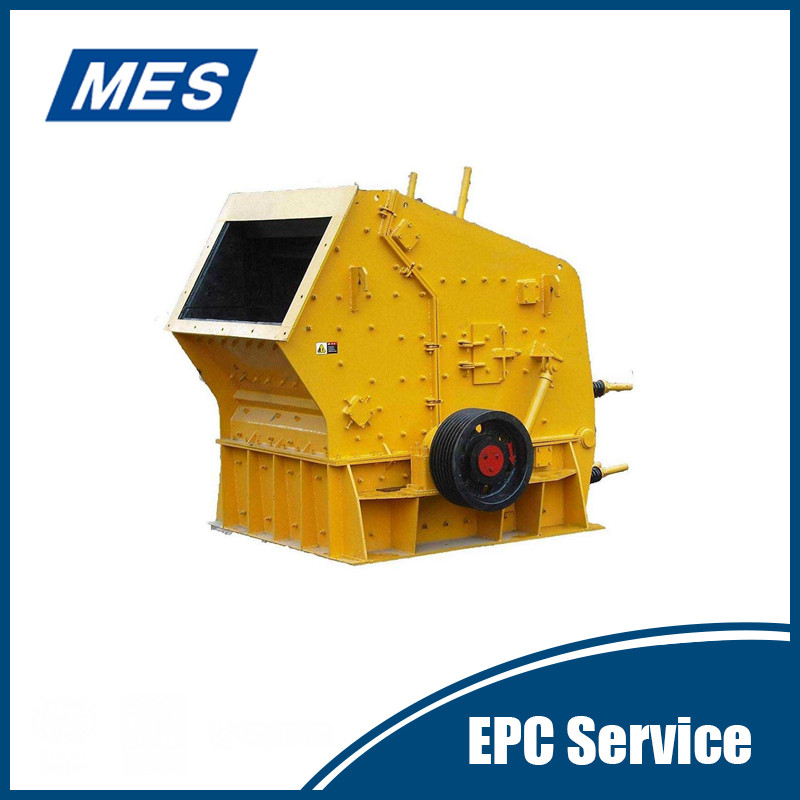

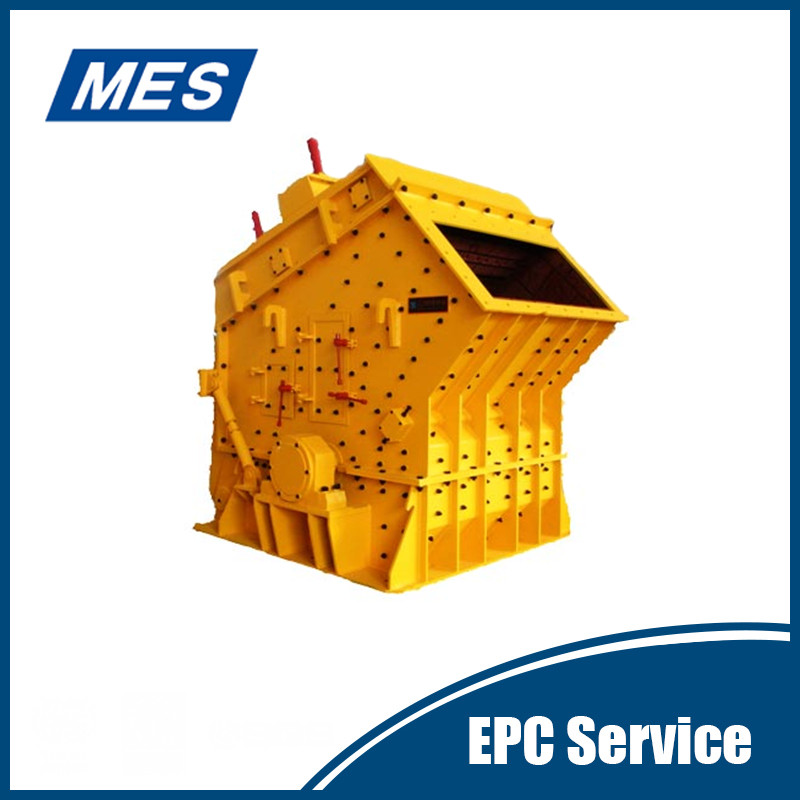

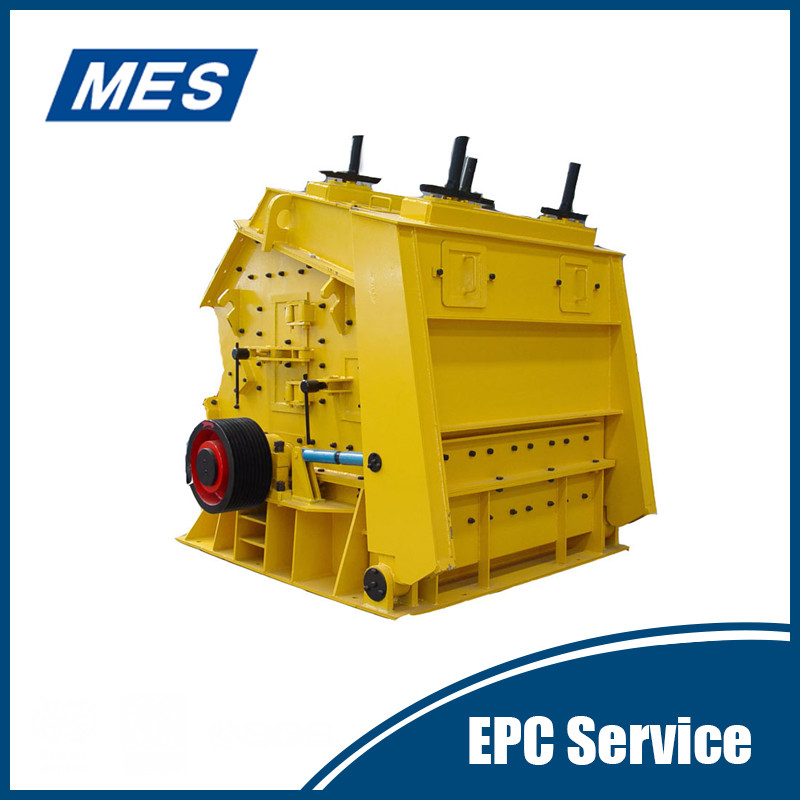

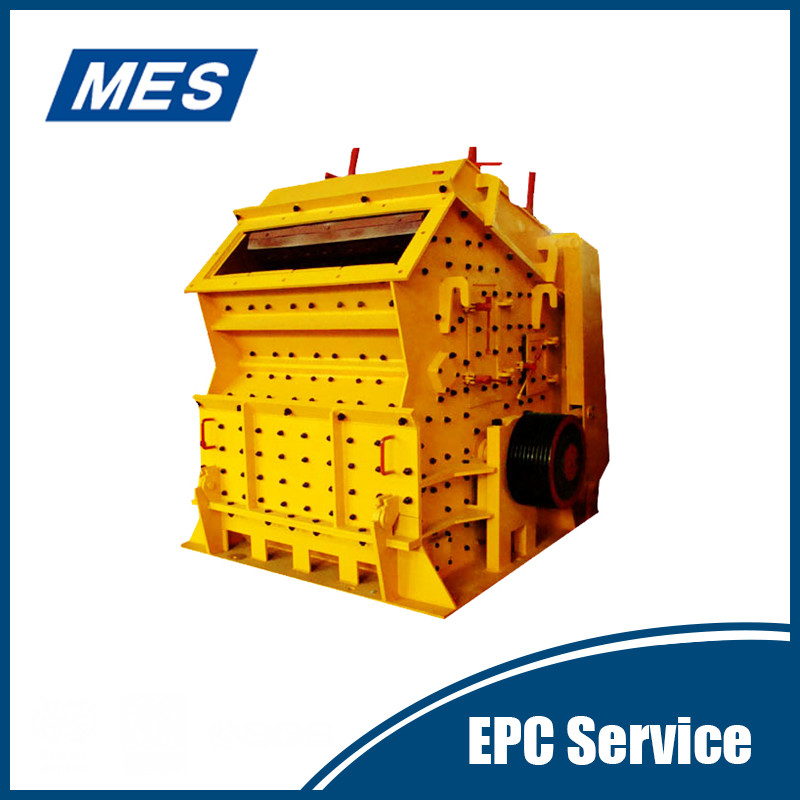

Impact Crusher
- IC series horizontal impactor possesses an advanced world-class position based on over 40year of our experience,thousands installations and integration of the latest present technology.
Model: IC series
Power: 45-315KW
Capacity(t/h): 40-260TPH
Weight: 8050-57000KG
Application: stone and ore
Impact Crusher
1.Features of impact crusher
(1) Heavy rotor,large crushing chamber,heavy breaker plates,anti-abrasive hammers and liners,frame hydraulic feature the IC-P or IC-S all models.
(2) The heavy rotor could produce an enormous inertial force to break any hard rock and produce a high throughput.
(3) "Boat Shape"hammers are matched with the wearing profile that helps prolonging its life and assuring a stable discharge gradation.The rotor contact facing with hammers are machined to be sure the gaps eliminated and parts loosing un-happened.
(4) Frame side liners are designed as weight between 22-33kg,and have a sameness of 80%.
(5) Safety classes and measures are largely enhanced through hydraulic devices applied widely.
(6) High quality welded frames are from sophisticated welding machines and stress releasing processing.
IC series horizontal impactor possesses an advanced world-class position based on over 40year of our experience,thousands installations and integration of the latest present technology.IC series have an unique combined design of the heavy rotor,large crushing chamber,robust cylinder and safety devices to assure a high capacity,stable gradation product,low operation cost and easy maintenance.
3.Parameters of impact crusher
Model
Feed Opening(mm)
Feed Max(mm)
Rotor Dia.(mm)
Rotor Length(mm)
Max Rotation(rpm)
IC1208P
790*900
600
1150
760
600
90-132
8800
IC1211P
1170*1100
800
1150
1140
600
110-160
13760
IC1311P
1170*1200
800
1300
1140
550
132-200
18250
IC1315P
1550*1200
900
1300
1520
550
160-250
22650
IC1319P
1930*1200
1000
1300
1930
550
200-315
26200
IC1515P
1550*1500
1200
1525
1520
450
2*200
41500
IC1519P
1930*1500
1200
1525
1930
450
2*200
47600
IC1523P
2310*1500
1300
1525
2310
450
2*315
57000
IC1208S/SH
790*810
500
1150
760
700
90-132
8050/8950
IC1211S/SH
1170*810
500
1150
1140
700
110-160
13300/13680
IC1311S/SH
1170*815
600
1300
1140
650
132-250
14100/14550
IC1315S/SH
1550*815
600
1300
1520
650
160-250
17950/18600
IC1319S
1930*815
600
1300
1930
650
200-315
21100
IC1515S
1550*815
700
1525
1520
650
2*200
23800
IC1519S
1930*910
700
1525
1930
650
2*220
27220
IC1523S
2310*910
700
1525
2310
650
2*315
32630
Please note that:
1.All above crushers we offering are just basic models;
2.MES can produce the specific machinery according to clients' requirements.
