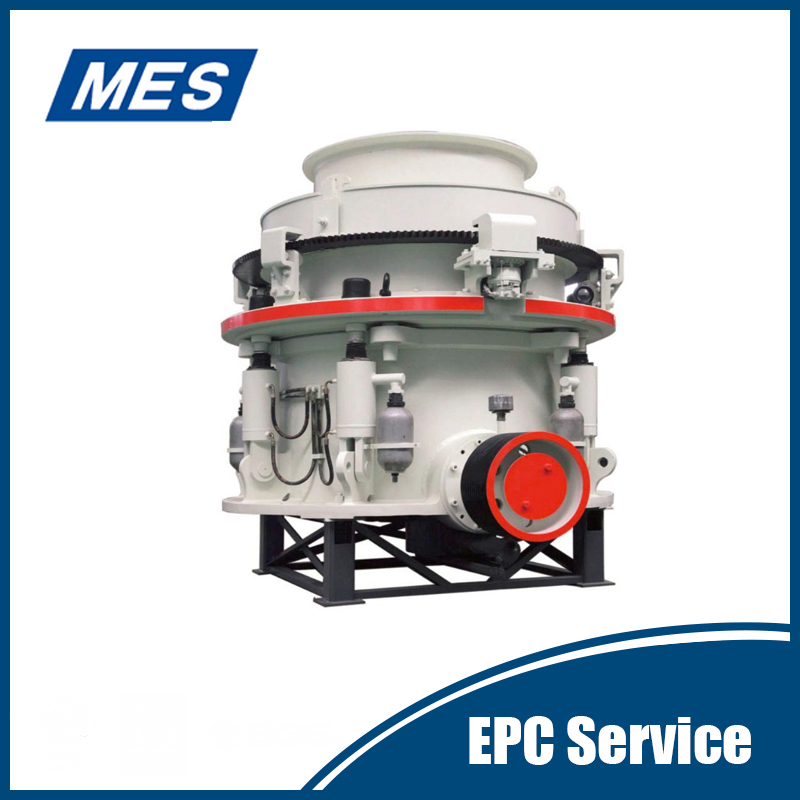

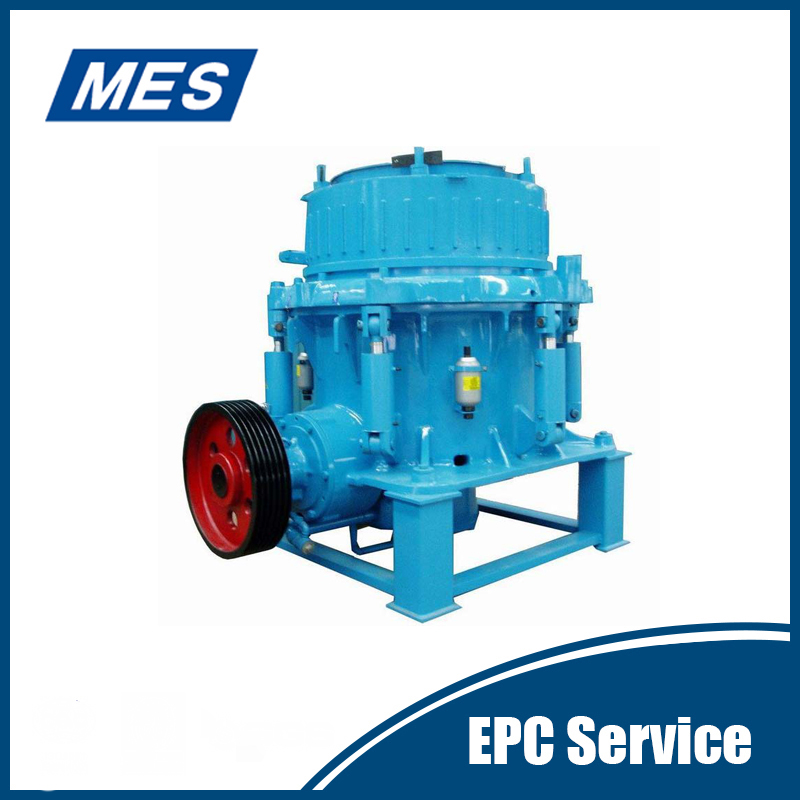

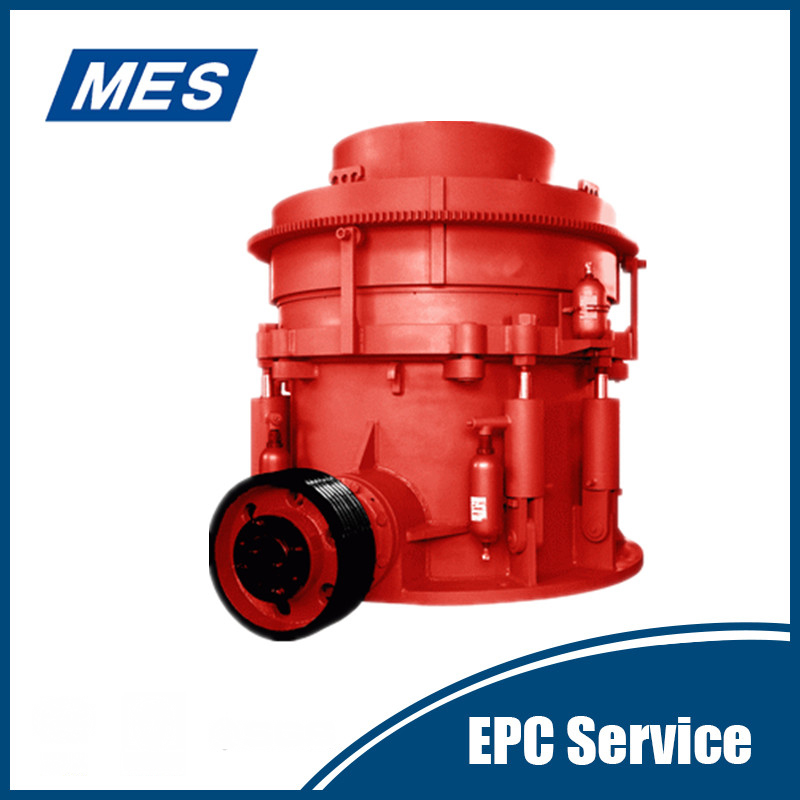

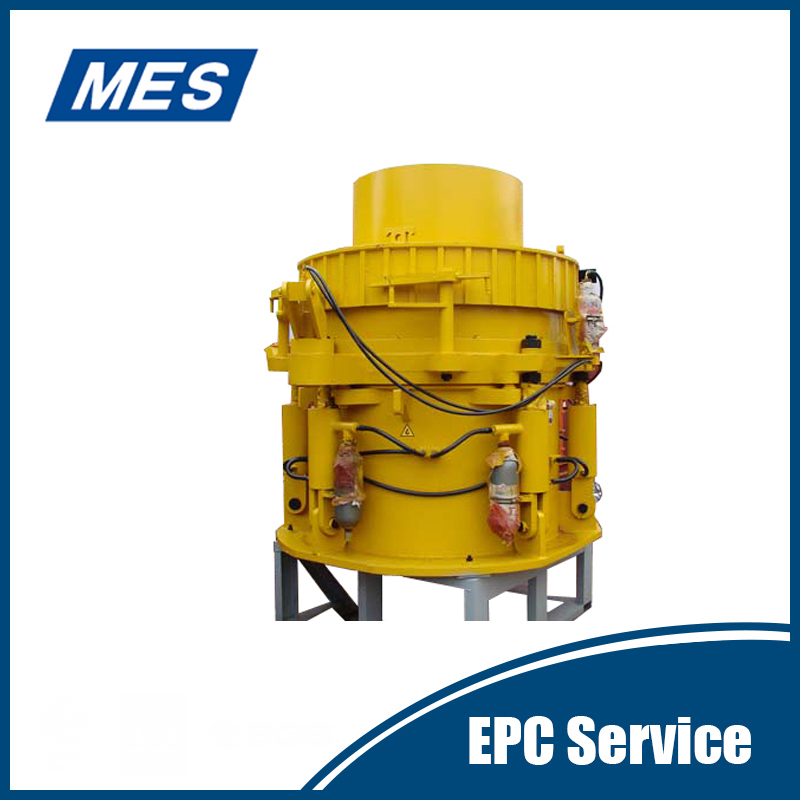

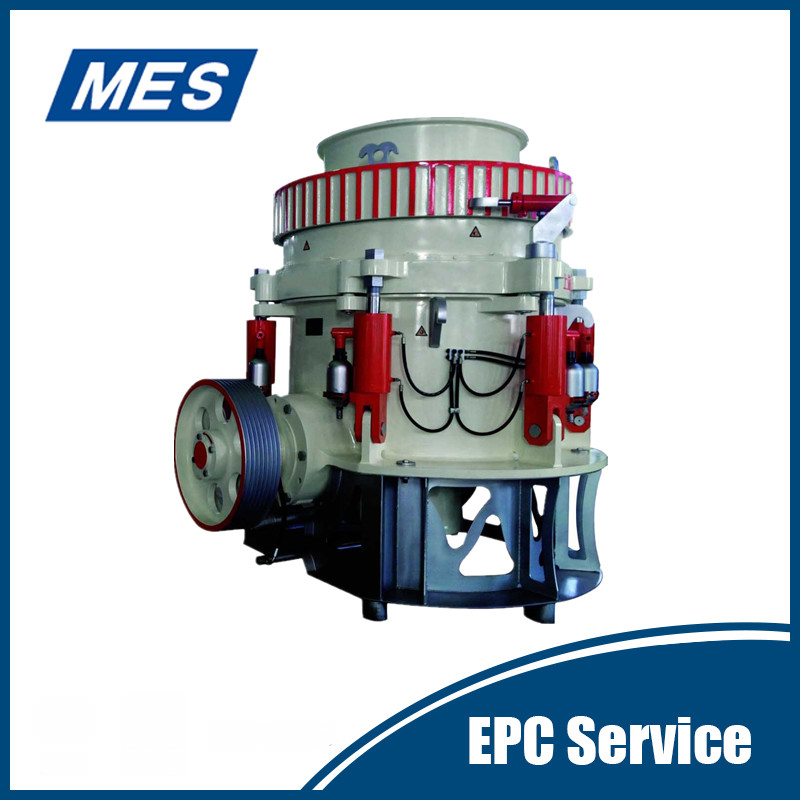

Hydraulic Cone Crusher
- Hydraulic cone crusher is widely used in the fields of metallurgy, construction, hydroelectric project, transport, chemical industries and building materials for crushing all sorts of hard and above medium hard ores and rocks.
Model:CC series
Closed feed opening:95-290mm
Capacity:Depends on the model
Power:160-400kw
Weight:13-33t
Hydraulic Cone Crusher
1.Introduction of hydraulic cone crusher
Hydraulic cone crusher is manufactured and designed through absorbing the latest world advanced technology and gets to be world advanced level. It is widely used in the fields of metallurgy, construction, hydroelectric project, transport, chemical industries and building materials for crushing all sorts of hard and above medium hard ores and rocks. The machinery’s pressure resistance strength is under 350Mpa. And they are widely suitable for primary crushing of many kinds of mining and rock such as many kinds of ores, concrete, fireproof material, bauxite, quartzite, corundum, perlite, ironstone, basalt, etc.
2.Features of hydraulic cone crusher
(1) The
series of CC cone crusher with high-efficiency and hydraulic pressure equipment
is adopted three protecting equipment such as protecting oilcan, locking oilcan
and hydraulic driving oilcan. They not only protect the machinery, but could
deal with troubles without disassembly the parts.
(2) The CC Cone Crusher also can adjust the size of final material. The machinery
with high dependability operated very expediently.
(3) The crushing chamber specially designed according to particles sink
principal and its matching speed can sharply increase the crushing ratio,
output and content percentage of cubical product in final crushed material.
(4) In the special circumstances such as irons was feed into the crushing chamber together with the materials and there is a jam in the crushing chamber, the hydraulicequipment could open the cover automatically, then the products could output successfully. It greatly reduced the trouble of stopping the machine to output the products artificially. Which makes the maintenance more convenient and with low cost.
(5) The CC Cone Crusher is adjusted by hydraulic device and lubricated by the
dilute oil. And with locking sleeve assembly, it can overcome the trouble of
oil and water being mixed together.
(6) The concave and mantle made by high manganese steel. Owing to the change of
the concave’s style and the protect of the crushed products, The abrasion of
the machine is reduced greatly and can last long compared with the old cone
crusher.
3.Principle of hydraulic cone crusher
4.Parameters of hydraulic cone crusher
Type
Cavity (coarse/fine)
Closed feed opening (mm)
Min CSS (mm)
Capacity (t/h)
Power (kW)
Weight (t)
CC-200
C
190
19
160-250
160
13
M
120
16
140-220
F
95
13
120-200
CC-300
C
210
20
190-380
220
18.5
M
150
16
175-320
F
105
13
110-260
CC-400
C
251
25
295-370
315
26
M
196
20
255-320
F
110
14
185-230
CC-500
C
290
30
380-700
400
33
M
210
22
330-605
F
130
16
270-535

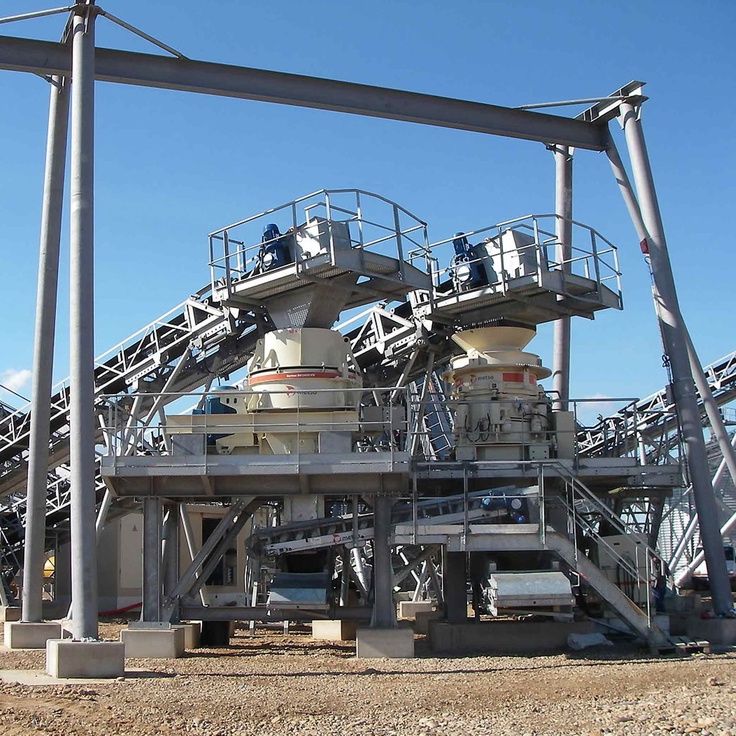

5.Application of hudraulic cone crusher
