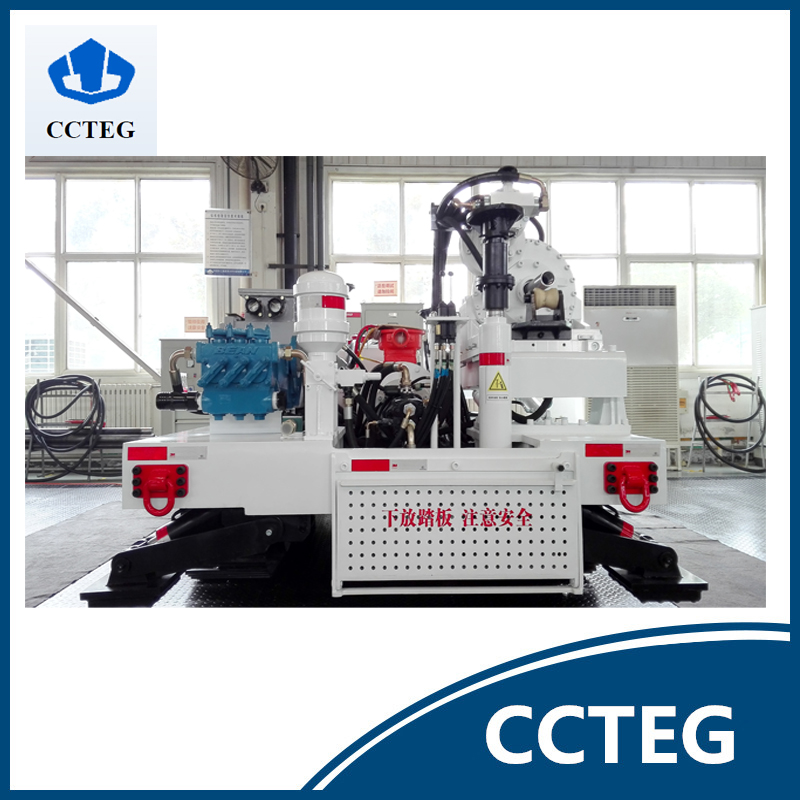

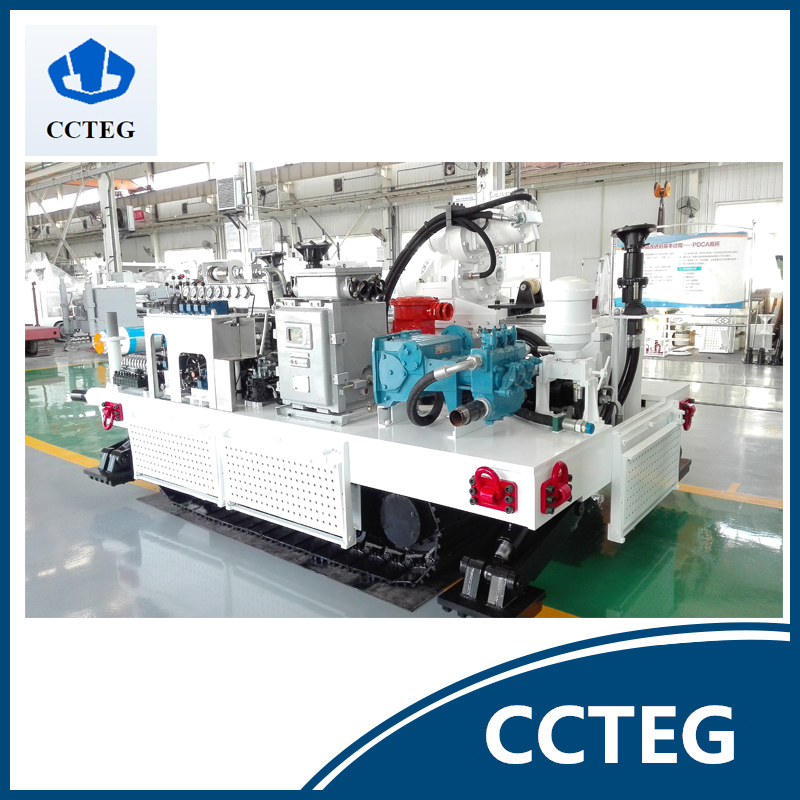

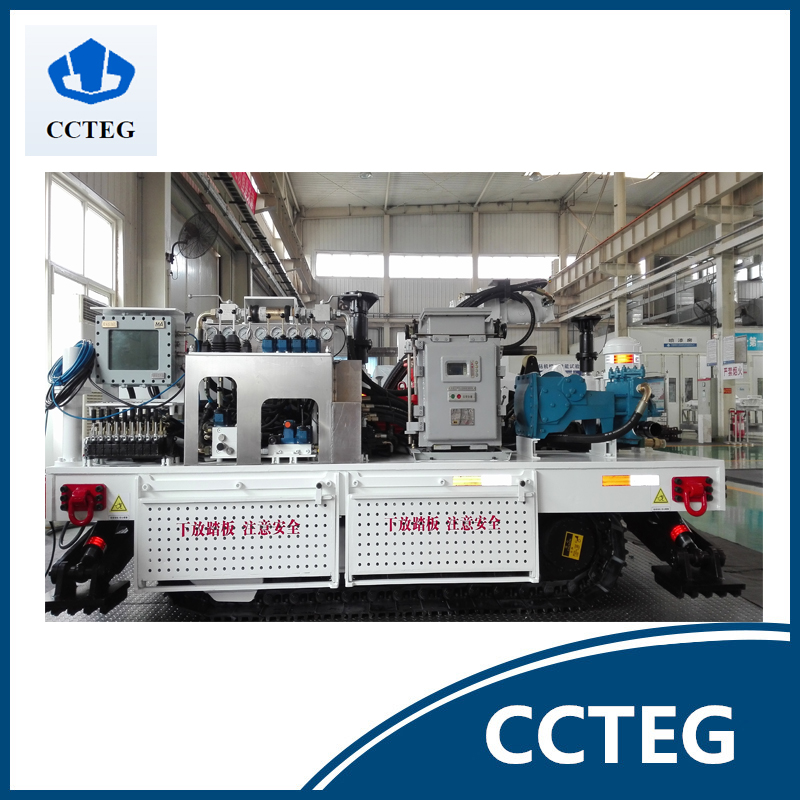

ZDY6000LD(A) Directional Drill Rig
- ZDY6000LD(A) Directional Drill Rig is specifically designed to drill especially long directional drilling boreholes in explosive underground environments
1. Introduction
1)Specifically designed to drill especially long directional drilling boreholes in explosive underground environments

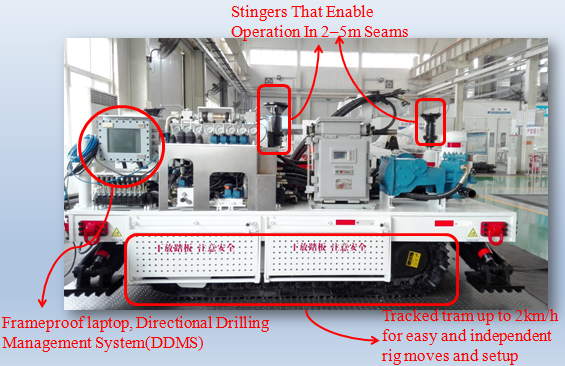

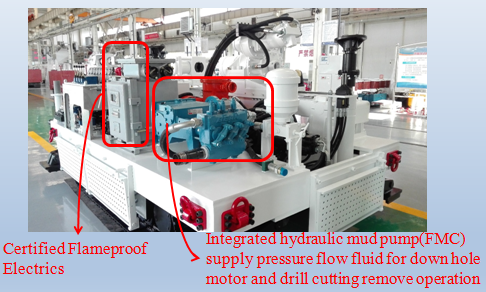

2)The rig has a compact footprint mounted on tracks, and is integrated with certified flameproof electrics and flameproof laptop
3)The rigs is designed to drill in-seam in excess of 1000m with downhole motor, directional drilling management system, CHD drill rods and PDC drill bits
2. Technical Features
3. Specification
|
Drill rig |
|
|
Applicative drill rod |
73mm/89mm |
|
Weight |
10,000kg |
|
Power |
90kW |
|
Feed System |
|
|
Type |
Twin cylinder |
|
Feed stroke |
1000mm |
|
Max push force |
180kN |
|
Max pull force |
180kN |
|
Carriage speed |
Feed/pull operation, 0~0.25m/s Drill operation, 0~0.5m/s |
|
Feed-frame tilt angle |
-10~20 degrees |
|
Rotation Unit |
|
|
Rated torque |
6000Nm |
|
Rated speed |
50~190r/min |
|
Hydraulic System |
|
|
Type |
Load sensitive |
|
Manufacturer |
Rexroth / Parker |
|
Hydraulic pressure |
Main pump, 26MP Auxiliary pump Ⅰ, 21MP Auxiliary pump Ⅱ, 21MP |
|
Displacement |
Main pump, 0~100ml/r Auxiliary pump Ⅰ, 0~75ml/r Auxiliary pump Ⅱ, 0~21ml/r |
|
Hydraulic tank |
390L |
|
Water pump |
|
|
Flow pressure |
5.5~10 MPa |
|
Flow rate |
120~350 L/min |
|
Crawler system |
|
|
Max move speed |
2.5 km/h |
|
Max gradeability |
20 degrees |
|
Dimensions |
|
|
Overall width |
3.5m |
|
Overall length |
2.2m |
|
Total height |
1.9m |

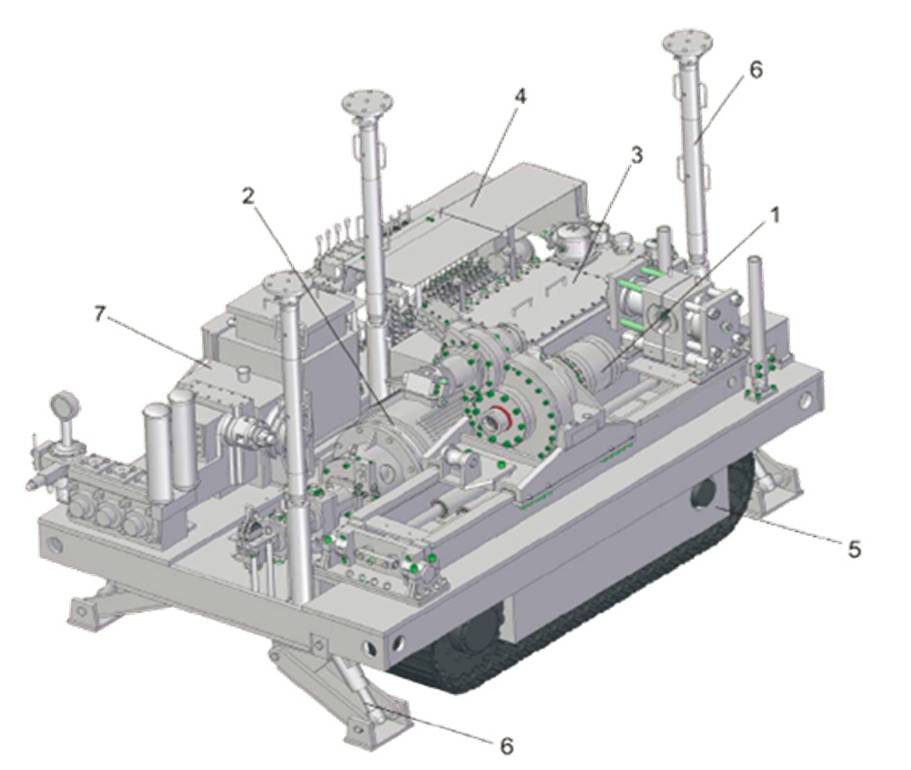

1-Rotary unit, 2-Elecctrial motor, 3-Hydraulic tank, 4-Control panel, 5-Tracks, 6-Stingers
4. Applications

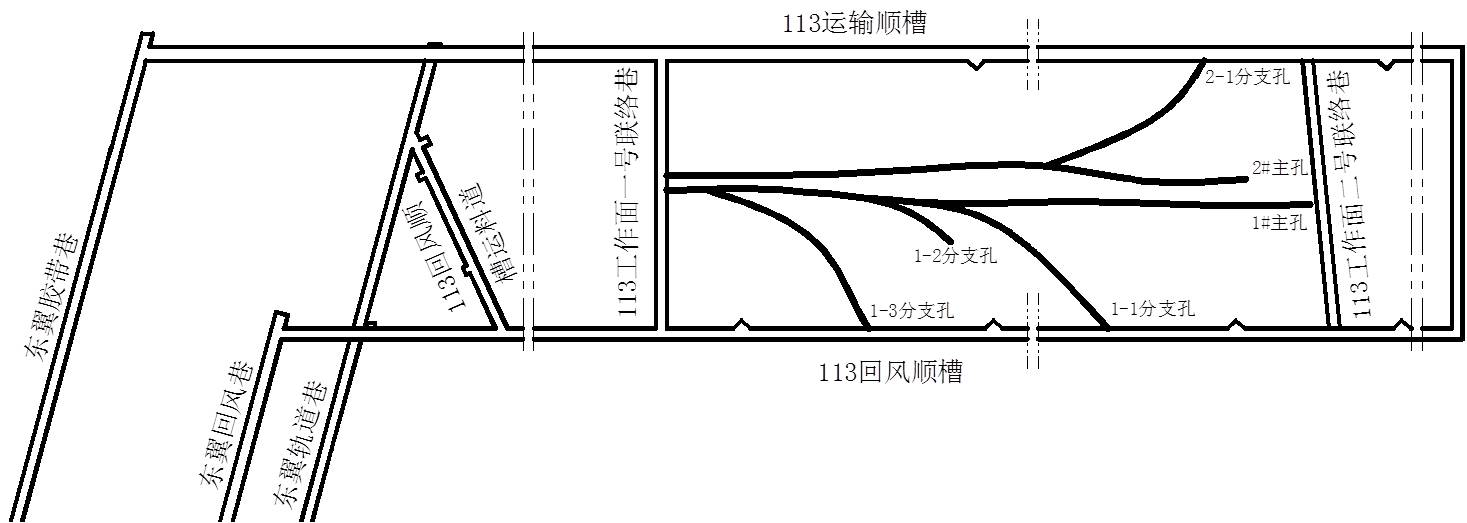

1)Gas drainage directional borehole drilling in Dafosi Coal Mine, Shaanxi, China
Maximum depth of 1024m borehole was achieved in 2012. 4 branches were accomplished, 3 of them reached the targets accurately. Average daily drilling depth was as high as 160m. The fact shows that ZDY6000LD(A) directional drilling system can drill boreholes as depth as 1000m with relative high drilling efficiency.

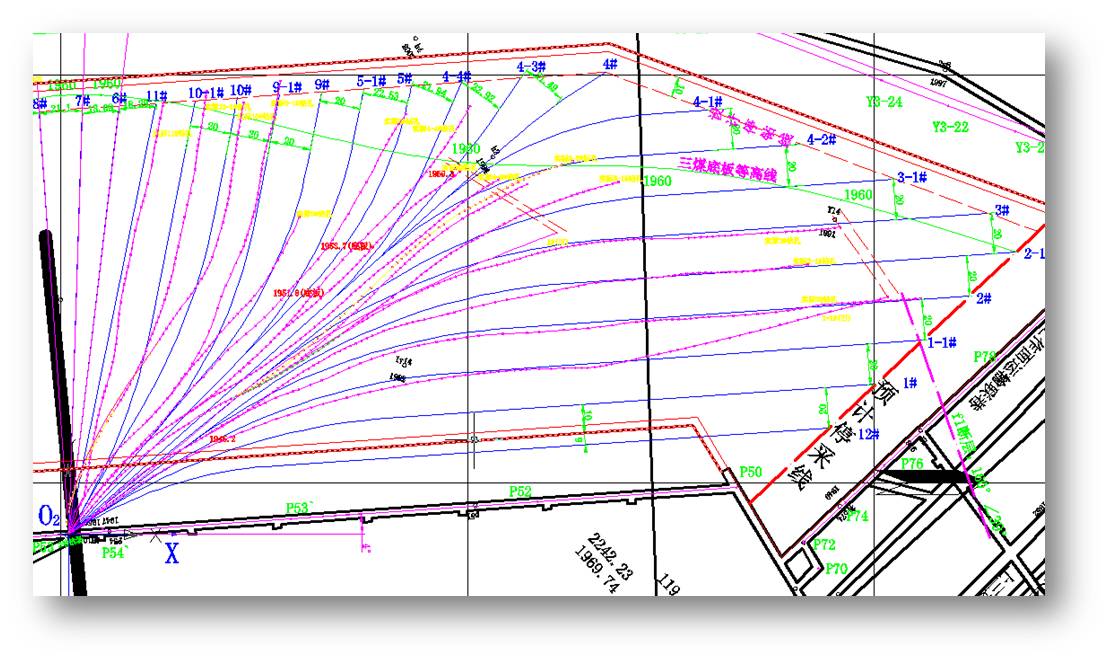

2)Gas drainage directional borehole drilling in Rujigou Coal Mine, Ningxia, China
Deep hole directional drilling were conducted in Rujigou Coal Mine to replace shallow borehole drilling, which lead to high gas drainage efficiency, less drilling operation and lower cost (reduced more than 40% labor and material cost)
