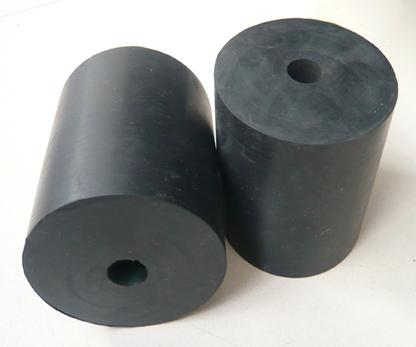

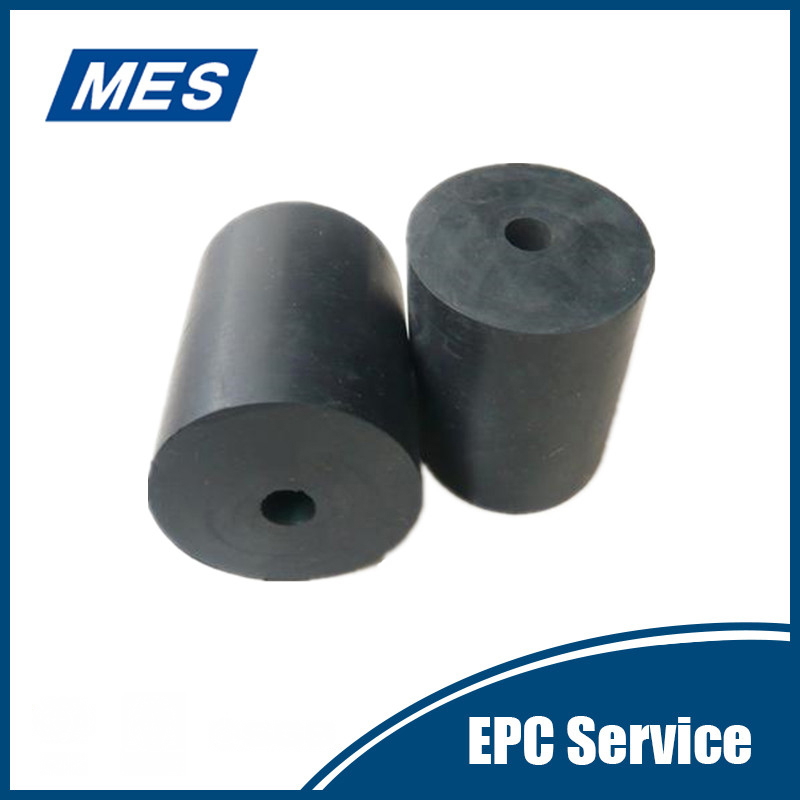

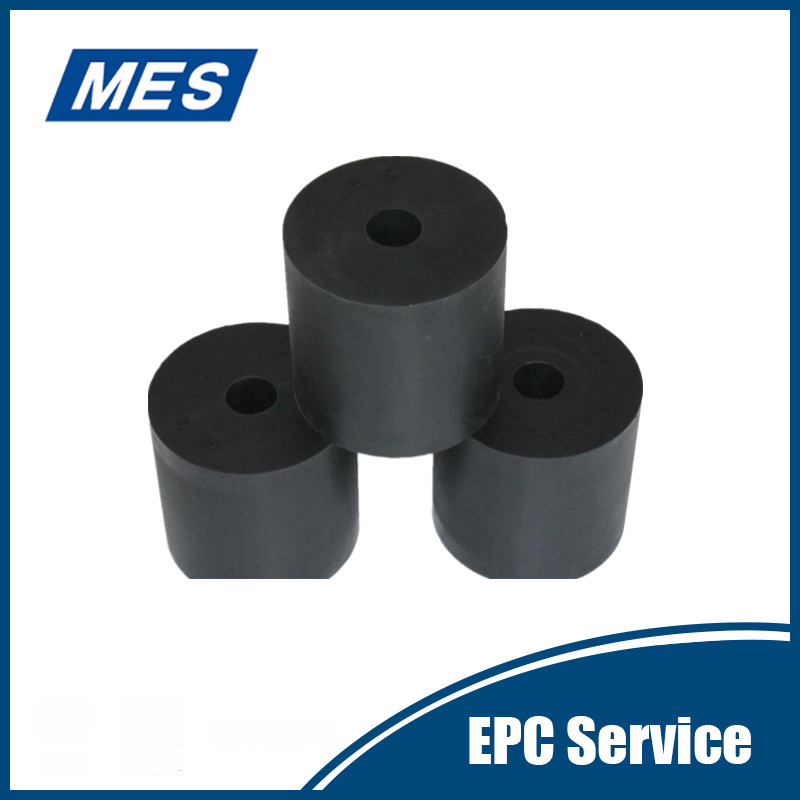

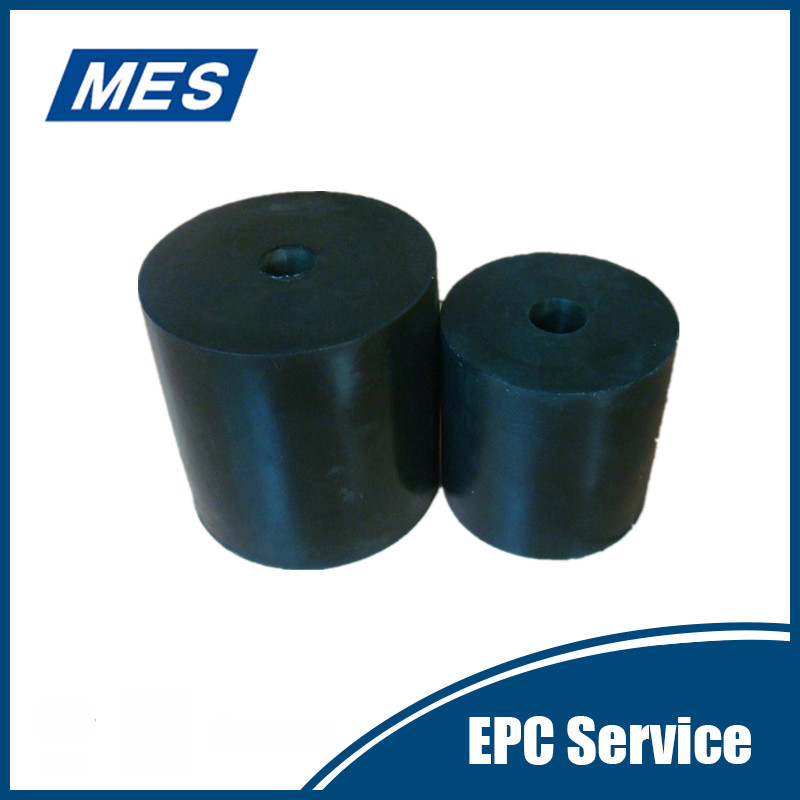

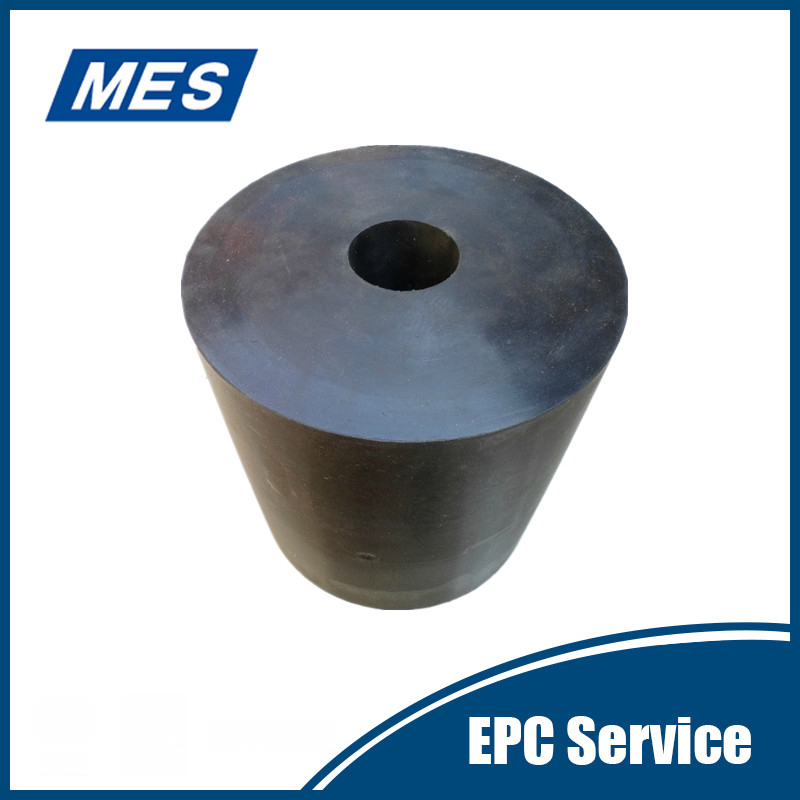

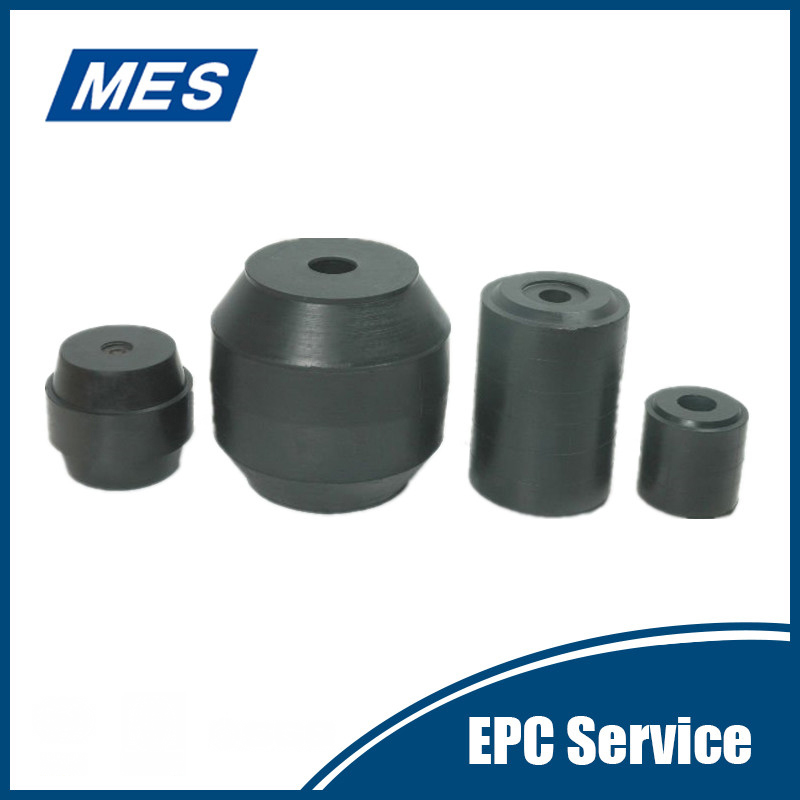

Rubber Spring for Vibrating Screen
- Rubber spring for vibrating screen is a kind of polymeric elastomer with efficient anti-vibration, small resonance region, long service life, low cost and good cold tolerance, air tightness, waterproof, electrical insulativity, and it is the best choice for reducing vibration.
Material: Natural rubber
Resistance: Anti-corrosion,high wear resistance
Usage: Vibrating screen
Rubber Spring for Vibrating Screen
1.Introduction of Rubber Spring
Rubber spring for vibrating screen is a kind of polymeric elastomer with efficient anti-vibration, small resonance region, long service life, low cost and good cold tolerance, air tightness, waterproof, electrical insulativity, and it is the best choice for reducing vibration.
2.Features of Rubber Spring
2.1. Good stability, high efficient vibration
isolation, long service life.
2.2. Applicable to all types of vibration
equipment.
2.3. Execution standard: JB/T 8584-8584.
2.4. The name of the material: 60 si2mn,
executive standard: GB/T 1222-2007.
2.5. Contain natural rubber by more than 90%.
2.6. Warranty period of 2 years, 5 years normal use.
3.Parameters of Rubber Spring
|
Specifications D*H*d (mm) |
Outer Diameter (mm) |
Inside Diameter (mm) |
Free Height (mm) |
Deformation (cm) |
Rigidity (kg/cm) |
Max load (Kg) |
|
300*245*80 |
300 |
80 |
245 |
1 |
480 |
2800 |
|
250*250*50 |
250 |
50 |
250 |
2.5 |
370 |
2000 |
|
220*220*50 |
220 |
50 |
220 |
2.2 |
320 |
1500 |
|
200*200*50 |
200 |
50 |
200 |
2 |
280 |
1000 |
|
180*180*40 |
180 |
40 |
180 |
1.8 |
260 |
800 |
|
160*160*30 |
160 |
30 |
160 |
1.6 |
240 |
750 |
|
140*140*30 |
140 |
30 |
140 |
1.4 |
210 |
700 |
|
140*160*30 |
127 |
30 |
160 |
1.4 |
180 |
700 |
|
127*127*30 |
120 |
30 |
127 |
1.2 |
180 |
700 |
|
120*120*30 |
100 |
30 |
120 |
1.2 |
170 |
700 |
|
100*100*30 |
100 |
30 |
100 |
1 |
140 |
600 |
|
100*130*30 |
100 |
30 |
130 |
1 |
100 |
500 |
|
80*80*20 |
80 |
20 |
80 |
0.8 |
100 |
400 |
|
60*60*18 |
60 |
18 |
60 |
0.8 |
60 |
200 |
|
50*50*18 |
50 |
18 |
50 |
0.8 |
40 |
100 |
