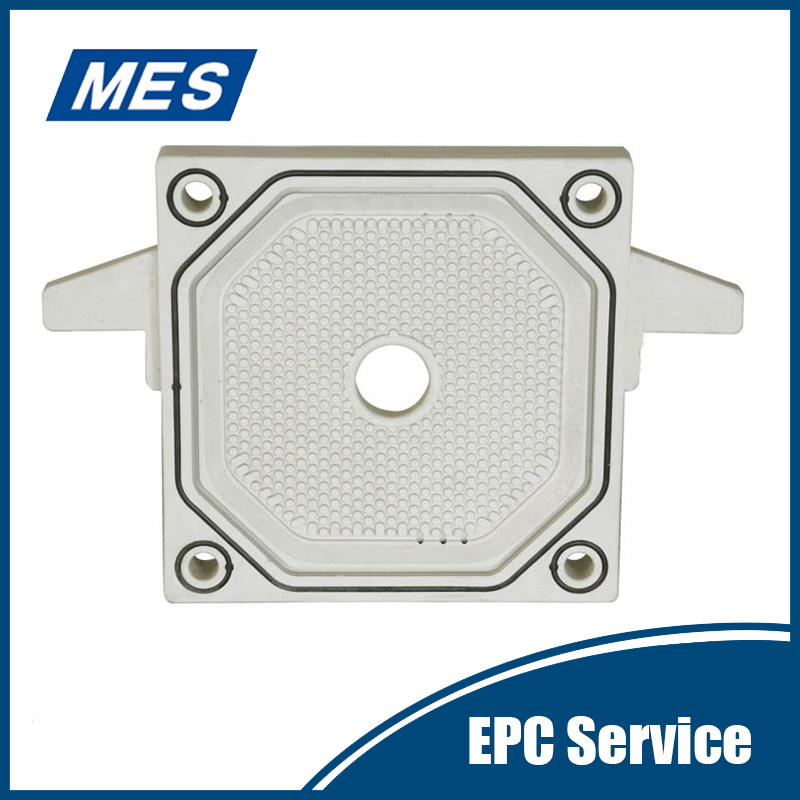

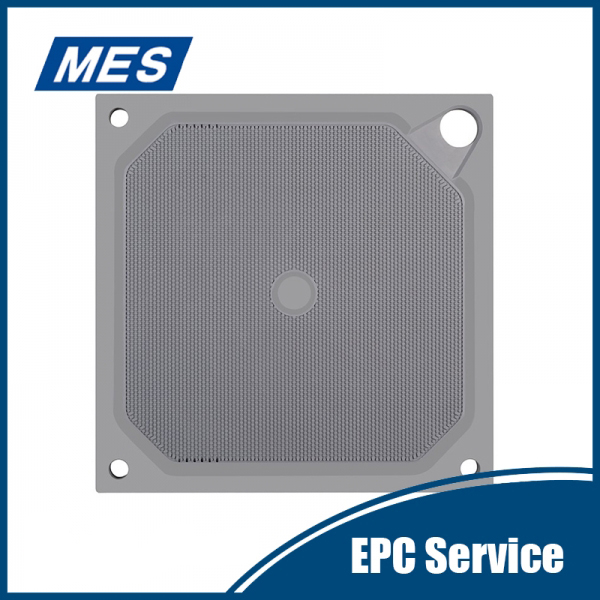

Chamber Filter Press Plate
- Our chamber plant is specializing in the production of frame filter plate.
Automatic Grade:Automatic
Material: Reinfoced PP and TPE
Certification:CE&ISO
Warranty: One Year
Chamber Filter Press Plate
1. Brief Introduction
Our filter plate adopts imported TPE elastomer and high intensity PP, which make the filter plate not noly has the flexibility of the rubber plate, but also the tenacity and rigidity of the polypropylene plate that ensure the airtightness of the filter plate during pressing.All technical index of filter plate strictly complied with EU standard.The maximum membrane inflation pressure of high pressure PP membrane filter plates can be up to 4.0Mpa,which represents the most advanced level of the world.

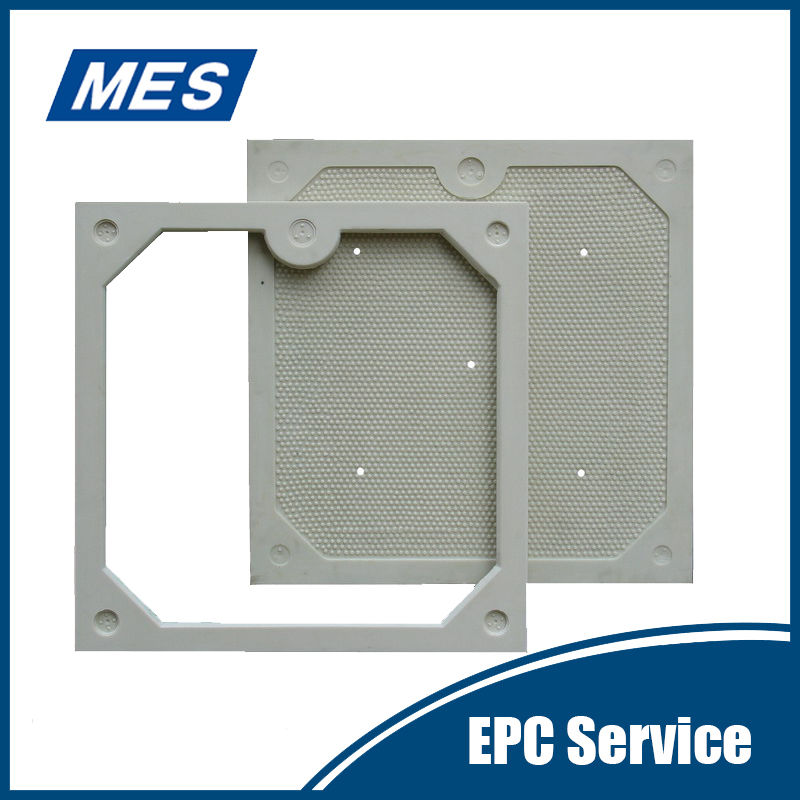

Our chamber plant is specializing in the production of frame filter plate.

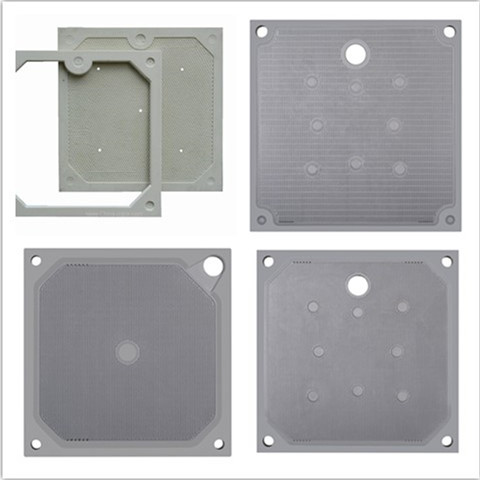

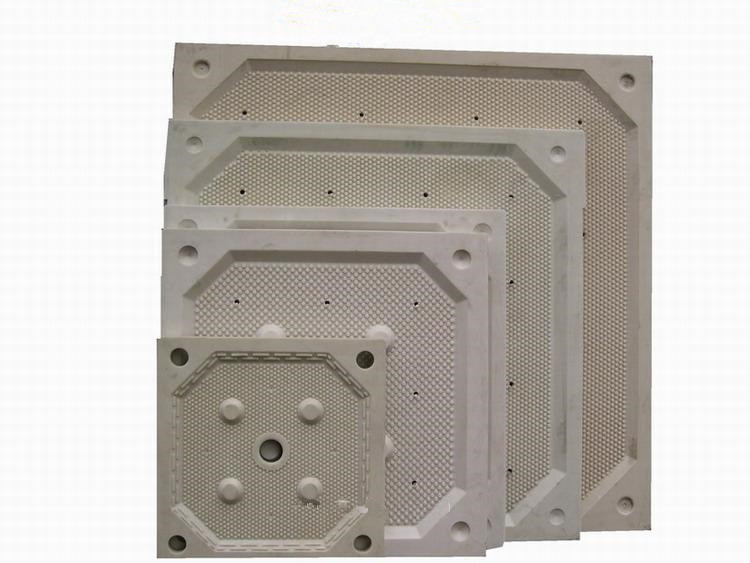

Filter plate size: 420*420 650*650 500*500 630*630 800*800 920*920 1000*1000 1250*1250 1500*1500 2000*2000 315*250, etc.
Filtering work pressure is 1.0Mpa, 1.6Mpa, 2.0Mpa, 2.5Mpa, 0.6Mpa and other grades, the filter temperature can be adapted to 40 - 120 ℃, filter area is 0.6-1000 square meters.Our company can bear almost all engineering projects in the field of solid-liquid separation.
2. Advantages
——Filter plates adopt pp material to press mould, and the design of filtration surface adopts special channel, smooth and without any blockage.
——Material of plate consists of TPE elastomer, fiber glass, and Polypropylene. So our plates have the advantage of flexibility, toughness, rigidity. After the process of the CNC machining center, the flatness of the filter plate is lower than 25µm which make sure excellent sealing when pressing, and without any leakage when feeding.
——All specifications of our plates not only comply with China JB/T4333.3-2005 standard, but also comply with Germany DIN7129 standard , completely in common with the European&Amerian products.
——Compared with the filtration plates manufactured according to national standards: filtration speed improved 20%, density and intensity, anti-fatigue ,anti-aging speed improved one times.
——The maximum feeding pressure of the filter plate is 1.6Mpa. With the properties of high temperature and high pressure resistance, antisepsis and airtight, short filtering cycle, good processing effect and low humidity of the cake.
3. Features
3.1 Recessed chamber filter plate for filtration of water, food, mining, chemical, etc;
3.2 Resistance to high temperature and high pressure;
3.3 Not easy to be blocked in filtration. Lower water content of filter cake;
3.4 High efficiency for filtering and washing;
3.5 Long service life.

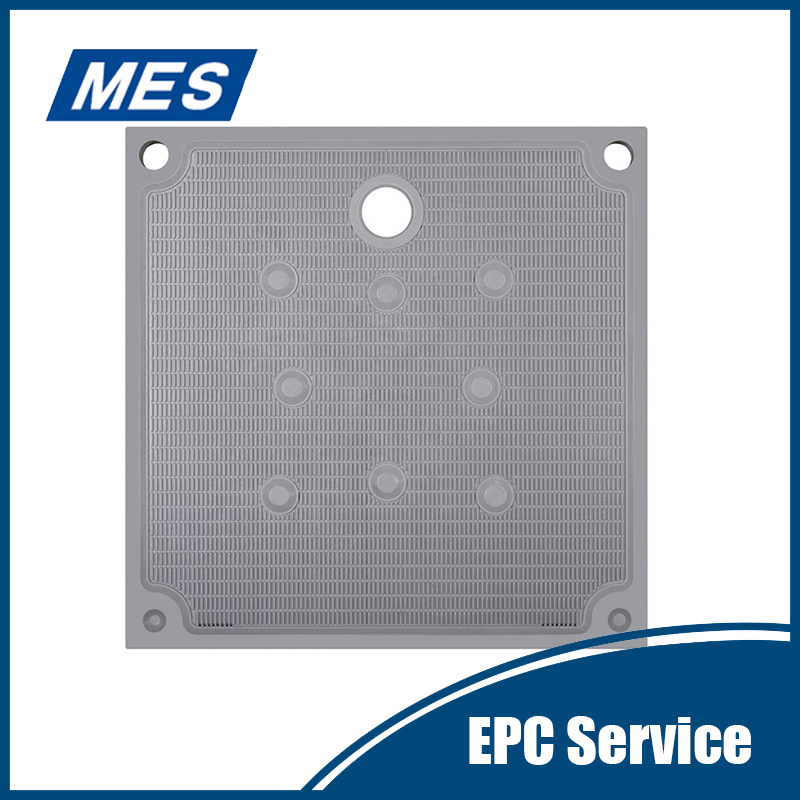

4.Common membrane filter press plate size
250, 450, 470, 500, 630, 720, 800, 900, 1000, 1200, 1250,1300, 1500, 1600, 1500*2000, 2000, 2500*2600, 3200, etc.
We also make special design for special industry.
