ZDY12000LD Directional Drill Rig
- ZDY12000LD Directional Drill Rig is capable to drill in-seam borehole in excess of 1500m.and is suitable to downhole motor directional drilling, rotary drilling and combined directional drilling technique
1. Introduction

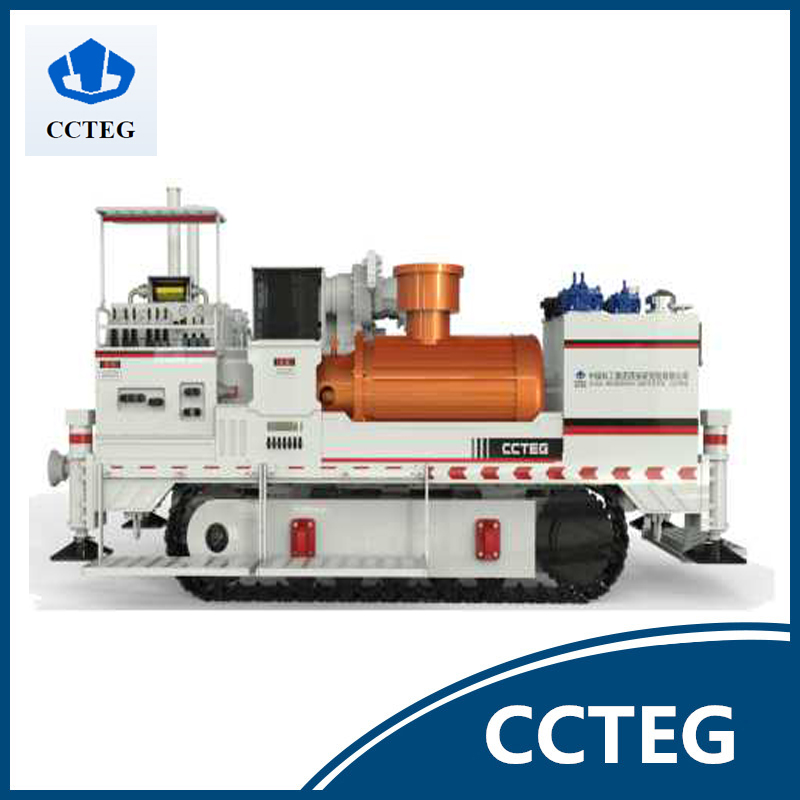

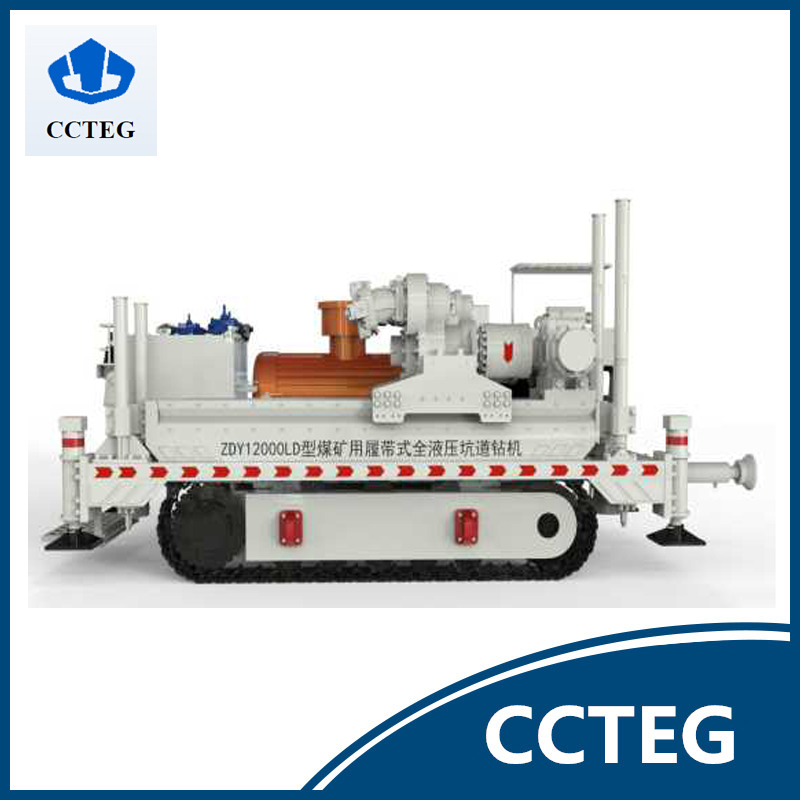

Drill crawler Pump crawler
2. Technical Features

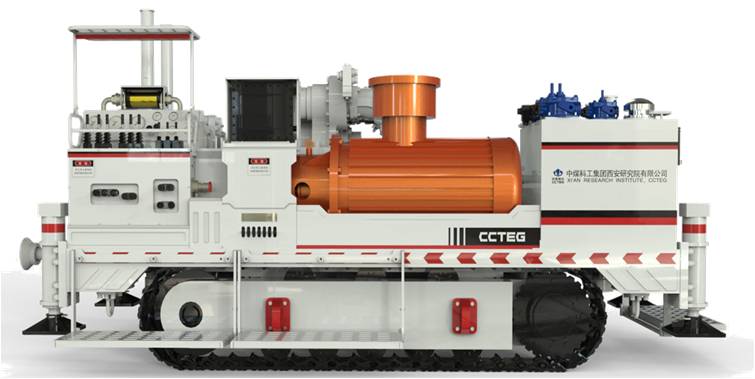

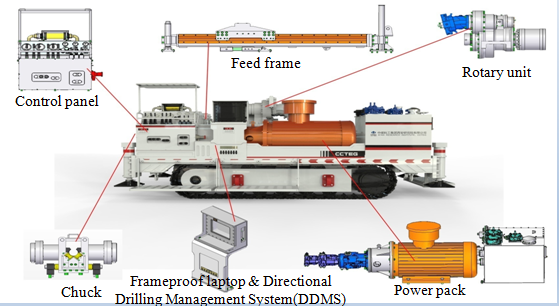

1)Drill Crawler
cis composed by control panel, drill unit, power pack, frameproof laptop, drill mud flowmeter, stingers, tracked tram and so on. Each part is stably connected by bolts and hydraulic hoses.
Tracked tram has features of high crawler capacity, flexible maneuverability and excellent underground roadway/drill site applicability.Technical specification
|
Drill depth |
1500m |
|
Rated torque |
12000/3500 N.m |
|
Rated speed |
50/170 r/min |
|
Maximum feed/pull force |
250 kN |
|
Rated power |
132 kW |
|
Feed-frame tilt angle |
-10°～20° |
|
Dimensions（L×W×H） |
4.2m×1.6m×1.9m |
![UXDKPJZI237]CM@4@0V5P(7](/upload/2016-10/11/UXDKPJZI237CM40V5P7.png "UXDKPJZI237]CM@4@0V5P(7")
Technical features：
- uHydraulic controlled double motor drive with pressure cut-off function
- uBig gear ratio planetary wheel deceleration allows output torque and rotational speed to be adjustable infinitely in a wide range
- uWith 135mm diameter central hole in main shaft, the drill is adaptable to work with rod diameter up to 127mm (common drill rods include φ73mm、φ89mm、φ102mm and φ127mm)；
- uBraking torque reaches to 2000Nm.

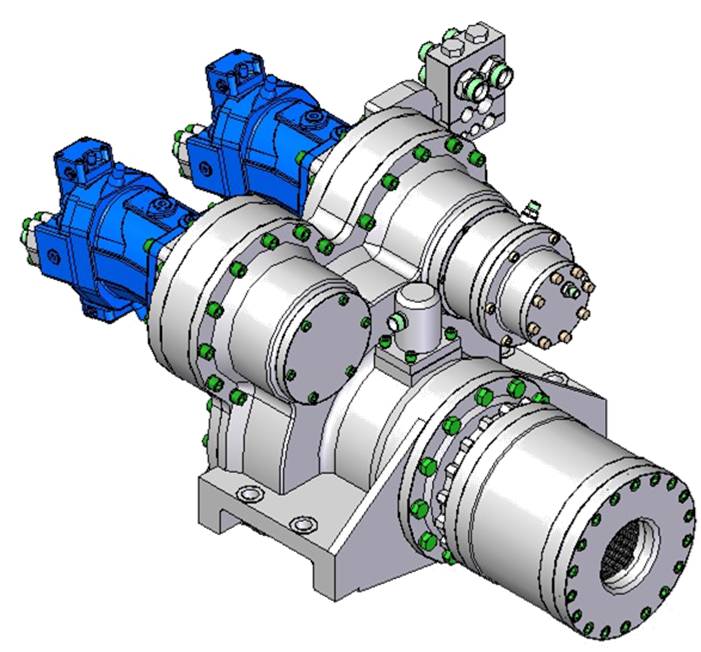

Rotary unit

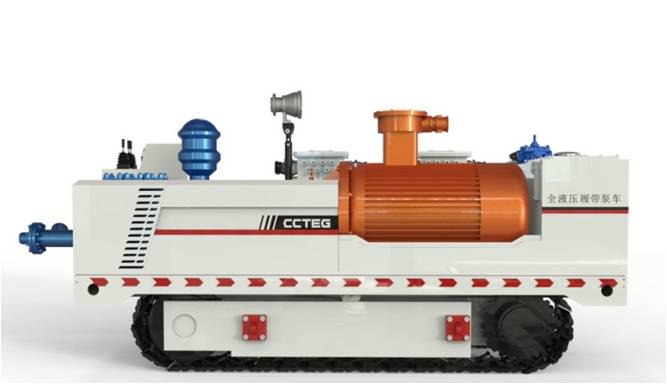

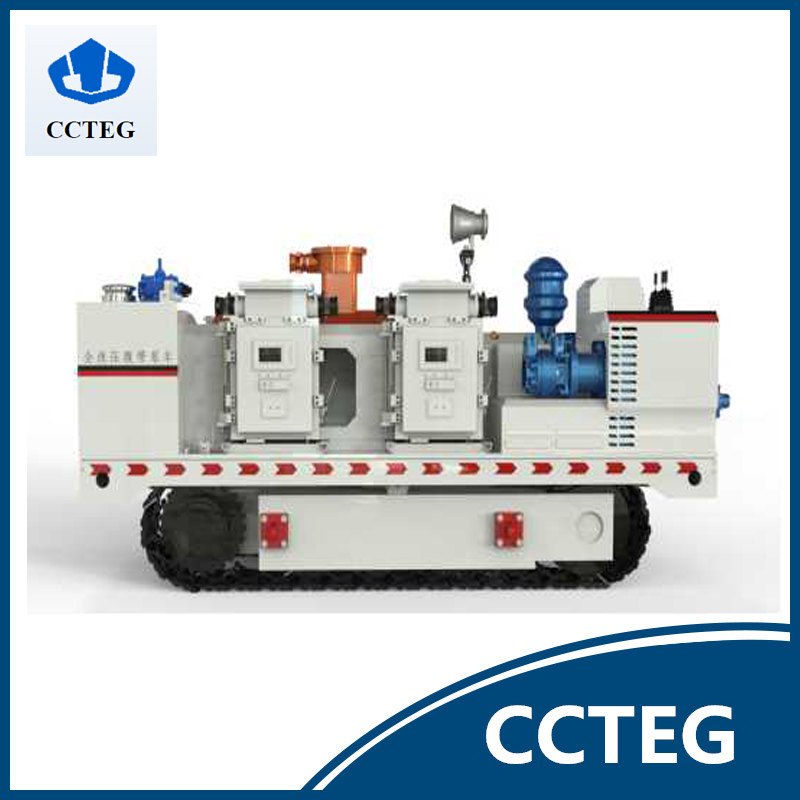

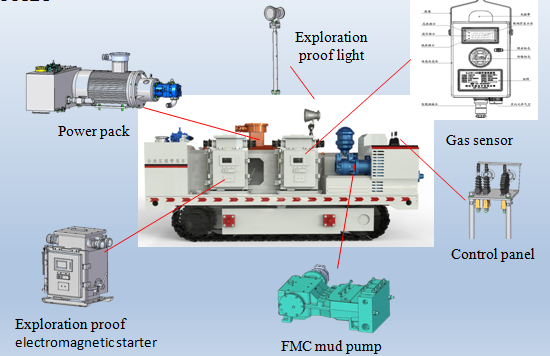

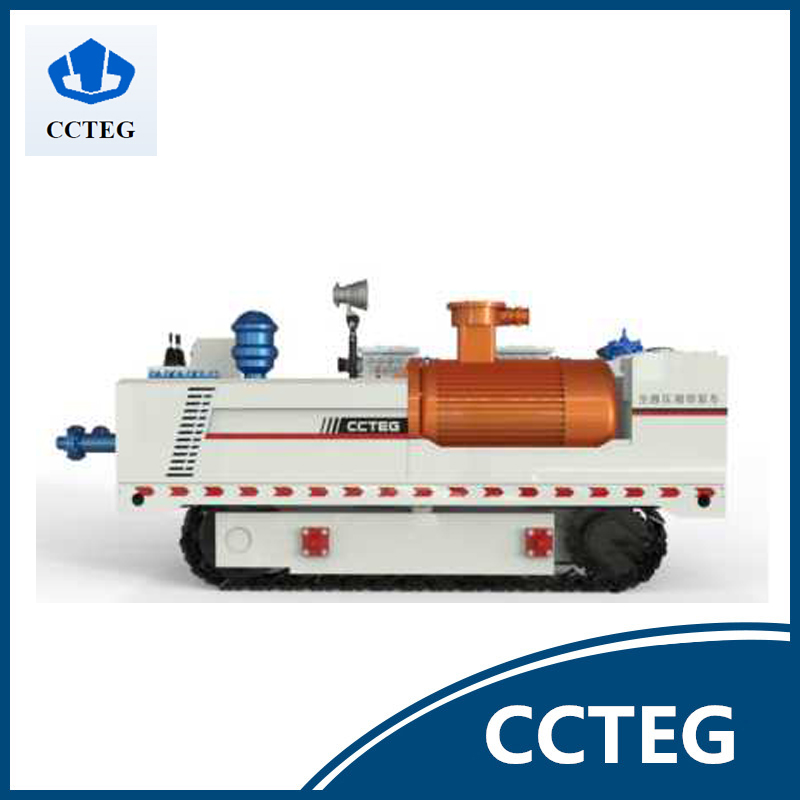

2)Pump Crawler
BLY390/12 mud pump crawler is a hydraulic pump crawler with large flow rate (the max flow rate is 390l/min) and high mud pressure (rated pressure is 12Mpa). The rig can maintain enough flow rate under high pressure work situation. It can supply enough hydraulic fluid power for downhole motor operation and drill cut remove to meet the requirement of long depth directional borehole drilling.
Pump crawler can “walk” indecently, which can significantly reduce the auxiliary time and have strong applicability.
Technical specification
|
Rated flow |
390 L/min |
|
Flow pressure |
12 MPa |
|
Power |
110 kW |
|
Dimension m |
3.25×1.3×1.76 |

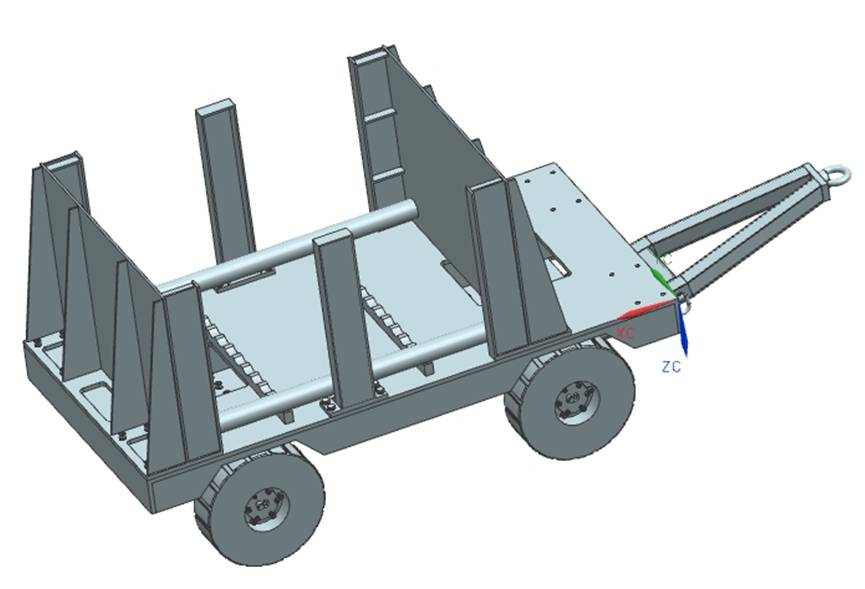

3)Drill rod transportation
- uDimension（L×W×H）： 2.5m×1.3m×1.25m；
- Maximum 88 drill rods(Φ89×1500 rods or Φ89×3000 ) can be contained.
3. Specification
Technical specification
|
Rotary Unit |
Rated torque |
12000～3000 Nm |
|
Rated speed |
50～150 r/min |
|
|
Brake torque |
2000 Nm |
|
|
Central hole diameter of main shaft |
135 mm |
|
|
Applicative drill rod |
Φ73mm/Φ89mm/Φ102mm/Φ127 mm |
|
|
Feed System |
Feed-frame tilt angle |
-10°～20° |
|
Max push/pull force |
250 kN |
|
|
Feed/pull stroke |
1200 mm |
|
|
Pump Crawler |
Rated flow rate |
390 L/Min |
|
Rated flow pressure |
12 MPa |
|
Power station |
Drill crawler |
Rated power |
132 kW |
|
Oil tank volume |
500 L |
||
|
Rate pressure of pump Ⅰ |
28 MPa |
||
|
Rate pressure of pump Ⅱ |
26 MPa |
||
|
Rate pressure of pump Ⅲ |
21 MPa |
||
|
Pump crawer |
Rated power |
110 kW |
|
|
Oil tank volume |
380 L |
||
|
Rated hydraulic pressure |
28 MPa |
||
|
Dimension |
Drill crawler |
Weight |
9000 kg |
|
Dimensions（L×W×H） |
4.2m×1.6×1.9m |
||
|
Pump crawler |
Weight |
5500 |
|
|
Dimensions（L×W×H） |
3.25m×1.3m×1.76m |
4. Application

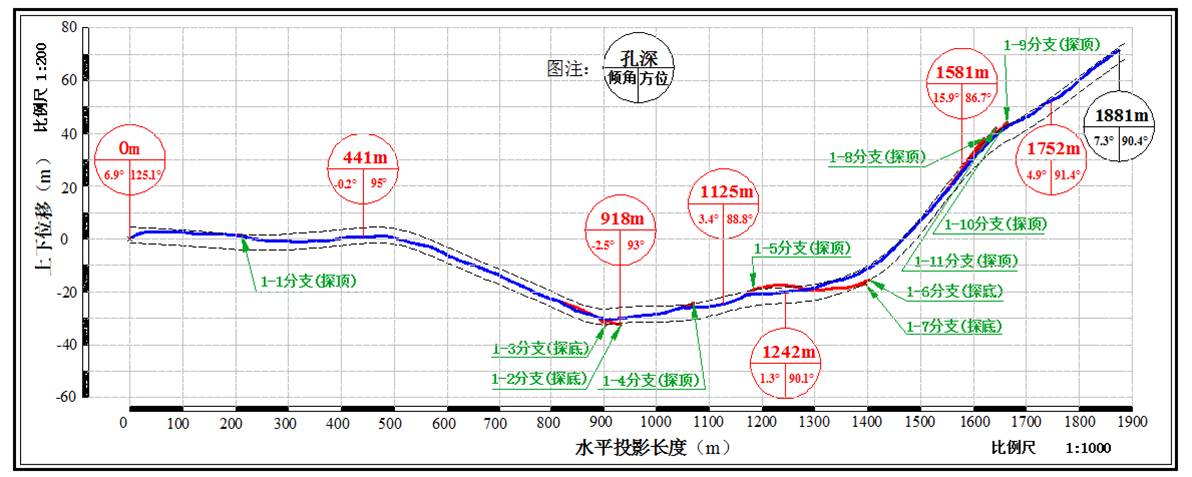

Long distance borehole have been accomplished in Sihe coal mine (5301 working face).. It has maximum depth of 1881m which we believe is the deepest coal mine underground directional borehole. The hole has 11 sidetracks 7 of them are drilled to detected roof and the rest are drilled to detected floor. Average daily drilling depth reached as high as 210m. 180m average daily drilling depth was maintained even after the borehole depth exceed 1000m.
1)With mud-pulse wireless MWD system, the drill accomplished an experiment borehole with max depth of 1566m and 19 sidetracks. Average drill efficiency reached 130m

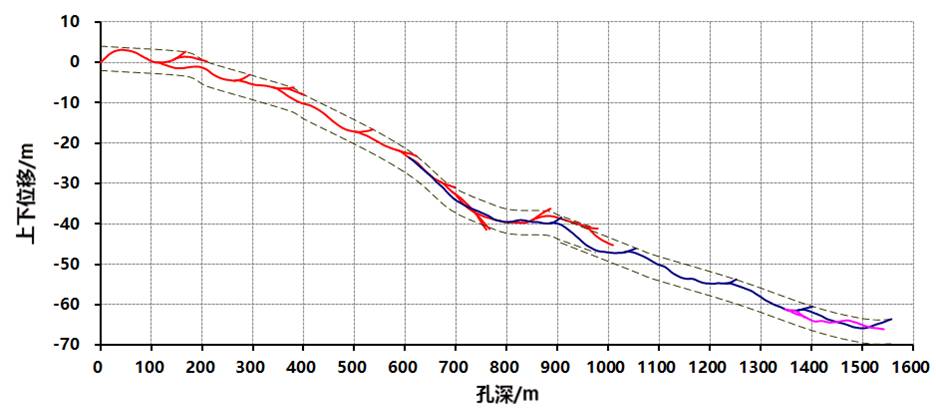

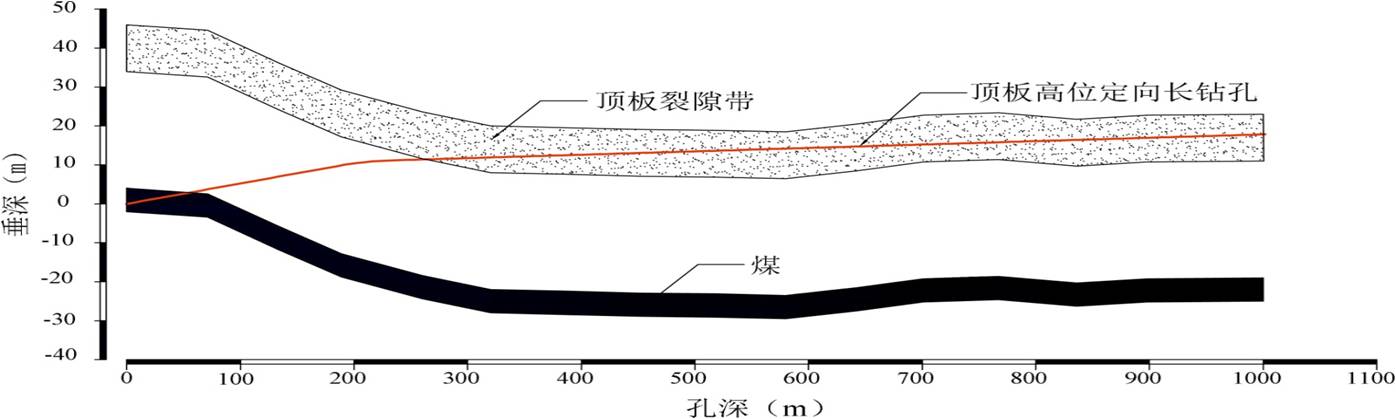

Mud-pulse wireless directional borehole profile
2)With geosteering MWD system, the drill
accomplished an experiment borehole with
max depth of 1209m and 5 sidetracks.

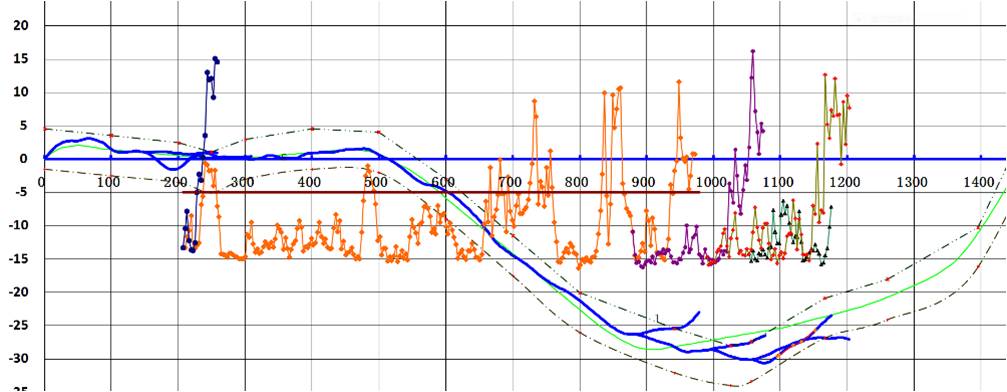

Geosteering directional borehole profile
A single hole with 77 sidetracks was accomplished in coal seam. Maximum of depth of the borehole is 834m. The average drill efficiency reached 247 m/d. One single borehole can cover the whole areas which reduced gas drainage cost significantly

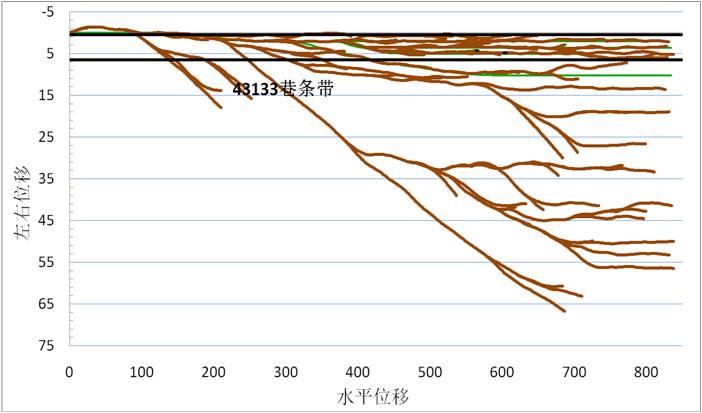

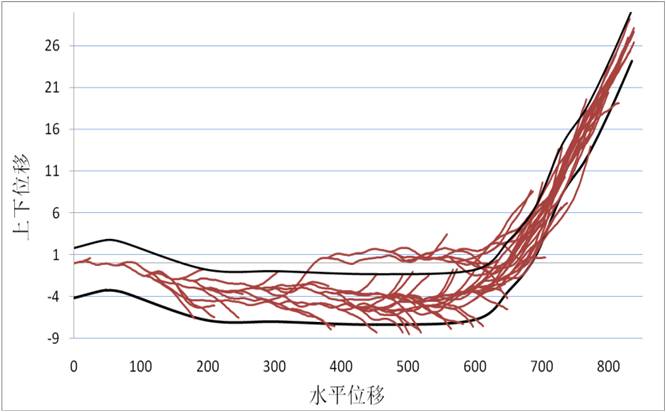

Borehole trajectory (plan) Borehole trajectory (profile)
