G-Star TD System
- G-Star TD is a MF-TDMA system with own intellectual-property rights. It supports star shaped and mesh shaped topology, sets up application network quickly, and connects with satellites directly. The prior advantages of wireless network, star network, broadcast, hybrid network, and SCPC mix together by G-Star TD.
G-Star TD System

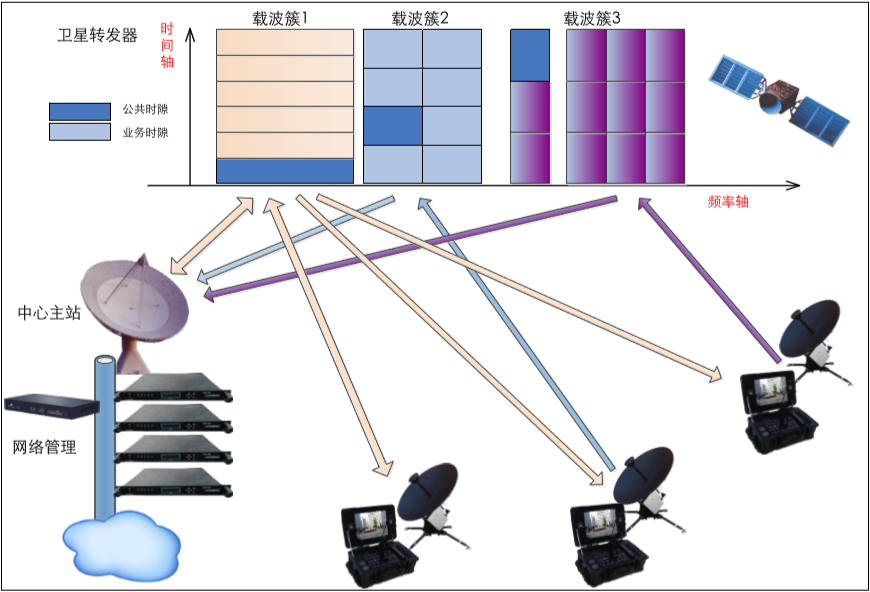

>>IntroductionG-Star TD is a MF-TDMA system with own intellectual-property rights. It supports star shaped and mesh shaped topology, sets up application network quickly, and connects with satellites directly. The prior advantages of wireless network, star network, broadcast, hybrid network, and SCPC mix together by G-Star TD. Based on TCP/IP, G-Star TD has multi-functions as video conference, satellite communication, and remote monitor & control. Integrating public communication system, fixed telephone network & MNC, TETRA, wireless image transportation, microwave communication, and BDS short messages, G-Star TD can be an emergency command platform.
>>Features

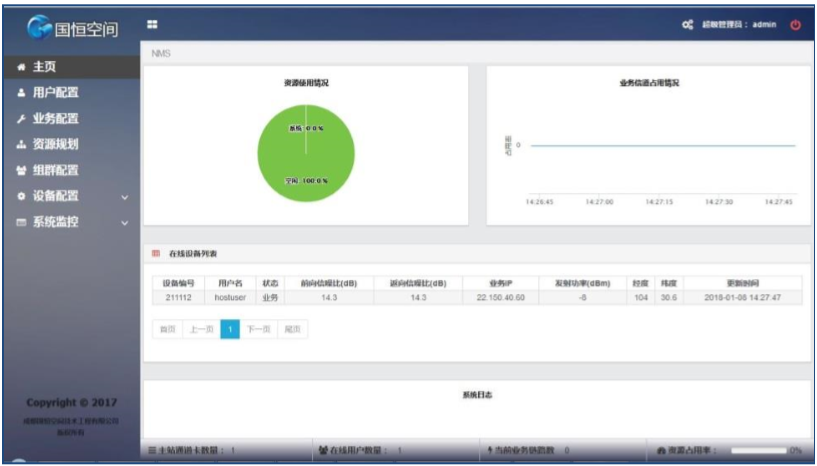

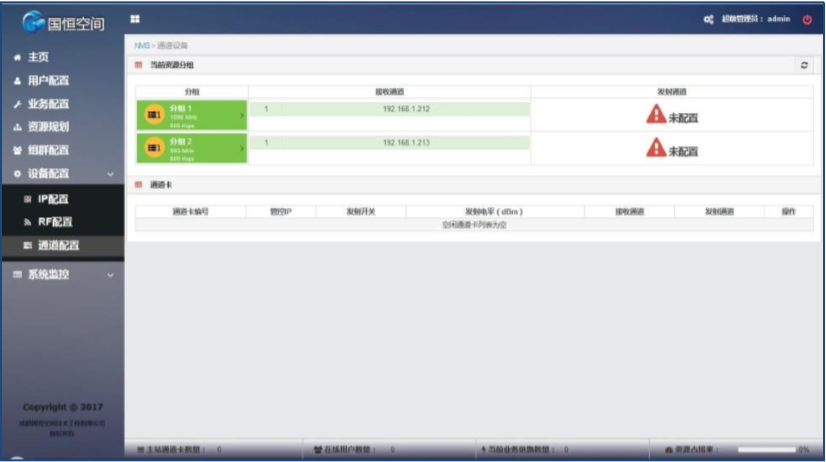

>>NMS
B/S Structure, and work without installed software
Chinese interface and simple operation
Differential Group resource planning for differential application
Support secondary group management
Offer customized group management
Differential customer service
Monitor real-time visual station and link status
Analyze Graphical display
View historical job log
system state alert

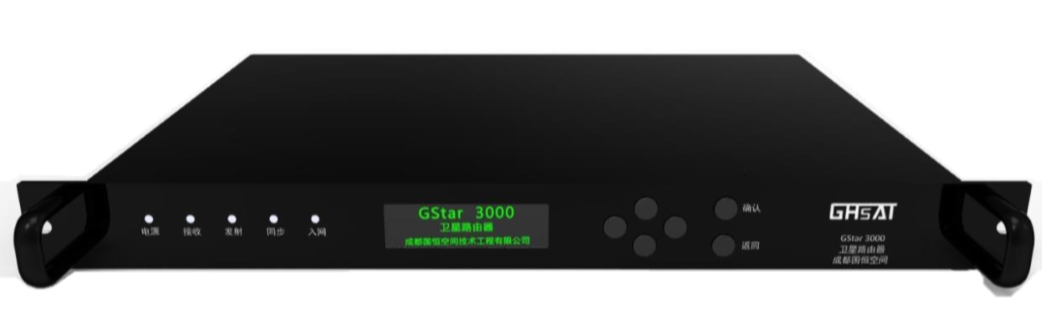

G-Star TD Satellite Modem
>>Introduction
G-Star 3000TD/2000TD is L-band satellite communication device. It bases on MFTDMA, and integrates satellite modem, IP router, QoS, and TCP. G-Star 3000FD not only can suit with antenna to build star and hybrid communication network also can work on point-to-point and point-to-multipoint. G-Star 3000FD is a major part of communication system such as being IDU device and being main control station or terminal.
>>Features
✓ It’s the IDU device for main control station of G-Star FD
✓ Stacked structure realizes the function of multi-channel
✓ Use MF-TDMA and support both mesh and star topology
✓ High integration of Satellite modem, network management system, IP router, QoS, TCP, and so on.
✓ Data rate from 4kbps to 17Mbps
✓ Speed of movement is up to 1000km/h, and acceleration is up to 20m/s2
✓ Support BoD
✓ Support ACM
✓ Support visual network management to do system monitor and allocate resource
✓ Provide multicast, broadcast, and constant rate support services
✓ automatically connect to the Internet after booting, power-off recovery, and signal-loss recovery
✓ Use graph of frequency spectrograph to assist receive signal of satellite
✓ Multi-control type, such as front panel control, Telnet, Web, and serial interface

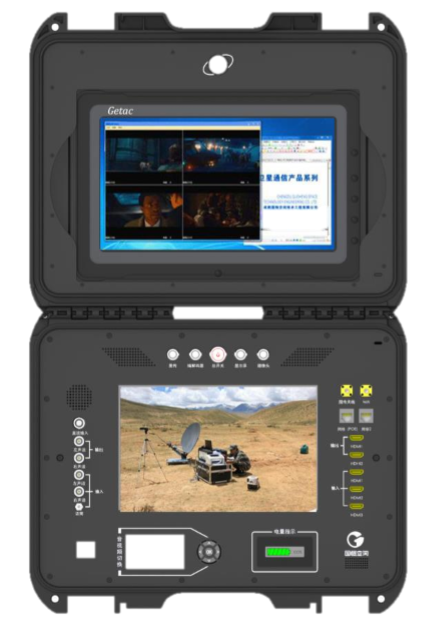

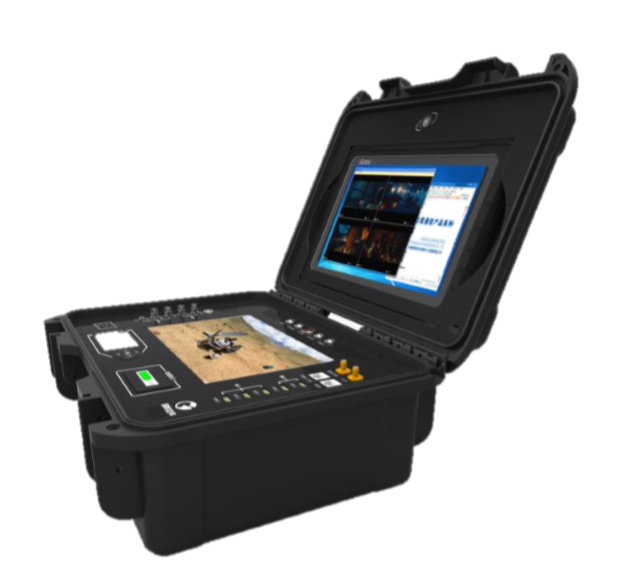

G-Star Integrated Service suitcase
STX 200>>Introduction
G-Star STX 200 is an integrated service suitcase. It’s designed for emergency communication under mal-condition. Small, lightweight, hand-carry, simple operation, and Low power consumption are the major features of STX 200. In emergency scene, users of STX 200 not only can collect, transfer, and receive video and audio data but also monitor local environment through front end and satellite station.
