Mist Eliminator
- Mist elimiantor is a kind of vapor-liquid separating device. It is mainly composed of wave blades, plate, card and other fixed device. In the operation of absorption tower in wet desulfurization, there will be "fog" of 10--60 micron diameter. The "fog" contains water, it is dissolved with sulfuric acid, sulfate, sulfur dioxide, and it will cause severe corrosion to fan, heat exchanger and flue pipe. So wet desulfurization process requires mist eliminator.
Mist Eliminator
1.Introduction

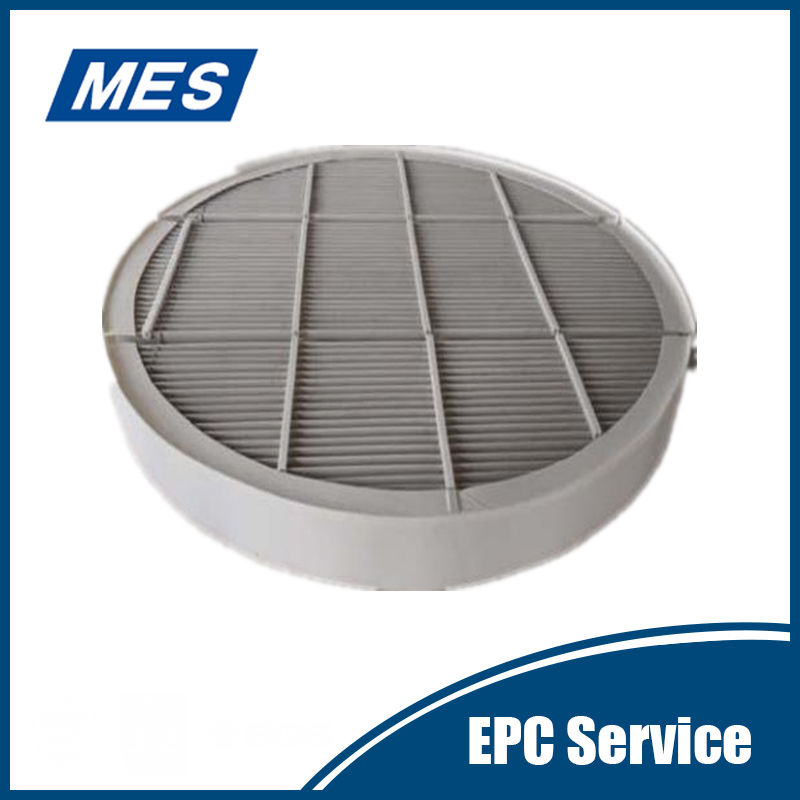

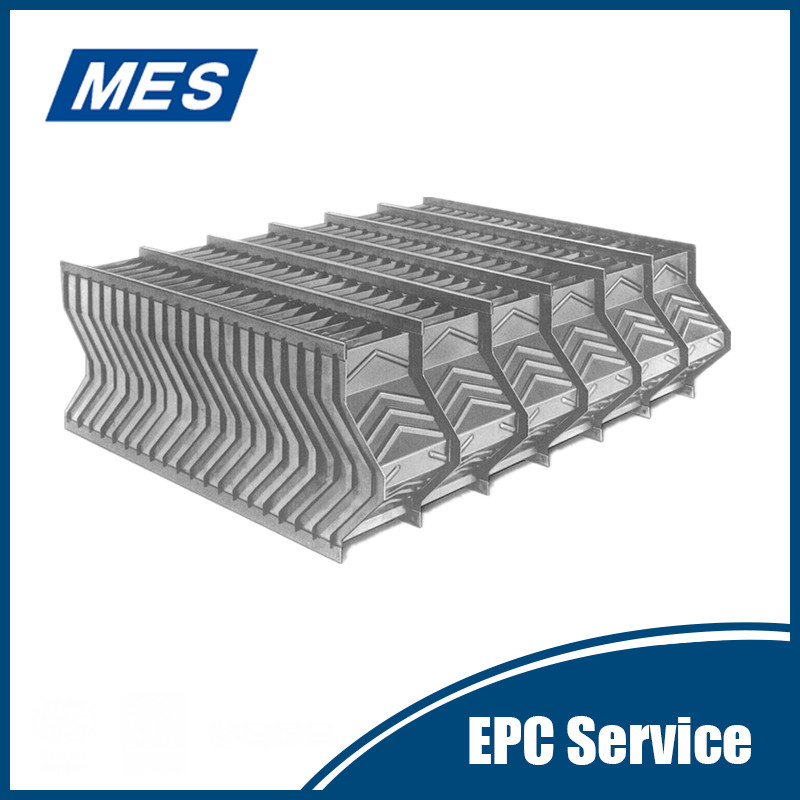

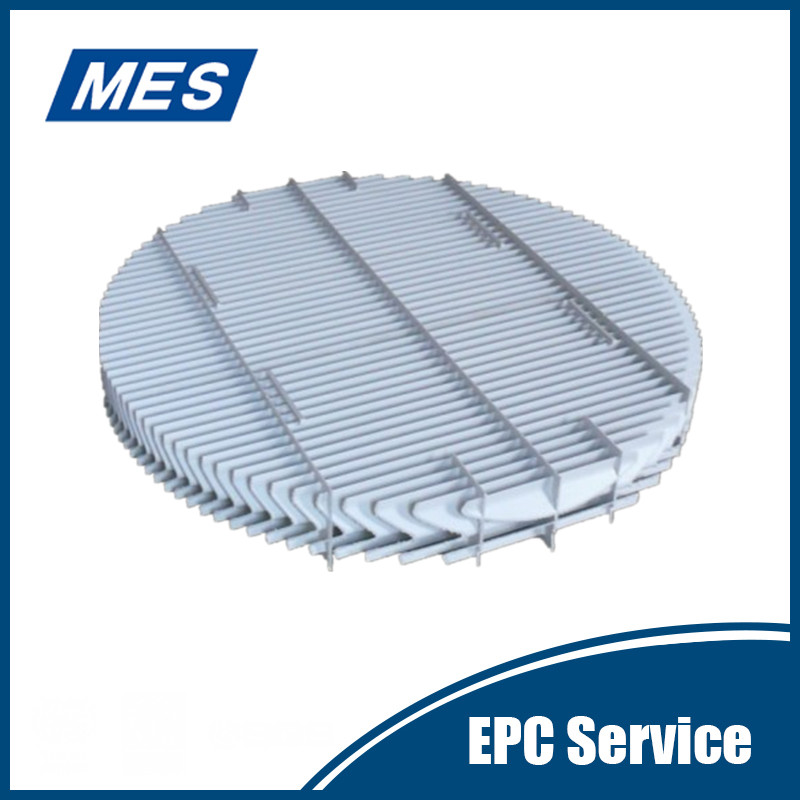

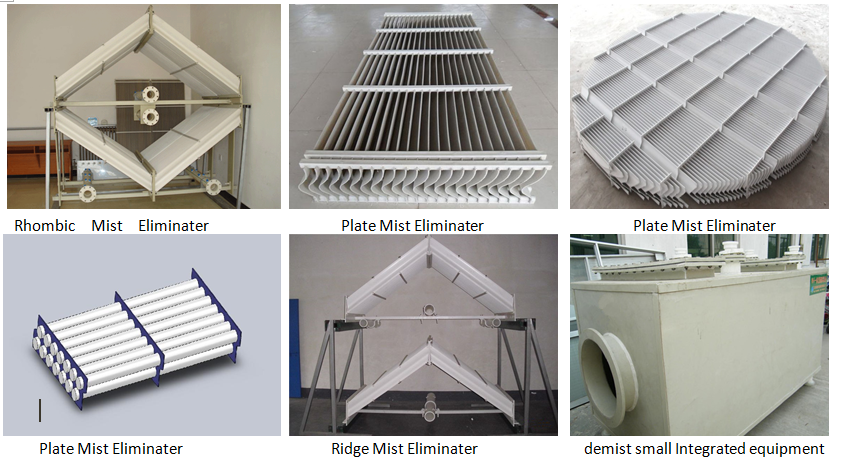

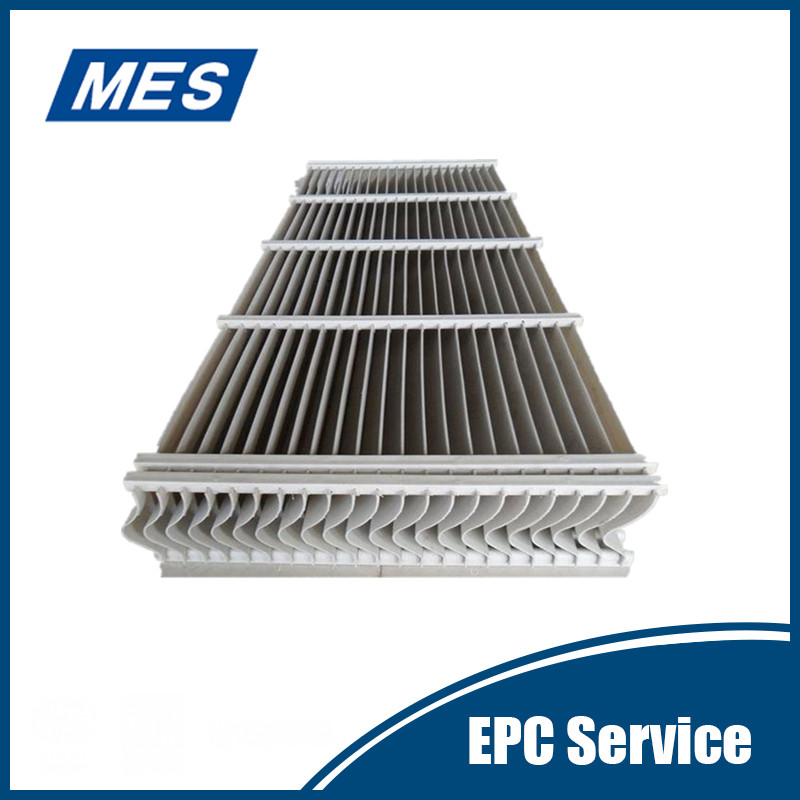

Mist eliminator is a kind of vapor-liquid separating device. It is mainly composed of wave blades, plate, card and other fixed device. In the operation of absorption tower in wet desulfurization, there will be "fog" of 10--60 micron diameter. The "fog" contains water, it is dissolved with sulfuric acid, sulfate, sulfur dioxide, and it will cause severe corrosion to fan, heat exchanger and flue pipe. So wet desulfurization process requires mist eliminator.
2.Working Principle
Mist eliminator is constructed from multilayer knitted mesh media and provides dense matthrough which process gas flows and liquid entrainment is trapped through impingement or coalescence and prevented from passing downstream, achieving liquid-gas separation.
3.Features
A. Simple structure, lightweight
B. Easy installation, operation and maintenance
C. 99% efficiency under general conditions and velocity (1~3m/sec or higher)
D. Can be made of any material suitable for the given temperature and corrosion-resistance
E. Long service life
F. Fits in all process equipment
4.Materials
Stainless Steel material: 304,304L,321,316,316L ,RS-2,NS-80,317L,904L,310S/PP/PVC
5.Application
A. Boilers
B. Evaporators, Gas-liquid, Solid-liquid separation
C. Vaccum towers, Absorber
D. Lube towers
E. Elimination of entrainment
F. Elimination of toxic air pollutants
G. Used as gaskets in cable, automobile and computer industry
H. Desalination plants
Note: we can customize all kinds of mist eliminators in different shapes according to your specification or drawings.
