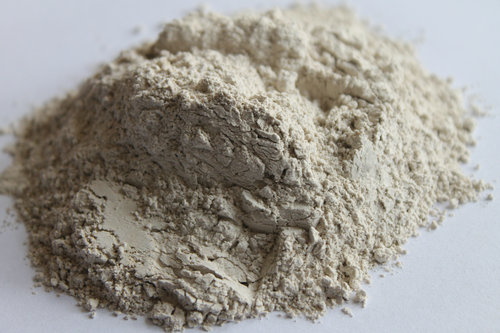

    Oil Drilling Barite Powder

    • Own Barite Mine, Own Barite Grinding Plant, and Sale from mine directly!

      Place of Origin:Guizhou，China
      Brand Name: MES
      Certification:ISO/REACH/SGS/ROSH
      Model Number: Oil Drilling Grade
      Drilling Grade Barite (API 13 A Standard) Powder
    Product details

    CAS 7727-43-7 Oil Drilling Grade Barite Powder


    Own Barite Mine, Own Barite Grinding Plant, and Sale from mine directly!

    drilling grade barite powder

    1. Barite Powder API Grade:

       Oil drilling barite powder quality requirements

    Drilling Grade Barite (API 13 A Standard) Powder

    BaSO4: 92% min.
    Cd:  3ppm max.
    Hg: 1PPM max.
    S.G.: 4.2-4.4.
    Size: 200/325mesh (97%passing)
    Whiteness: 92min.
    Weight: in 50kgs/bag


    2. Product Property

    Non qualitative white powder. Non toxic, not soluble in water, soluble in smoking Sulphuric Acid, slightly soluble in boiling Hydrochloric Acid. Chemical property is stable, it’ll reduce to Barium Sulfide when heat with carbon. It wont change color when meeting with hydrogen sulfide or toxic gas in the air.



    3. product usage

    Applicated to oilfields,construction and chemical industried.Barite powder can add weight to well-drilled mud as a weighting agent for all types of drilling fluids.


    4. The drilling mud weighting agent to the requirement of barium sulfate

    Some oil and gas well drilling, the general use of drilling mud, clay proportion of 2.5 or so, the proportion of water is 1, so the mud weight is low, sometimes the mud weight can't with underground oil and gas pressure balance, has caused the blowout accident.Under the condition of the underground pressure is higher, you need to increase the mud weight, supplying the mud with barium sulfate is an effective measure to increase the mud weight.Do drilling mud with barium sulfate general fineness to achieve more than 325 mesh, such as barium sulfate fineness is not prone to precipitation.Drilling mud with barite for weighting is greater than 4.2, BaSO4 content not less than 95%, less than 1% soluble salts.

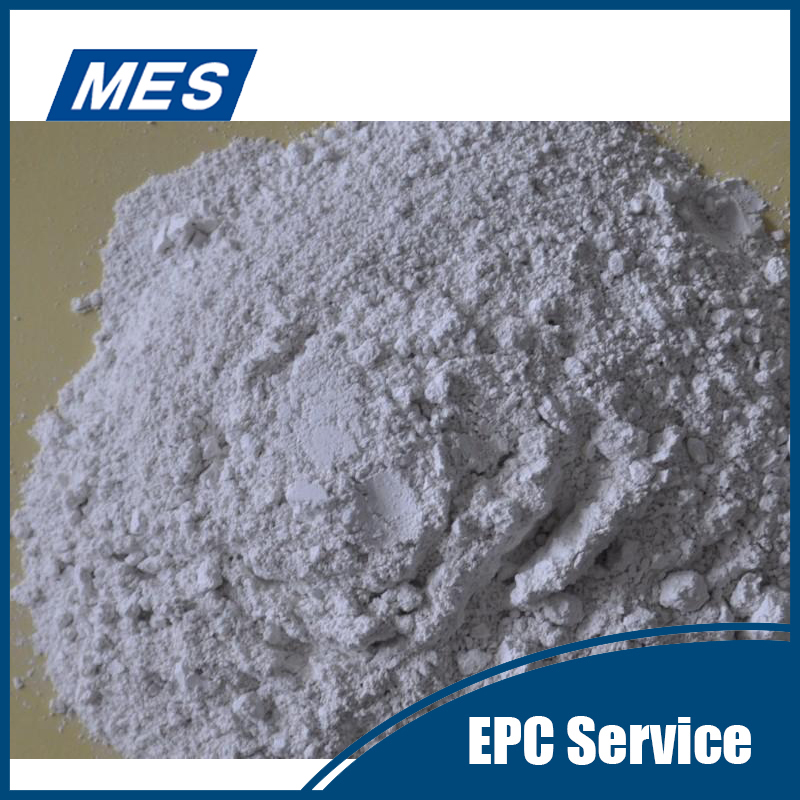

    drilling_grade_barite_powder_Beijing_HOT_Mining_Tech_Co_Ltd


    5.Product Details:

    Product Name:  Barium Sulfate

     Molecular

     Weight:

    		233.4
    H.S.Code: 2833270000. CAS No.:  7727-43-7
    EINECS NO: 231-784-4

    Molecular

    Formula:

    		BaSO4
    Properties:

    Non Qualitative White Powder

    .Non Toxic, Not Soluble In Water,

    Soluble In Smoking Sulphuric Acid,

    Slightly Soluble In Boiling Hydrochloric Acid.

    Chemical Property Is Stable,

    It'll Reduce To Barium Sulfide When Heat With Carbon.

    		Supply Ability: 10000 Ton/Tons Per Month


    6.Technical Data (standard:Q/VAIP-2010)

    Oil& Gas Drilling Grade Barite Powder(API 13 A Standard)
    Physical Properties Chemical Properties
    Appearance : Barite Powder  Content of BaSO4 : 94% min.
    Specific Gravity: 4.3min.  Hg : 0.05% PPM max.
    Water Soluble Alkaline : 0.001% max.  Cd : 0.7% PPM max.
    Moisture: 0.5% max.  Pb : 0.087% max.

    Soluble Alkaline Earth Metals

    As Calcium : 250PPM max.

    		 Fe2O3 : 0.3% max.
    Residue greater than 75um:2.1% max.  Al2O3 : 0.1% max.
    PH in water : 7-9  SiO2 : 0.05% max.
    API 13A Standard Size: 200/325  mesh  Size: 200/ 325 mesh
    Oil Absorption : 7-10  Loss on Ignition : 1% max.
    Whiteness : 91% max.  Stability : Stable
    Color: Light yellow  CaCO3: 0.3% max.
    Packing  In bulk 25kg bag , 50kg bag, 1.5 ton bag, jumbo bag or as your requirements.

    Application :Use as materials of oil-drilling mud fluid as weighting additives to increase the mud weight without increasing the solid content. The mineral has high specific gravity to be use for increasing mud density in many types of drilling fluid systems, etc.

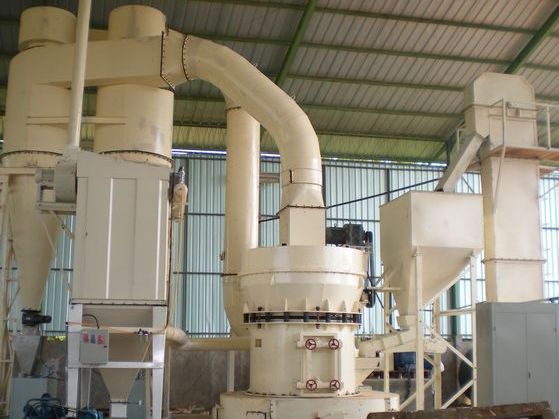

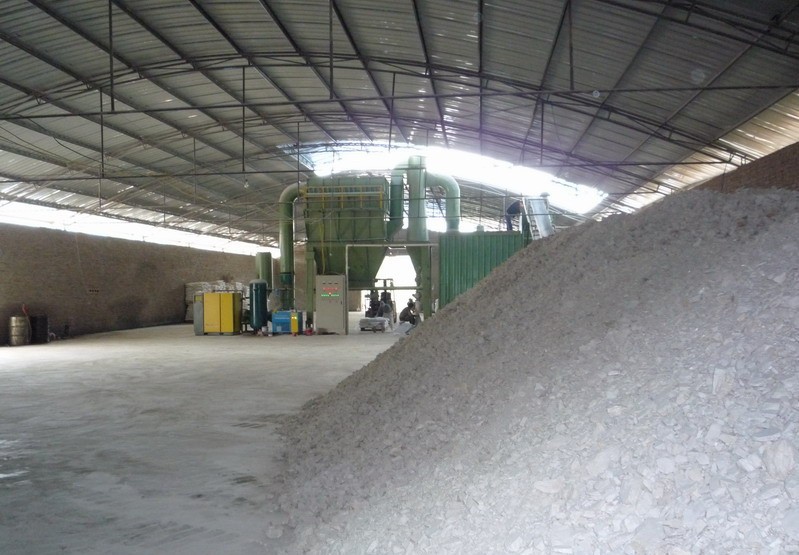

    barite powder plant-2_HOT Miningbarite Process Grinding Plant_MES_HOT Mining (3)
