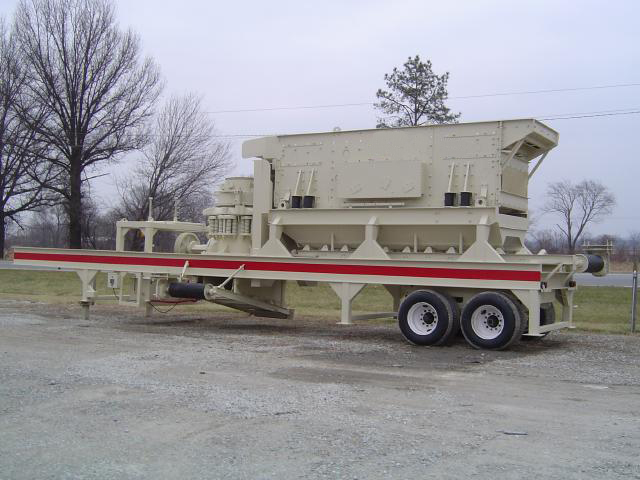

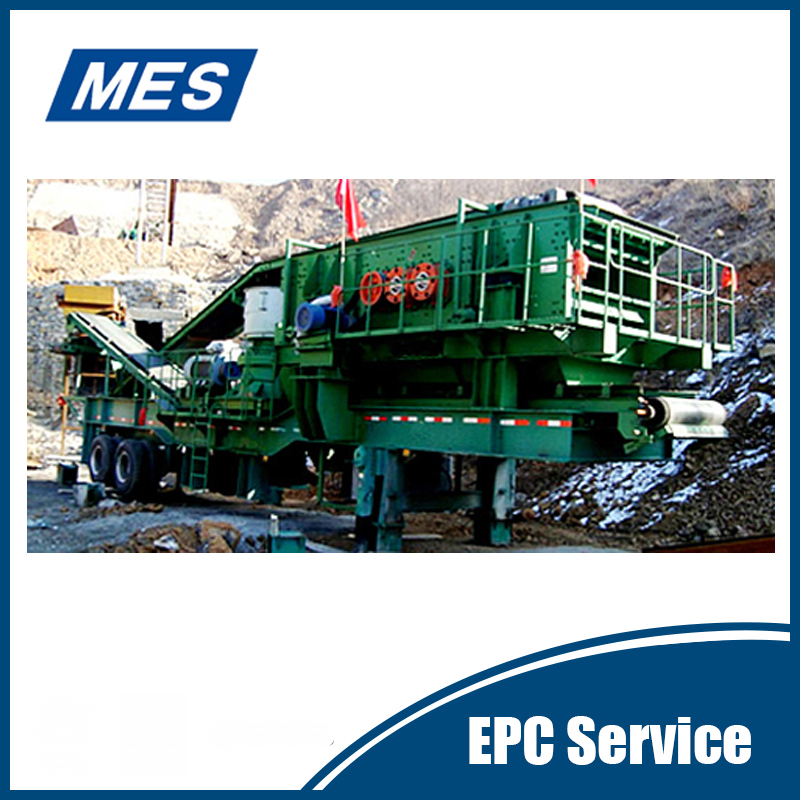

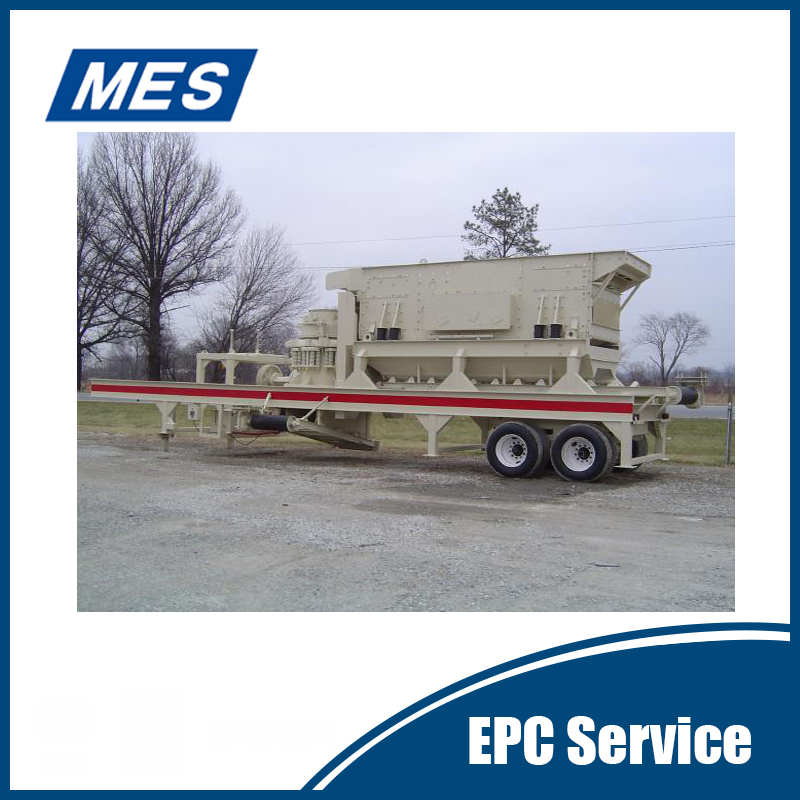

Wheel Cone Plant
- MES is launching a new, comprehensive wheel cone plant series for efficient fully mobile crushing, and screening applications.
The new HMP wheel cone plant concept is fully adaptable to all mobile crushing needs, opening up a whole new range of business opportunities for contractors, quarry operators, recycling and mining applications.
Model:HMP series
Composition:Crusher,Feeder Conveyor,Screen,Under Screen Conveyor,Closed Circuit Conveyor,Under Crusher Conveyor
Wheel Cone Plant
1.Introduction of Wheel Cone Plant
MES is launching a new, comprehensive portable plant series for efficient fully mobile crushing, and screening applications.
The new HMP portable plant concept is fully adaptable to all mobile crushing needs, opening up a whole new range of business opportunities for contractors, quarry operators, recycling and mining applications.
Flexible operation - from coarse to fine crushing and screening.
The HMP Series portable plant can be operated as independent units or as a two- or three-stage crushing application: from primary to secondary, tertiary and fine crushing. As required, a portable screen can be attached to the process.
Built around proven quality crushers.
HNW series portable plants are built in lightweight and superior in engineering design, they are ideally suited to the most demanding portable crushing and screening applications, and it offers new possibilities in mobile crushing - always at the lowest cost per ton.
HMP portable plant highlights:
• Built around proven MES latest crushing & screening technology
• Everything on board: feeders, screens and power installations
• Suitable for two- and three-stage crushing applications
• Quick road transportation thanks to king pin arrangement
2.Parameters of Wheel Cone Plant
Technical
Parameters
HMP100CC
HMP200CC
HMP300CC
Crusher
Model
CC100
CC200
CC300
Power(kw)
90
160
250
Feeder
Conveyor
Belt
Width(mm)
800
800
800
Length(mm)
7000
10000
10000
Power(kw)
5.5
5.5
5.5
Screen
Model
2(3)TSK1648
2(3)TSK1860
2(3)TSK1860
Size(mm*mm)
1170*810
1360*815
1550*815
Decks
2(3)
2(3)
2(3)
Power(kw)
30
37
37
Under
Screen Conveyor
Belt
Width(mm)
1200
1400
1400
Length(mm)
7000
10000
10000
Power(kw)
4
5.5
5.5
Closed
Circuit Conveyor
Belt
Width(mm)
500
650
650
Length(mm)
9800
9800
9800
Power(kw)
11
11
11
Under
Crusher Conveyor
Belt
Width(mm)
1000
1200
1400
Length(mm)
9650
10058
12100
Power(kw)
15
18.5
22
Diesel
Drive/Generator
Options
Options
Options
